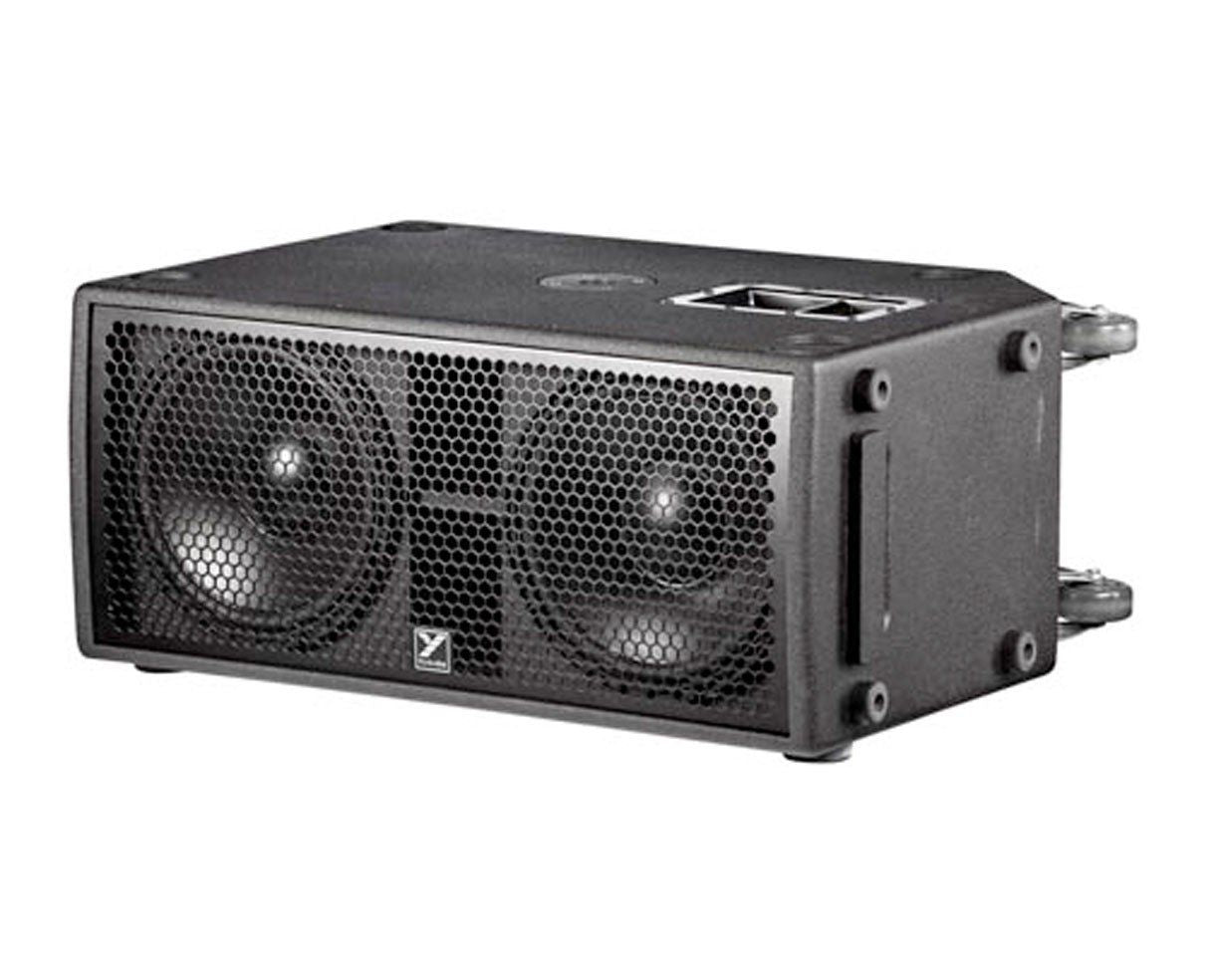

Yorkville PSA1S Paraline Series 1400W Compact Dual Full Range Active Subwoofer

Overview

The 1400W PSA1S Paraline Series 12" Active Subwoofer from Yorkville Sound is a dual 12" bass reflex subwoofer that is best paired with the PSA1 full range loudspeaker system (sold separately). Its solid 15mm birch plywood cabinet construction and an integrated all-metal pole-mount adaptor make the PSA1S an ideal platform for stacking PSA1 cabinets in a scalable array system. Compact design and heavy-duty wheels & handles ensure the PSA1S can easily be handled by a single operator for economical system set-up.

Efficient Class-D power amplifier design provides long-term reliability. Capable of direct connection to any audio source (including speaker level input) the PSA1S can be easily integrated in to virtually any PA application, making it very versatile.

The PSA1S Subwoofer uses Yorkville Sound's Heavy Duty Precision Stand Adaptor. In order to minimize top cabinet sway and provide an improved standmount platform for multiple PSA1 cabinets, the PSA1S subwoofer standmount adapter uses a thick-walled cast aluminum stand receiver with a wide mounting plate.

Precision machining after casting allows high tolerances, improving the stand adaptor and providing a more stable and secure pole mount system for mobile Paraline systems when used in combination with the Yorkville SW-TUBEHD Heavy Duty all-steel subwoofer tube (not included).

Features

• Ultra High Performance Compact Active Subwoofer
• High Quality Dual 12-inch Speaker Components
• Bass Reflex Design
• Ideal Companion Subwoofer for PSA1 System
• Solid 15mm Birch Cabinet Construction
• Integrated Pole Mount Adaptor & Heavy Duty Wheels
• Optional : PSA1SF Flyable Version
• Made in Canada

Specifications

• Active or Passive: Active
• Power Rating (Watts): 1400 Watts Program (2800 Watts Peak)
• Max SPL (dB): 135dB Peak (129 dB Continuous)
• Frequency Response (Hz +/- 3dB): 37Hz-100Hz
• Crossover Frequency (Hz): Fixed @ 100Hz
• Driver Configuration: 2x12-inch (Bass Reflex Cabinet)
• LF Driver(s): 2x12-inch Ceramic with 3-inch Voice coil
• LF Impedance (Ohms): 2 x Ohm Load
• LF Power Amplifier (Watts): Class D

• Power Consumption (typ/max): 210VA / 440 VA
• Flyable Version: PSA1SF
• Enclosure Material: 15mm Birch
• Baffle Material: 15mm Birch
• Covering / Finish: Paint
• Dimensions: 22.75 x 14 x 32 inches
• Weight: 120 lb
