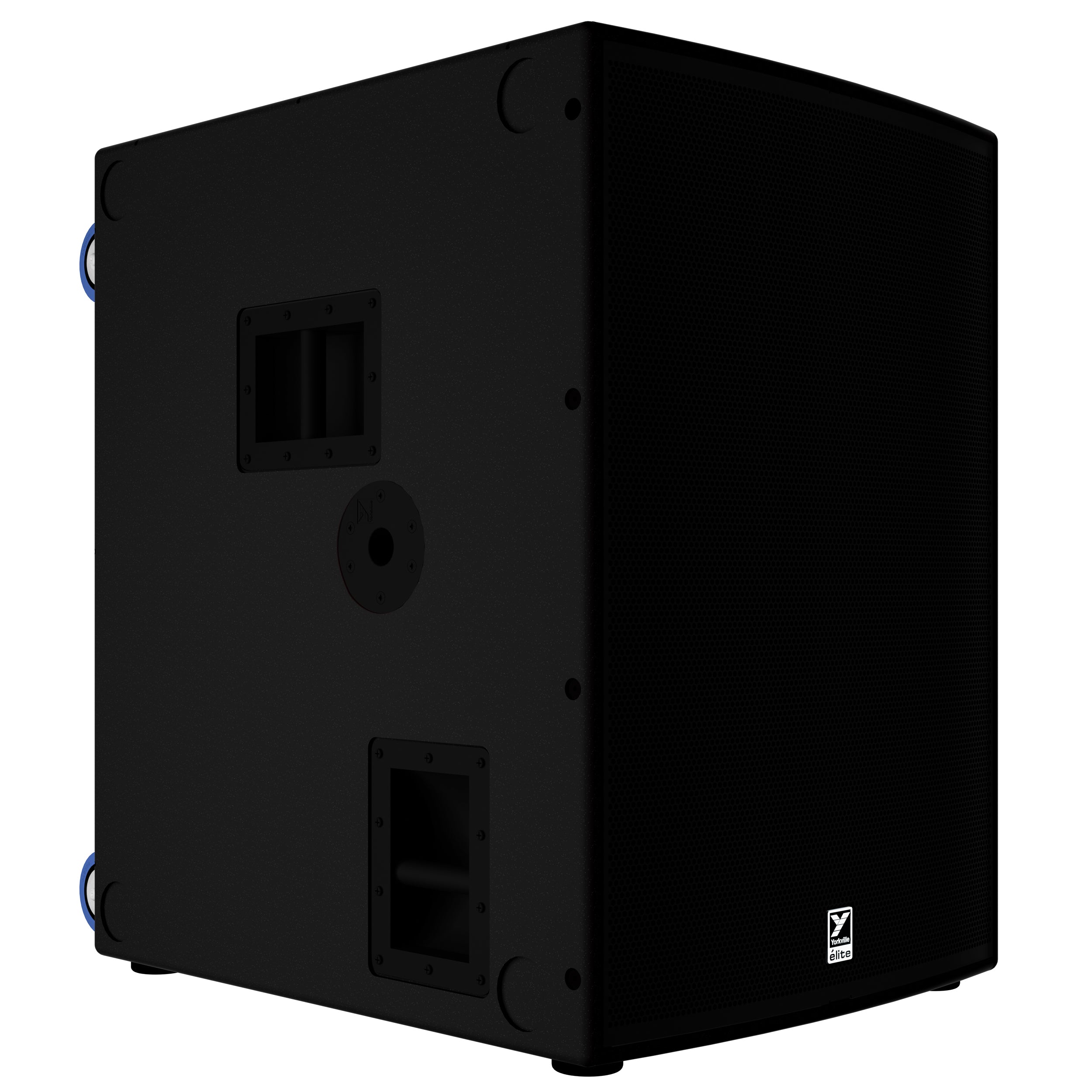

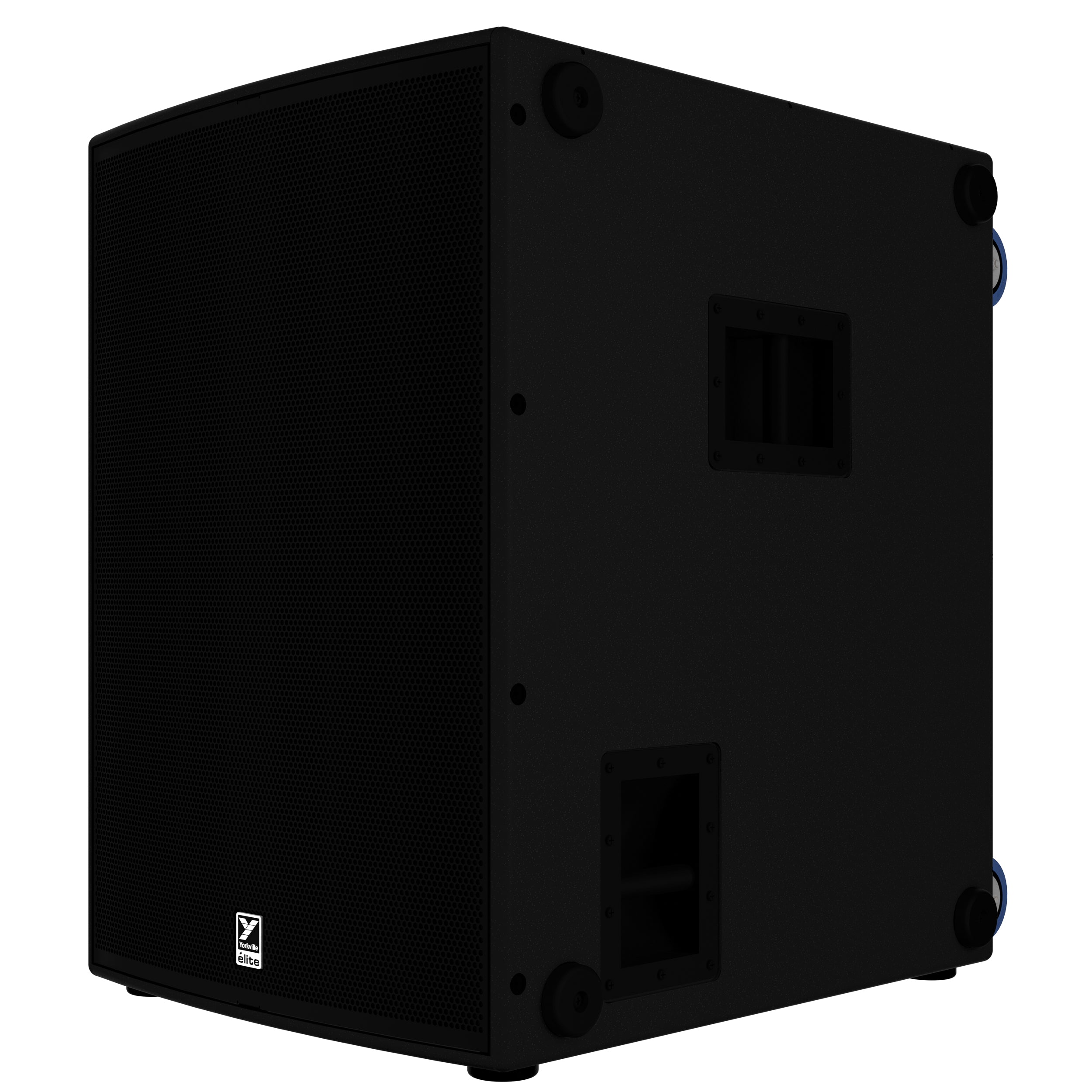

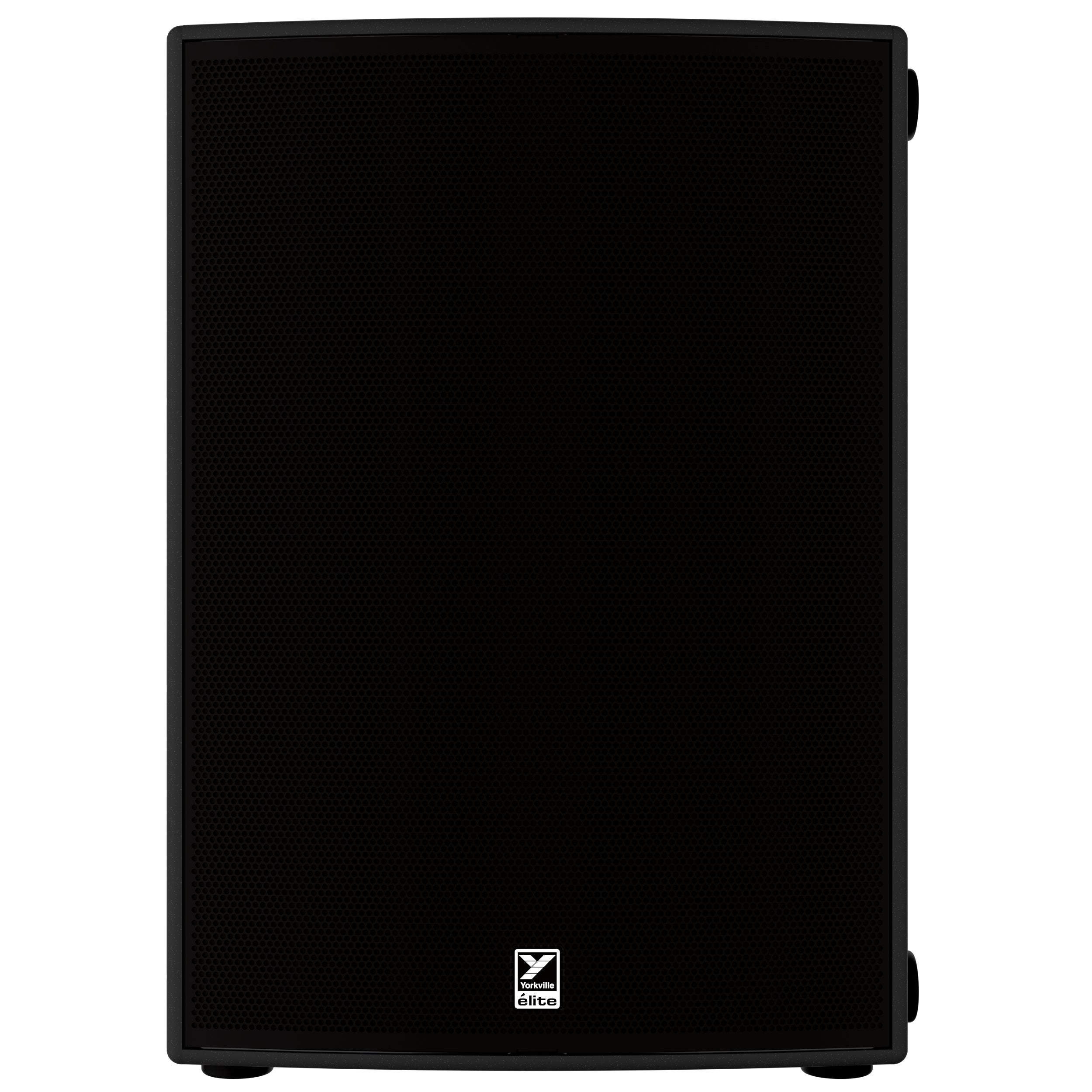

Yorkville EL21S Elite 21” Powered Subwoofer

Overview

Streamlined and straightforward, our new Elite range offers essential features and premium components to deliver high output and exceptional sound quality for professional users.

The EL21S is a powered subwoofer with a 21” neodymium woofer that delivers 3600 watts of peak power (2400 watts program). It goes down to 32 Hz for powerful bass response that will shake any venue to its foundation.

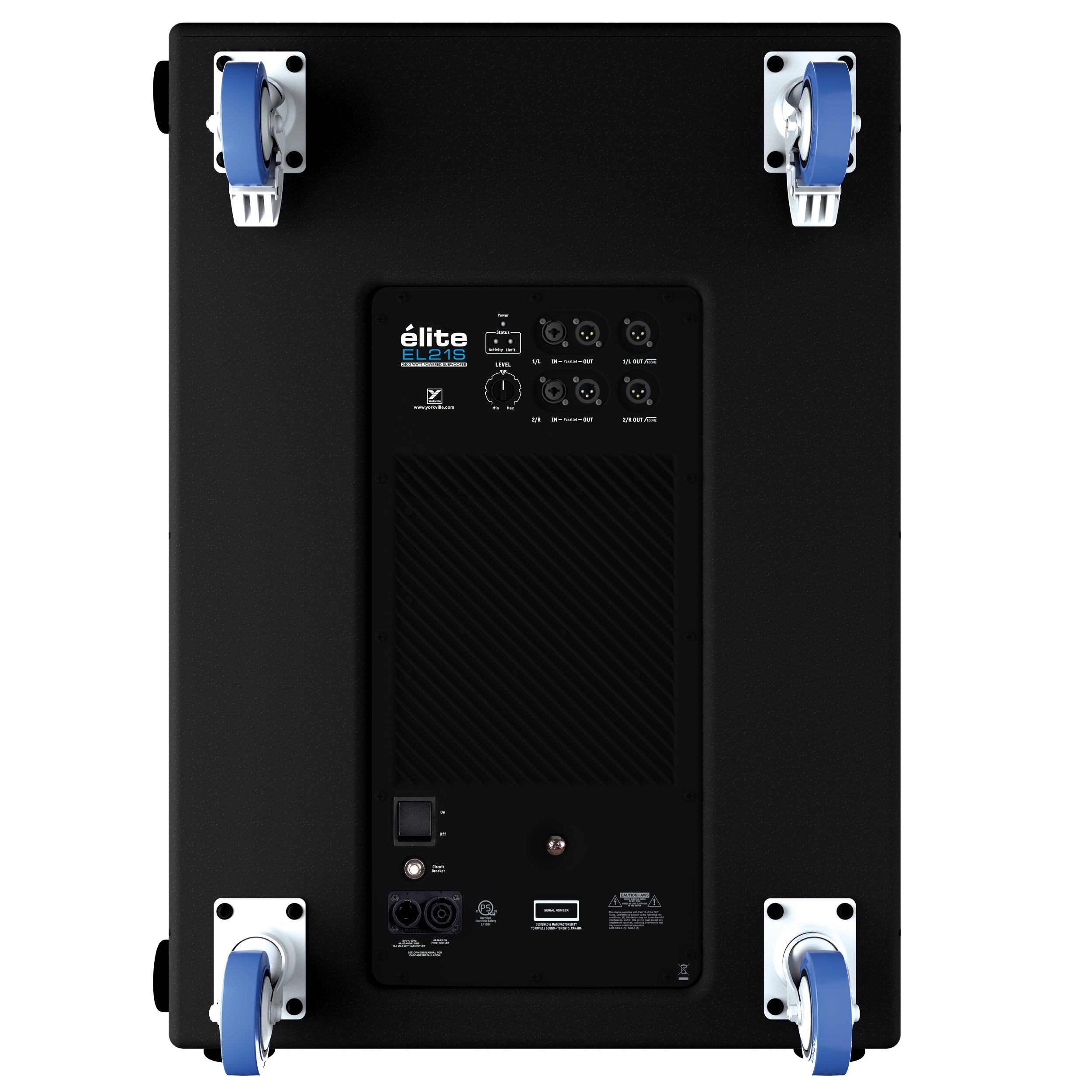

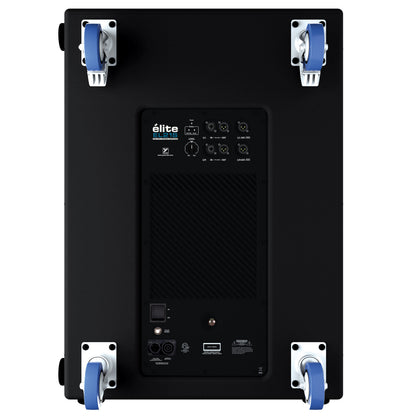

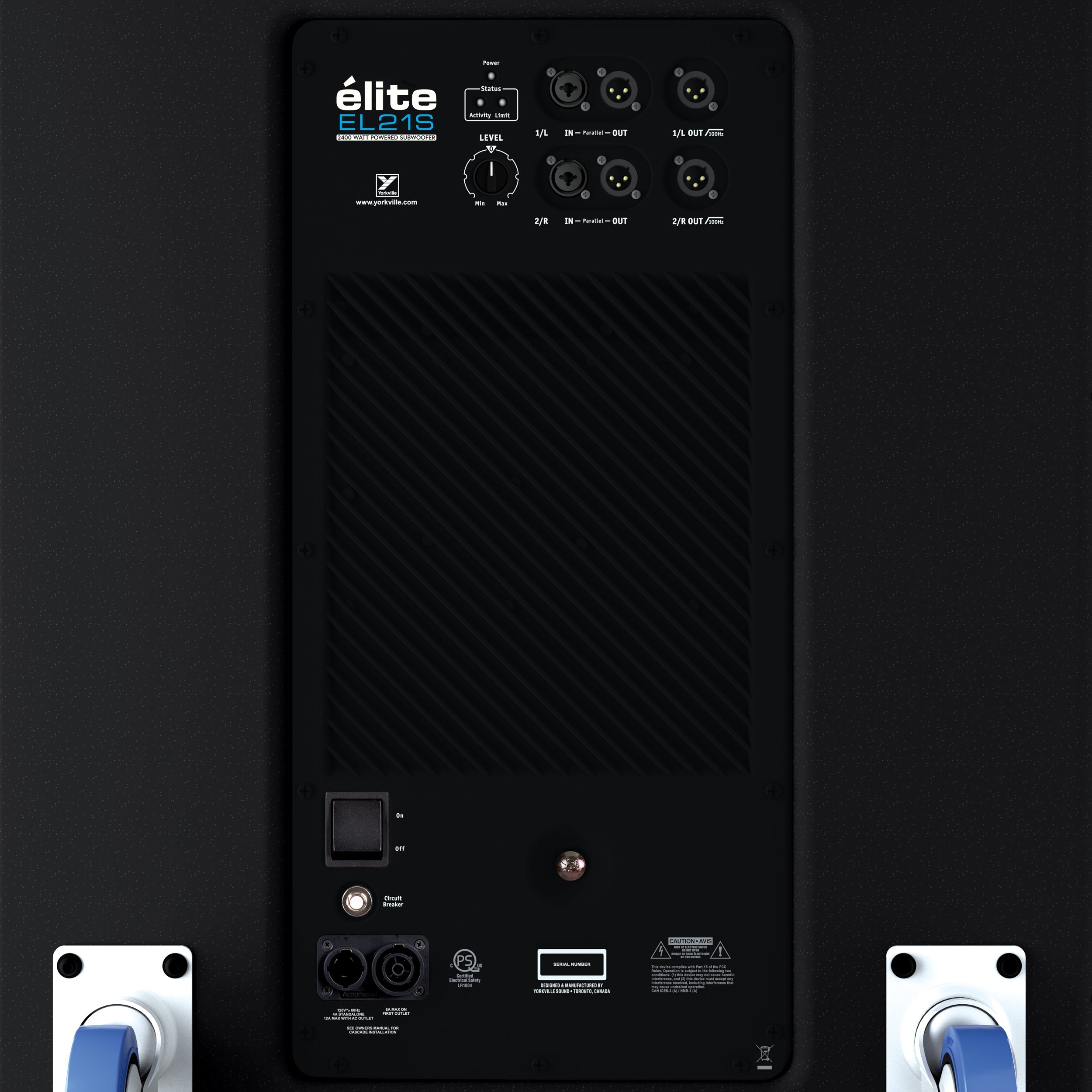

The rugged cabinet is constructed from high-quality birch and features pole mount adapters on the top and side. The rear panel features two XLR inputs, full-range and high-passed XLR outputs, and powerCON® TRUE1 input and output connectors.

 Features

• 3600 W Peak Power (2400 W Program)
• 21” Neodymium Woofer with Dual 4.5” Voice Coils
• Rear Horn-Loaded Vent Design
• 32 Hz - 100 Hz Frequency Response
• 15 mm Birch Plywood Construction
• Made in Canada

Specifications

Power Rating:                           3200 W Peak                                                                                                                                                          2400 W Program

Max SPL:                                 142 dB Peak (136 dB Continuous)

Frequency Response:              32 Hz - 100 kHz (+/- 3 dB)

Crossover Frequency:              100 Hz

LF Woofer:                             21” Neodymium with                                                                                                                                               Dual 4.5” Voice Coils

Level Controls:                         Output Level

LED Indicators:                      Power, Activity, Protection

Inputs:                                       2x XLR / TRS

Outputs:                                    2x XLR / High-Pass                                                                                                                                                2x XLR Link (Full Range)

Bar Handles:                             2x Top, 4x Sides, 2x Bottom

Pole Mount Adapter:                 1x Top, 1x Slide

Wheels:                                     4x Swivel Casters (Back)

Enclosure Materials:                 15 mm Birch Plywood

Cabinet Finish:                          Textured Paint

Grille:                                         Powder-Coated Steel

Power Cable:                             powerCON® TRUE1 Connectors

Power Consumption(Typ / Max): 6.5A, 12A
