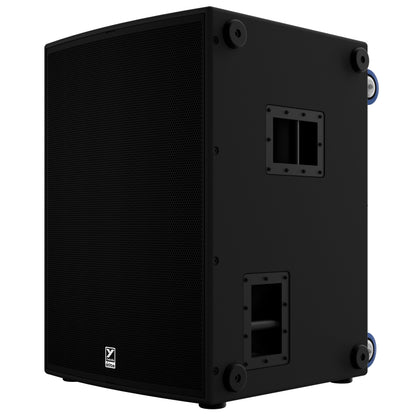

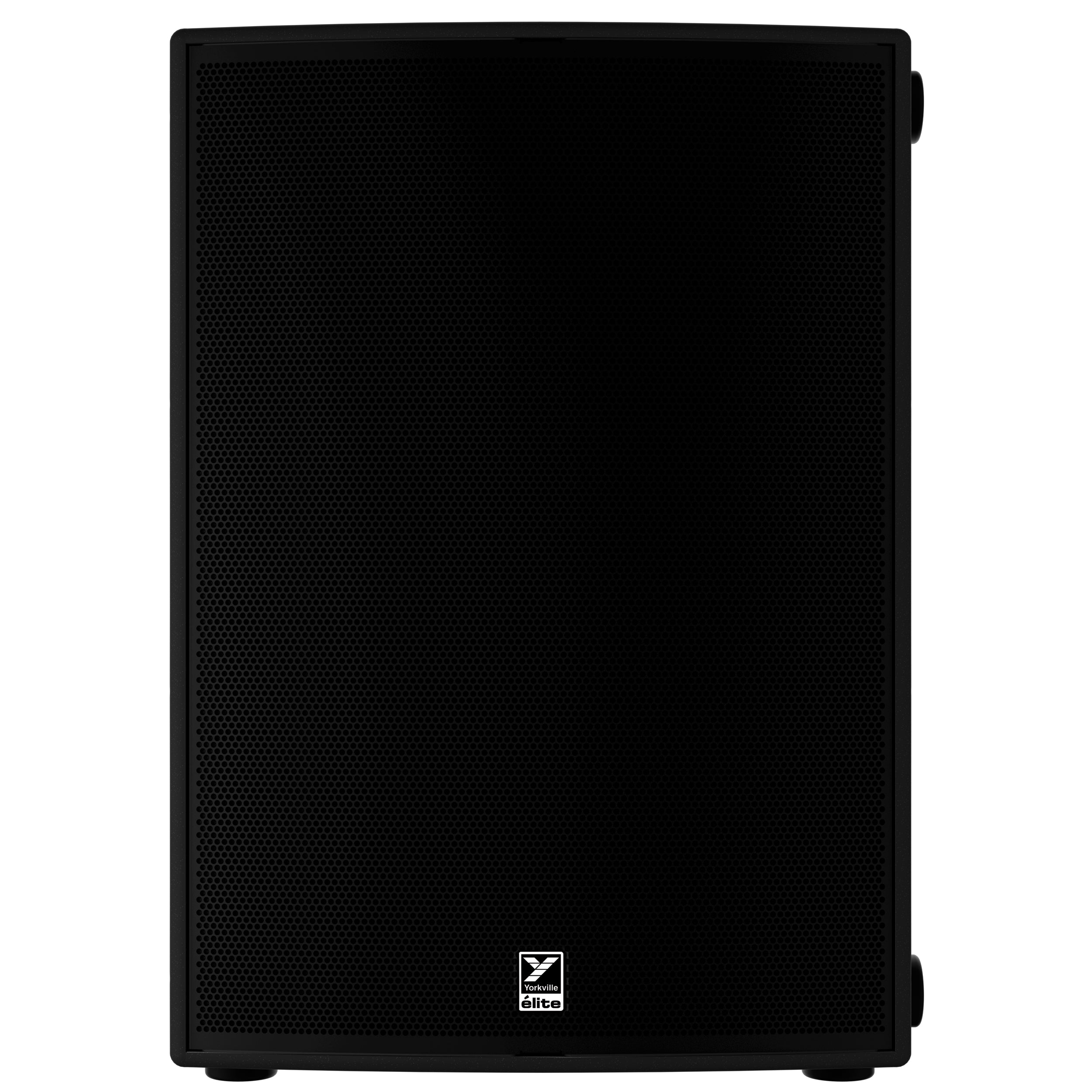

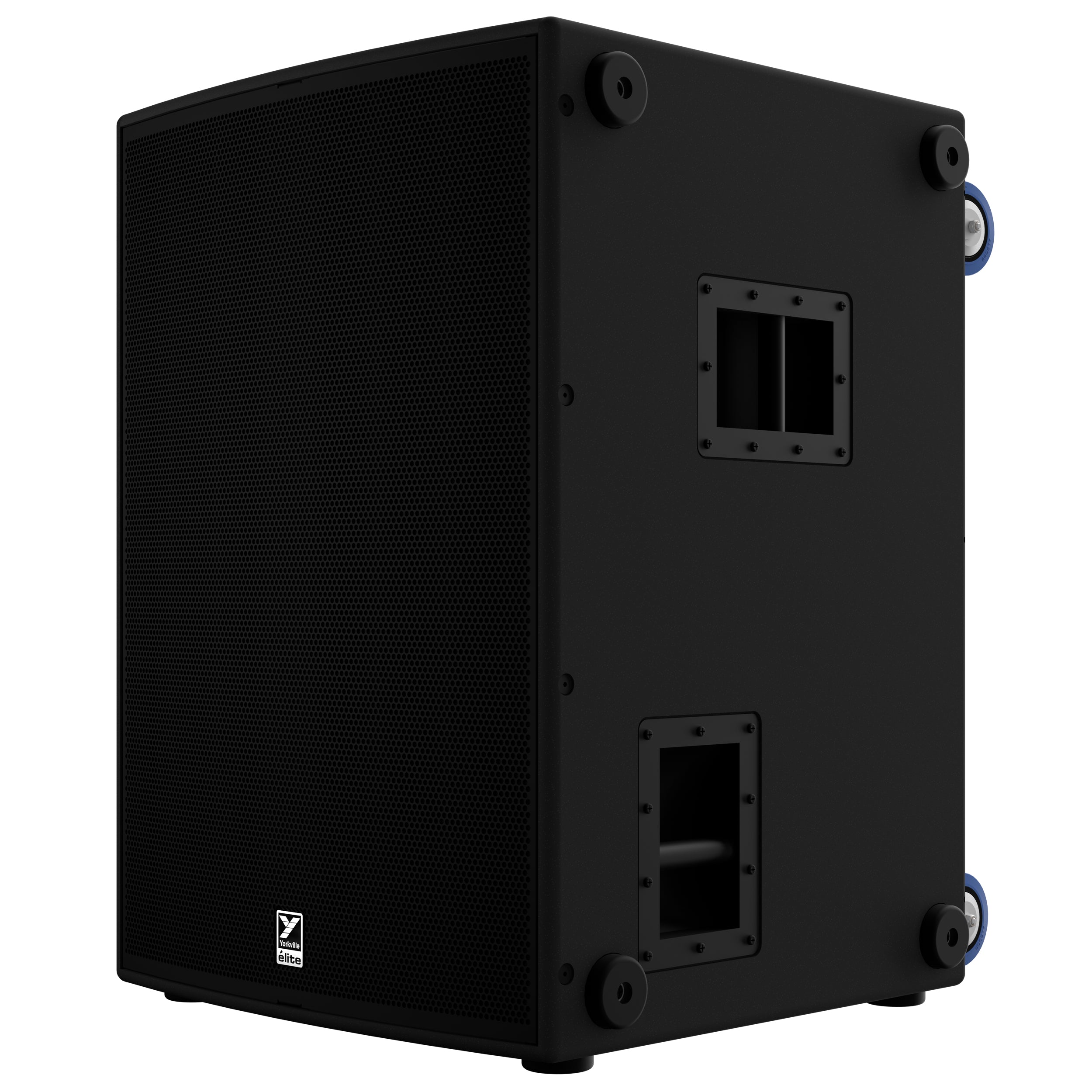

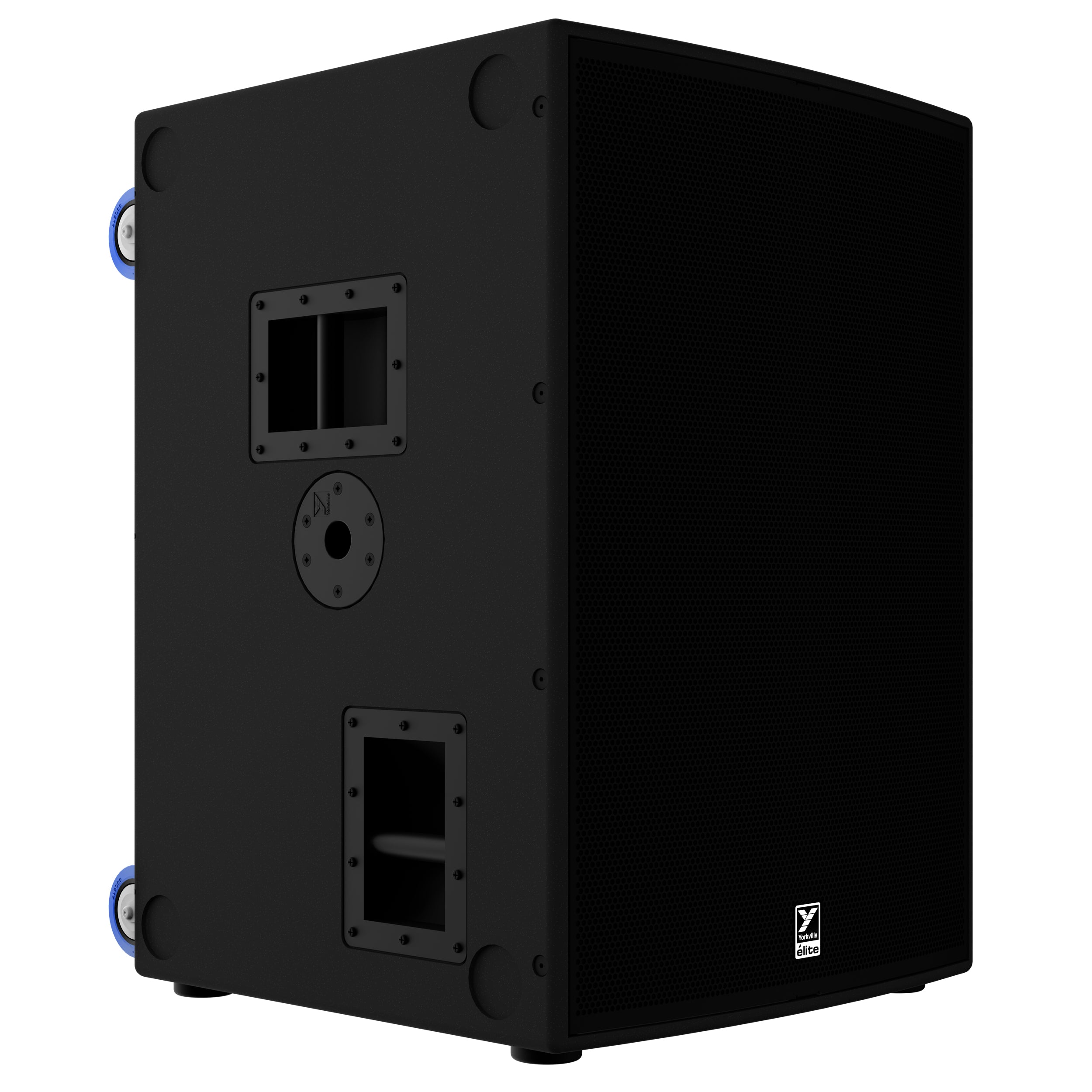

Yorkville EL18S Elite 18” Powered Subwoofer

Overview

Streamlined and straightforward, our new Elite range offers essential features and premium components to deliver high output and exceptional sound quality for professional users.

The EL18S is a powered subwoofer with a 18” woofer that delivers 3200 watts of peak power (1600 watts program) and goes down to 35 Hz.

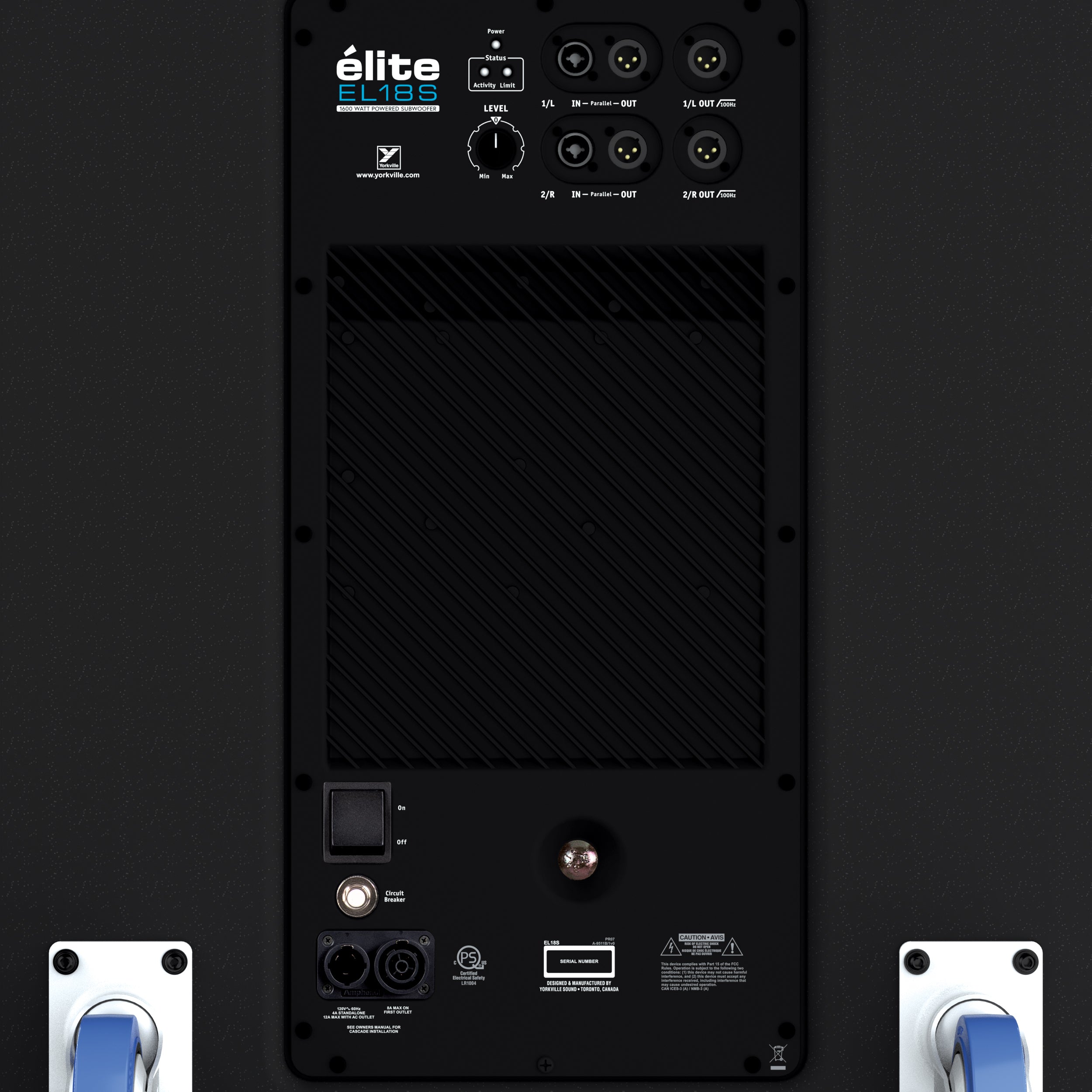

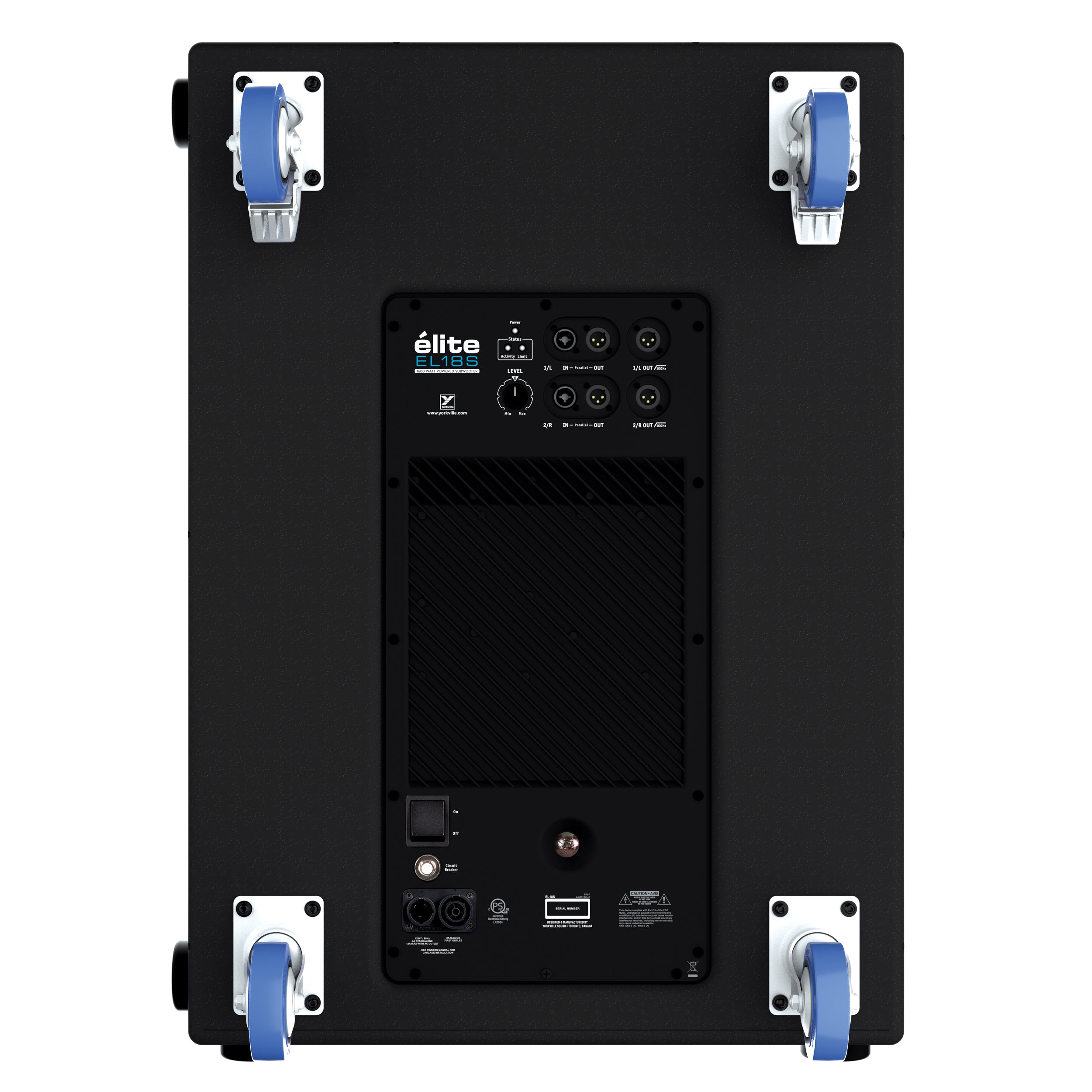

The rugged cabinet is constructed from high-quality birch and features pole mount adapters on the top and side. The rear panel features two XLR inputs, full-range and high-passed XLR outputs, and powerCON® TRUE1 input and output connectors.

 Features

• 3200 W Peak Power (1600 W Program)
• 18” Woofer with 4” Voice Coil
• Onboard Limiter
• 2 XLR Inputs with Full-Range Parallel Outputs
• 2 High-Passed XLR Outputs
• 15 mm Birch Plywood Construction
• Made in Canada

Specifications

Power Rating:                           3200 W Peak                                                                                                                                                         1600 W Program

Max SPL:                                 140 dB Peak (134 dB Continuous)

Frequency Response:              35 Hz - 100 kHz (+/- 3 dB)

Crossover Frequency:              100 HzLF

LF Woofer:                             18” with 4” Voice Coil

Level Controls:                         Output Level

Inputs:                                       2x XLR / TRS

Outputs:                                    2x XLR / High-Pass                                                                                                                                                2x XLR Link (Full Range)

Optional Flying Hardware:        EL15PBRACKET                                                                                                                                          2-3 Cabinet Array Bracket

 LED Indicator:                          Power, Activity, Protection

Bar Handles:                             2x Top, 4x Sides, 2x Bottom

Pole Mount Adapter:                 1x Top, 1x Slide

Wheels:                                     4x Swivel Casters (Back)

Enclosure Materials:                 15 mm Birch Plywood

Cabinet Finish:                          Textured Paint

Grille:                                         Powder-Coated Steel

Power Cable:                             powerCON® TRUE1 Connectors

Power Consumption(Typ / Max): 4A, 10A
