Yorkville EL15P Elite 15” Powered Loudspeaker

Overview

Streamlined and straightforward, our new Elite range offers essential features and premium components to deliver high output and exceptional sound quality for professional users.

The EL15P is a full-range powered speaker with a 15” neodymium woofer that delivers 2500 watts of peak power (1250 watts program).

The rugged cabinet is constructed from high-quality birch and features a pole mount adapter and integrated flypoints. An optional bracket is available separately for multi-cabinet hangs.

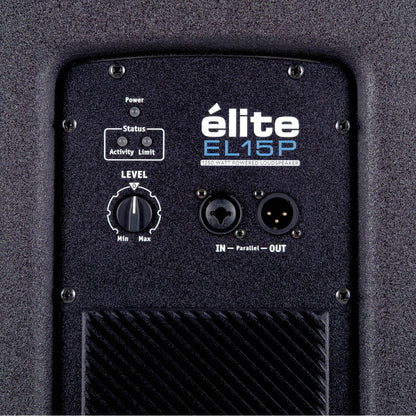

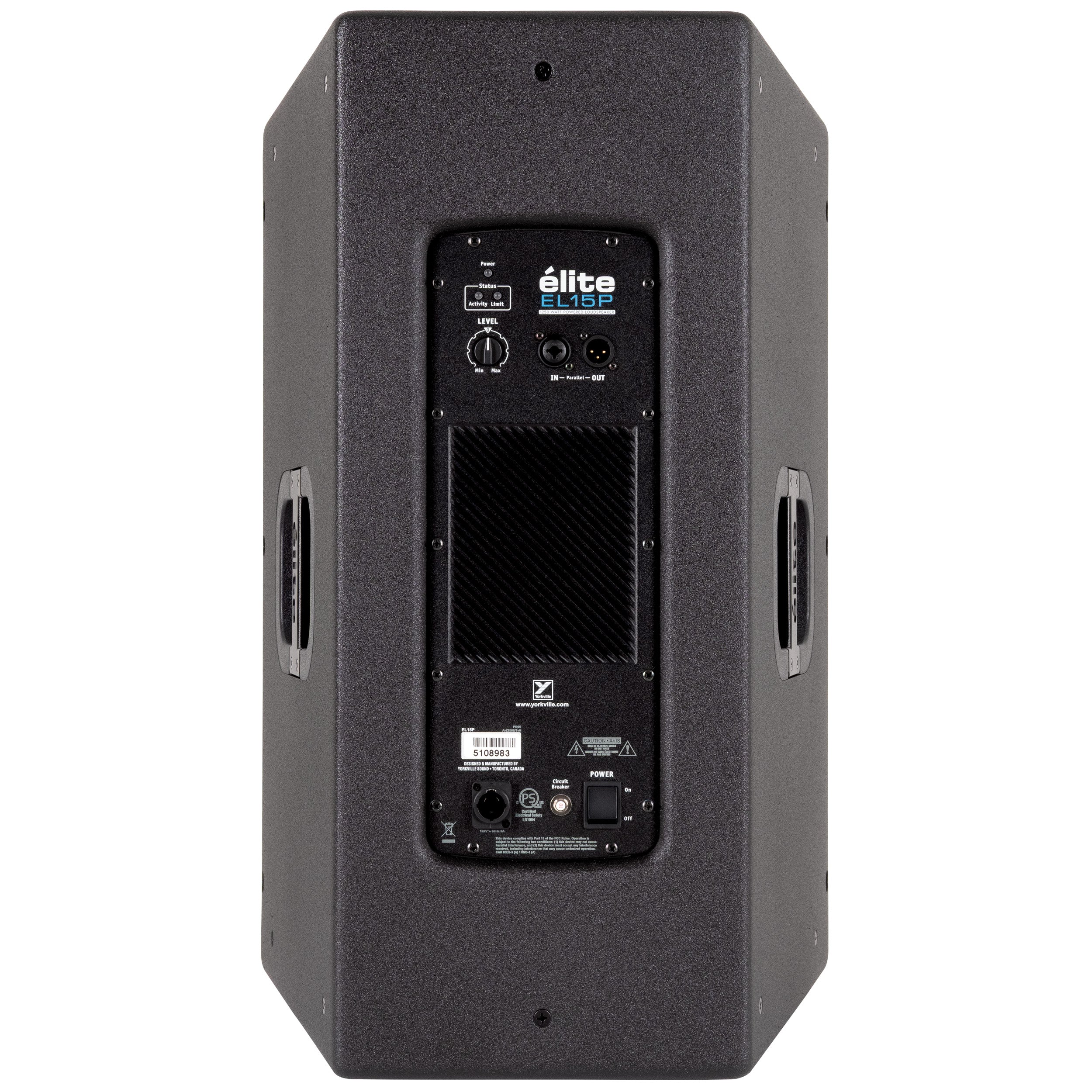

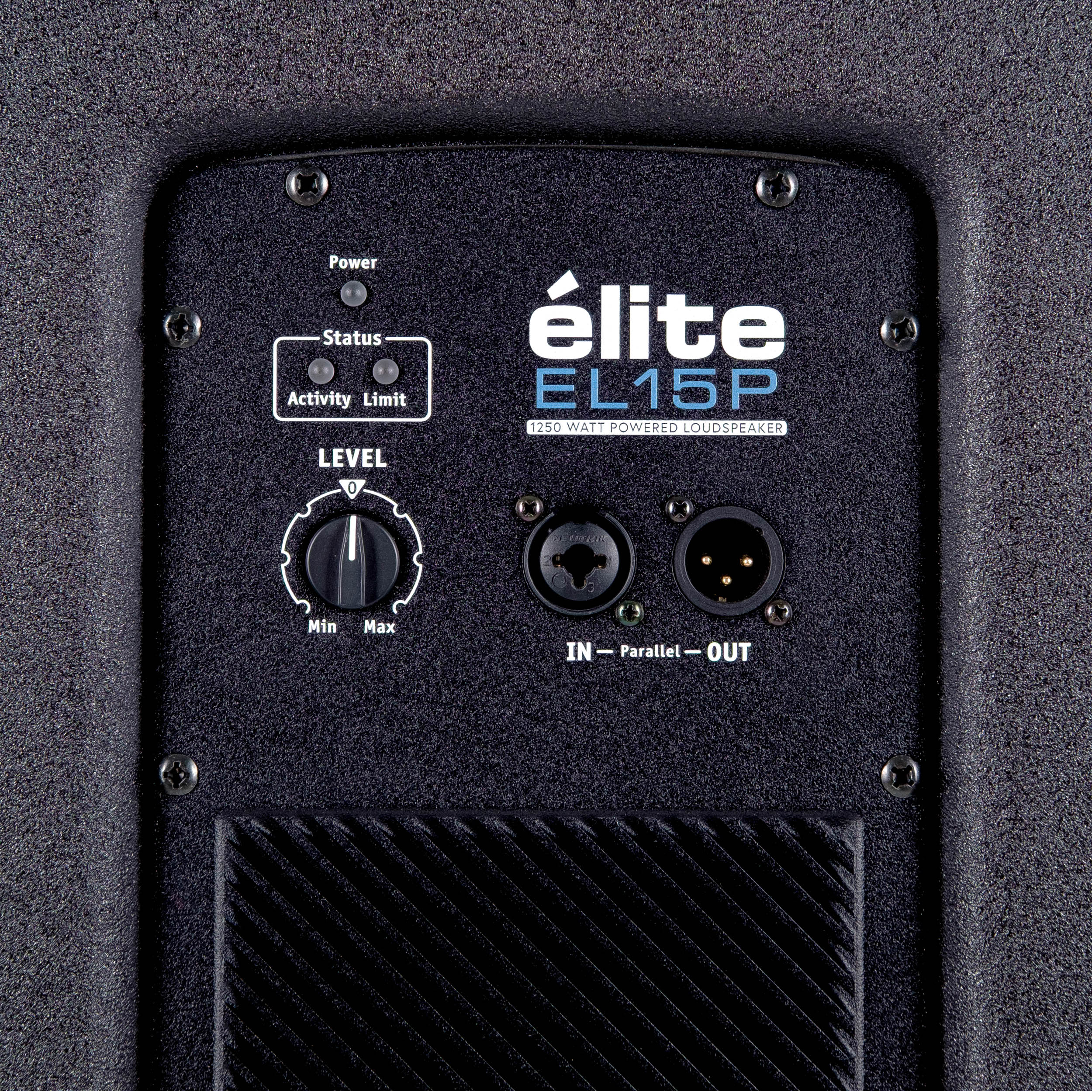

The rear panel features an XLR / 1/4” input jack, XLR output, and powerCON® TRUE1 connector.

 Features

• 2500 W Peak Power (1250 W Program)
• 15” Neodymium Woofer with 3” Voice Coil
• ABS Horn with Neodymium Magnet and 1.4” Exit
• Onboard Limiter
• powerCON ® TRUE1 Input
• 15 mm Birch Plywood Construction
• Made in Canada

Specifications

Power Rating:                           2500 W Peak                                                                                                                                                         1250 W Program

Max SPL:                                 139 dB Peak (127 dB Continuous)

Frequency Response:              50 Hz - 20 kHz (+/- 3 dB)

Crossover Frequency:              850 HzLF

HF Driver(s):                             ABS Horn with 1.4” exit, 3” Voice Coil                                                                                                                    and Neodymium Magnet

HF Dispersion (H x V):             60° x 40°

HF Horn:                                  Injection-Molded ABS

Level Controls:                         Yes

Inputs:                                       1x XLR / TRS

Outputs:                                    1x XLR

Flypoints:                                  4x Top, 4x Bottom, 2x Pull Back

Optional Flying Hardware:        EL15PBRACKET                                                                                                                                          2-3 Cabinet Array Bracket                                                                                                                                      (Sold Separately)

Bar Handles:                             2x Side

Pole Mount Adapter:                 1x Bottom

Enclosure Materials:                 ABS-Coated Birch Plywood

Cabinet Finish:                          Textured Paint

Grille:                                         Powder-Coated Steel

Power Cable:                             powerCON® TRUE1 Connectors

Power Consumption(Typ / Max): 3A, 7.5A
