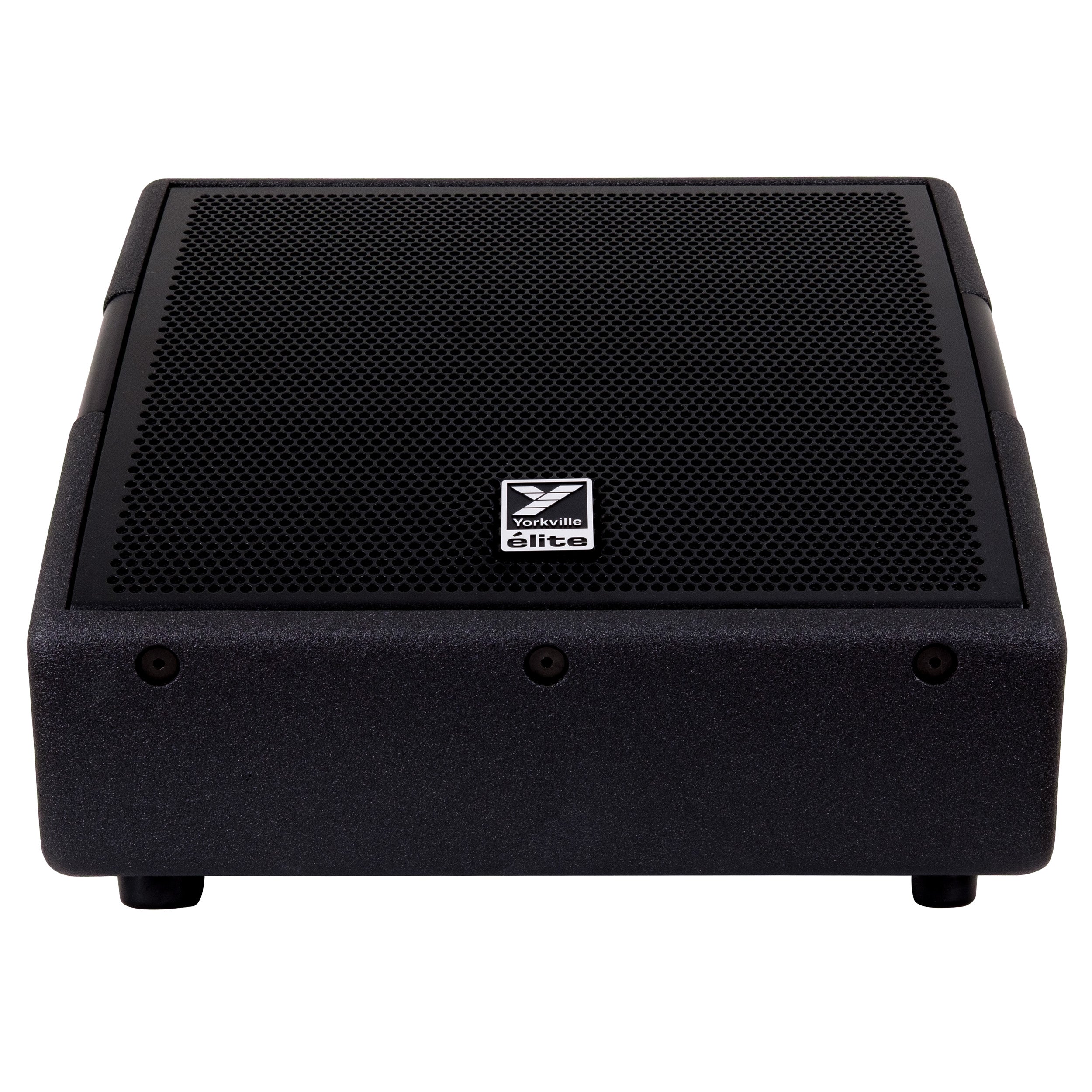

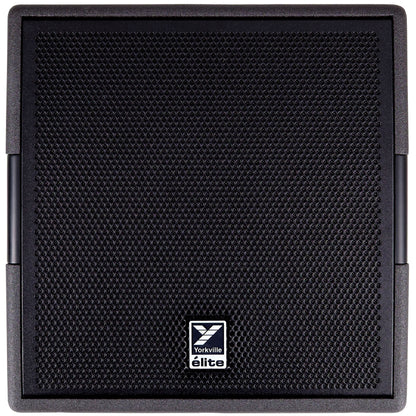

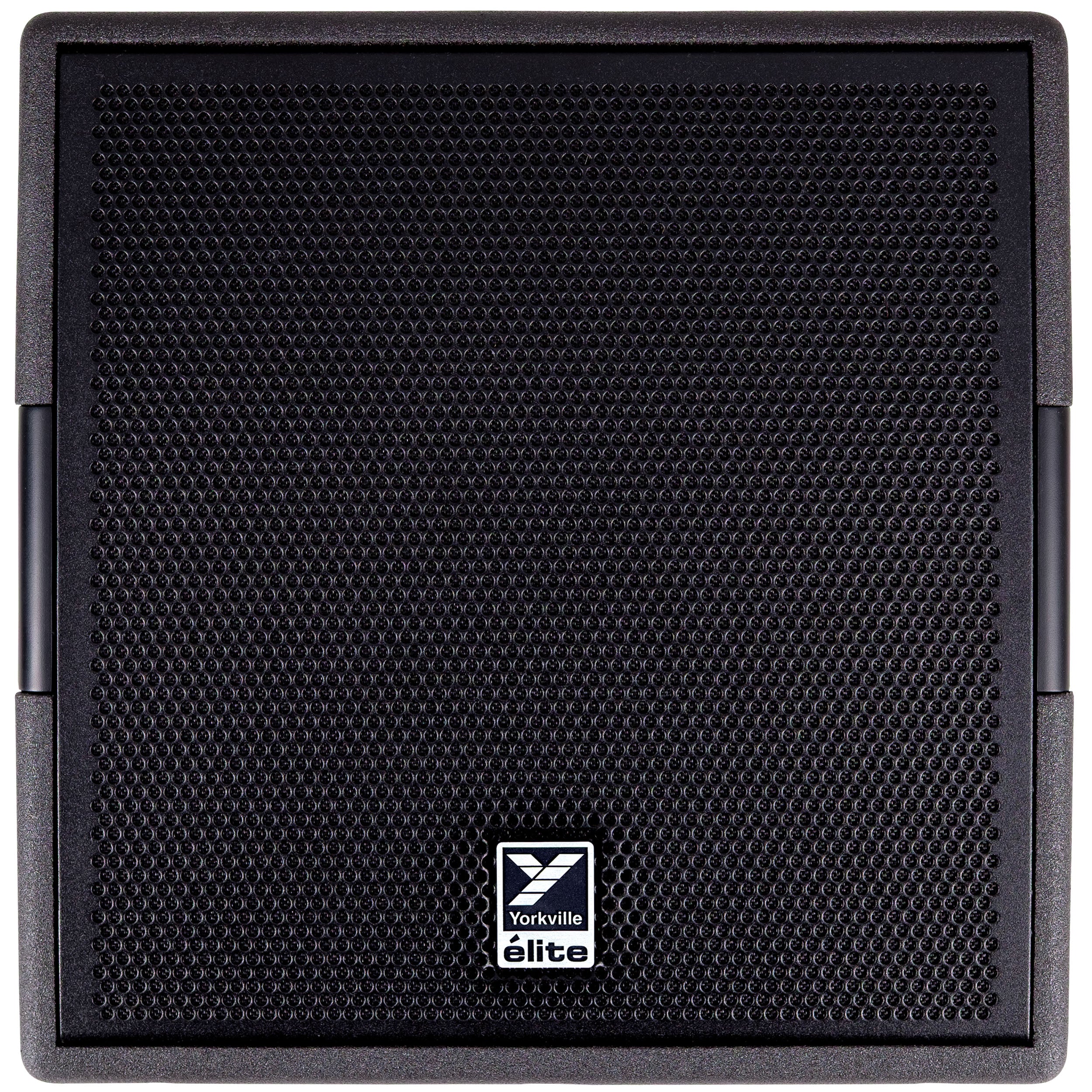

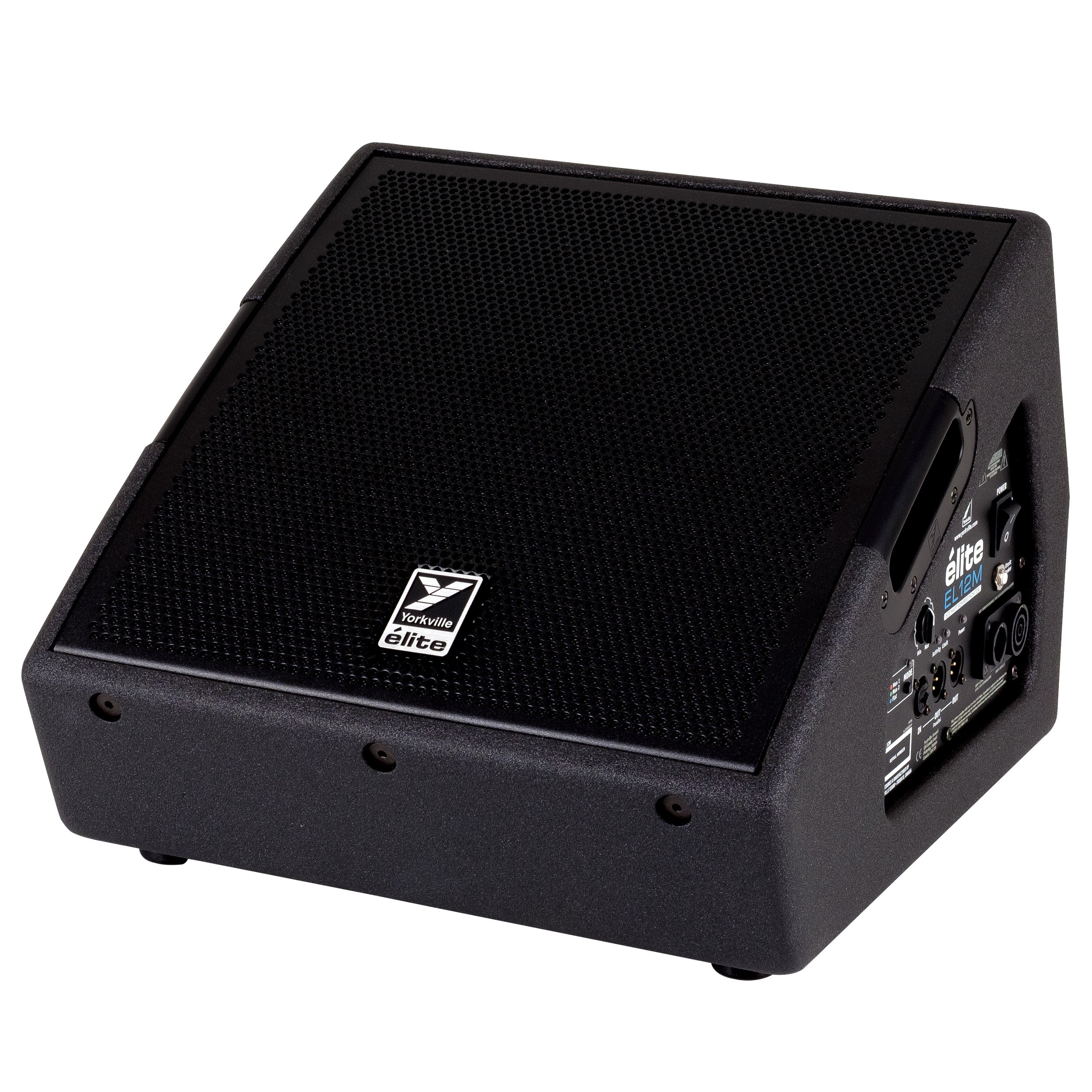

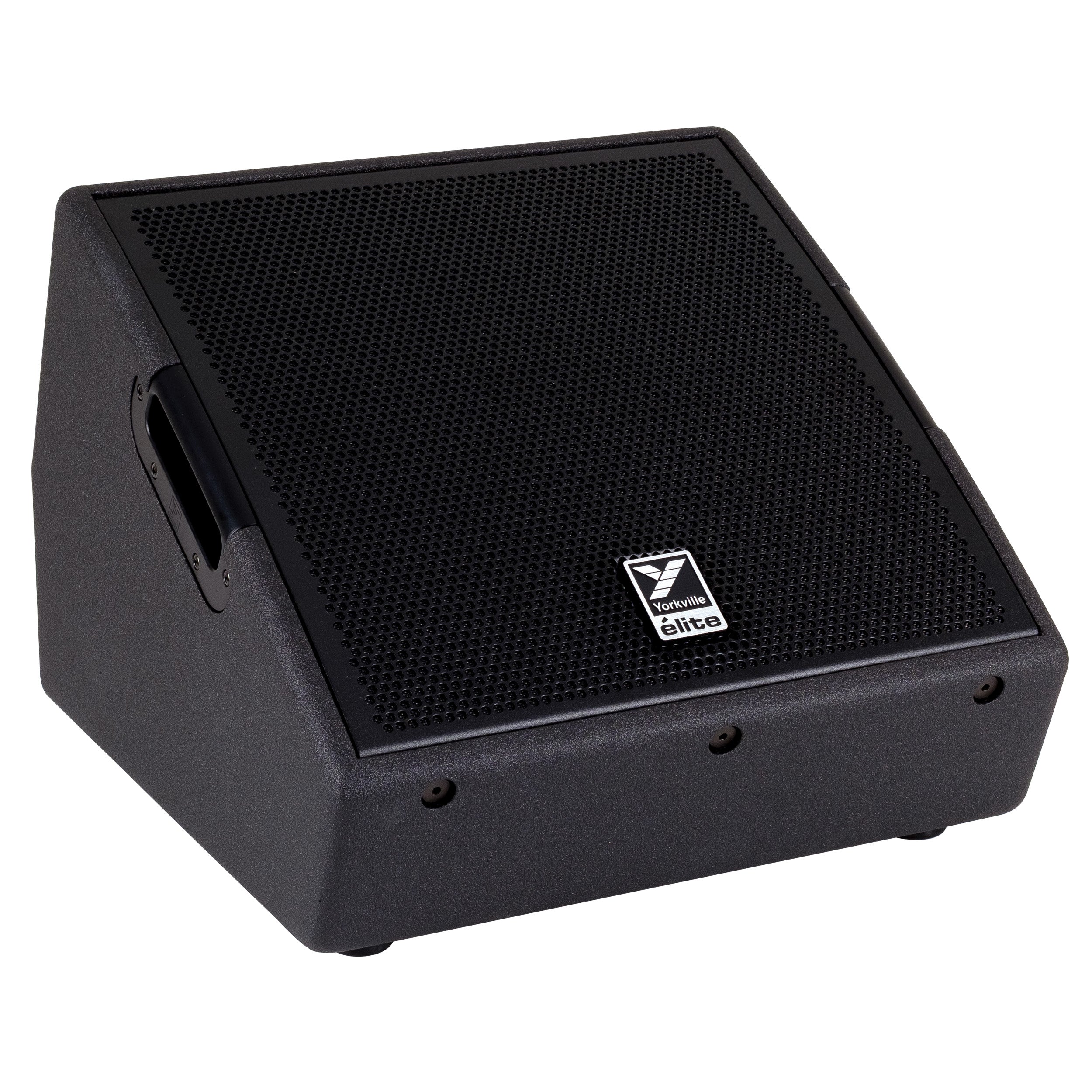

Yorkville EL12M Elite 12” Powered Stage Monitor

Overview

The EL12M is the first dedicated powered stage monitor from Yorkville Sound. It delivers 1200 watts of peak power (600 watts program) through a 12"" coaxial speaker and 1"" high-frequency driver in a stage-ready enclosure that weighs less than 40 pounds.

Its two selectable monitor modes are voiced for vocals, and its flat mode is ideal for instrument sources like synthesizers, electronic drum kits, or for use as an FRFR solution for amp modelers. It also features an XLR / 1/4"" input jack, two XLR outputs, and powerCON® TRUE1 input and output connectors, so it integrates easily into any PA system.

Portable, powerful, and built like a tank, the EL12M was carefully designed for professional performance on stage.

 Features

• 1200 W Peak Power (600 W Program)
• 12” Coaxial Woofer with 2.5” Voice Coil
• 1” HF Driver with 1.75” Voice Coil
• 3 Voicing Modes
• Onboard Limiter

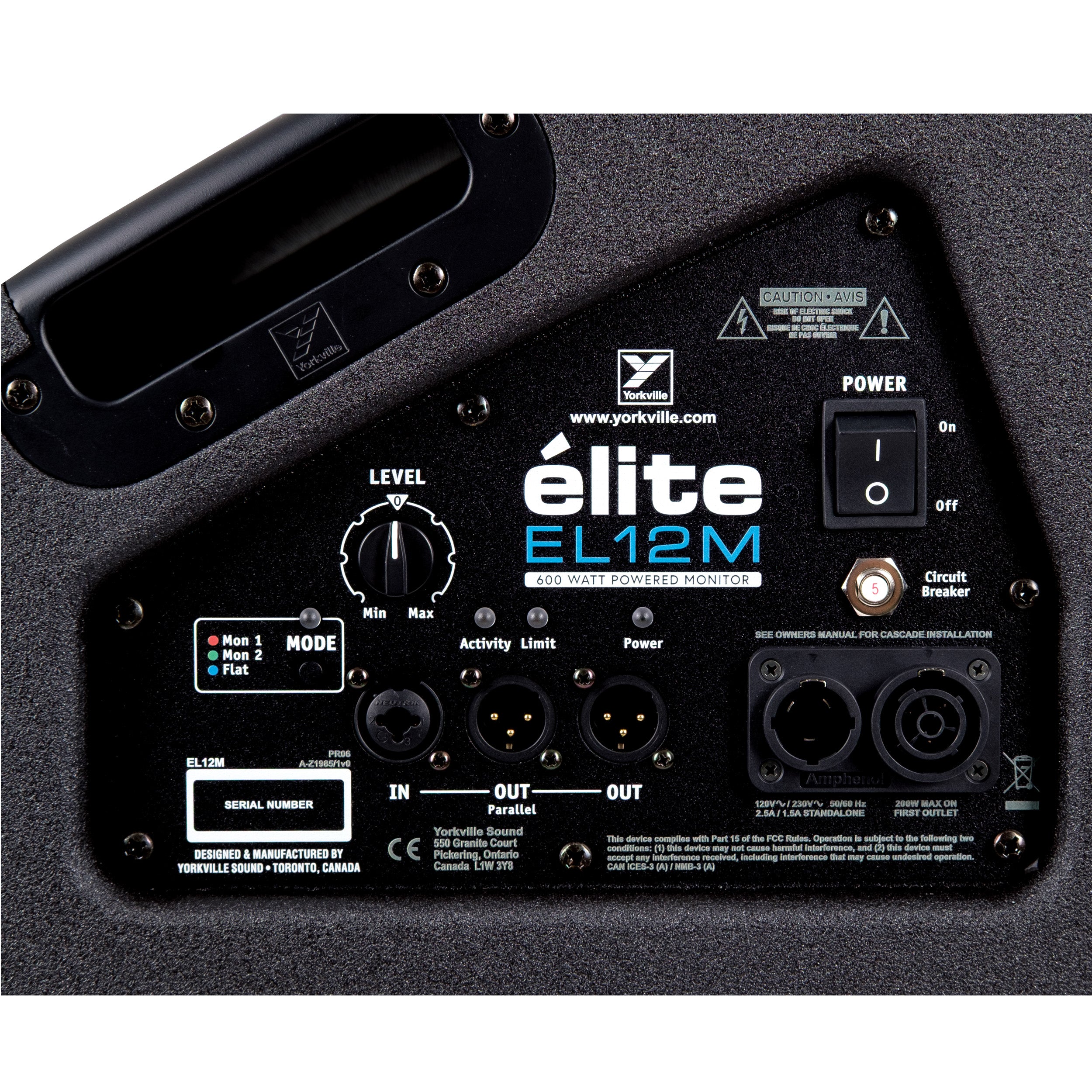

• Combi-Jack XLR / 1/4” Input and 2 XLR Outputs
• powerCON ® TRUE1 Input and Output
• 15 mm Birch Plywood Construction

Specifications

Power Rating:                           1200 W Peak                                                                                                                                                          600 W Program

  Max SPL:                                 132 dB Peak (120 dB Continuous)

Frequency Response:              60 Hz - 20 kHz (+/- 3 dB)

Crossover Frequency:              1500 HzLF Woofer 12” Coaxial Woofer                                                                                                                  with 2.5” Voice Coil

 HF Driver(s):                             1” HF Driver with 1.75” Voice Coil

  HF Dispersion (H x V):             60° x 60°

 Level Controls:                          Yes

EQ Controls:                             Mon 1, Mon 2, and Flat Modes

Inputs:                                       1x XLR / TRS

 Outputs:                                    2x XLR

Flypoints:                                  No

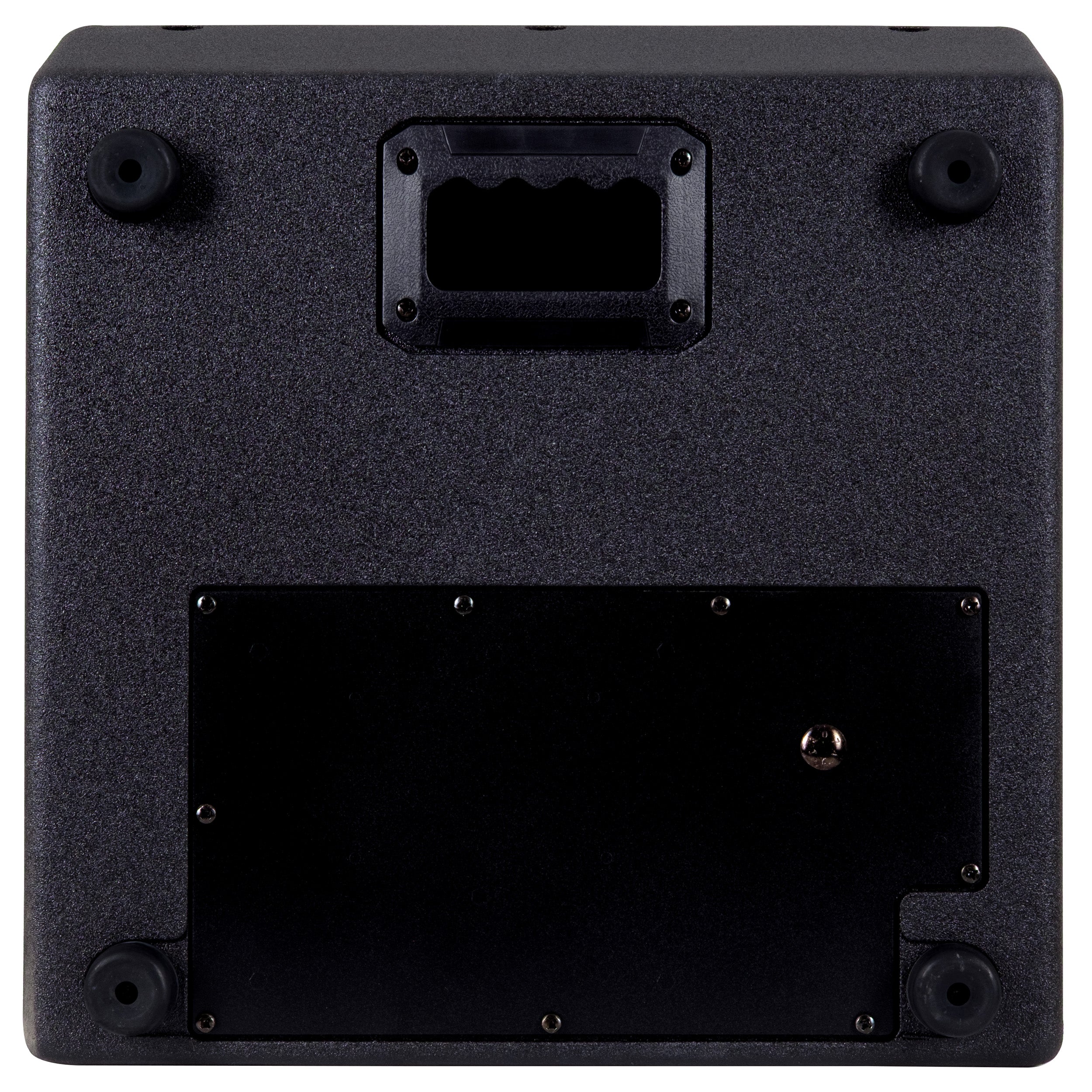

 Bar Handles:                             2x Side, 1x Bottom

 Pole Mount Adapter:                 No

 Enclosure Materials:                 15 mm Birch Plywood

Cabinet Finish:                          Textured Paint

 Grille:                                         Powder-Coated Steel

 Power Cable:                             powerCON® TRUE1 Connectors (Input / Output)

 Power Consumption(Typ / Max): 2.5A, 6A
