Overview

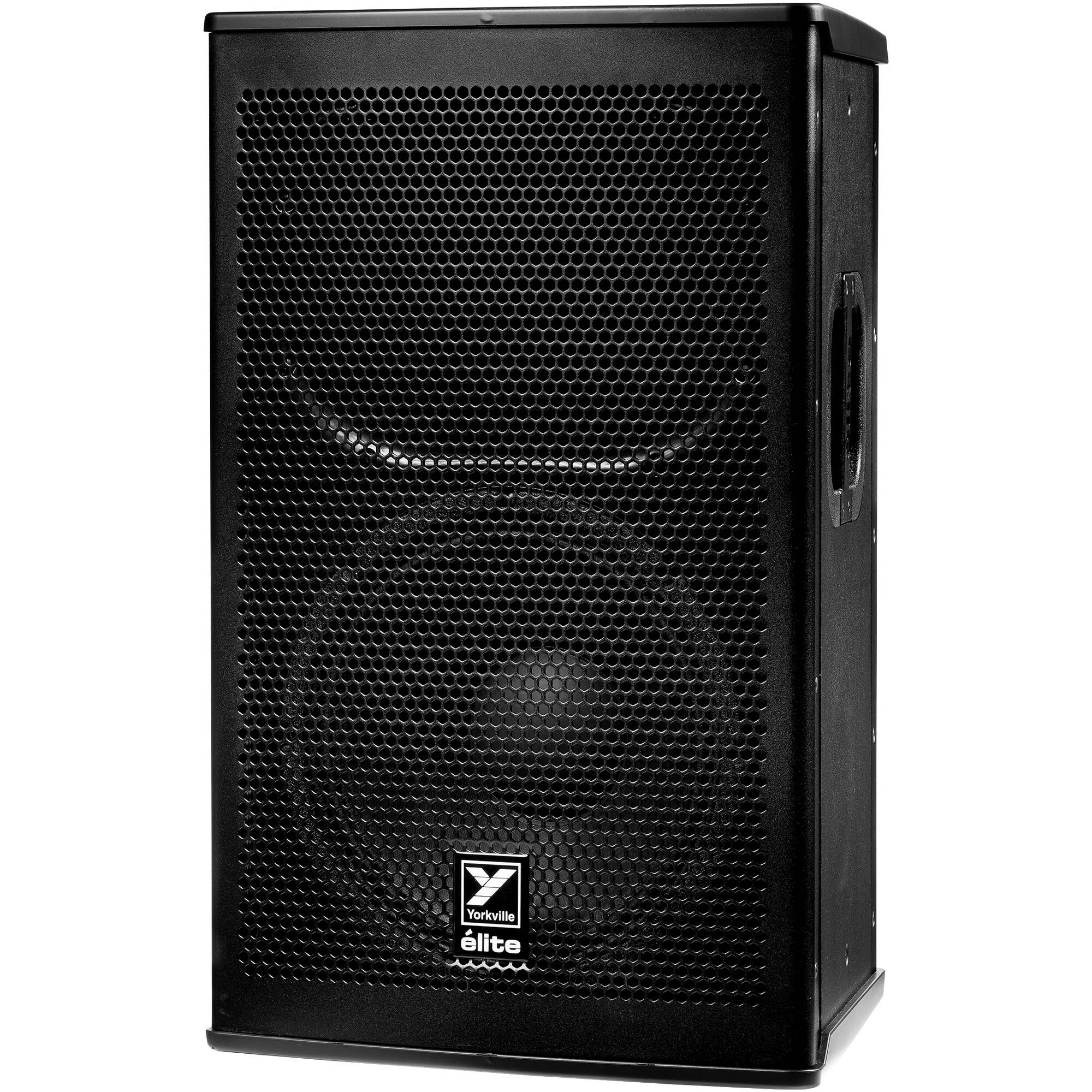

The Yorkville EF12P is a 1200-watt powered speaker that is perfect for a variety of professional audio applications. It features a 12-inch neodymium woofer and a 3-inch titanium compression driver that deliver clear, powerful sound with a frequency response of 47 Hz to 16 kHz. The EF12P also has a multiband DSP limiter with four preset playback performance modes to help you get the best possible sound for your needs. Other features include an XLR input, a 1/4-inch line input, an RCA input, and an XLR mic input. The EF12P is durable and portable, making it a great choice for live sound, DJing, and recording.

Features

• High Output, High Quality and extremely durable Dedicated Front of House box
• Completely Redesigned Next Generation Elite Cabinet
• ABS Coated Birch Plywood Cabinet Construction
• Multiband DSP Limiting with 4 Preset Playback Performance Modes
• 3" Titanium Diaphragm Compression Driver for Reduced Distortion at High SPL
• 12" Neodymium Woofer with 3" Voice coil
• iOS and Android App for Added Cabinet Control

Specifications

• System Type: 2-Way
• Active or Passive: Active
• Power Rating (Watts): 1200 Watts (2400 Watts Peak)
• Max SPL (dB): 131dB Peak (125dB Continuous)
• Frequency Response (Hz +/- 3dB): 47 - 16k (Hz +/- 3dB)
• Crossover Frequency (Hz): 1100
• Driver Configuration: 12-inch, 3-inch Diaphragm
• HF Driver(s): 3-inch Voice Coil (Titanium Diaphragm)
• HF Dispersion (°H x °V): 60x40
• LF Driver(s): 12-inch Neo Magnet w/ 3-inch Voice Coil
• HF Power Amplifier (Watts): 300
• HF Amplifier Type: 3-Tier High Headroom
• LF Power Amplifier (Watts): 900
• LF Amplifier Type: Class-D
• Power Cable: 25 ft (7.6m) Heavy Gauge Detachable IEC
• Current Draw: 2A Typical, 3.2A Max

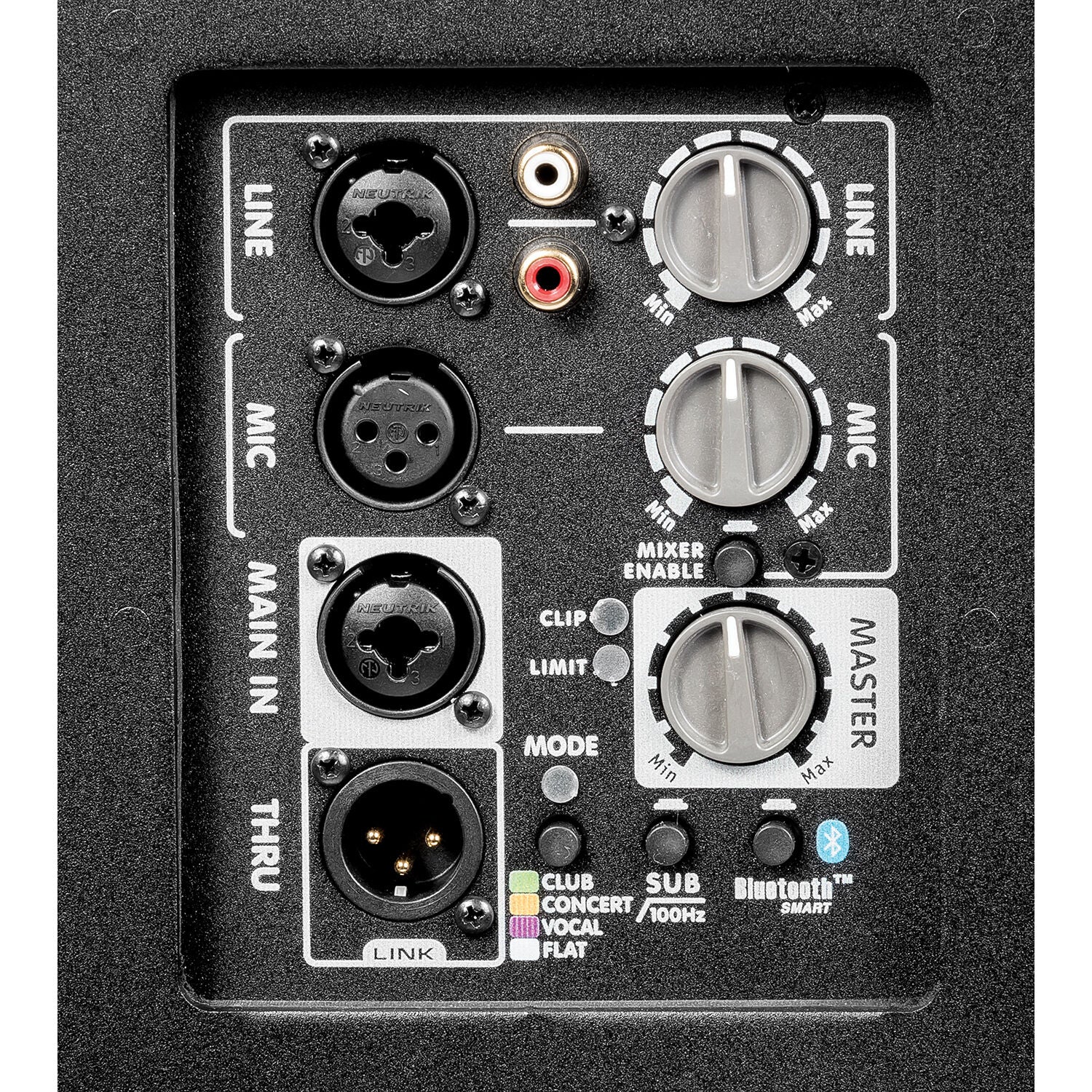

• In/Out Connection: 1 x XLR & 1/4-inch Combi-jack, RCA Line Inputs, 1 x XLR microphone input, 1 x LR & 1/4-inch Combi-jack Main Input, and 1 x XLR-M Thruput
• Input Impedance (Bal/UnBal): 95kohms/90kohms
• Input Sensitivity (Vrms Sine): +4dBv/1.23V
• Controls: Mixer Enable, Mic Input w/level, Line Input w/level, DSP Mode (Club, Concert, Vocal, Custom), Sub (100 Hz HP Filter), Bluetooth Control Enable, Master Level
• Bar Handles: 2  Side/1  Top
• Flypoints: 8 x 1/4-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback)
• Pole Mount Adapter (1 x/8"-3.5cm): 1 Bottom (1 3/8-inch/3.5cm)
• Enclosure Materials: ABS Coated Baltic Birch Plywood
• Dimensions: 14.5 x 18.6  x 28.2  11.1 inches
• Weight: 59lbs/26.8kg

What's In The Box?

• Yorkville EF12P 1200W Powered Speaker Cabinet
• Power Cable
• Limited 2-Year Manufacturer Warranty
• Limited 10-Year Manufacturer Warranty (Wooden Enclosure Elements)
