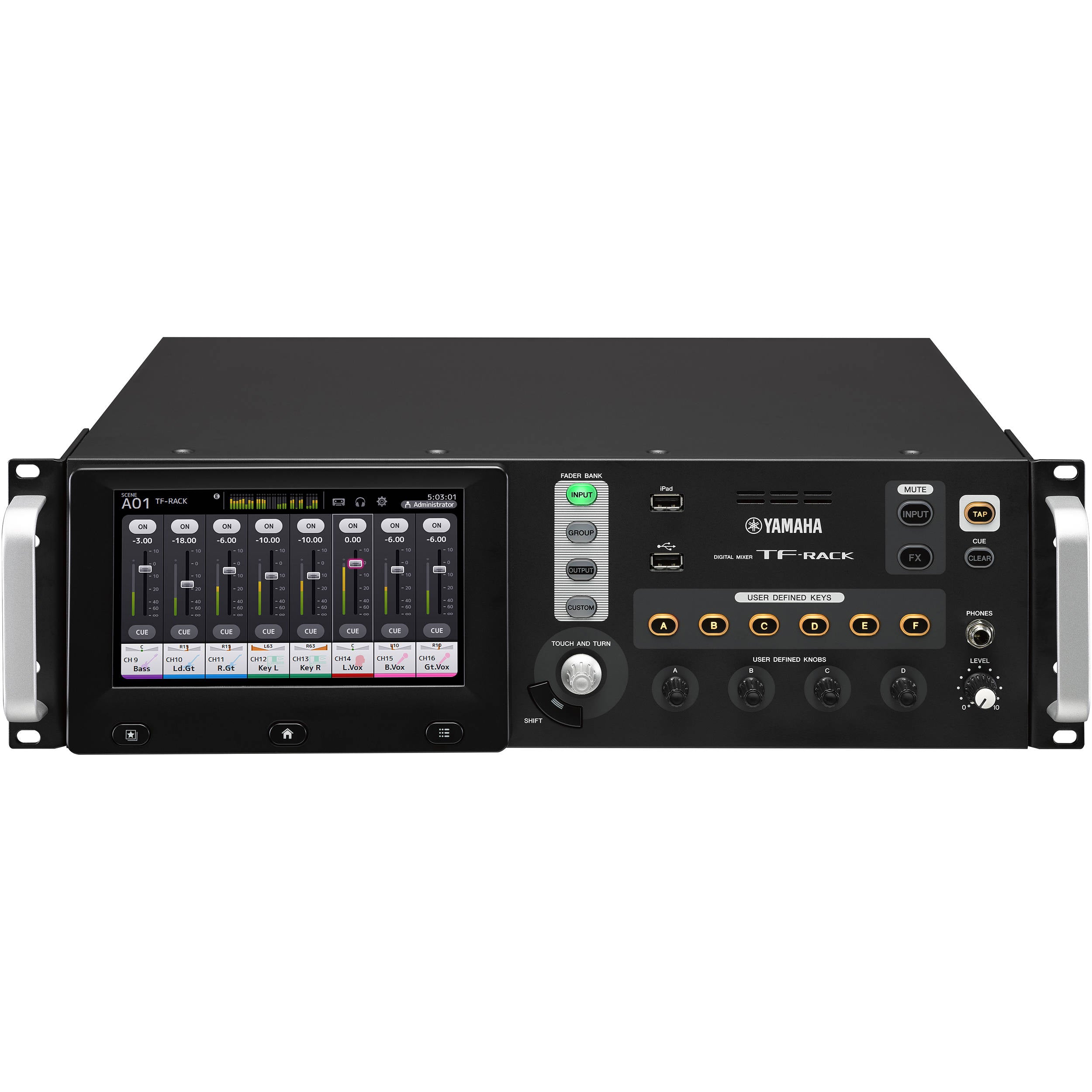

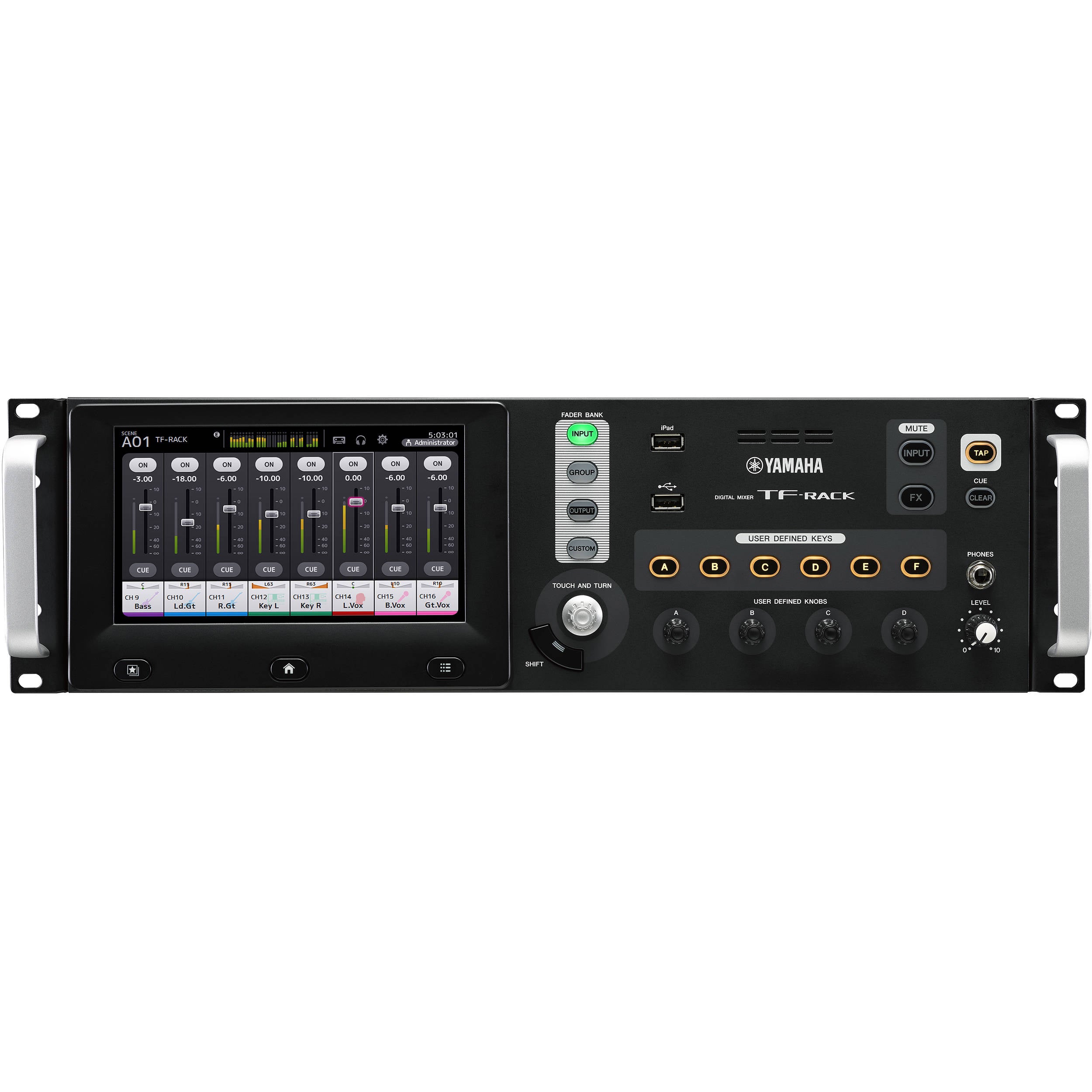

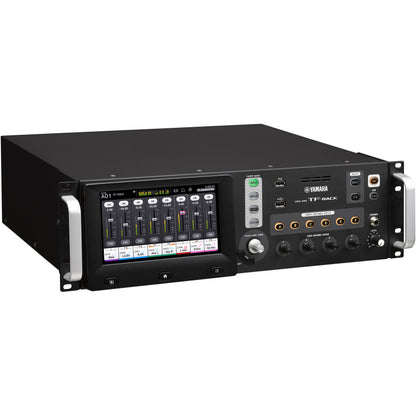

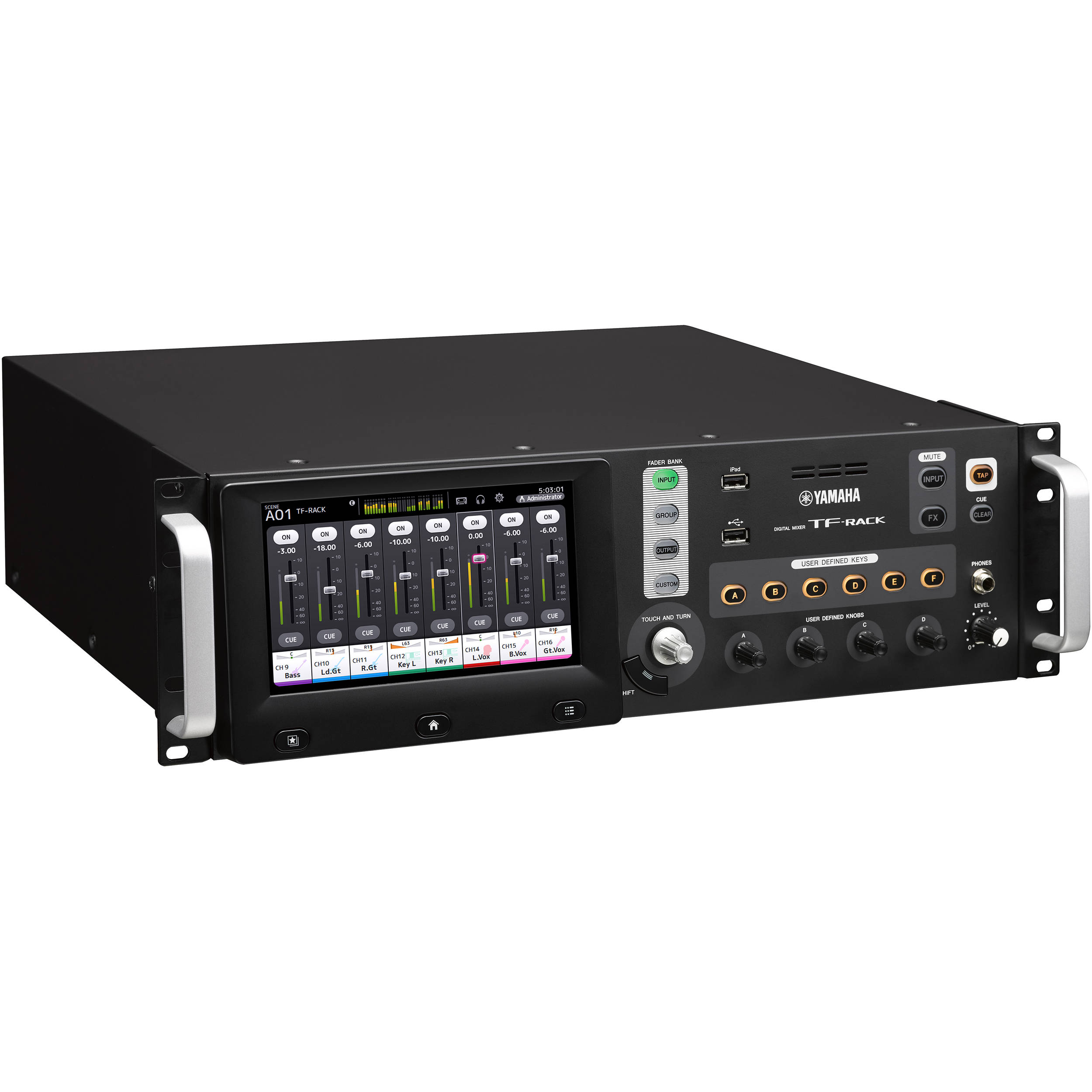

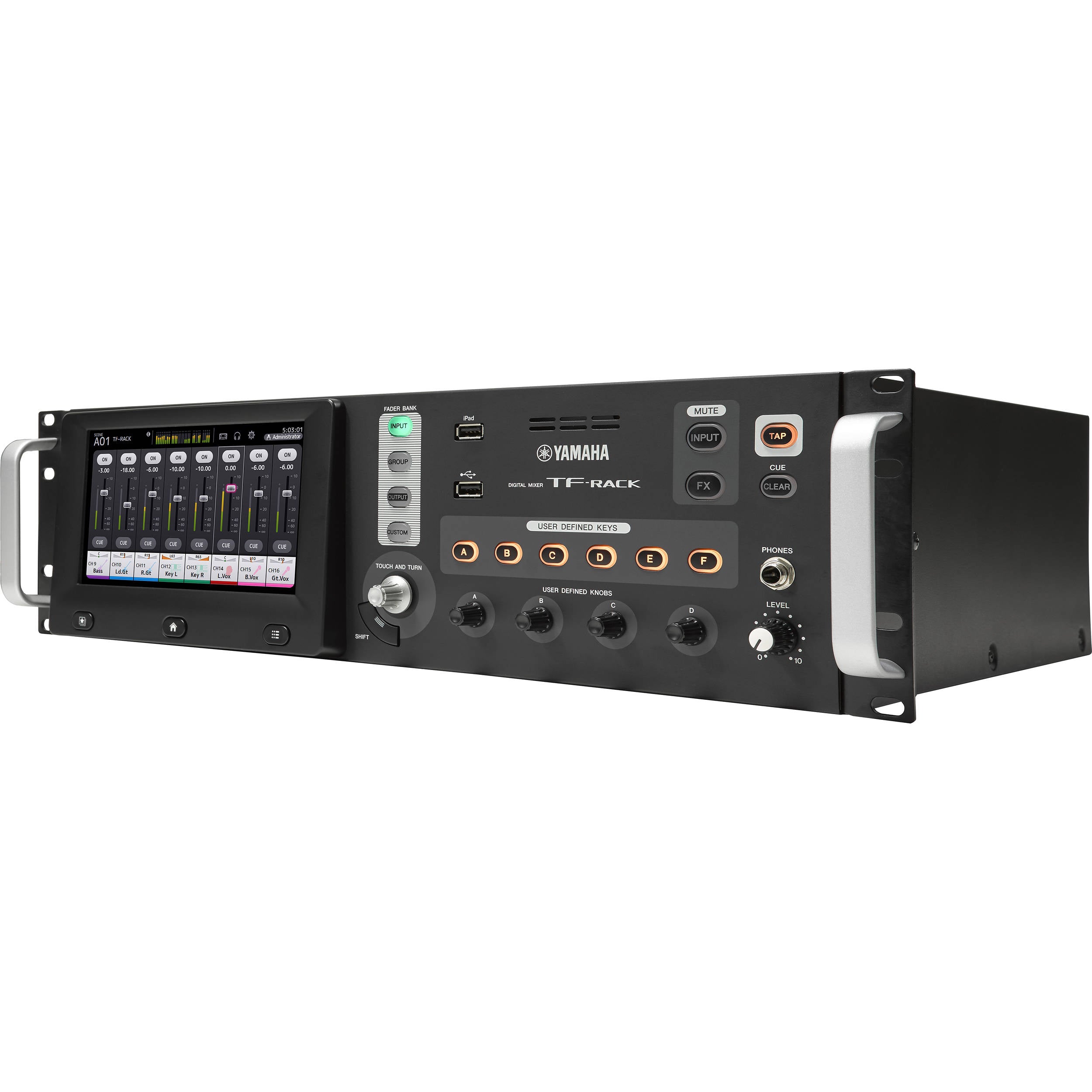

Yamaha TF-RACK Digital Mixing Console

Overview

The Yamaha TF-Rack is a rack-mountable digital audio mixing console that features a touchscreen display, and is expandable up to 40 input channels by adding the optional Tio1608-D I/O rack. Ideal for a multitude of live sound reinforcement scenarios, the TF-Rack can also be used for live recording, offering 34x34 channel digital recording and playback via USB 2.0 using a computer and your preferred DAW software, and 2x2 channel recording and playback using any USB storage device.

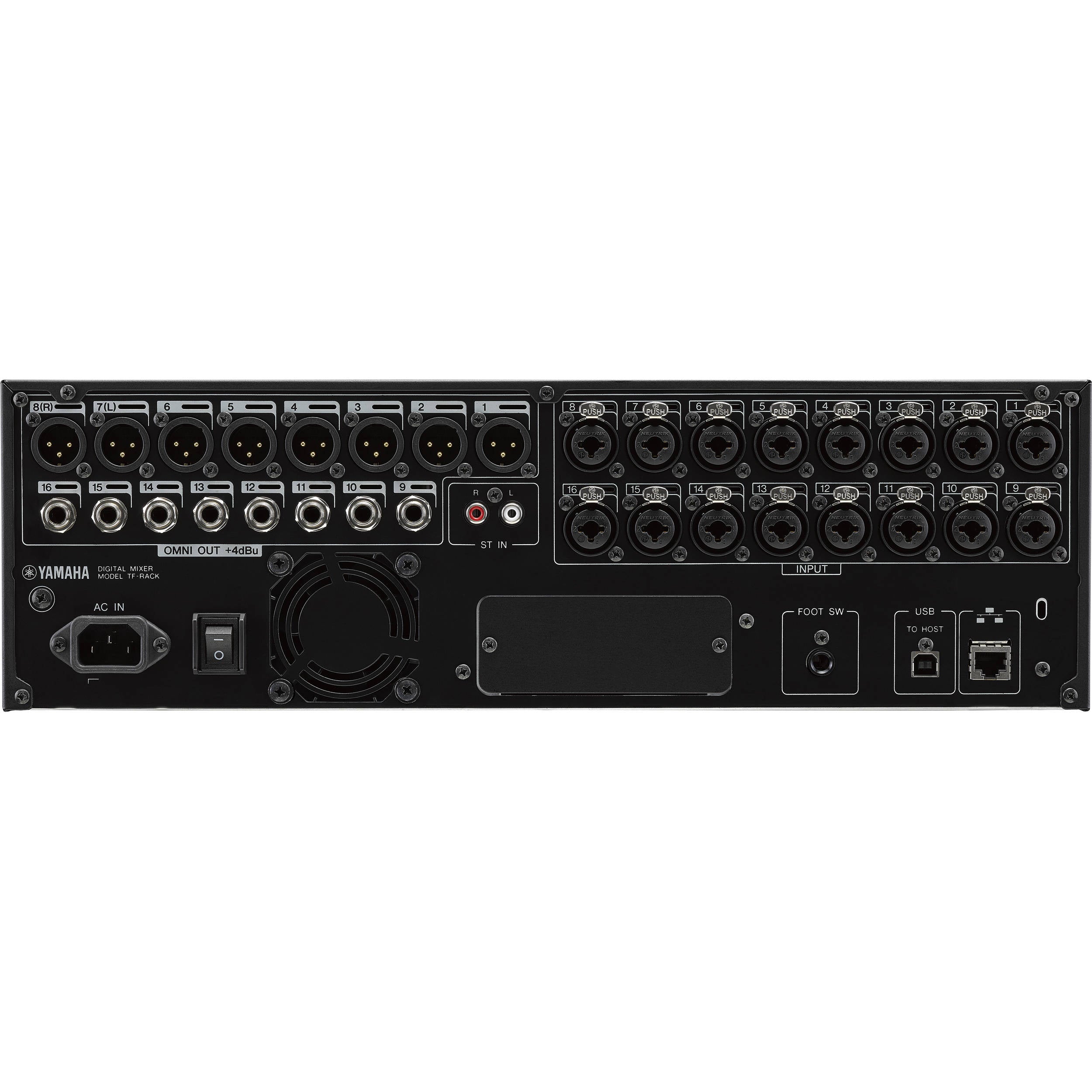

The TF-Rack console itself provides 16 analog XLR/TRS combo mic/line inputs with 48V phantom power, as well as an analog RCA stereo line input, and 16 analog XLR outputs. Each combo input channel features a recallable D-PRE microphone preamp, as well EQ and two dynamics processors. In addition, the console offers eight powerful FX processors with patches ranging from reverb and delay, to modulation effects such as flanger and chorus, to utility processing like 3-band multi-band compression. The TF-Rack ships with Steinberg's Nuendo Live for advanced multi-tracking and virtual sound check capabilities.

Features

• 16 Analog XLR/TRS Combo Mic/Line Inputs
• Analog RCA Stereo Line Input
• 16 Analog Outputs (8-XLR & 8-TRS)
• Per-Channel EQ / Comp & 8 FX Processors
• Recallable D-PRE Microphone Preamps
• Expandable Up to 40 Input Channels
• 34x34 Recording to Computer via USB 2.0
• Optional Tio1608-D I/O Rack
• Includes Steinberg's Nuendo Live

What's In The Box?

• Yamaha TF-Rack Digital Mixing Console
• Power Cord
• 4 x Rubber Feet
• Steinberg's Nuendo Live
• Limited 1-Year Warranty
