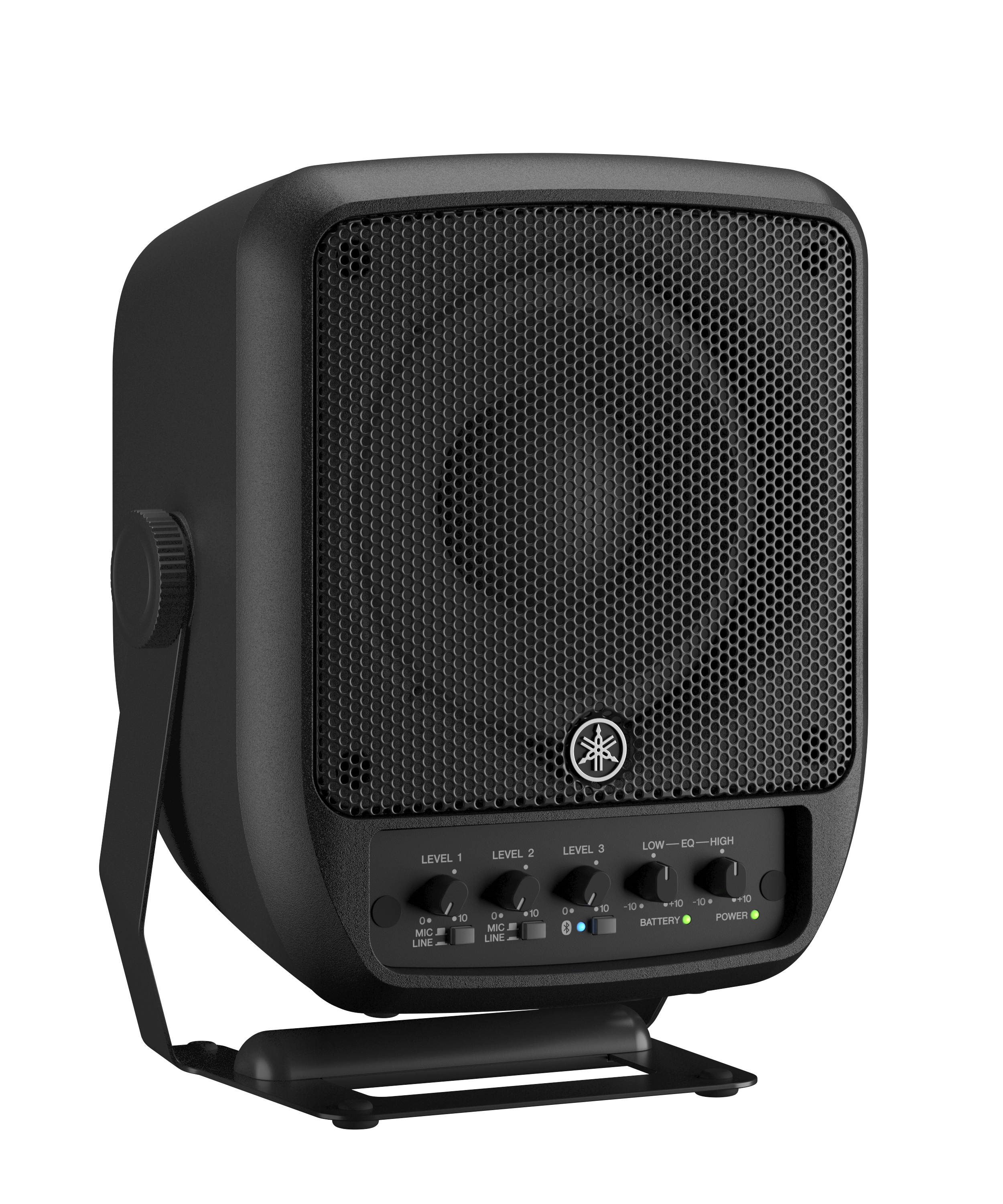

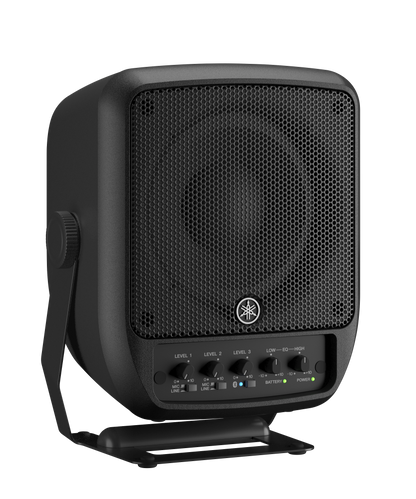

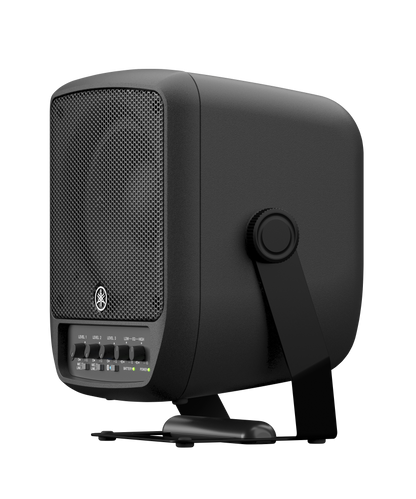

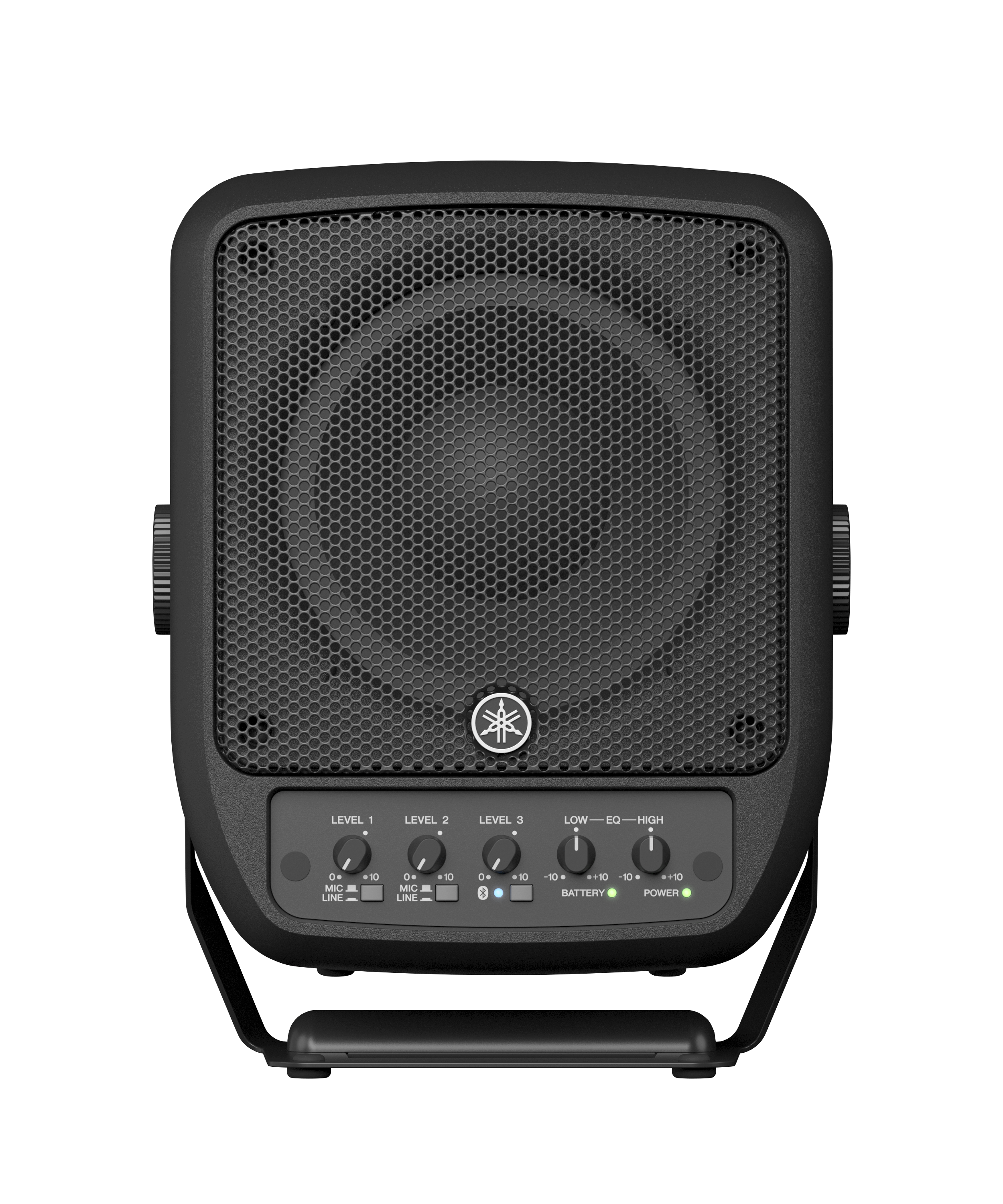

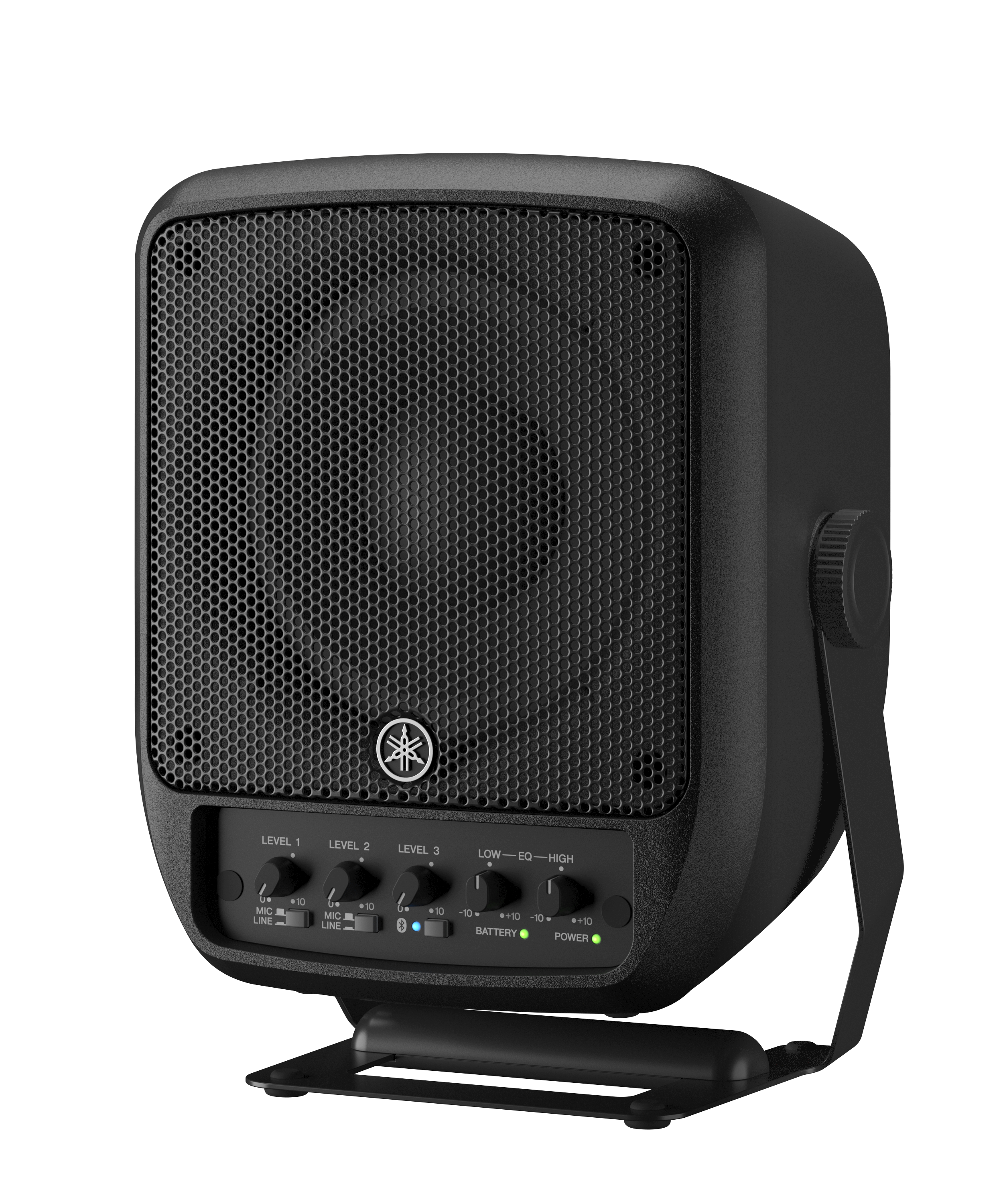

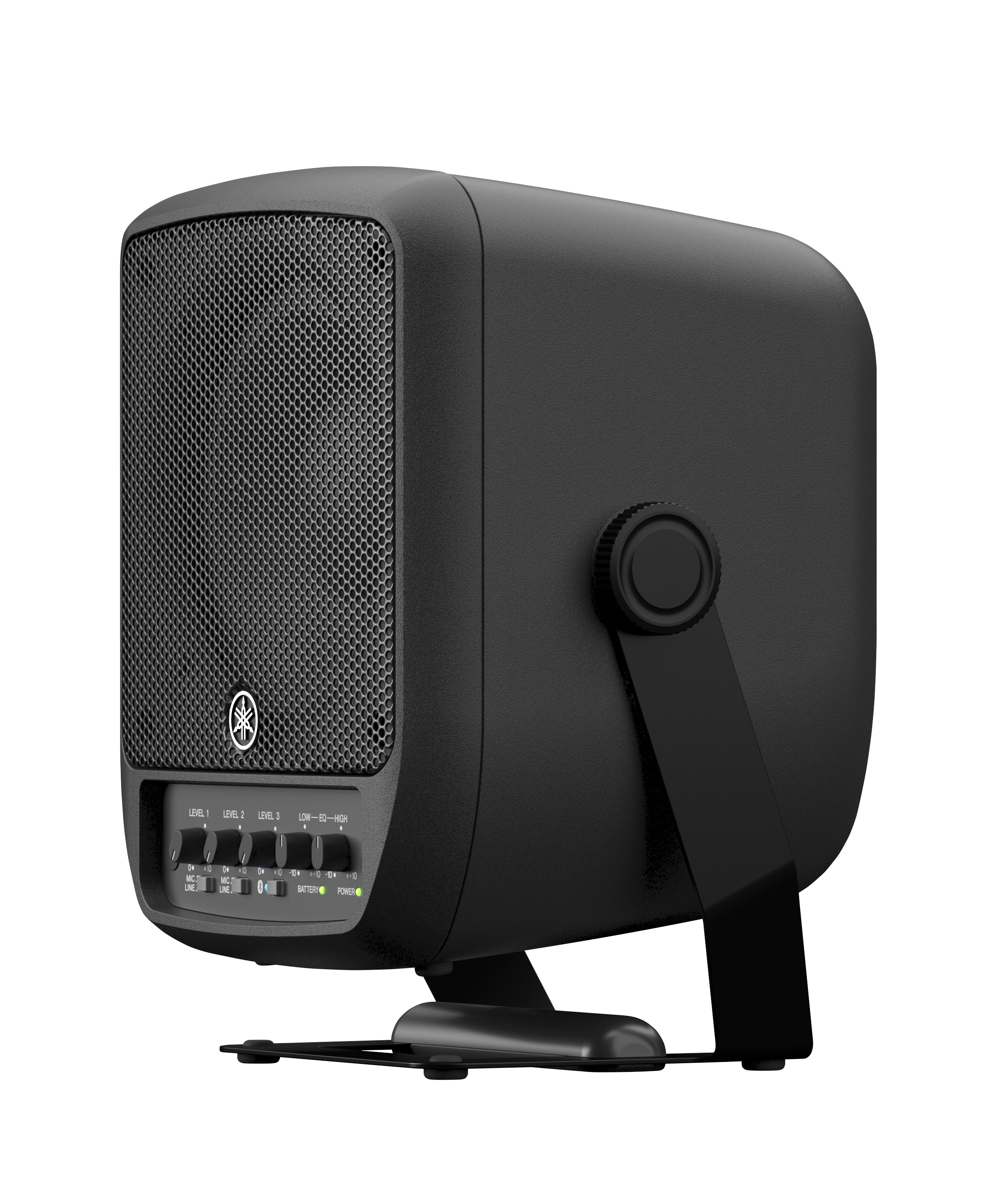

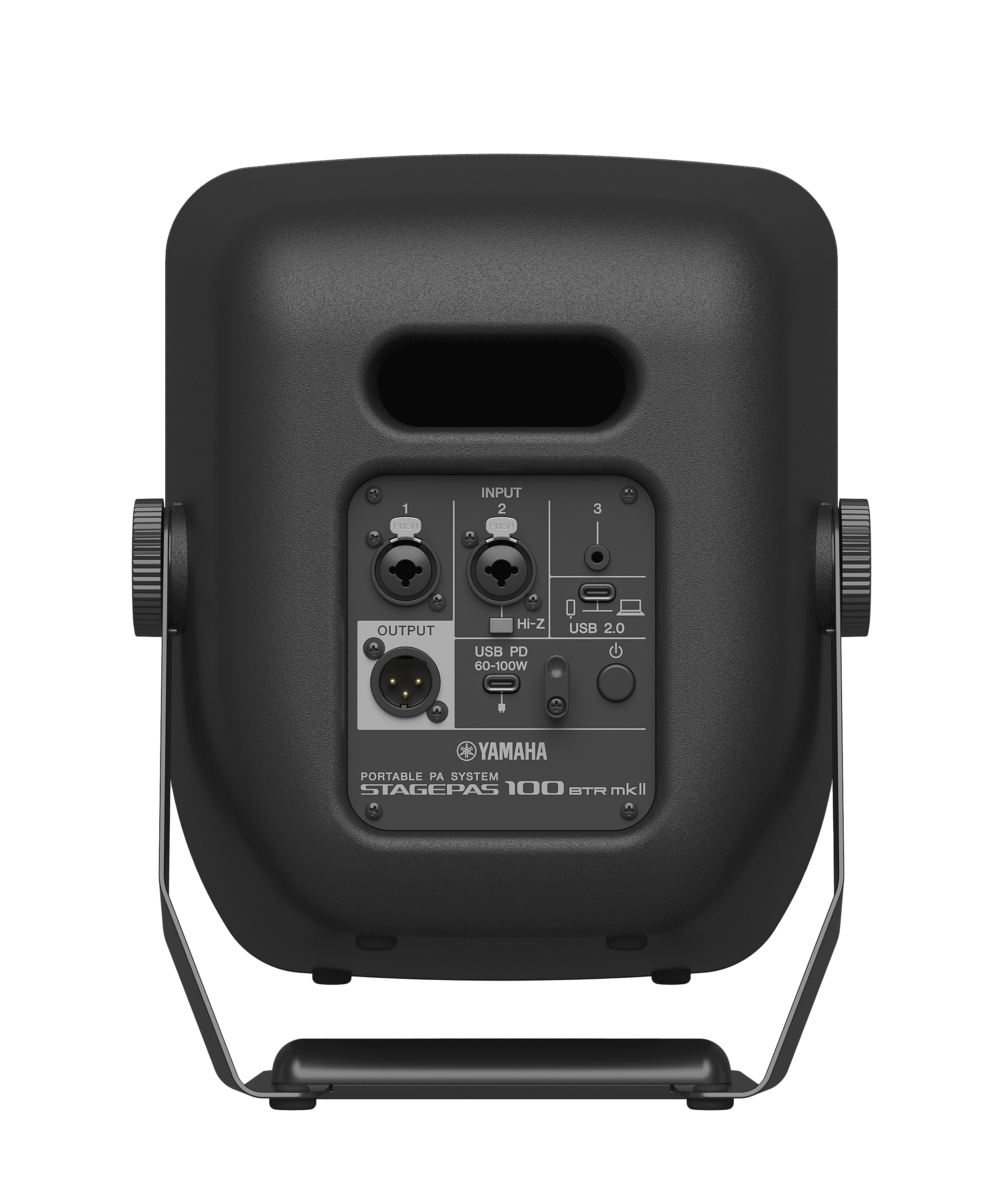

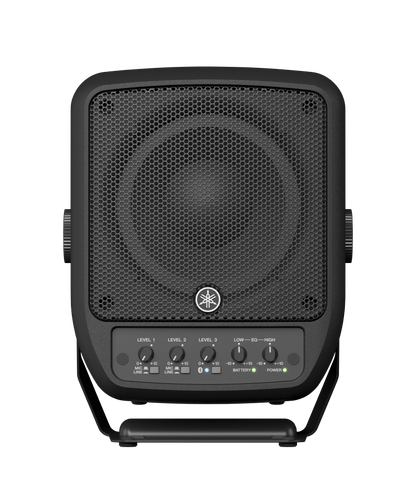

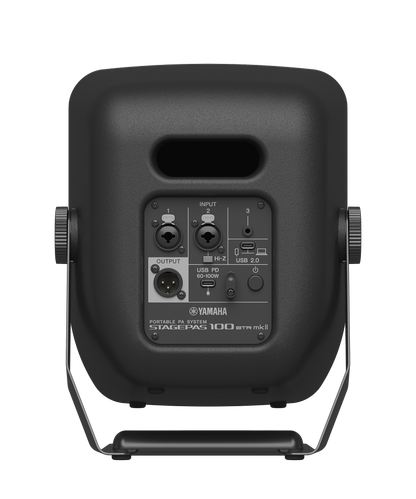

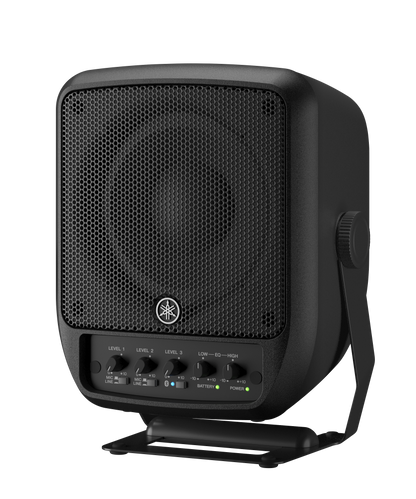

Yamaha STAGEPAS100BTRmkII Portable PA System

Overview

The new STAGEPAS 100BTR mkII portable PA system strikes a perfect balance between high-quality sound and ultimate portability that will allow you to turn virtually any location into your own intimate live stage. Now with audio I/O functionality via USB or a Bluetooth® connection, this new battery-powered version brings even more versatility to your setup. Its lightweight yet durable design, effortless operation, and astonishing sound will help you reach your audience with the full expression of your performance.

 Features

• 100 W Class-D amplifier
• 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
• 3-channel mixer (2 monaural mic/line + 1 line)
• Equipped with a 2-band master EQ
• Compatible with Hi-Z input (Channel 2 only)
• Audio I/O functionality via a USB or Bluetooth® connection
• Internal lithium-ion battery (max. 6hr battery life)

Technical Specifications

Type INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line, Hi-Z), INPUT 3: Stereo Mini x 1 (line)
I/O Analog Inputs Mono x 3 (mic/line) + Stereo/Mono x 1 (line)
Analog Outputs OUTPUT: XLR3-32 (INPUT 1-3 mix)
Digital I/O USB Type-C x1 (2 IN / 2 Out, USB Audio Class 2.0 compliant, Sampling frequency: up to 48 kHz, Bit depth: 16-bit)
Bluetooth Ver.5.0, A2DP/HFP (SBC, AAC, CVSD, mSBC), Class 1
Processors 2 Band EQ
General specifications Speaker type Coaxcial speaker with compression driver
Frequency range (-10dB) 70 Hz – 20 kHz
Coverage area H 90" x V 90"
Crossover 1.8 kHz (FIR-X)
Maximum output level (1m; on axis) 120 dB SPL *1
Components LF 6.5" Cone, 1.7" voice coil
HF 1" throat compression driver, 1.4" voice coil
Amplifier class Class-D
Power rating Dynamic 100 W (LF: 93 W, HF: 7 W)
Cooling Natural convection (no fan)
Power consumption 10 W (Idle), 30 W (1/8 power), 60 W (Rated)
Power requirements USB Power Delivery 60 W (20 V/3 A) – 100 W (20 V/5 A)
Battery Type Rechargeable Lithium ion battery pack
Capacity 60 Wh
Operating Time Maximum 6 hours, 1/16 power continuous 5 hours
Charging Time Approx. 2.5 hours
Cabinet material Plastic (PP)
Handle Bottom x 1 (Rotatable)

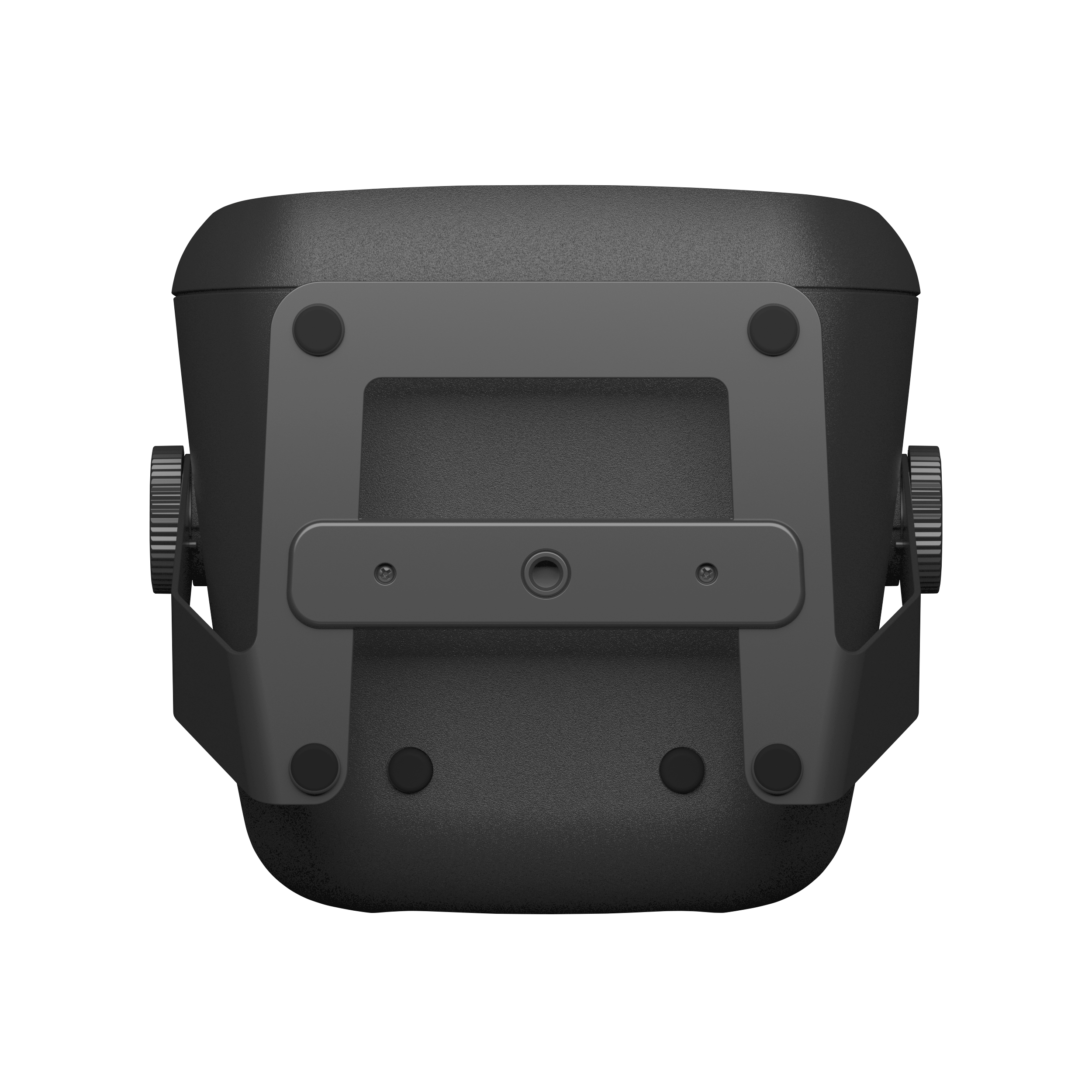

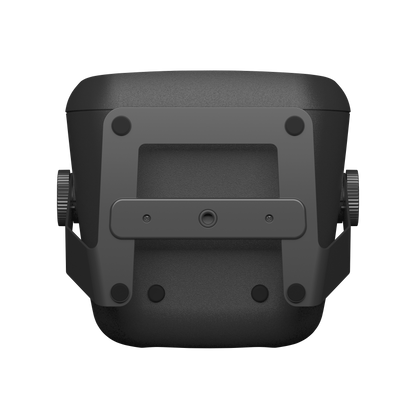

Mounting hardware 1 × 3/8", depth 12 mm (center of handle)
Dimensions (W x H x D) 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle
Weight 5.5 kg (12.1 lbs)
Included Accessories —
Option Carrying bag: BAG-STP100
