Overview

QLX-D® Digital Wireless delivers defined, streamlined performance with transparent 24-bit digital audio. Combining professional features with simplified setup and operation, QLX-D offers outstanding wireless functionality for demanding live sound events and installations.

Shure digital wireless technology enables QLX-D to transmit clearly detailed audio with extended, virtually flat frequency response. Designed to be highly RF spectrum efficient, QLX-D can operate more than 60 compatible channels simultaneously in a single frequency band. Automatic channel scan and IR sync make finding and assigning an open frequency quick and easy. Ethernet connection provides networked channel scanning across multiple receivers and Shure Wireless Workbench® control software compatibility for advanced frequency coordination. AES-256 encryption comes standard and can be easily enabled for secure wireless transmission.

QLX-D also adds Shure rechargeable power options to provide dramatic long-term cost savings and extended transmitter battery life over alkaline batteries, and battery metering that reports remaining runtime in hours and minutes. With clearly defined performance and innovation, QLX-D delivers the very latest in digital wireless technology from Shure.

Features

• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 120 dB dynamic range
• Digital predictive switching diversity
• 64 MHz tuning bandwidth (region dependent)
• More than 60 available channels per frequency band (region dependent)
• Up to 17 compatible systems per 6MHz TV band; 22 systems per 8 MHz band
• Easy pairing of transmitters and receivers over IR scan and sync
• Automatic channel scan
• Ethernet networking for multiple receiver systems
• Network channel scanning configures open frequencies for networked receivers
• Compatible with Shure Wireless Workbench 6 control software
• Remote control from a mobile device or tablet via ShurePlus Channels App
• AES-256 encryption for secure wireless transmission
• Elegant and easy-to-use interface with high-contrast LCD menu
• Compatible with external control systems such as AMX or Crestron
• Professional-grade all metal construction
• Transmitters use 2 AA batteries or Shure rechargeable battery

What's in the Box?

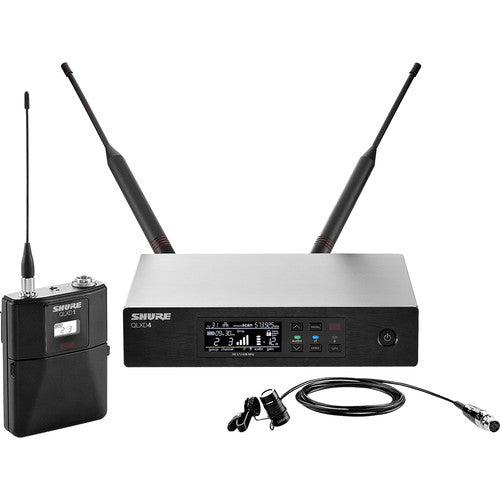

• Shure QLXD14/85 Digital Wireless Cardioid Lavalier Microphone System (G50: 470 to 534 MHz)

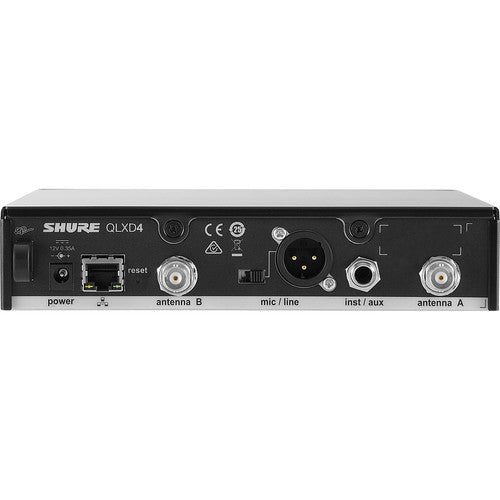

• Shure QLXD4 Digital Wireless Receiver
• Shure QLXD1 Digital Wireless Bodypack Transmitter
• Shure WL185 Cardioid Lavalier Microphone with TA4F Connector
• Hardware Mounting Kit
• Short Rackmount Bracket with Link Bar
• Long Rackmount Bracket
• 2x Antennas
• 2x BNC Antenna Adapters
• 2x BNC Antenna Cables (22")
• Ethernet Cable (3")
• Shure PS24US Power Supply for Select Wireless Receivers
• 2x AA Batteries
• Limited 2-Year Manufacturer Warranty
