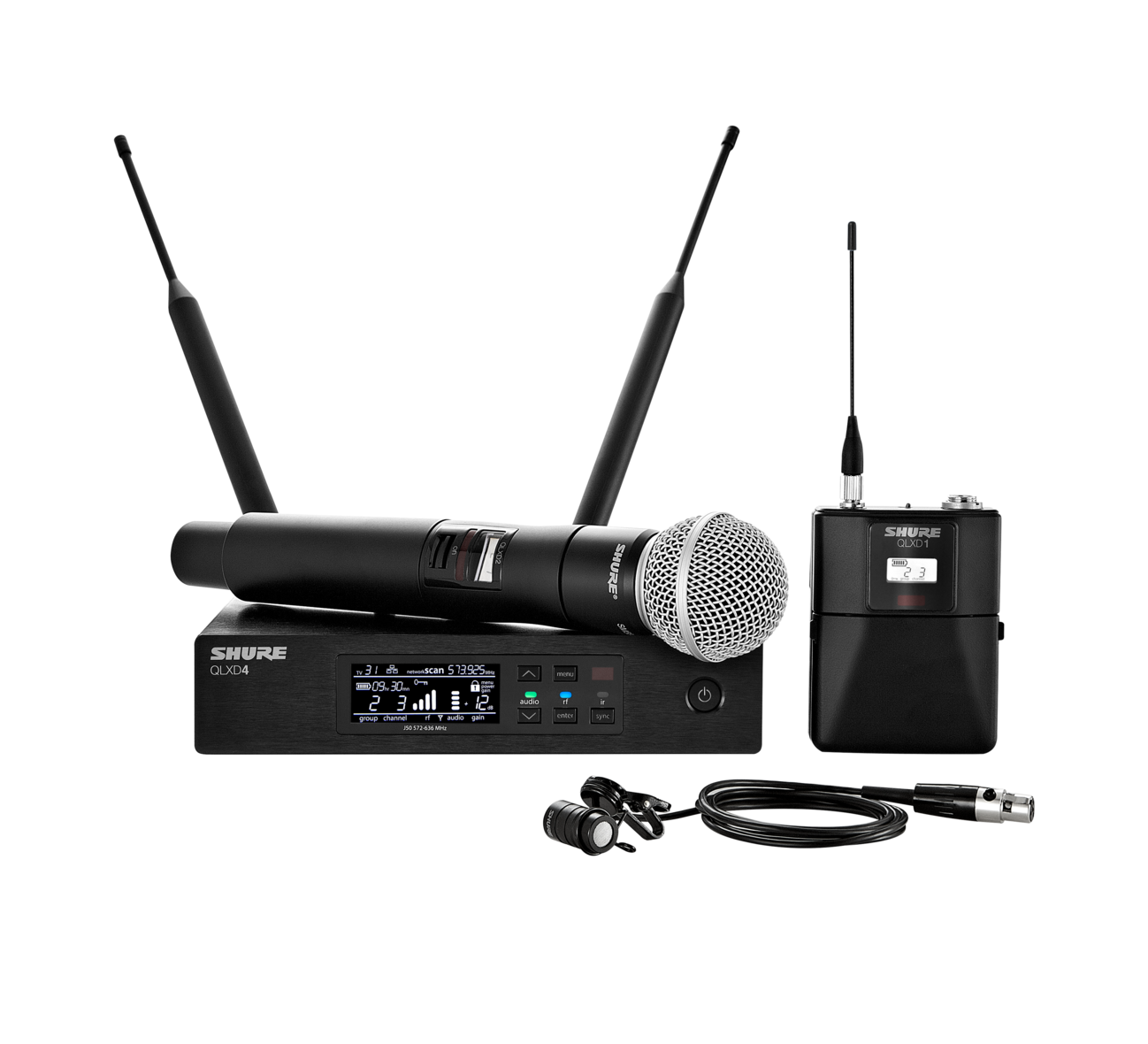

Shure QLXD124/85-J50A Wireless Vocal System

Overview

The Shure QLXD124/85 rackmount digital wireless combo microphone system provides instructors, clergy, presenters, and performers with professional-quality audio, reliable RF performance, and secure AES 256-bit encryption. Rugged and easy-to-use, it is ideal for use in sound-reinforcement applications in medium-sized venues and houses of worship, as well as A/V installations in conference, educational, and corporate facilities.

The QLXD124/85 operates in the UHF band to transmit pristine 24-bit/48 kHz digital audio with clarity, accurate low end, and crisp transient response. It utilizes Digital Predictive Switching Diversity to protect the transmission from interference and deliver solid RF signal stability without audio artifacts. You can run up to 60 mic channels at the same location.

The system comes with a QLXD1 bodypack transmitter and a WL185 cardioid lavalier microphone optimized for speech intelligibility. It also includes the QLXD2 handheld transmitter featuring an interchangeable capsule design and equipped with the legendary SM58 cardioid dynamic capsule, an industry standard for vocalists and presenters. Both transmitters provide up to 9 hours of operation on two AA batteries, with selectable 1/10mW RF power and a transmission range up to 330'.

The receiver features audio and RF meters, 60 dB of gain control, and both mic/line XLR and 1/4" instrument outputs. A large LCD screen and intuitive controls let you quickly make adjustments, even in low-light situations. Additional features include automatic frequency scanning, IR sync, and internal limiting to prevent clipping.

The Ethernet port allows multiple receivers to be easily networked together for simplified frequency coordination and deployment via Shure's Wireless Workbench (WWB) software.

Note: While this system includes two transmitters, only one can be used at a time.

Features

• For Presenters and Performers
• WL185 Cardioid Lavalier Mic
• Rugged Bodypack Transmitter
• SM58 Dynamic Cardioid Mic/Transmitter
• Switching-Diversity Rackmount Receiver
• 1760 Auto-Scan Frequencies
• Selectable 1/10mW RF Power
• Ethernet Port, LCD Display
• 9-Hr AA Batteries
• Expandable to 60 Mic Channels/330' Range

What's In The Box?

• Shure QLXD124/85 Digital Wireless Combo Microphone System (J50A: 572 to 608 + 614 to 616 MHz)
• Shure QLXD4 Digital Wireless Receiver J50A Band
• Shure QLXD1 Digital Wireless Bodypack Transmitter J50A Band
• Shure WL185 Cardioid Lavalier Mic w/ TA4 Connector
• Shure QLXD2/SM58 Digital Handheld Wireless Mic Transmitter w/ SM58 Capsule J50A Band
• Microphone Clip
• Hardware Mounting Kit
• Short Rackmount Bracket with Link Bar
• Long Rackmount Bracket
• 2 x Antennas
• 2 x BNC Antenna Adapters
• 2 x BNC Antenna Cables (22")
• Ethernet Cable (3')
• Shure PS24US Power Supply for Select Wireless Receivers
• 4 x AA Batteries
• Limited 2-Year Warranty
