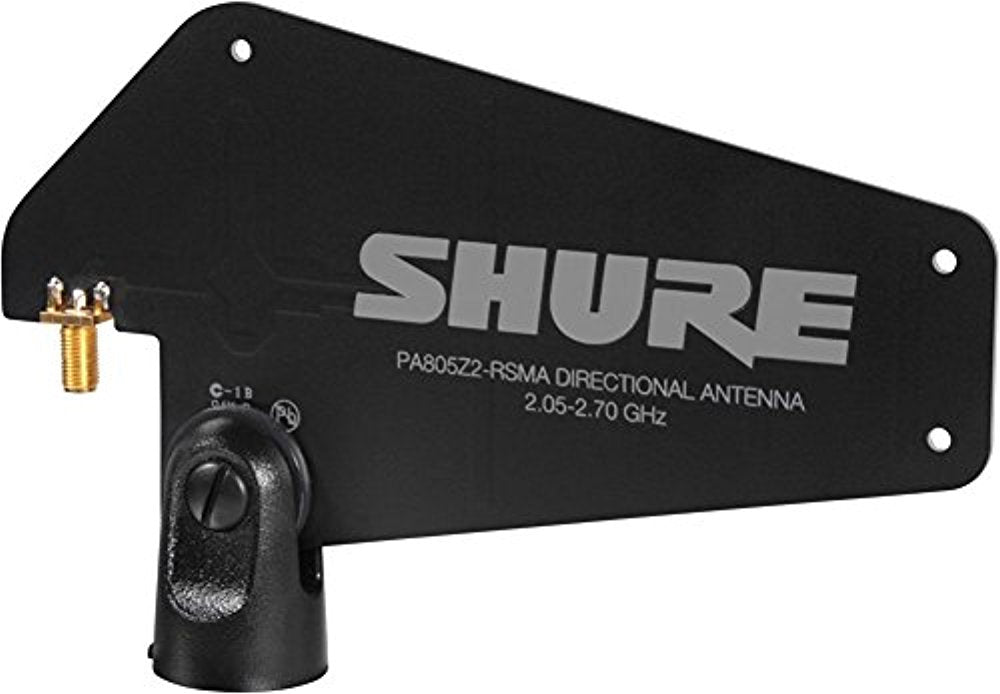

Shure PA805Z2-RSMA Passive Directional Antenna

$284.00

Overview

The PA805Z2-RSMA Passive Directional Antenna is considered a key part of any GLX-D Advanced Digital Wireless installation. These antennas both improve reception of GLX-D transmitter signals and minimize interference from any 2.4GHz sources near receivers with appropriate installed placement.

 Features

  • Improved wireless reception: 8dB of passive directional antenna gain
  • Improved rejection of interference from 2.4GHz sources: 24dB front-to-back ration for improved rejection of off-axis signals
  • Can be painted with non-metallic paint to match mounting surface
  • Includes 3.05m RSMA cable

Specifications

  • Frequency Range (<2:1 Voltage Standing Wave Ratio (VSWR)): 2050 to 2700 MHz
  • Antenna Gain (@2.45 GHz, typical): 8 dBi
  • 3 dB Hotizontal Beam Width: 100 degrees
  • Efficiency (@2.45 GHz, typical): 89%
  • Impedance: 50 Ω
  • Polarization: Linear
  • Front-to-Back Ratio (@2.45 GHz, typical): 24 dB
  • Connector Type: Reverse SMA
  • Dimensions: 105 x 164 x 27.5 mm H x W x D
  • Net Weight: 2.5 oz

 What's in the Box?

  • ​​PA805Z2-RSMA Passive Directional Antenna
  • 3 m (10 ft.) Reverse SMA Cable
  • Brass Adapter

​
