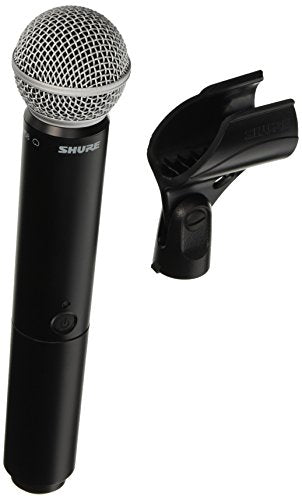

Shure BLX2/SM58 Handheld Wireless Mic Transmitter H9 Band

Overview

Featuring an integrated SM58® microphone cartridge, the BLX2/SM58 Handheld Wireless Microphone Transmitter delivers wireless audio with professional clarity and reliability. The BLX2/SM58 Handheld Wireless Microphone Transmitter works with BLX Wireless Systems.

SM58

The Shure SM58^® is a unidirectional (cardioid) dynamic vocal microphone for professional vocal use in sound reinforcement and studio recording. A highly effective, built-in, spherical filter minimizes wind and breath “pop” noise. A cardioid pickup pattern isolates the main sound source while minimizing unwanted background noise. The SM58 has a tailored vocal response for a sound which is a world standard. Rugged construction, a proven shockmount system, and a steel-mesh grille ensure that even with rough handling, the SM58 will perform consistently. Outdoors or indoors, singing or speech, the SM58 is the overwhelming choice of professionals worldwide.

Features

• Performance tested, industry standard
• Uniform cardioid pick-up pattern for maximum gain before feedback and excellent rejection of off-axis sound
• Tailored frequency response specifically shaped for vocals, with brightened midrange and bass roll off to control proximity effect
• Advanced pneumatic shock mount system that minimizes transmission of mechanical noise and vibration
• Steel-mesh grille and enamel-coated metal construction resist wear and abuse
• Effective built in pop-filter reduces undesirable wind and breathe noise
• Furnished with zippered storage bag and break-resistant stand adapter
• On/Off switch (SM58S only)
• Extremely durable under the heaviest use
• Shure quality, ruggedness and reliability

Specifications

• Type: Dynamic (moving coil)
• Frequency Response: 50 to 15,000 Hz
• Polar Pattern: Cardioid
• Output Impedance: 300 Ω
• Sensitivity (at 1 kHz, open circuit voltage): -56.0 dB/Pa (1.6 mV)
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Net Weight: 0.33 kg (0.72 b)
• Connector: Three-pin professonal audio (XLR) male
• Housing: Dark gray, enamel-painted, die cast metal; matte-finished, silver colored, spherical steel mesh grille

BLX2

Making the jump to wireless should be liberating, not challenging. Shure BLX Wireless Systems combine professional quality sound with simple setup and an intuitive interface for performance you can trust right out of the box. Precision built and available in a variety of handheld, lavalier, instrument and headset con gurations, it’s the most accessible way to own the stage.

Features

• Power and battery status LED
• Adjustable gain control
• Quick & easy frequency matching
• 2 AA batteries (included) provide up to 14 cours of continuous use
• 300 feet (91 m) operating range (line of sight)

Specifications

• Operating Range: 300 ft (91 m) line of sight
• Available Frequencies: Beween 524 - 865 MHz
• Audio Range: 50 - 15,000 Hz (dependent on microphone type)
• Transmitter RF Output Power: 10 mW, typical
• Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced
• Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
• Battery Life: Up to 14 hours
• Dynamic Range: 100 dB A-weighted
• System Distortion (re. +/- 38 kHz deviation, 1 kHz tone): 0.5% THD typical
• Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
• Power Requirements: 2 AA alkaline or rechargeable batteries

What's in the Box?

• BLX2/XM58 Handheld Wireless Microphone Transmitter (H9 Band)
• Mic Clip
• 2 AA Batteries
• User Guide
