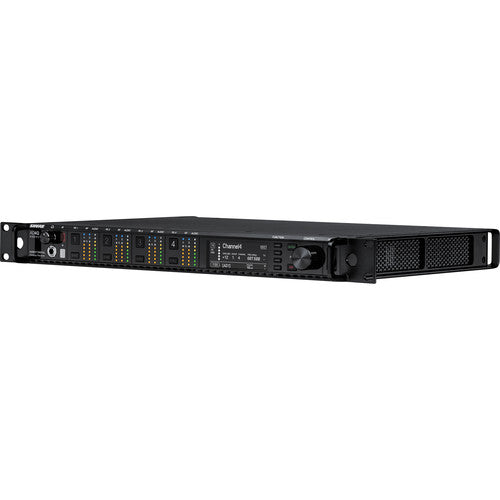

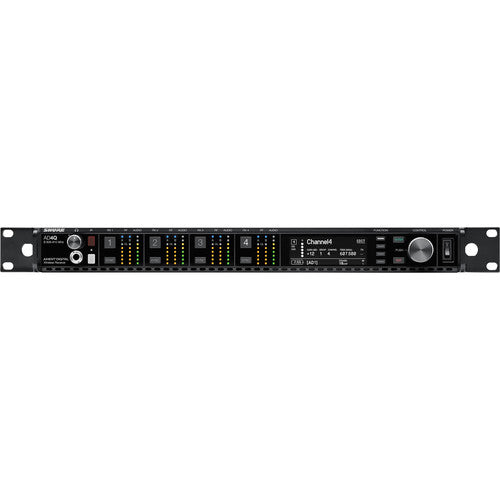

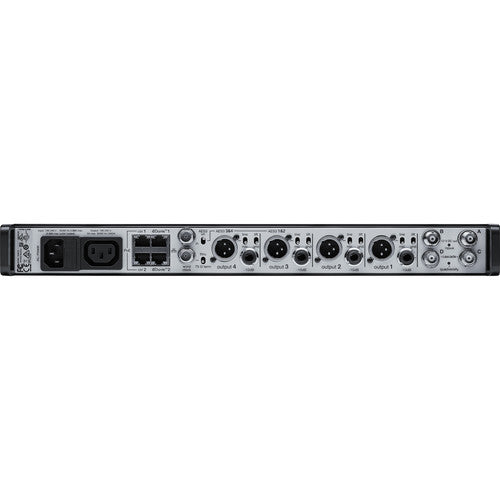

Shure AD4QUS-A Axient Digital Four-Channel Wireless Receiver (A: 470 to 636 MHz)

Overview

The Shure AD4Q-US is a 4-channel wireless receiver housed in a rugged, single-rack unit complete with cable and mounting accessories. Part of the Axient Digital system, it delivers mission-critical signal stability and clear, transparent sound for professional productions that demand flawless execution.

Every feature has been stress-tested to enable seamless, uninterrupted audio in high-profile applications such as televised live performances, award shows and corporate events, the Broadway stage, secure government installations, and state-of-the-art meeting and training facilities.

The AD4Q-US operates in a single 166-MHz ultrawide bandwidth that encompasses the entire usable UHF range from 470 to 636 MHz. Quadversity mode allows placement of two pairs of antennas in different zones or doubling antennas in one zone. The Dante Cue and Dante Browse features enable high-fidelity headphone monitoring from any connected Dante-enabled device.

Other highlights include a low 2ms latency, XLR/AES3 + AES67/Dante outputs, 256-bit encryption, and HD mode for up to 47 active transmitters per 6 MHz TV channel. Axient Digital supports over 120 simultaneous channels and is compatible with AD1, ADX1, ADX1M, AD2, ADX2, and ADX2FD transmitters.

 Features

• Wide tuning range up to 184 MHz
• True digital diversity reception per channel for drop-out resistance
• Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
• Quadversity mode for extended antenna coverage and improved RF signal-to-noise
• Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
• Configurable Ethernet switch for redundant Dante or AES67 digital output
• Switchable XLR and AES3 outputs
• Channel Quality meter displays RF signal-to-noise
• Locking AC connectors
• DC module version available to support redundant power

What's In The Box?

• Shure AD4Q-US Axient Digital Four-Channel Wireless Receiver (A: 470 to 636 MHz)
• 2 x 1/2 Wave Wideband Antennas
• Hardware Kit
• Bulkhead Adapter, BNC
• BNC to BNC Coaxial RF Cable for Bulkhead Mounting (Short)
• BNC to BNC Coaxial RF Cable for Bulkhead Mounting (Long)
• Coaxial RF Cascade Cable
• AC Power Cable, VLock
• AC Power Jumper Cable
• Ethernet Cable (3')
• Ethernet Jumper Cable
• Limited 2-Year Manufacturer Warranty
