Overview

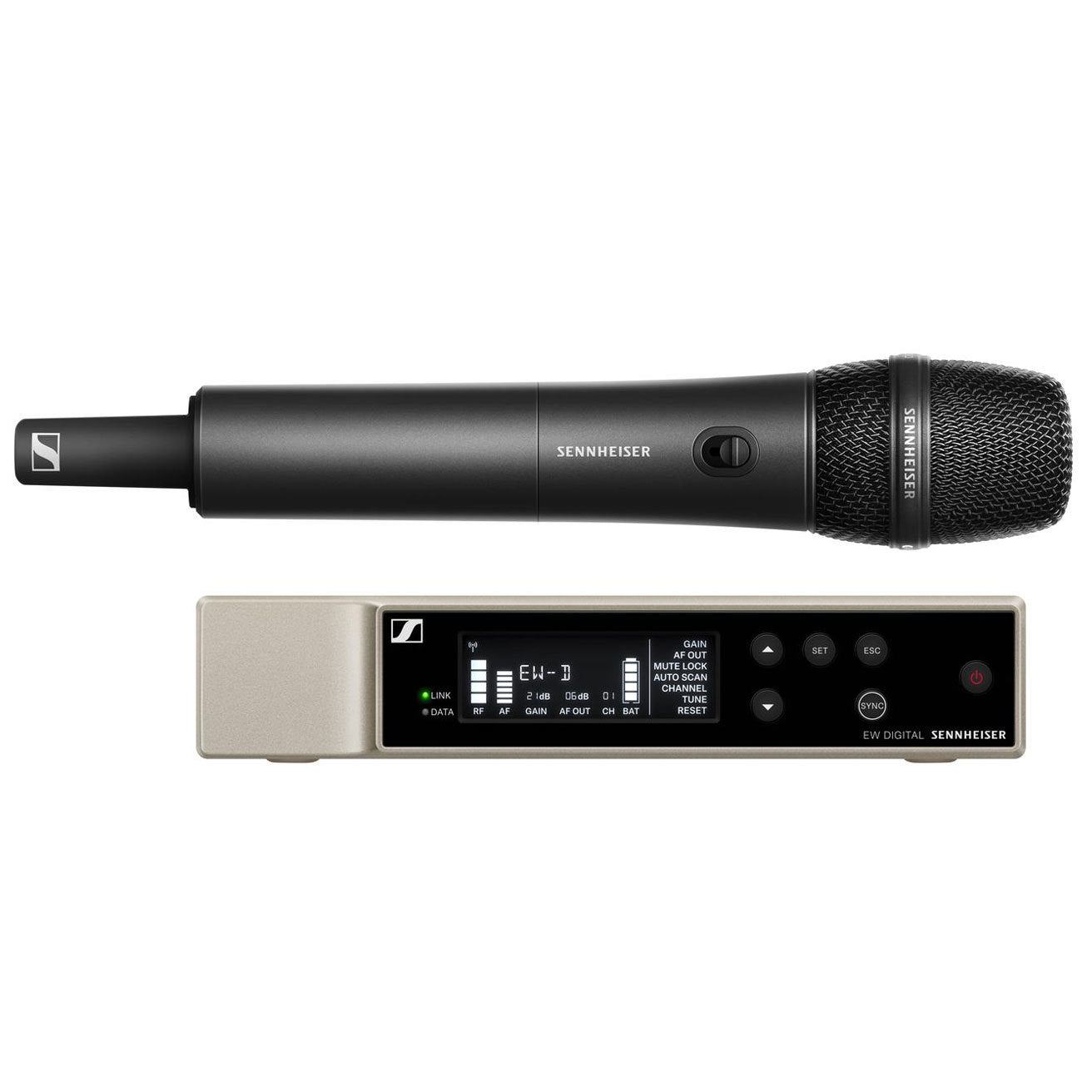

Versatile and feature-rich digital wireless system for those who sing, speak, or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser's renowned e 825 capsule on a lightweight handheld transmitter with integrated mute switch.

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalibility
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning

Specifications

• Frequency range: 552-607.8 MHz
• Operating relative humidity: 5-95% (non-condensing)
• THD, total harmonic distortion: ≤ -60 dB for 1kHz @ -3 dBs input level
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBs
• Operating Temperature: -10 °C - +55 °C (14 °F - 131 °F)
• System Latency: 1.9 ms

What's in the Box?

• EW-D EM rack receiver
• EW-D SKM-S handheld transmitter
• MMD 835 microphone module
• MZQ 1 microphone clamp
• 2 rod antennas
• Power supply with country adapters
• Rackmount set
• 4 rubber feet
• Quick Guide
• Safety Guide
• Manufacturer declaration sheet
