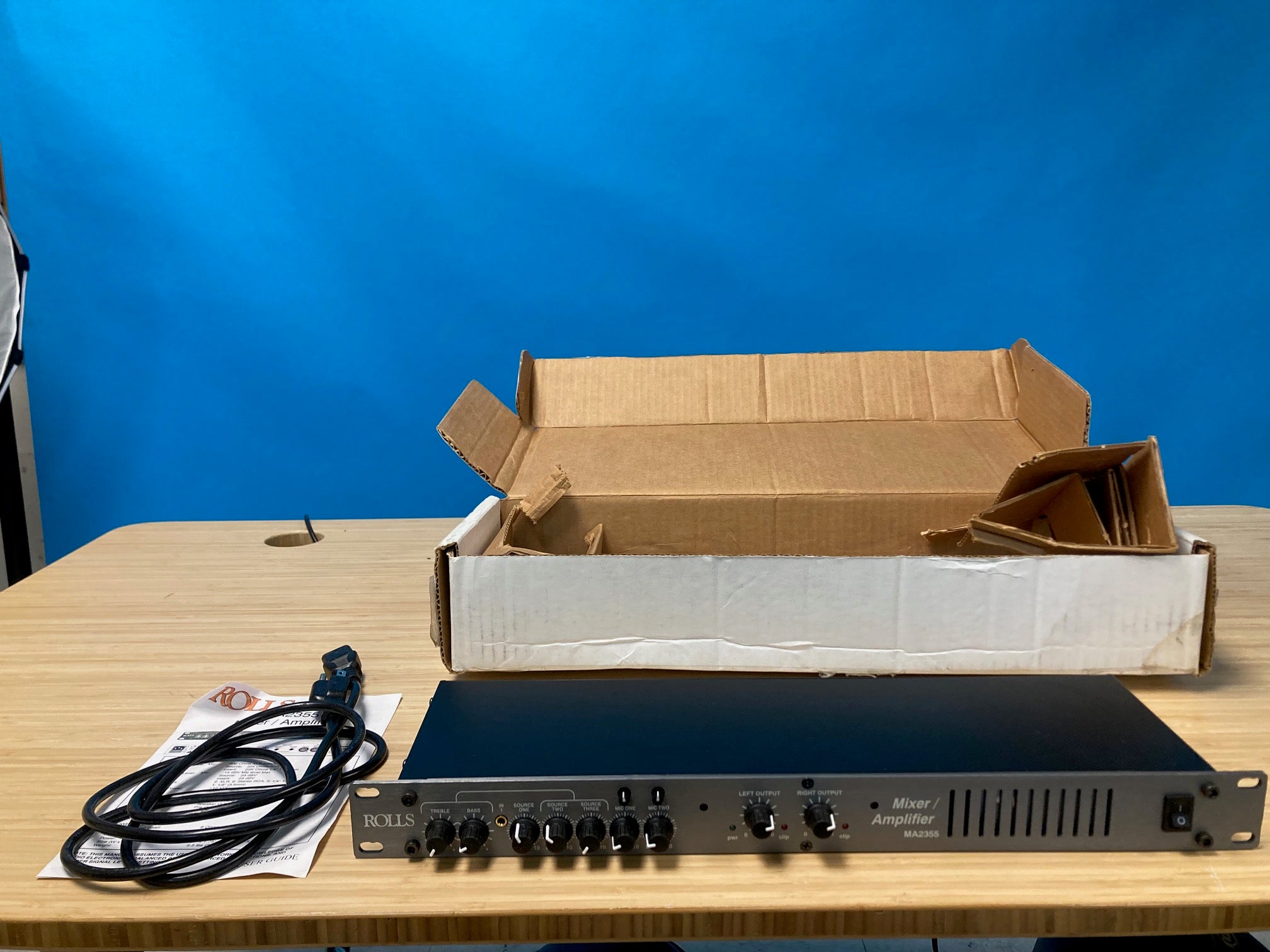

Rolls MA2355 Stereo Mixer Amplifier 35w/Ch

Introducing the MA2355, a versatile single rack space mixer amplifier meticulously designed for seamless integration in small installation setups. This compact unit offers an efficient solution for blending up to three audio sources, such as AM/FM tuners, CD players, and video players, along with the flexibility to accommodate two microphones.

Priority talkover functionality is smartly incorporated for both Microphone One, enabling easy paging, and Source Three, ideal for seamless integration with a jukebox, telephone, and more.

With a robust power amplifier outputting 35 Watts of power to 8 ohm speakers, the MA2355 ensures an immersive audio experience. It′s worth noting that the front panel serves as an effective heat sink, efficiently dissipating heat under substantial loads.

• MIXER:

• Mic: 600 Ohms XLR balanced
• Source: 22K Ohms RCA
• Insert: 22K Ohms 1/4" TS unbalanced
• Max Input Level:
• Mic: -14 dBV Mic level Max
• Source: 24 dBV
• Insert: + 20 dB
• Connectors: 2: XLR, 6: Stereo RCA, 3: 1/4" TRS, 1: 1/4" TS
• Phantom Power: +12 VDC
• Max Gain:
• Mic: 60 dB
• Source: 26 dB
• Tone Controls: +/-12 dB 100 Hz Bass, +/-12 dB 11kHz Treble
• Noise Floor: - 80 dB
• S/N Ratio: 96 dB
• Priority Attenuation: 60 dB
• POWER AMP: 35W/ch 4ohm 30W/ch 8ohm
• 20% Full/Low pwr: 4 Ohms / Channel
• Frequency Response: 20Hz to 20 kHz
• Size: (W x H x D): 19" x 1.75" x 5", (48 x 4.5 x 12.7)
• Weight: 5.5 lbs (2.5 kg)

• Two Microphone inputs with phantom power.
• Tone controls for each Mic input.
• Three stereo Source inputs.
• Direct access to the power amp section.
• Bass and Treble controls on Sources Two and Three.
• Priority ducking on Mic Two and Source One.
• Dual pre-master level Record Output.
• Fault protected power amp.
• Spring-loaded output terminals.
• Clip indication.
• FR4 Double-sided epoxy circuit board.
• Socketed ICs.
• Made in the U.S.A.
