Overview

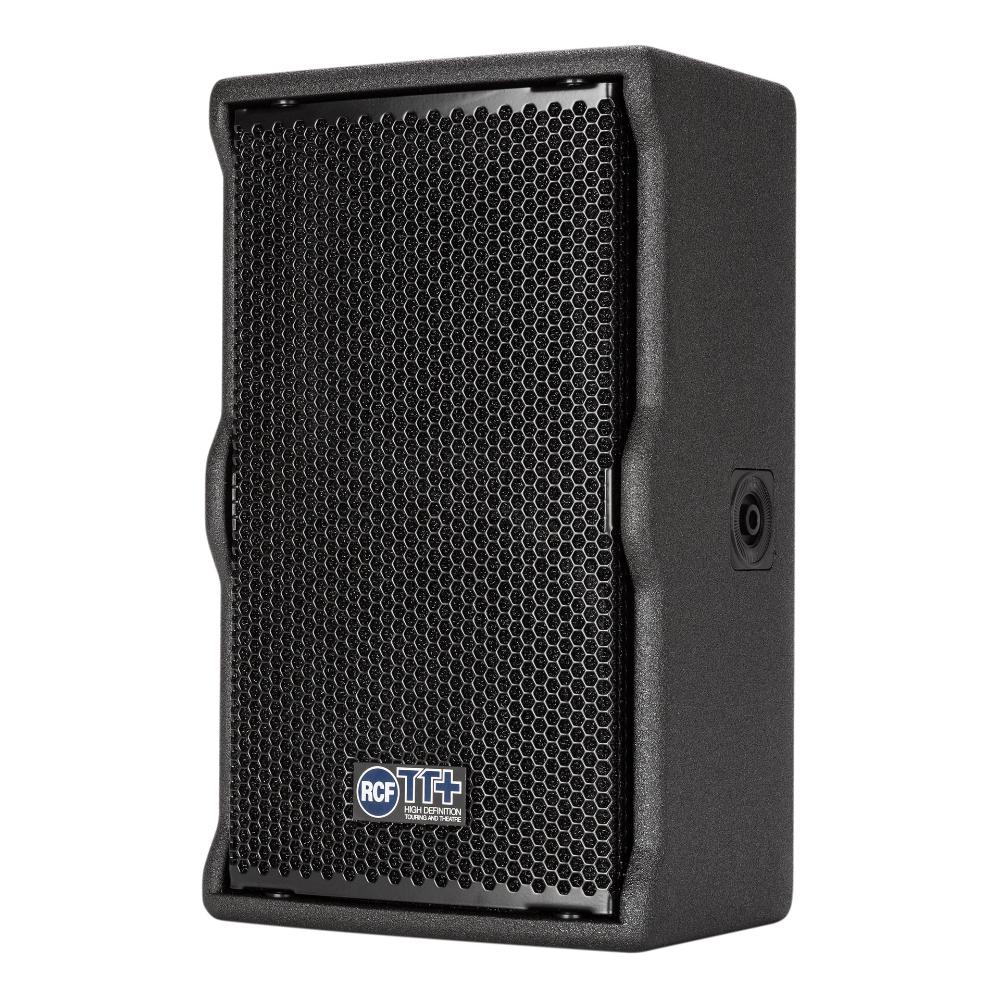

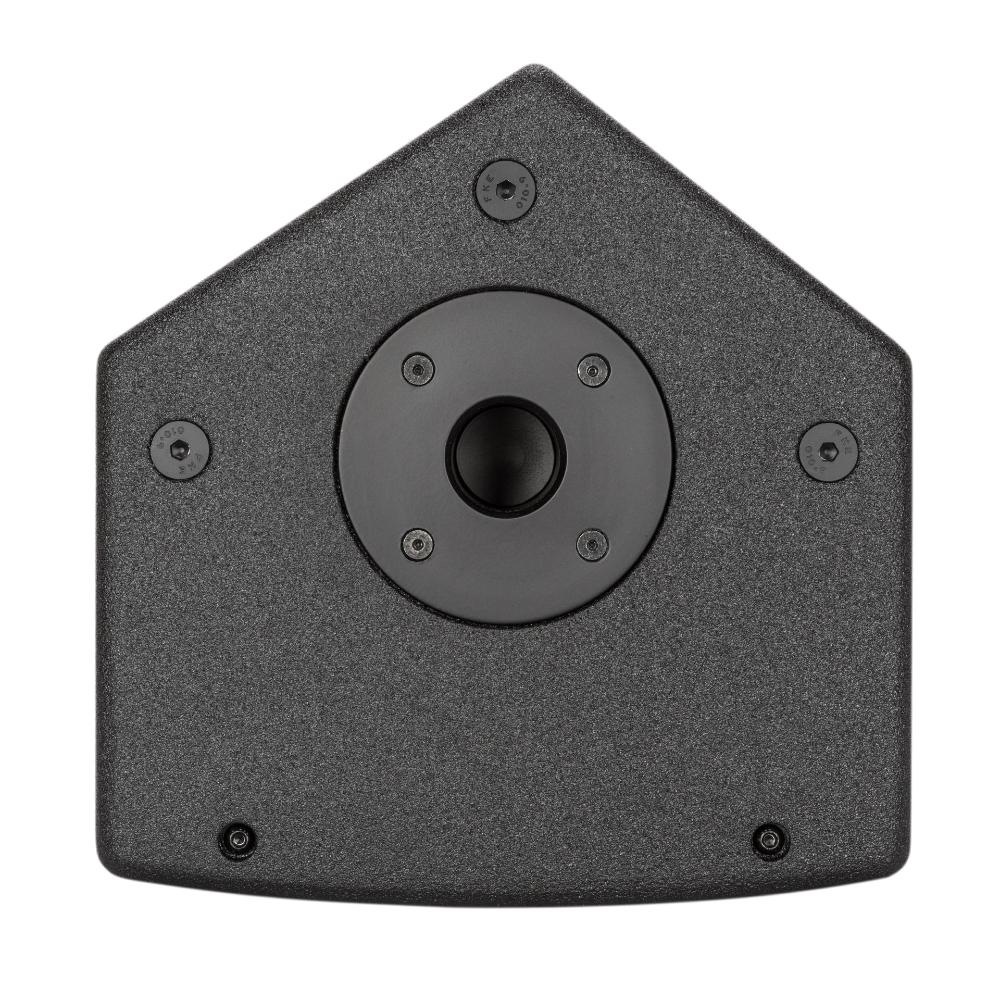

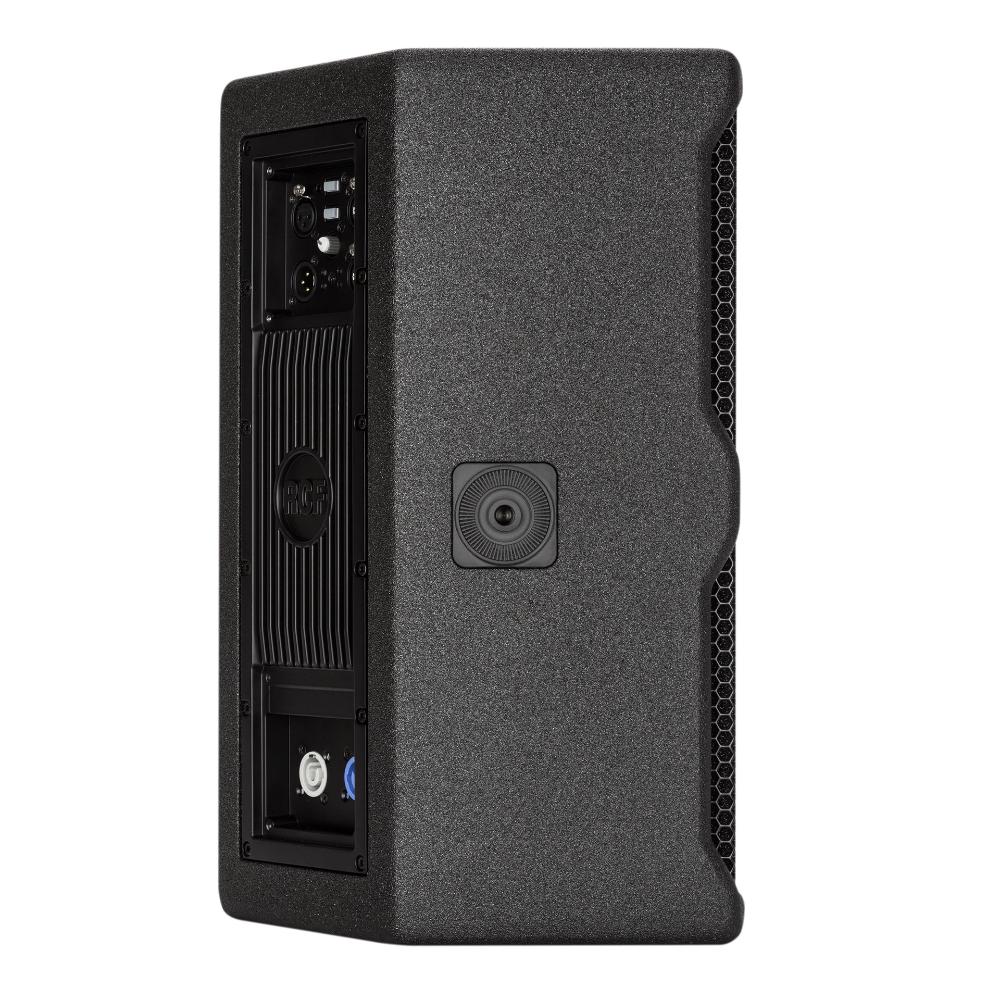

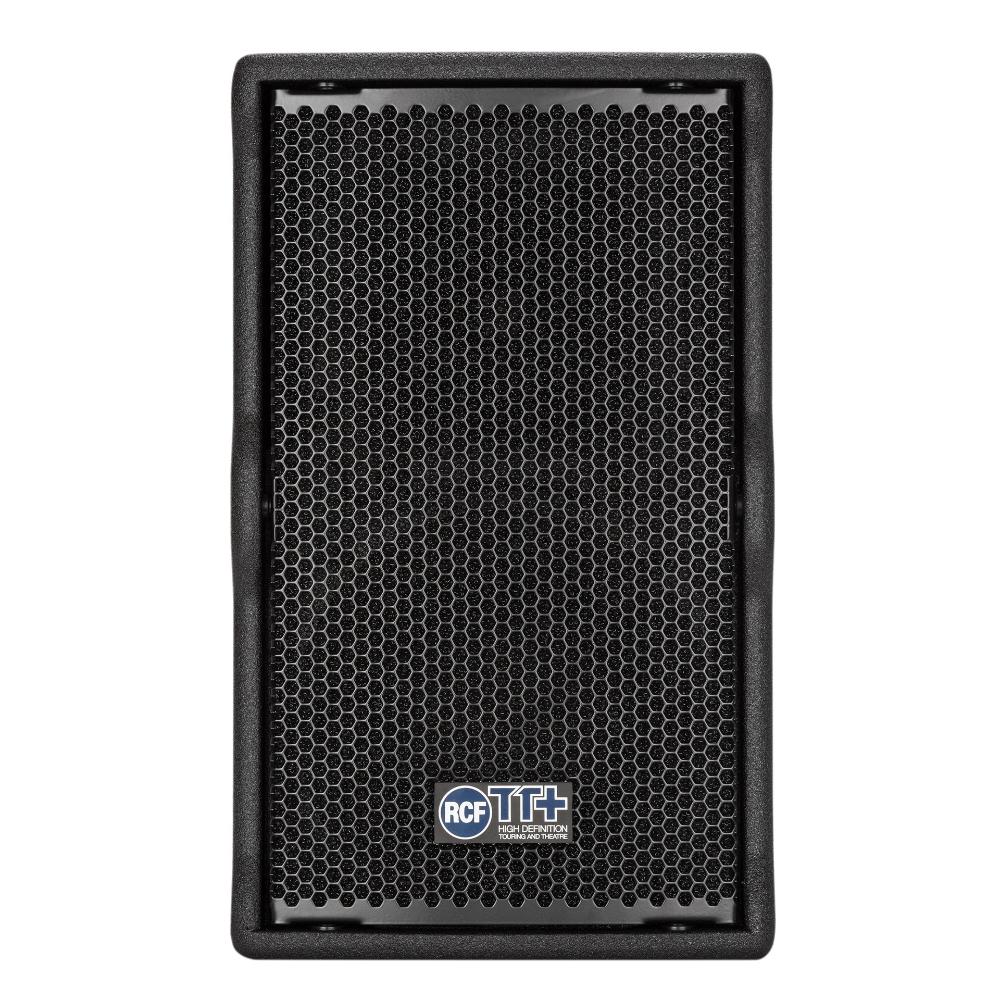

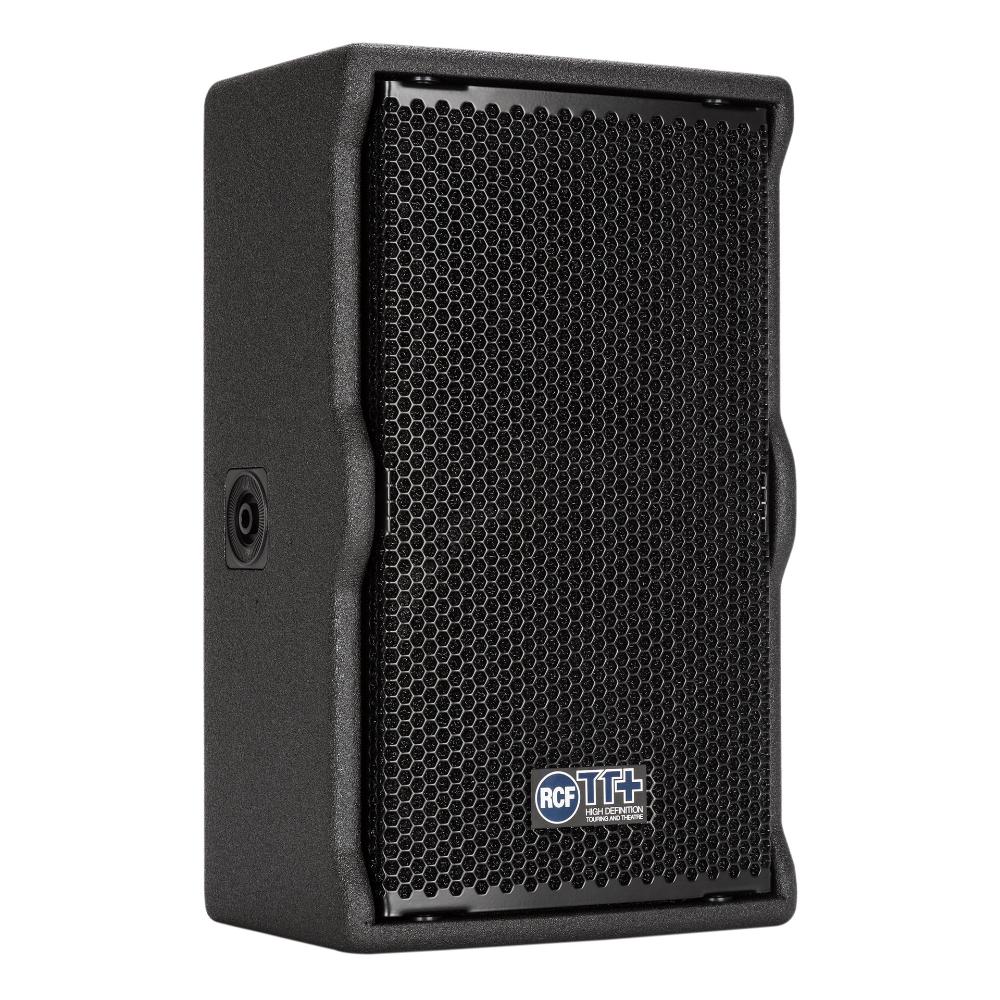

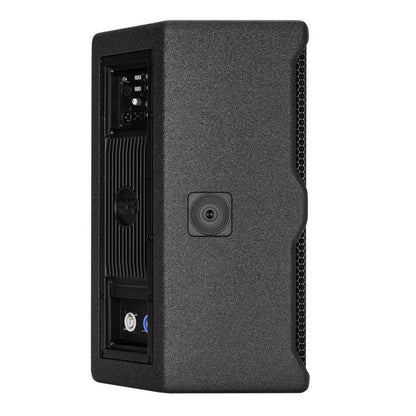

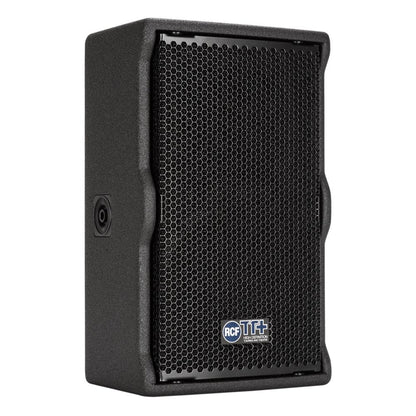

The RCF TT08-A II is by far the smallest member of the TT+ family, whilst being the most flexible and powerful tool in its class. Perfect for live sound to playback and monitoring, corporate events and broadcast studios. Though remarkably compact and lightweight, the TT 08-A II offers an incredible maximum sound pressure level of 128 dB. Its performance efficiency is higher than many larger 10” speaker systems.

Features

• 128 dB SPL Max
• 1000W RMS, two-way Class-D amplifier
• Rotatable 90° x 70° constant directivity horn
• Quick Fit Bracket Socket
• FiRPHASE
• 8’’ neodymium Woofers, 2.5’’ voice coil
• Horn-loaded 1” neo comp. driver, 1,75’’ voice coil
• RDNet Networked Management
• 60 ÷ 20000 Hz Frequency Range

Specifications

Acoustical Specifications

• Frequency Response: 65 Hz ÷ 20,000 Hz
• Max SPL @ 1m: 128 dB
• Horizontal Coverage Angle: 90-degrees
• Vertical Coverage Angle: 70-degrees

Transducers

• Compression Driver: 1 x 1.0" neo, 1.75" v.c
• Woofer: 8" neo, 2.5" v.c

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input Sensitivity: -2 dBu/+4 dBu

Processor Section

• Crossover Frequencies: 900 Hz
• Protections: Thermal, HF
• Limiter: Fast Limiter
• Controls: Bypass, Linear/High Pass, Volume, RDNet on boar
• RDNet: Yes

Power Section

• Total Power: 2000 W Peak, 1000 W RMS
• High frequencies: 600 W Peak, 300 W RMS
• Low Frequencies: 1400 W Peak, 700 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

Physical Specifications

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 3x M10 Top and Bottom, 2x Pin D.10 and M10 Side

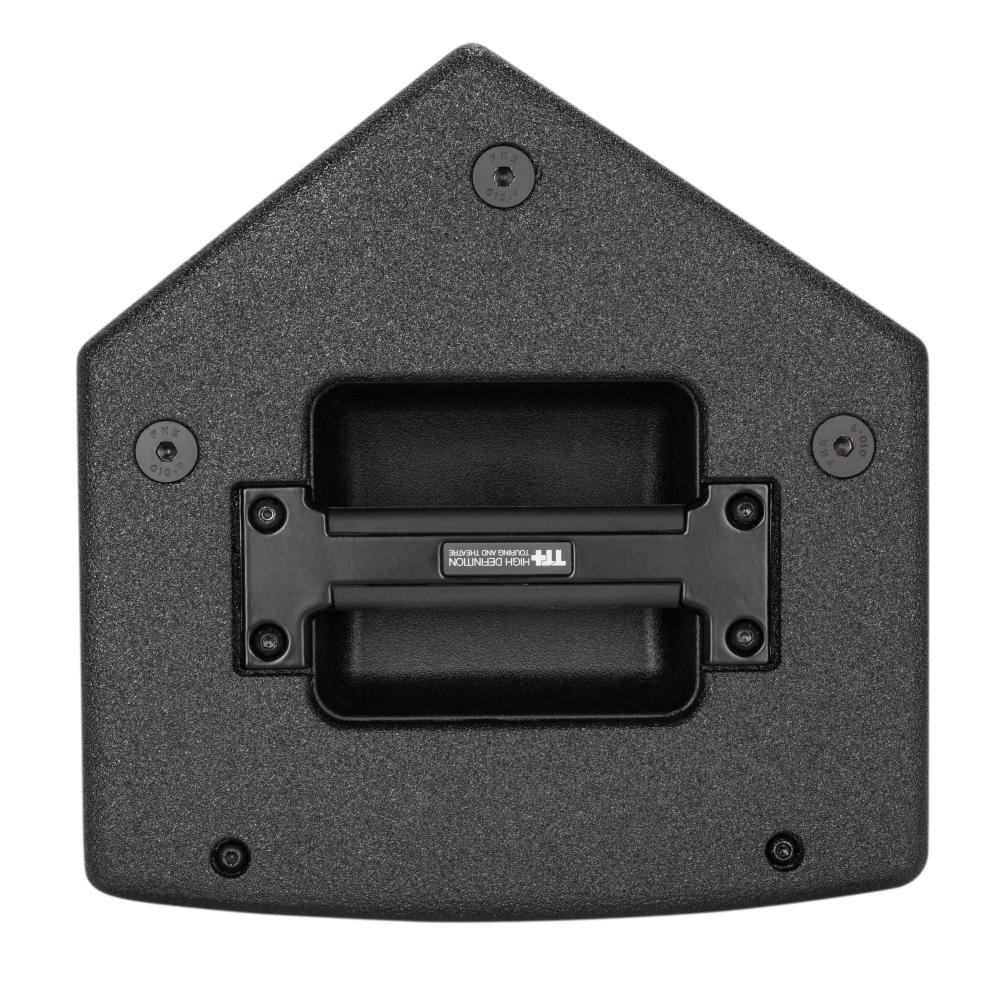

• Handles: 1 top
• Grille: Steel
• Color: Black

Size

• Height: 450 mm/17.72 incheds
• Width: 270 mm/10.63 inches
• Depth: 278 mm/10.94 inches
• Weight: 11 kg/24.25 lbs

Shipping Information

• Package Height: 19.69 inches/500 mm
• Package Width: 12.99 inches/330 mmm
• Package Depth: 12.6 inches/320 mm
• Package Weight: 28 lbs/12.7 kg

What's in the Box?

• (1) RCF TT-08-A MK2 Active High Output Speaker (Black)
• Limited 3-Year Manufacturer Warranty
