Overview

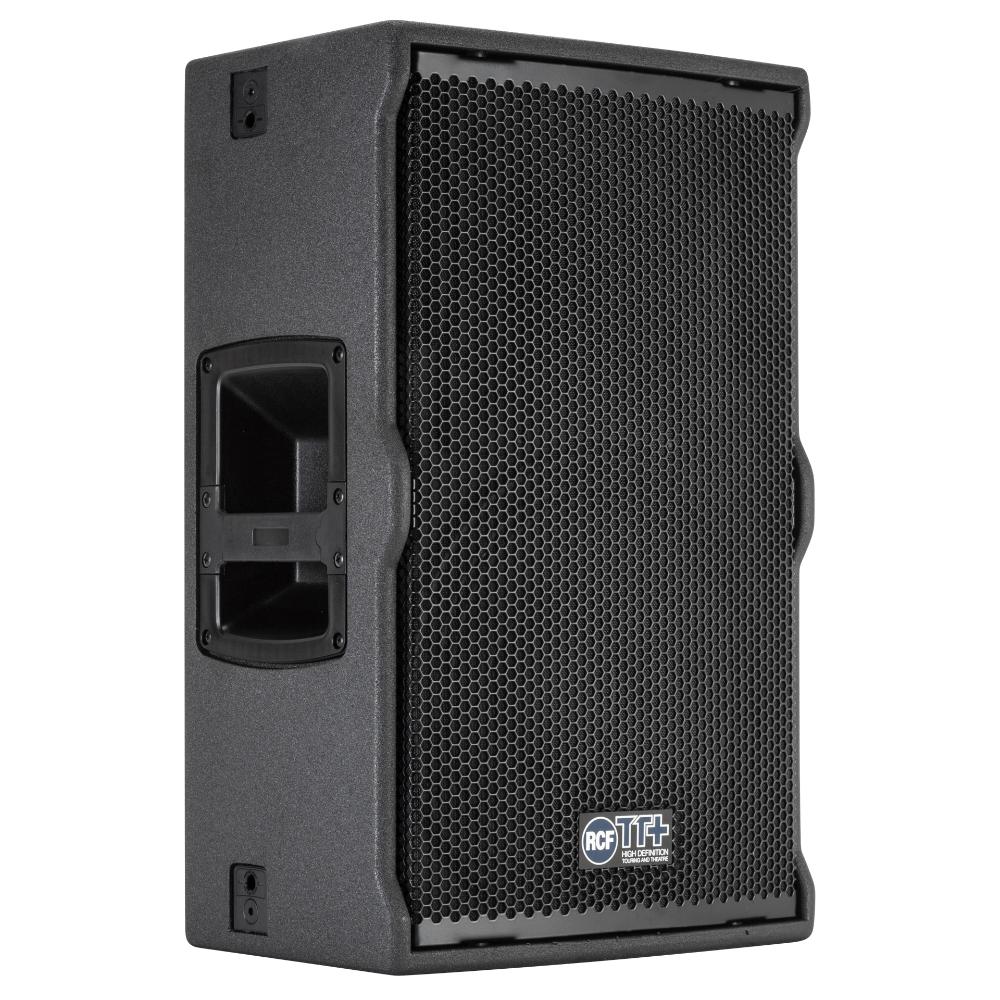

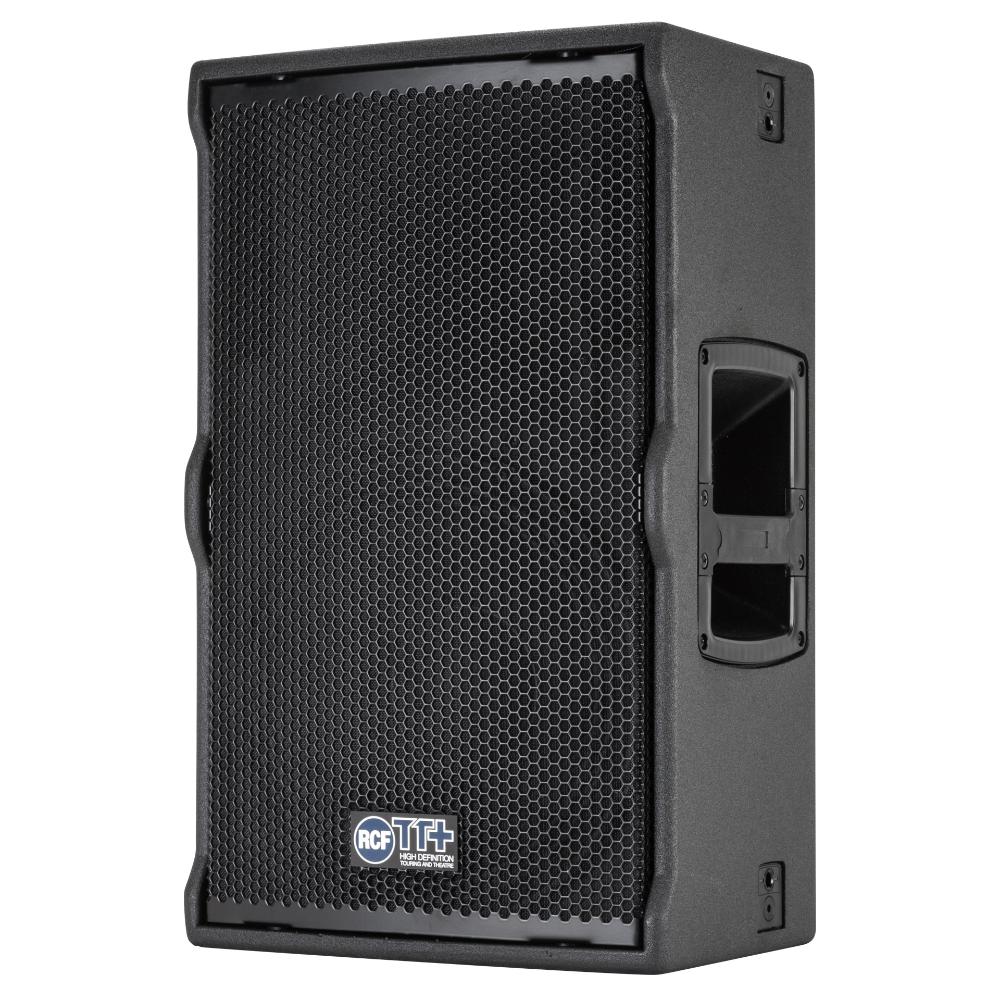

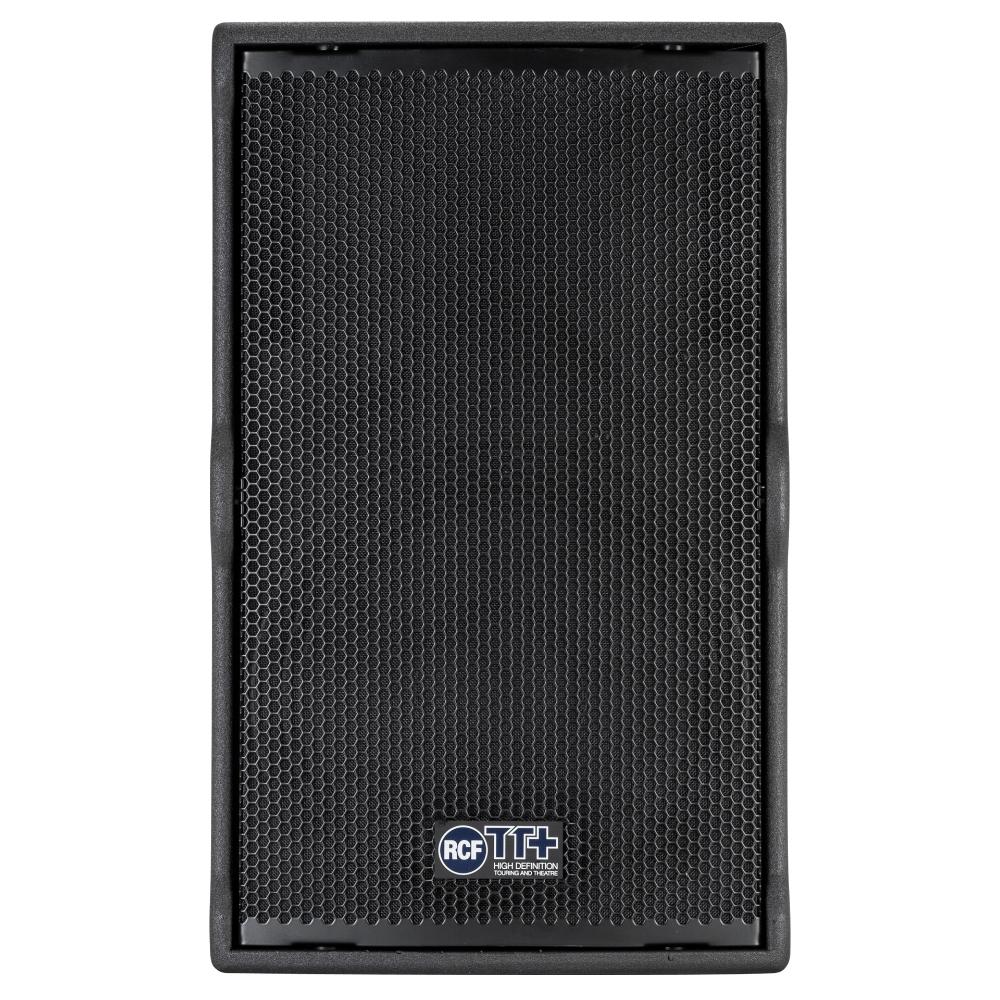

TT22-A II is a 2-way active system featuring a 12” neodymium woofer, 86 mm voice coil in a bass reflex configuration and a 1.4” exit, 75 mm voice coil neo compression driver. An extremely careful acoustic design plus the highest quality transducers and a powerful amplifier make the TT22-A II speaker system the perfect solution from live sound situations to playback and monitoring. The amplifier section features 1100 watt power – 800 watt low frequency, 300 watt high frequency. The cabinet is made of marine Baltic birch plywood and features high-resistance polyurea coating. The cabinets has 2 side handles, 6 x fly-track rigging points, quick lock pin receptacles and a steel pole mount.

Features

• 1100 W Class D Amplifier
• 90 x 60 constant directivity coverage angle
• 12" neo woofer, 3.5" mm voice coil
• 1.5 " neo c. driver, 3.0" mm voice coil
• DSP Processing
• Onboard RDNet Control
• Multifunctional cabinet
• Very high output

Specifications

Acoustical Specifications

• Frequency Response: 50 Hz ÷ 20,000 Hz
• Max SPL @ 1m: 131 dB
• Horizontal Coverage angle: 90-degrees
• Vertical Coverage Angle: 60-degrees

Transducers

• Compression Driver: 1 x 1.5" neo, 3.0" v.c
• Woofer: 12" neo, 3.5" v.c

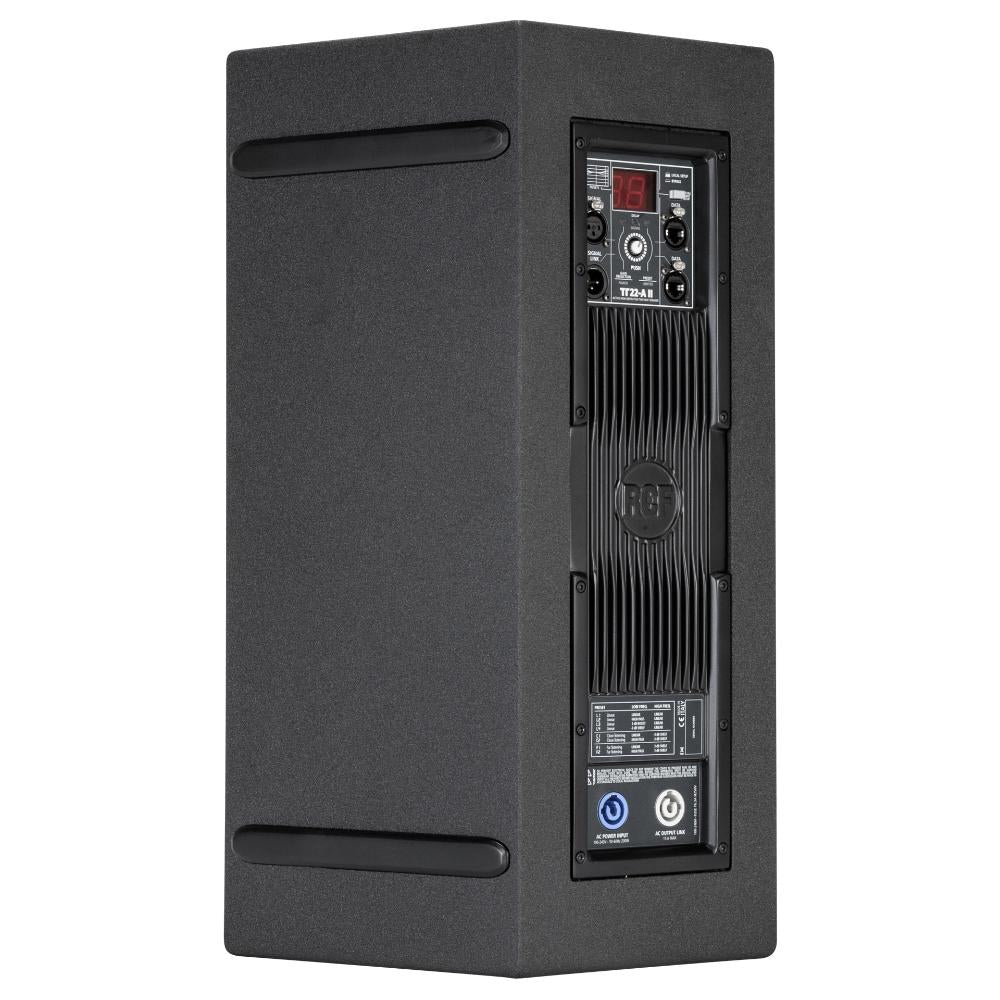

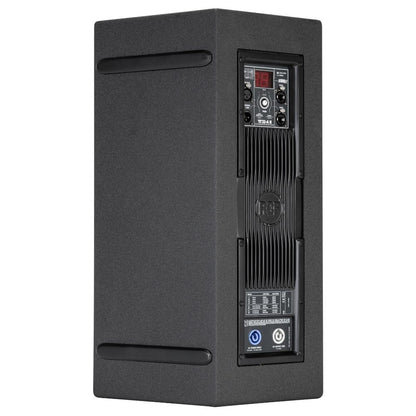

Input/Output Section

• Input Signal: bal/unbal
• Input connectors: XLR, RDNet, Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input Sensitivity: -2dBu/+4 dBu

Processor Section

• Crossover Frequencies: 800 Hz
• Protections: Thermal, HF
• Limiter: Fast Limiter
• Controls: proc., 8 sel. presets
• RDNet: Yes

Power Section

• Total Power: 2200 W Peak, 1100 W RMS
• High Frequencies: 600 W Peak, 300 W RMS
• Low Frequencies: 1600 W Peak, 800 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

Physical Specifications

• Cabinet/Case Material: Baltic birch plywood

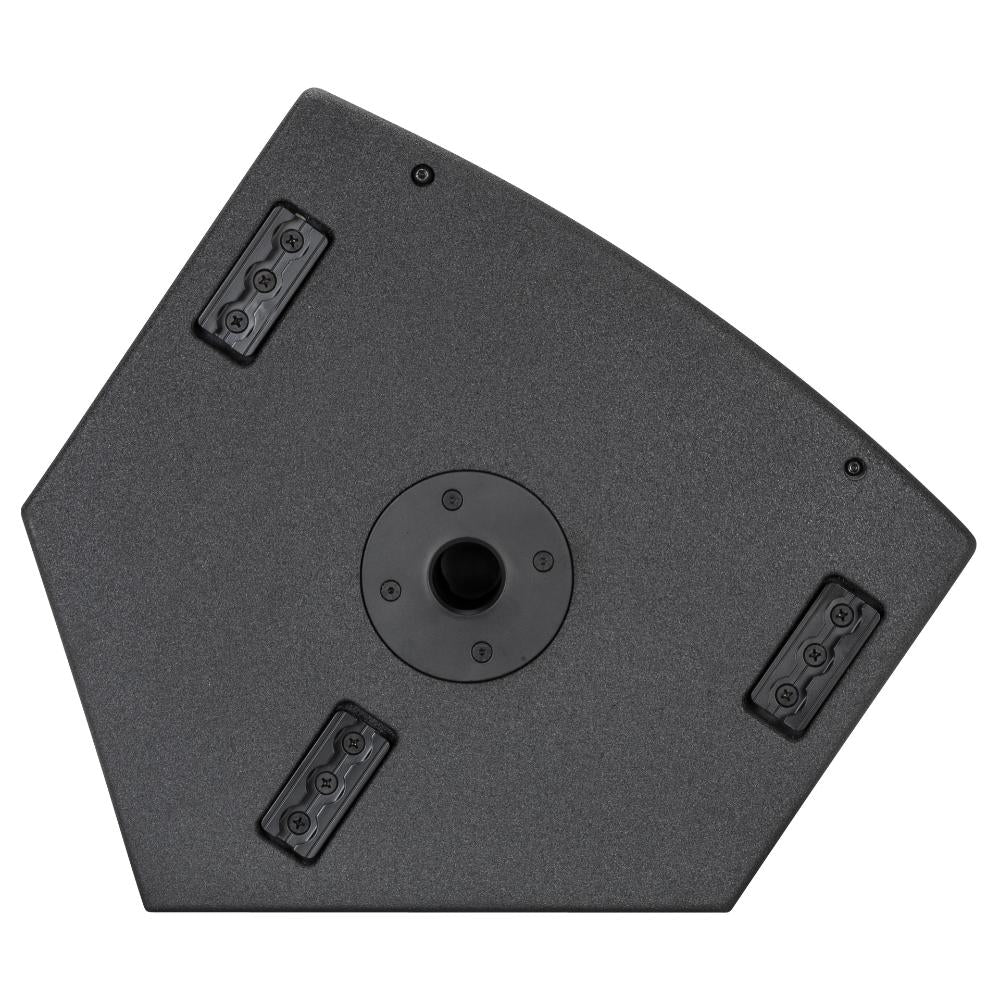

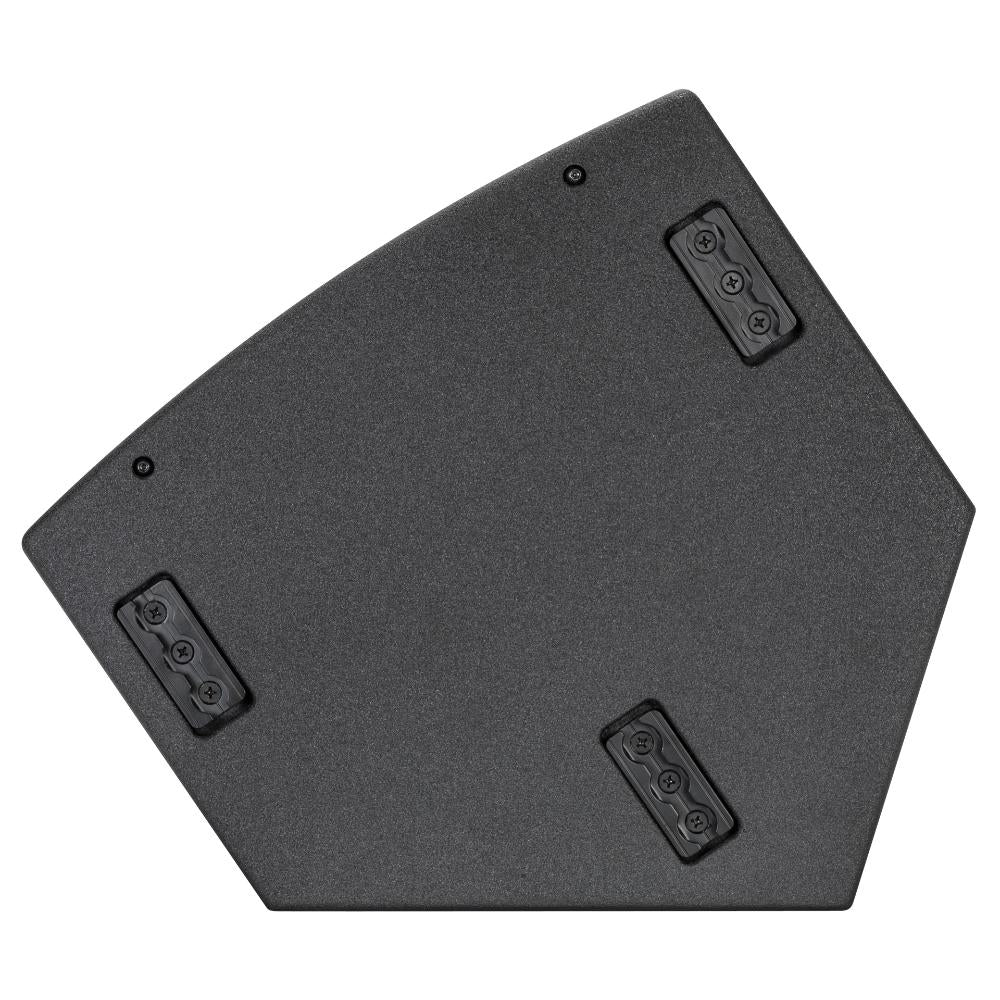

• Hardware: 6 x fly tracks, quick lock, pole mount
• Handles: 2 on side
• Pole mount/Cap: Yes
• Grille: Steel
• Color: Black

Size

• Height: 23.62 inches/600mm
• Width: 14.37 inches/363 mm
• Depth: 14.92 inches/379 mm
• Weight: 49.82 lbs/22.6 kg

Shipping Information

• Package Height: 25.79 inches/655 mm
• Package Width: 16.14 inches/410 mm
• Package Depth: 16.54 inches/420 mm
• Package Weiht: 56.22 lbs/25.5 kg

What's in the Box?

• (1) RCF TT 22-A MK2 Active 12" Speaker (Black)
• Limited 3-Year Manufacturer Warranty
