Overview

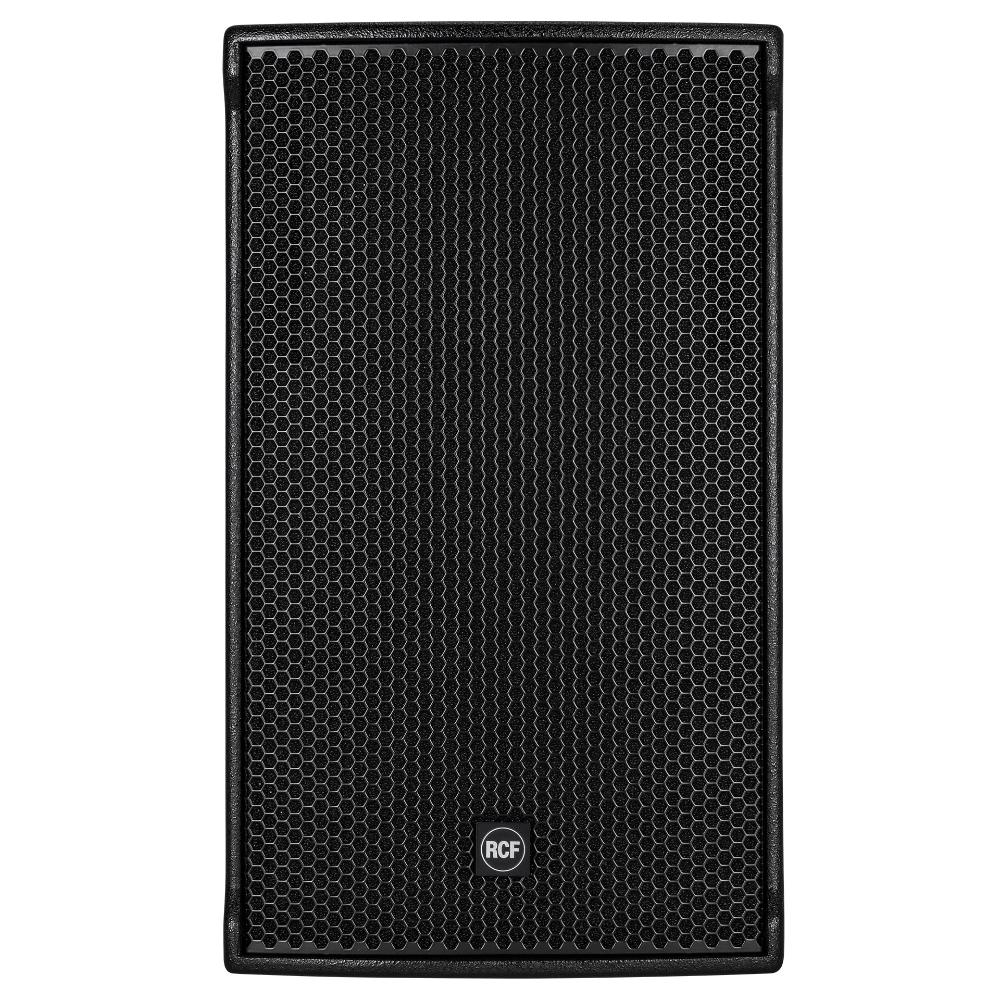

The NX 45-A is an active speaker specifically deigned to be the everyday tool for rental companies and professional musicians. It's one of the most flexible speakers for deploying high-power and pristine sound as a stand-alone FOH system or as a satellite (with subwoofer) but either as a stage monitor or a front, down or side fill speaker.

Features

• 1400 W 2-way class-D amplifier
• 133 dB SPL Max
• 45 - 20,000 Hz Frequency Range
• 90° X 50° constant directivity coverage
• 15" neodymium woofer, 3.5" voice coil
• Horn loaded 4.0" neodymium c. driver
• Multiple rigging points

Specifications

Transducers

• Compression Driver: 1.4" neo, 4.0" v.c
• Woofer: 15" neo, 3.5" v.c

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input Sensitivity: -2 dBu/+4 dBu
• Mic. Input Sensitivity: -32 dBu

Processor Section

• Crossover Frequencies: 650 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line

• Total Power: 1400 W Peak, 700 W RMS
• High Frequencies: 400 W Peak, 200 W RMS
• Low Frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

Physical Specifications

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 5 x M10, 4 x quick lock
• Handles: 2 side
• Pole mount/Cap: Yes
• Grille: Steel
• Color: Black

Size

• Height: 708 mm / 27.83 inches
• Width: 418 mm / 16.46 inches
• Depth: 402 mm / 15.83 inches
• Weight: 24 kg / 52.91 lbs
