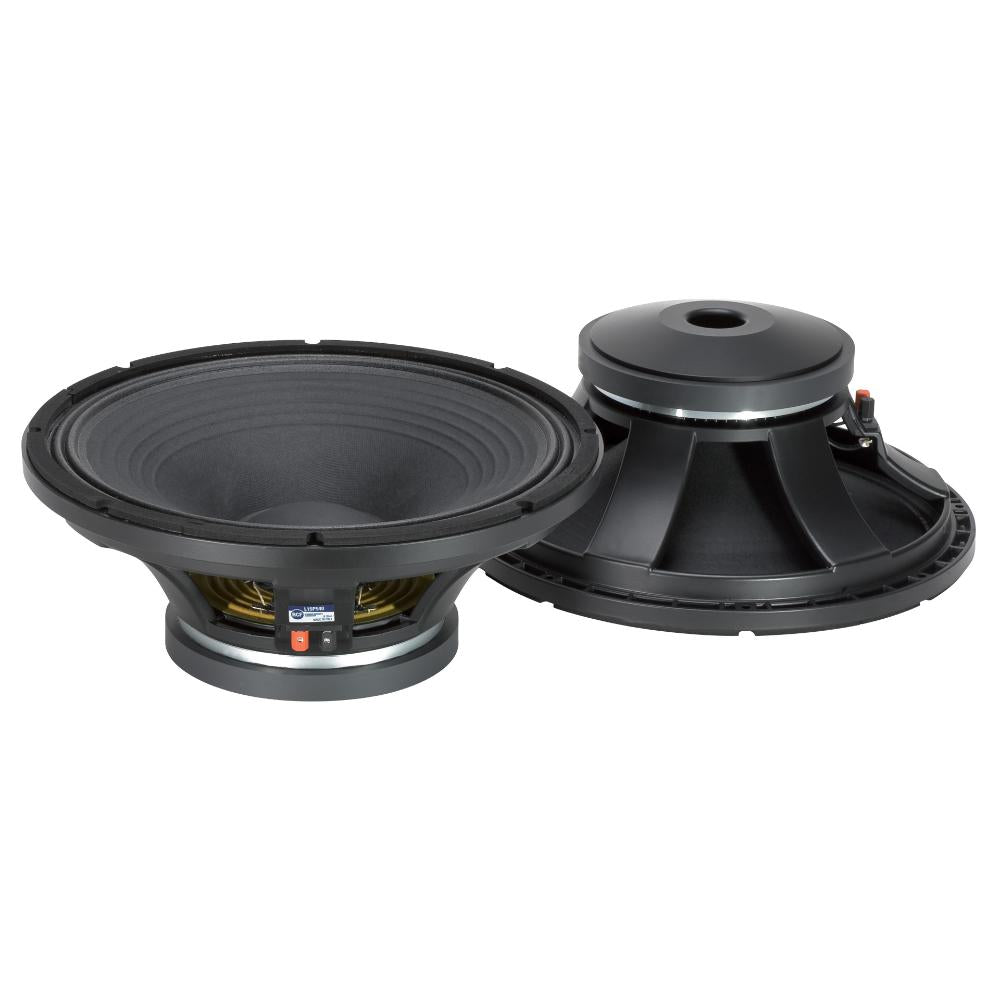

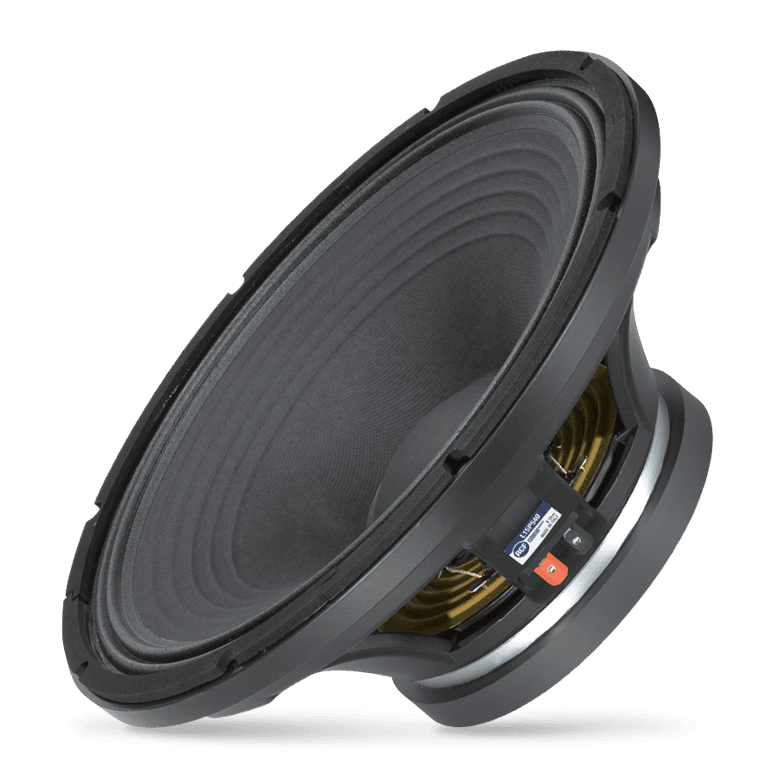

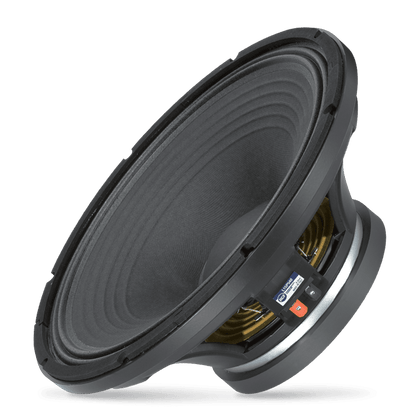

RCF L15P540 15 Low Frequency High Power Woofer
RCF L15P540 15 Low Frequency High Power Woofer

RCF L15P540 15 Low Frequency High Power Woofer

$349.00

The RCF L15P540 is a 15" standalone woofer used to reinforce low frequencies sounds with excellent linearity and extremely little distortion.

Out of stock

Pairs well with

Overview

High power 15" woofer. Very good power handling, excellent linearity and very low distortion. Very efficient heat dissipation in ensured by a radiator that is part of the basket design. The air is forced in the radiator thanks to a dual sealed spider design.

Features

  • 3-inch, fiberglass inside/outside copper voice coil
  • 1000W continuous program power handling
  • 98 dB Sensitivity
  • 40 Hz – 2 kHz Frequency range
  • Dual spider design with silicon based dampening control
  • M-roll surround and exponential cone geometry


Specifications

General Specifications

  • Nominal Diameter: 15 inches/381 mm
  • Rated Impedance: 8 ohm
  • Power handling capacity: 500 W
  • Frequency Range: 40 - 20,000 Hz
  • Effective piston diameter: 330 mm/12.99 inch
  • Max. Excursion Before Damage: 36 mm/1.42 inch
  • Minimum Impedance (ohm): 6.8 ohm
  • Voice Coil Diameter: 3.0 inch/76 mm
  • Voice Coil Winding Material: Copper
  • Voice Coil Length: 18 mm/0.71 inch
  • Number of layers: 2
  • Kind of layers: inside/outside
  • Top Plate Thickness: 10 mm/0.39 inch
  • Cone Design: Curved
  • Surround Material: Polycotton
  • Surround Design: M-roll
  • Magnets: Ceramic
  • Spider: Dual with silicon based damping control

Thiele - Small Parameters

  • Resonance frequency (Fs): 50 Hz
  • DC resistance (Re) (ohm): 5.60 ohm
  • Mechanical factor: 9.70 Qms
  • Electrical factor: 0.41 Qes
  • Total factor: 0.39 Qts
  • BI factor (BI) (T x m): 21.40 T x m
  • Effective moving mass (Mms): 106.0 g
  • Equivalent Cas air loaded (Vas): 100.0 liters
  • Effective piston area (Sd): 0.090 m2
  • Max. linear excursion (Xmax): 7 mm
  • Voice coil inductance @ 1kHz (Le1k): 1.50 mH
  • Half-space efficiency (Eff): 2.94%

Mounting Information

  • Overall diameter: 15.24 inch/387 mm
  • Bolt circle diameter: 14.61 inch/371 mm
  • Bolt hole diameter: 0.28 inch/7 mm
  • Front mount baffle cut-out: 13.86 inch/352 mm
  • Rear mount baffle cut-out: 14.17 inch/360 mm
  • Volume occupied by the friver: 0.15 ft3/3.8 liters

Size

  • Height: 7.24 inch/184 mm
  • Diameter: 15.24 inch/387 mm
  • Weight: 19.4 lbs/8.8 kg

Shipping Information

  • Package Height: 8.86 inch/225 mm
  • Package Width: 17.13 inch/435 mm
  • Package Depth: 17.13 inch/435 mm
  • Package Weight: 22.49 lb/10.2 kg

What's in the Box?

  • (1) RCF L15P540 Standalone Woofer
