Overview

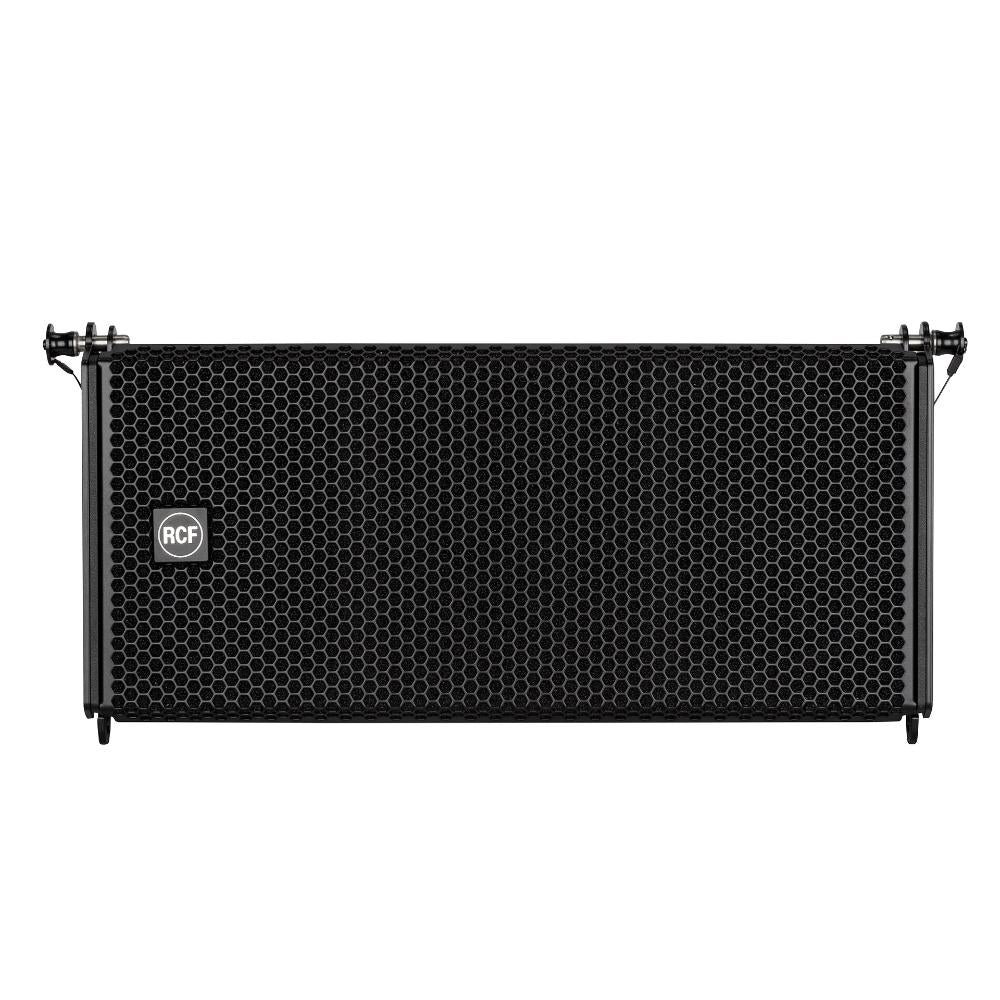

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up is a must. A 140 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers - two powerful 6.0" woofers for a solid bass reproduction plus a high powered 1.7" voice coil compression driver mounted on a precise 100 degree by 10 degree waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.

Features

• 1400 W, two-way amplification
• 131 dB max SPL
• 1.7" voice coil neodymium 6.0" woofers
• 48 kHz, 32 bit floating point DSP processing
• Symmetrical design
• Extremely low weight
• FiRPHASE processing

Specifications

Acoustical Specifications

• Frequency Response: 65Hz  ÷ 20,000 Hz
• Max SPL @ 1m: 131 dB
• Horizontal coverage angle: 100 degrees
• Vertical coverage angle: 10 degrees

Transducers

• Compression driver: 1 x 1.0" neo, 1.75" v.c
• Woofer: 2 x 6.0" neo, 2.0" v.c

Input/Output Sections

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input Sensitivity: +4 dBu

Processor Section

• Crossover frequencies: 900 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: HF correction

Power Section

• Total power: 1400 W Peak, 700 W RMS
• High Frequencies: 400 W Peak, 200 W RMS
• Low frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

Physical Specifications

• Cabinet/Case Material: PP Composite
• Hardware: Array fittings
• Handles: 2 back
• Grille: Steel
• Color: Black, White

Size

• Height: 237 mm / 9.33 inches
• Width: 40 mm / 18.5 inches
• Depth: 377 mm / 14.84 inches
• Weight: 11.6 kg / 25.57 lbs
