Overview

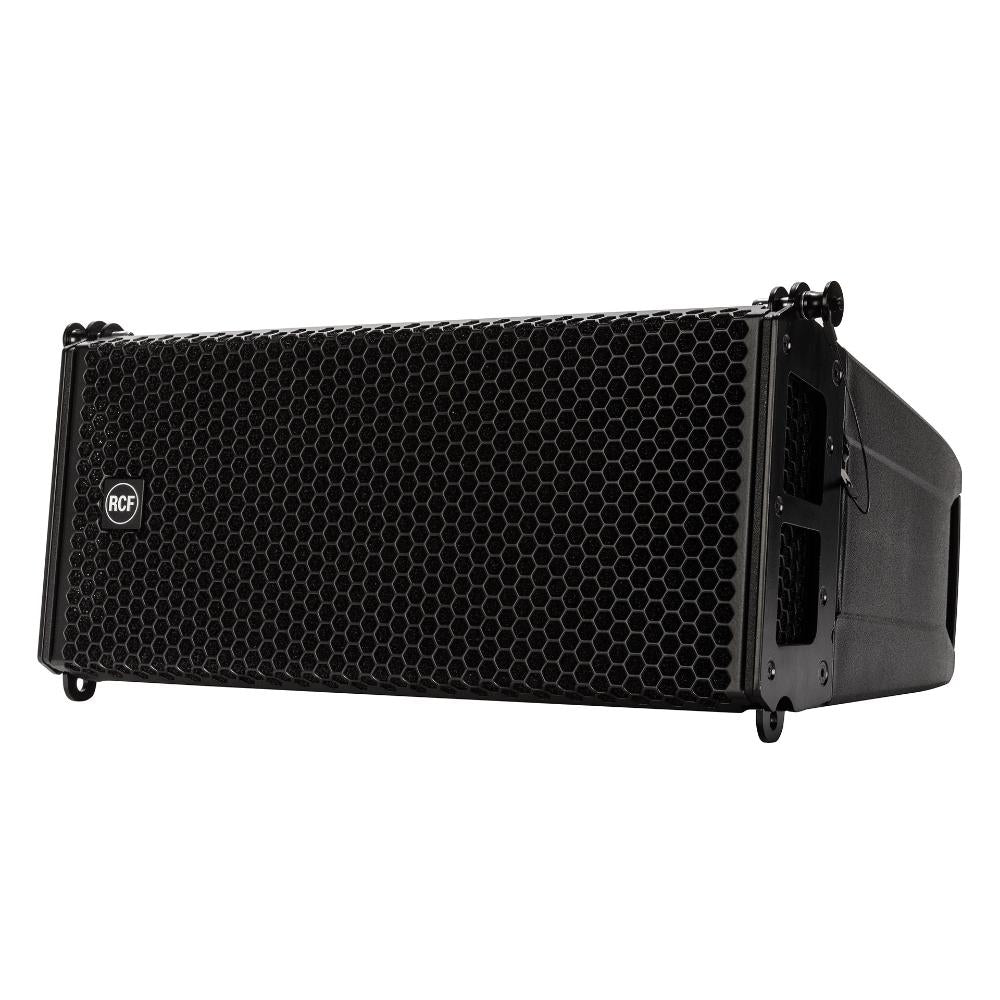

The RCF HDL26-A is an ultra-compact bi-amped two-way active touring system for small and medium-sized events, both indoors and outdoors. Due to the advanced transducer design and the 2000W Class-D amplifier, among the best in its class, it is capable of an extended bottom-end and a pristine sound for a wide range of applications, alone or in RDNet managed line-array configurations. The HDL35-AS is the ideal flyable bass complement for the HDL26-A array system.

Features

• 133 dB Max SPL
• 2000W Two-Way Amplifier
• Exclusive FiRPHASE technology on-board
• 750 Hz Crossover for best vocal reproduction
• RDNet Networked Management
• 1.5" Titanium Compression Driver
• 2 x 6" High-Powered Neodymium Woofers
• 4 PATH waveguide

Specifications

Acoustical Specifications

• Frequency Response: 55 Hz ÷ 2000 Hz
• Max SPL @ 1m: 133 dB
• Horizontal coverage angle: 100 degrees
• Vertical coverage angle: 10 degrees

Transducers

• Compression Driver: 1 x 1.5" neo, 3.0" v.c
• Woofer: 2 x 6.0" neo, 2.0" v.c

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet, Ethercon
• Input Sensitivity: +4 dBu

Processor Section

• Crossover Frequencies: 750
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Preset, RDNet bypass
• RDNet: Yes

Power Section

• Total Power: 2000W Peak, 1000 W RMS
• High frequencies: 600 W Peak, 300 W RMS
• Low frequencies: 1400 W Peak, 700 W RMS
• Cooling: Convectin
• Connections: Powercon IN/OUT

Physical Specifications

• Cabinet/Case Material: PP Composite
• Hardware: Array fittings
• Handles: 2 back
• Grille: Steel
• Color: Black, White

Size

• Height: 237 mm / 9.33 inches
• Width: 470 mm / 18.5 inches
• Depth: 377 mm / 14.84 inches
• Weight: 13.5 kg / 29.76 lbs
