Overview

RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

Features

• Sturdy Metal Chassis
• PRO DSP FX onboard with 16 presets
• Stereo Recording and Playback via USB port
• Balanced main output audio path from input to output
• 2 single control compressors
• Mono channels provided with 3-band EQ. 2-band EQ on stereo channels
• Robust, compact and attractive design.
• Designed and Engineered in Italy
• External Universal Power Supply

Specifications

Electronic Specifications

• Frequency Response: 20 Hz ÷ 20 kHz
• THD+N, 20dB gain, 0dBu out: <0.02% A-Weighted

Processing

• Dynamic Range: >85 dB

Inputs

• Channels: 10
• Mic: 4
• Gain Range: 0 dB ÷ -50 dB
• Input Noise Level: -124 dBu A-Weighted
• Mic Inputs Impedance: 14 kohm
• Low Cut: 80 Hz
• Phantom Power +48V: Yes
• Mono Line: 2
• Gain Selection: 20 dB ÷ -30 dB
• Line Input Impedance: 21 kohm
• Stereo Line: 4
• Gain Selection: 20 dB ÷ -30 dB
• Stereo Line Input Impedance (kOhm0: 15 kohm
• Input Connectors: XLR, Jack, RCA

Outputs

• Main MIX: 1
• Control Room: Yes
• FX Send: 1
• AUX Output: 1
• Phones: 1
• Output Connectors: XLR, Jack

Outputs Specifications

• Main Out Level: 28 dBu
• Aux Out Level: 28 dBu
• Phones Out impedance (ohm): 150 ohm

Compressors

• RCF Compressors: n° 2 Single Control compressors on channels 1&2

EQ

• Inputs Channels EQ: 2 Shelving/1 Generic
• Description: High:+/-15 dB @ 10 kHz Shelving, Mid:+/-15 dB @ 1,250 kHz Bell, Low:+/-15 dB @ 100 Hz Shelving

Auxiliary Sends

• FX Post: 1

Internal Effects

• Send Effects: 1

USB Audio

• USB Audio Interface: Yes
• Type: B
• Play trk: 2
• Rec trk: 2
• Supported Sample Rate: 44.1, 48.0 kHz

Other features

• Footswitch: Yes

Electrical Specifications

• Power supply: External
• Voltage Requirements: 100 V - 240 V
• Power Consumption (MAX): 18 W

Standard Compliance

• Safety agency: CE compliant

Physical Specifications

• Cabinet/Case Material: Metal
• Color: Black

Size

• Height: 3.23 inches/82 mm
• Width: 11.57 inches/294 mm
• Depth: 10.83 inches/273 mm
• Weight: 6.17 lbs/2.8 kg

Shipping Information

• Package Height: 5.12 inche/130 mm
• Package Width? 15.75 inches/400 mm
• Package Depth: 13.58 inches/345 mm
• Package Weight: 8.38 lbs/3.8 kg

What's in the Box?

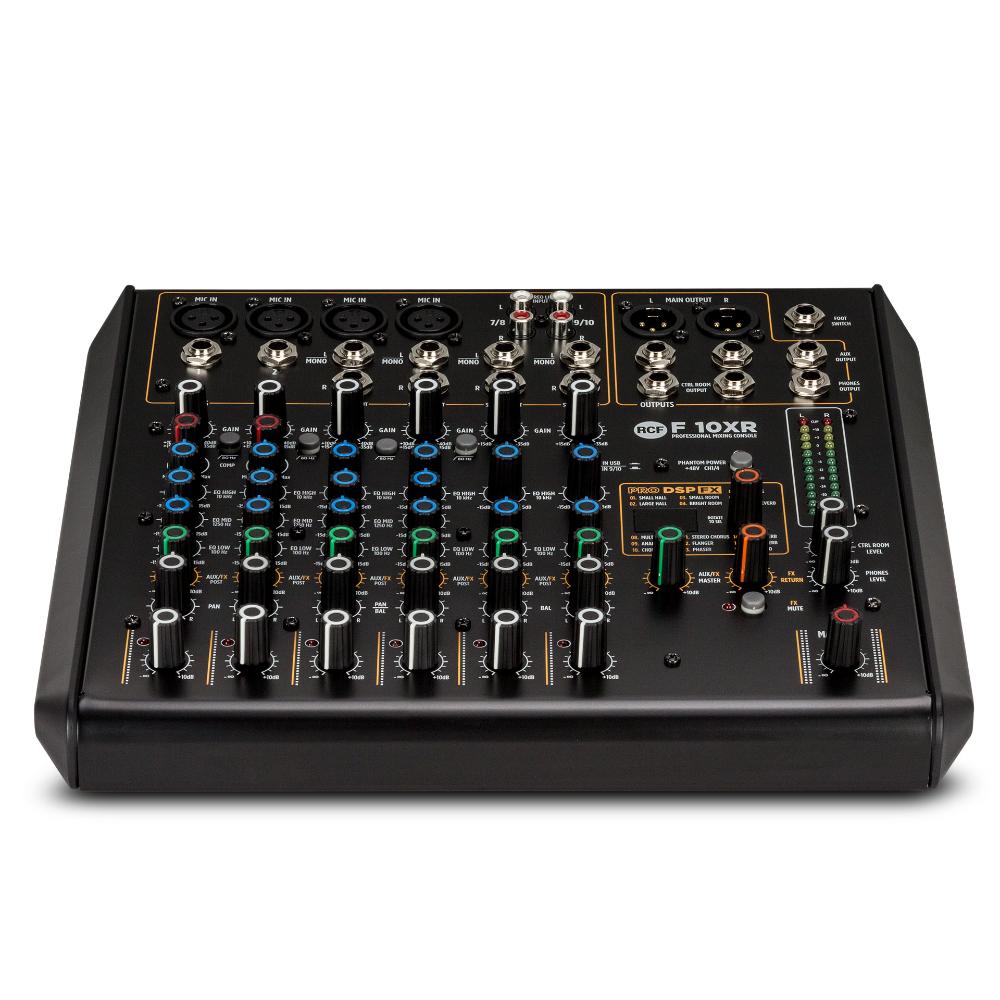

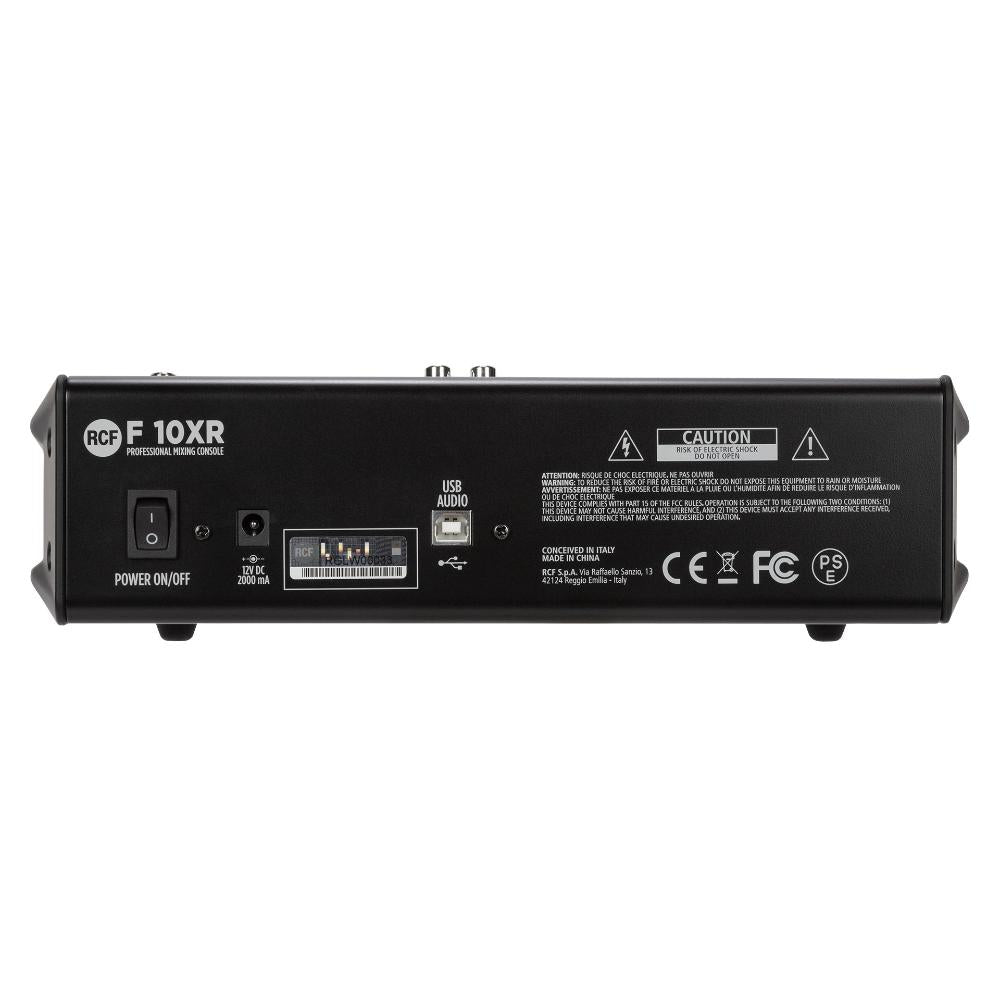

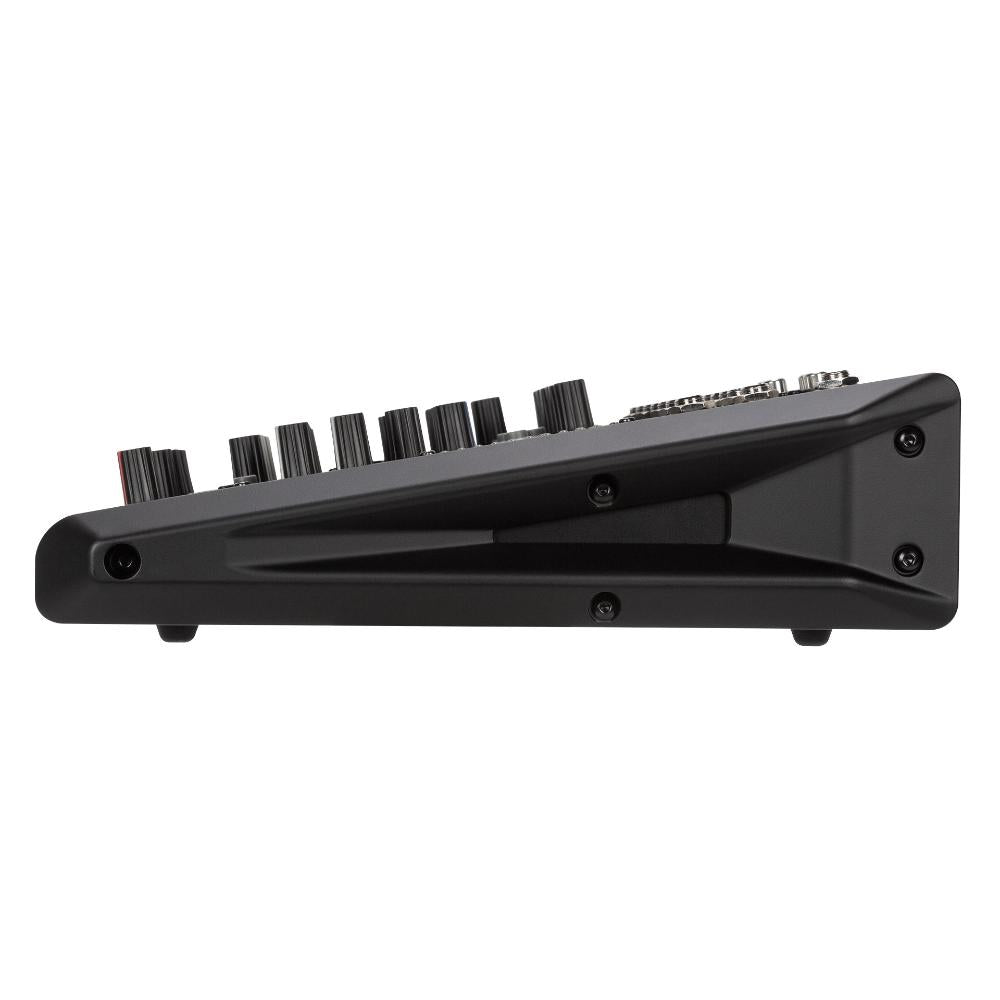

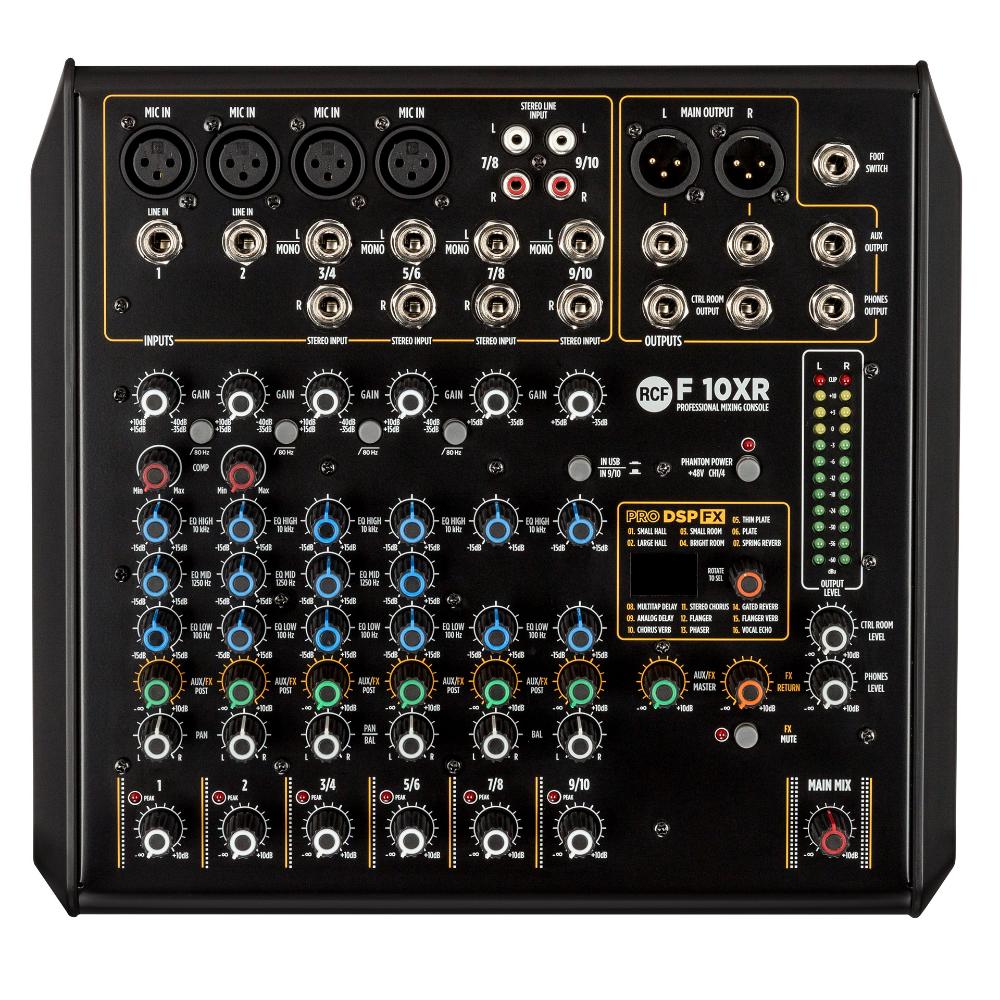

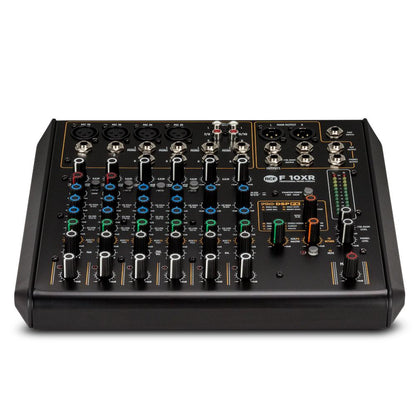

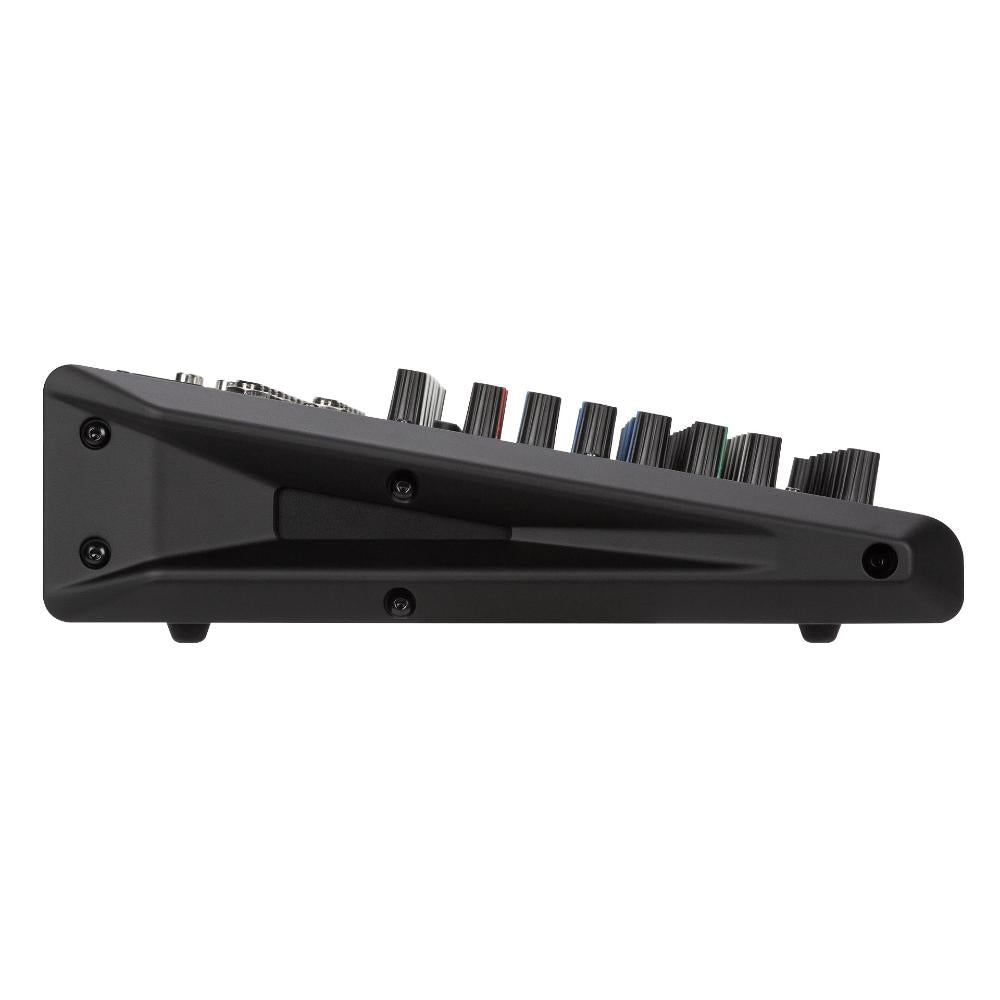

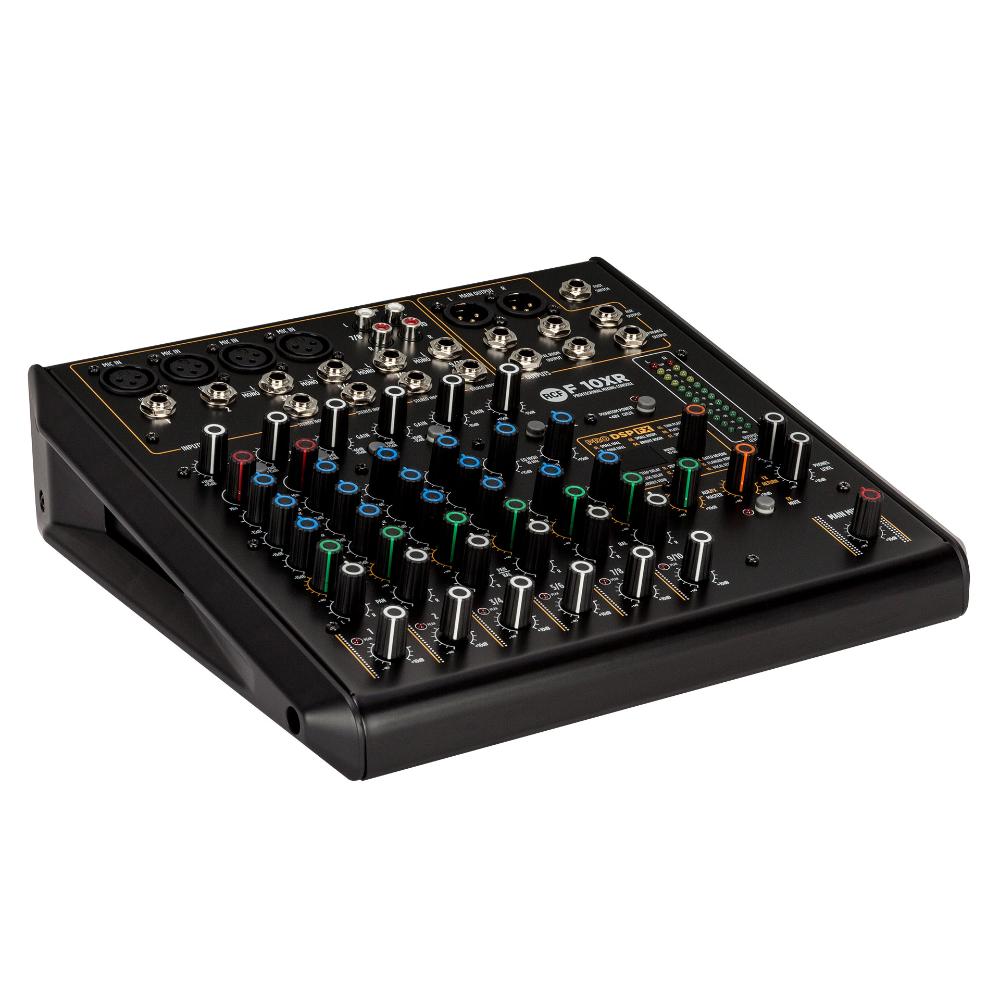

• RCF F-10XR 10-Channel Mixer with Multi0FX and Stereo UB Interface
• AC Adapter
