Overview

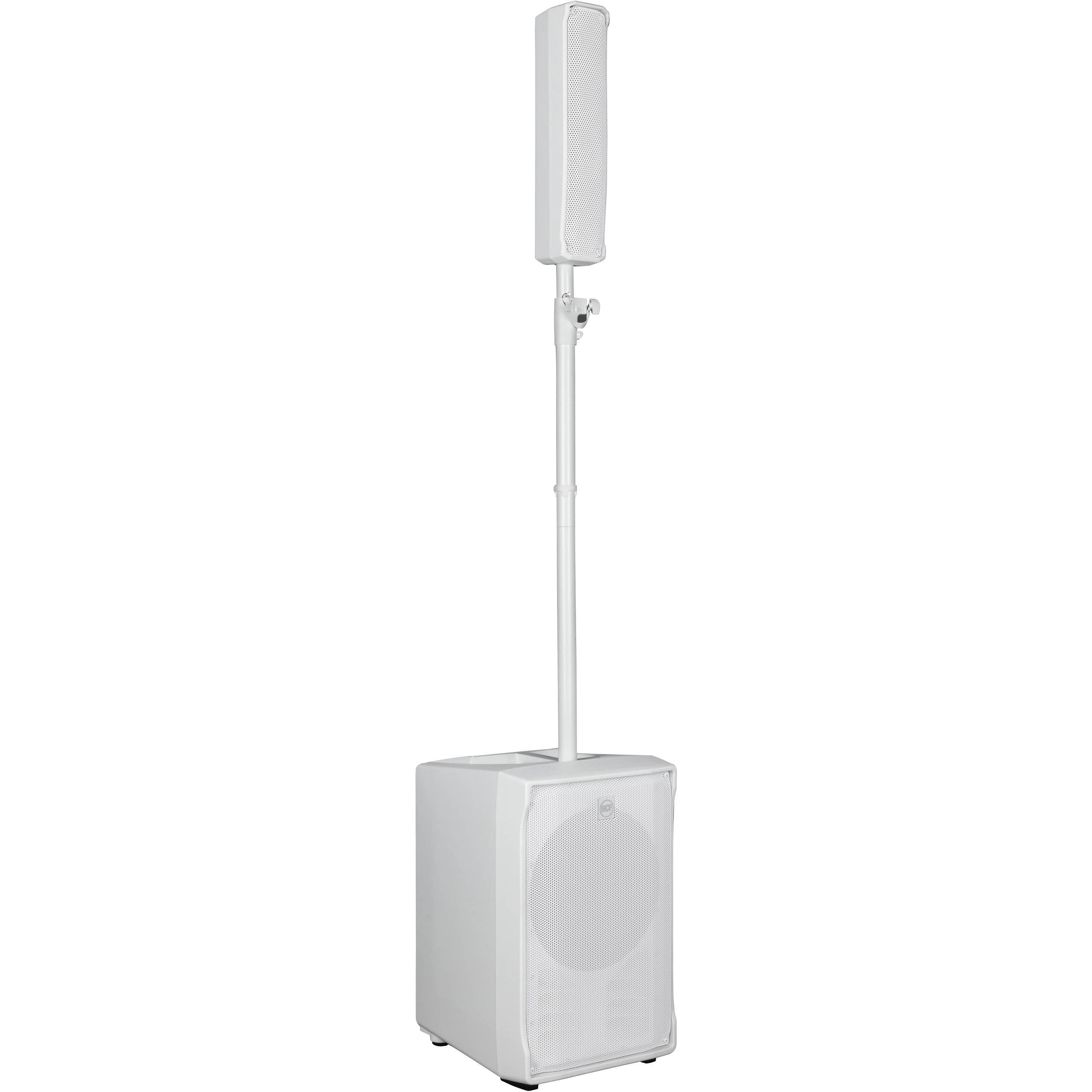

The white RCF EVOX JMIX8 is an active 12" 2-way 1400W portable line array PA system with an 8-input mixer designed to deliver powerful sound projection and flexible multi-source mixing for musicians, presenters, and audio engineers in clubs, parties, and live stage applications. Class-D amplification pumps 1400W peak (700W RMS) through a 12" high-excursion woofer and eight 2" full-range drivers, resulting in a frequency response of 40 Hz to 20 kHz. The system design produces a 120° horizontal by 30° vertical coverage pattern. Four XLR-1/4" combo inputs, stereo 1/4" inputs, stereo RCA jacks, and a built-in Bluetooth receiver feed the digital mixer. The subwoofer and satellite components interconnect via speakON and balanced XLR jacks are present for stereo linking with another speaker. Integrated DSP processing with FiRPHASE technology grants adjustable compression, EQ, guitar amp and cabinet simulation, reverb, delay, and more. Access all mixer functions from the panel controls or via the RCF EVOX iOS or Android app. The polypropylene composite cabinet minimizes weight and can be easily transported via the built-in carry handle. The adjustable pole mount offers simple height positioning of the satellite unit, which conveniently stores in the subwoofer enclosure. One speakON cable and a power cord are included with the EVOX JMIX8.

Features

• For Live Stage, Theater, and DJ Setups
• 12" Woofer, 8 x 2" Drivers
• 40 Hz to 20 kHz Frequency Response
• 1400W Peak, 700W RMS
• Class-D Amplification
• Built-In Bluetooth Receiver
• Integrated DSP Mixer with Effects
• XLR, RCA, and 1/4" I/O
• Polypropylene Cabinet with Carry Handle
• Includes speakON and Power Cables

Specifications

Acoustical Specifications

• Frequency Response: 40 Hz ÷ 20000 Hz
• Max SPL @ 1m: 128 dB
• Horizontal coverage angle: 120°
• Vertical Coverage Angle: 30°

 Transducers

• Full Range: 8 x 2.0", 1.0" v.c
• Woofer: 12", 2.5" v.c

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input Sensitivity: -2 dBu/+4 dBu

Processor Section

• Crossover Frequencies: 220 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line

Power Section

• Total Power: 1400 W Peak, 700 W RMS
• High Frequencies: 400 W Peak, 200 W RMS
• Low Frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: VDE

Electronic Specifications

• Frequency Response: 20 Hz ÷ 20 Hz
• THD+N, 20 dB gain, 0 dB out: 0.004% A-Weighted

Processing

• Processing Channels: 8
• Signal Processing: 32-Bit Floating Point
• A/D-D/A conversion: 24 Bit @ 48.0 kHz
• Dynamic Range: 108

Inputs

• Mic: 4
• Remote Controlled Storable Gain: Yes
• Gain Range: 0 dB ÷ 45 dB
• Input Noise Level: -114 dBu A-Weighted
• Mic Inputs Impedance: 3 kohm
• Low Cut: 20 Hz ÷ 1000 Hz
• Phantom Power +48V: Yes
• Mono Line: 4
• Gain Selection: 0 dB ÷ 45 dB
• Line Input Impedance: 11 kohm
• Hi-Z Line Inputs: 1
• Hi-Z Line Inputs Impedance (Mohm): 1 Mohm
• A/D Dynamic Range: 108 dB
• Stereo Line: 2
• Gain Selection: 0 dB ÷ 45 dB
• Stereo Line Input Impedance (kOhm): 11 kohm

Outputs

• AUX Send: 1
• AUX Outputs: 1

Output Specifications

• Main Out Impedance: 150 ohm
• Main Out Level: 19 dBu
• Aux Out Impedance (ohm): 150 ohm
• Aux Out Level: 19 dBu
• D/A Dynamic Range: 108 dB

Compressors

• RCF Compressors: 4 mono (6 preset)

EQ

• Input Channels EQ: 1 Semi Parametric/2 Shelving
• Description: 3 Band EQ: High and Low band shelving, Mid Band with sweepable frequency
  Graphic 7 Band EQ on Main Mix and AUX send.

Auxiliary Sends

• AUX: 1 PRE/POST
• FX POST: 1

Internal Effects

• Send Effects: 1
• MultiFX Insert Effects: 1

Mastering Processors

• Main OUT Processors: 1

USB Audio

• Play trk: 2

Other features

• Footswitch: Yes

Electrical Specifications

• Power Supply: Internal

Physical Specification

• Cabinet/Case Material: PP Composite
• Handles: 1 top
• Grille: Steel
• Color: Black, White

Size

• Height: 24.53 inches/623 mm
• Width: 15.75 inches/400 mm
• Depth: 18.11 inches/460 mm
• Weight: 48.94 lbs/22.2 kg

• Package Height: 26.61 inches/676 mm
• Package Width: 17.76 inches/451 mm
• Package Depth: 22.87 inches/581 mm
• Package Weight: 63.93 lbs/29 kg

What's In The Box?

• RCF EVOX JMIX8 Active 12" 2-Way 1400W Portable Line Array PA System with 8-Input Mixer (White)
• NL2 speakON Cable
• Power Cable
• Pole Clips
• Limited 3-Year Manufacturer Warranty
