Overview

The QSC K.2 Series™ represents the best-inclass loudspeaker for today’s demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.

Features

• Best in class audio performance
• 2000 Watt Class-D amplifier module
• Intrinsic Correction tuning and loudspeaker management
• Directivity Matched Transition (DMT) design provides excellent power response and consistent performance across the listening area
• Refined, professional appearance looks great in any application
• Rugged ABS enclosure for long life and lasting durability

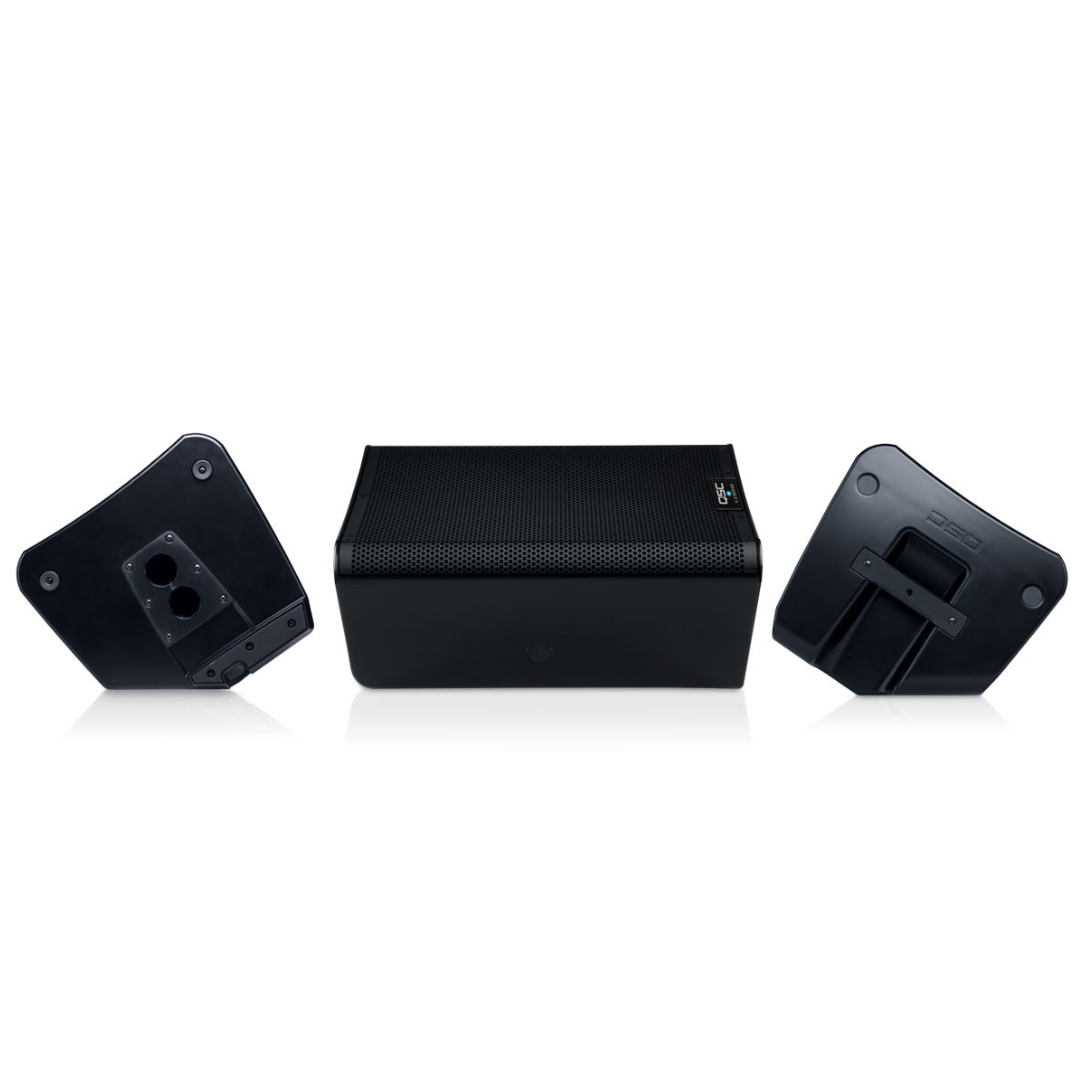

• Deployment in either main PA or floor monitor position
• Factory Presets and savable/recallable Scenes for commonly-used application
• Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour

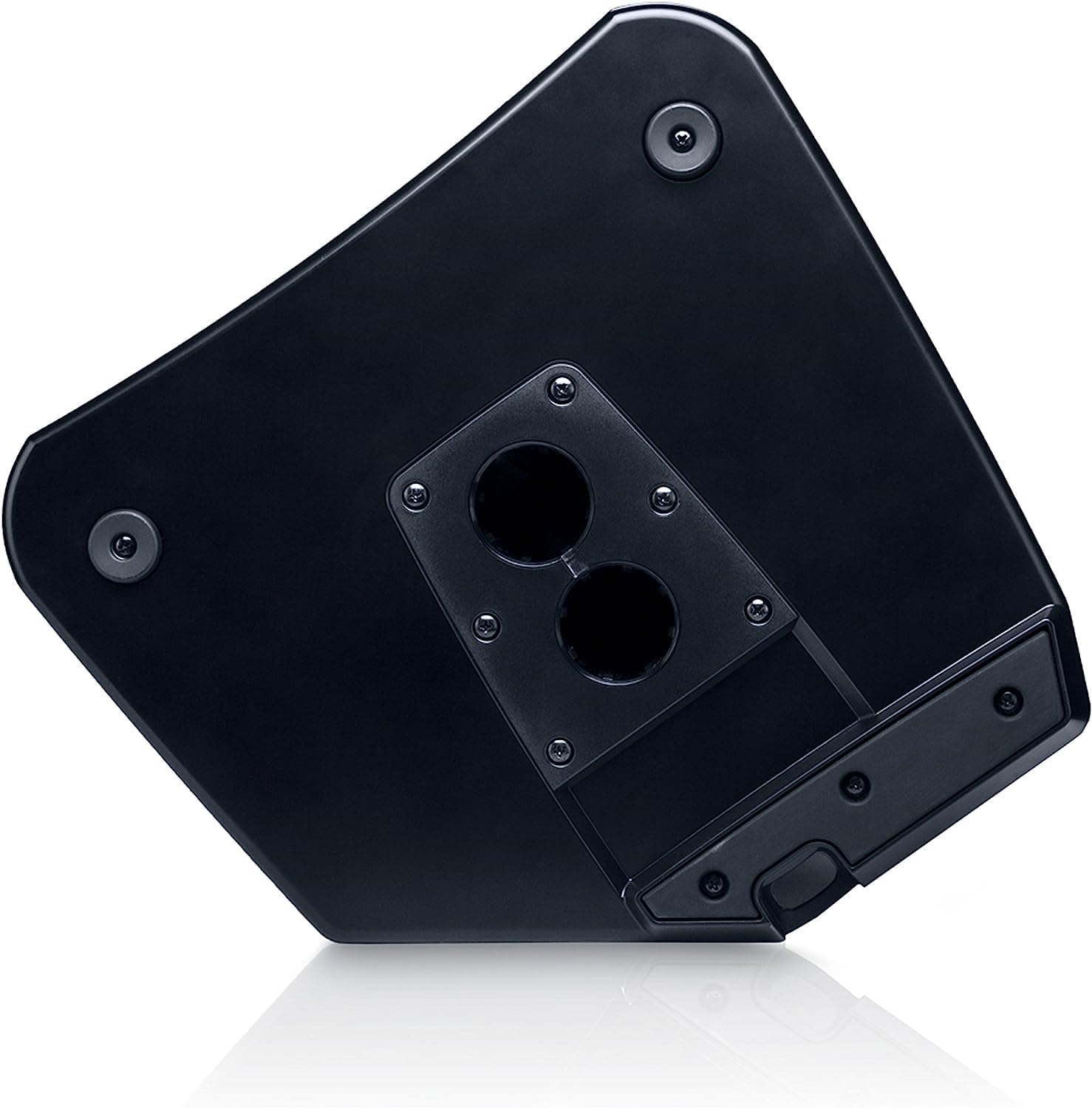

• Dual pole cup mounts (standard and 7.5 degree down-tilt)
• M10 fittings for flown applications
• Optional security panel prevents unauthorized tampering of controls
• Complete EASE and CAD information available online
• 6-Year Manufacturer Warranty (with product registration)

Specifications

• Configuration: Multi-purpose, 2-way active loudspeaker
• LF Transducer: 305 mm (12-inch), cone
• HF Transducer: 35.6 mm (1.4-inch) titanium diaphragm compression driver
• Frequency Response (-6 dB): 50Hz - 20 kHz
• Frequency Range (-10 dB): 45Hz - 20kHz
• Nominal Coverage Angle: 75° Axisymmetric
• Maximum Rated SPL: 132 dB @ 1 M, peak 126 dB @ 1 M, continuous
• Amplifier: Class D, Peak: 1800W (LF), 225 W (HF)
• Cooling: Low-noise, variable speed fan

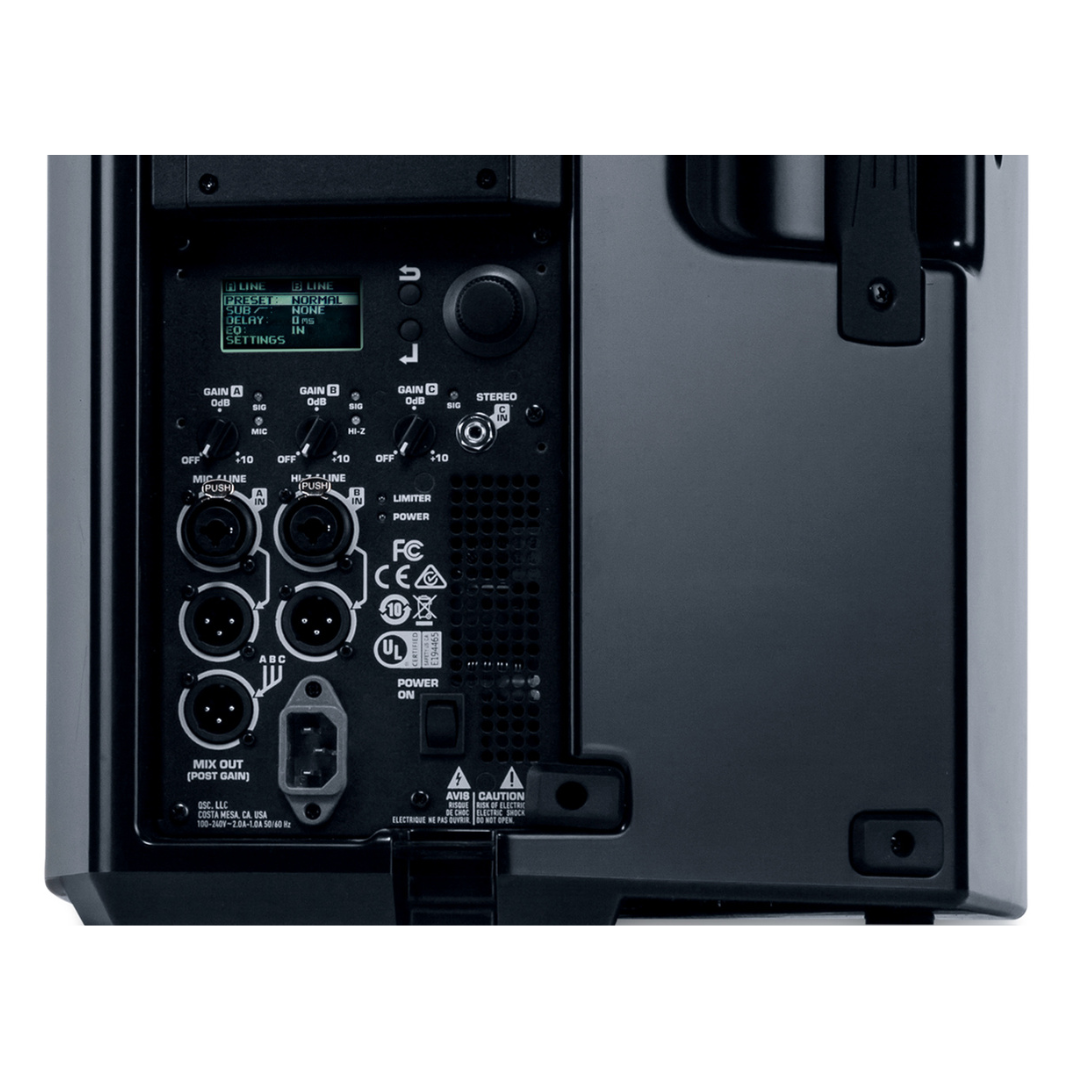

• Controls: Power, 3 x Level, Rotary encoder (push), 2 x selection buttons
• Indicators: Monochrome LCD Display 1.75-inch x 1 inch (45 mm x 25.4mm), 2 x Power LED (front and rear), 3 x Input Signal LED, Input A Mic selected LED, Input B Hi-Z selected LED, Limiter Active LED
• Connector: 2 x locking XLR/F 1/4-inch combo (Mix/Line Input and HI-Z/Line Input), 1 x 3.5 mm TRS (Stereo Input), 2 x XLR/M (Loop-thru Output), 1 x XLR/M (Mix Output), 1 x locking IEC power connector
• AC Power Input: Universal power supply 100 - 240 VAC, 50-60 Hz
• AC Power Consumption 1/8th Power: 100 VAC, 2.1A/120VAC, 1.9A/240VAC, 1.1A
• AC Power Consumption - Standby: 0.2 A at any votage
• Enclosure: Impact Resistant ABS
• Attachment Points: 2 x M10 threaded inserts plus Pull-Back
• Color: Black (RAL 9011)
• Grille: 18 Gauge powered coated stee, internal cloth lining
• Speaker Dimensions (H x W x D): 23.7 x 14 x 13.8 in/602 x 356 x 350 mm
• Carton Dimensions (H x W x D): 22.5 x 18.5 x 18.3 in/570 x 470 x 464 mm
• Net Weight: 39lb/17.7 kg
• Shipping Weight: 47.6lb/21.6kg
• Regulatory: CE, WEE, UL, China RoHS, RoHS II, FCC Class B
• Optional Accessories: K12 Tote, K12 Outdoor Cover, M10 Kit-C, K.2-LOC LockOut Cover, K12.2 Yoke

What's in the Box?

• QSC K12.2 Two-Way 2000W Powered Portable 12-inch Speaker
• Locking AC Power Cord
• Limited 6-Year Manufacturer Warranty
