Overview

High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.

Features

• Compact and powerful performance
• 1000-Watt peak power Class-D amplifier module
• Easily selected contours for commonly-used applications
• Advanced DSP with Intrinsic Correction for superior sound quality and speaker protection
• Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area
• Light weight and highly portable
• Professional appearance looks great in any application
• Use for main PA, stage monitor, or instrument amplifier
• 35 mm pole socket
• Optional, yoke, tote, and outdoor cover accessories
• Complete EASE and CAD information available online
• 6-year manufacturer warranty

Specifications

• Configuration: Two-way active loudspeaker
• LF Transducer: 203 mm (8 in), cone
• HF Transducer: 35.6 mm (1.4 in) compression driver
• Frequency Response (-6 dB): 46-20 kHz
• Frequency Range (-10 dB): 53-20 kHz
• Nominal Coverage Angle: 90° Axisymmetric
• Maximum Rated SPL: 124 dB
• Amplifier: Class D, Peak: 800W (LF), 200W (HF)
• Controls: Power, 2 x Gain, Mic Boost Push Switch, 6-way Contour Selection Switch
• Indicator: Power LED, 2 x Input Signal LED, Input B MIC selected LED, Limiter active LED

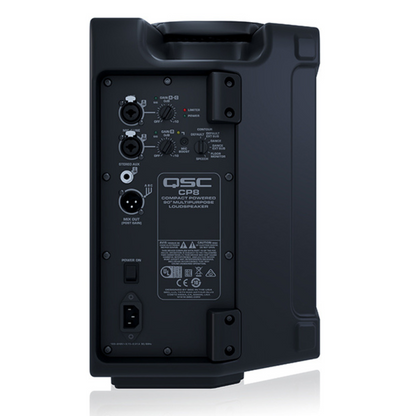

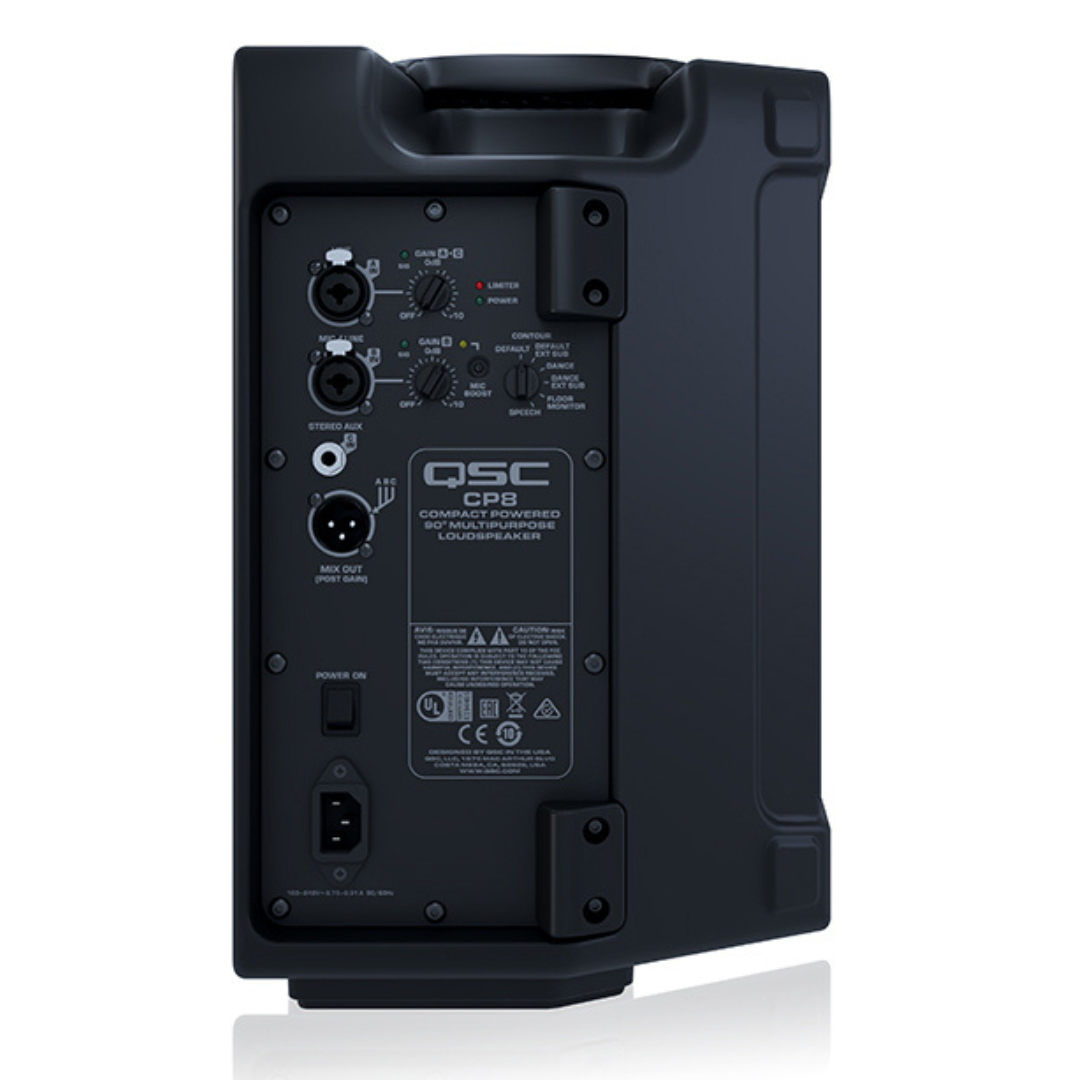

• Connectors: 2 x locking XLR/F 1/4" combo (Line Input and Mic/Line Input), 1 x 3.5 mm TRS (Stereo Input), 1 x XLR/M (Mix Output), 1 x IEC power connector
• AC Power Input: Universal power supply 100-240 VAC, 50-60Hz
• AC Power Consumption (1/8th Power): 100 VAC, 0.75A - 240VAC 0.31A
• Enclosure Material: Polypropylene
• Attachment Points: M8 threaded insert
• Color: Black (RAL 9011)
• Grille: 18 Gauge powder-coated steel
• Speaker Dimensions (HxWxD): 16.2 x 10.7 x 10.1 in (411 x 273 x 256 mm)
• Net Weight: 25.4 lb/11.5 kg
• Regulatory: EMC, UL, CB
• Optional Accessories: CP8 Tote, CP8 Outdoor Cover, CP8 Yoke

What's in the Box?

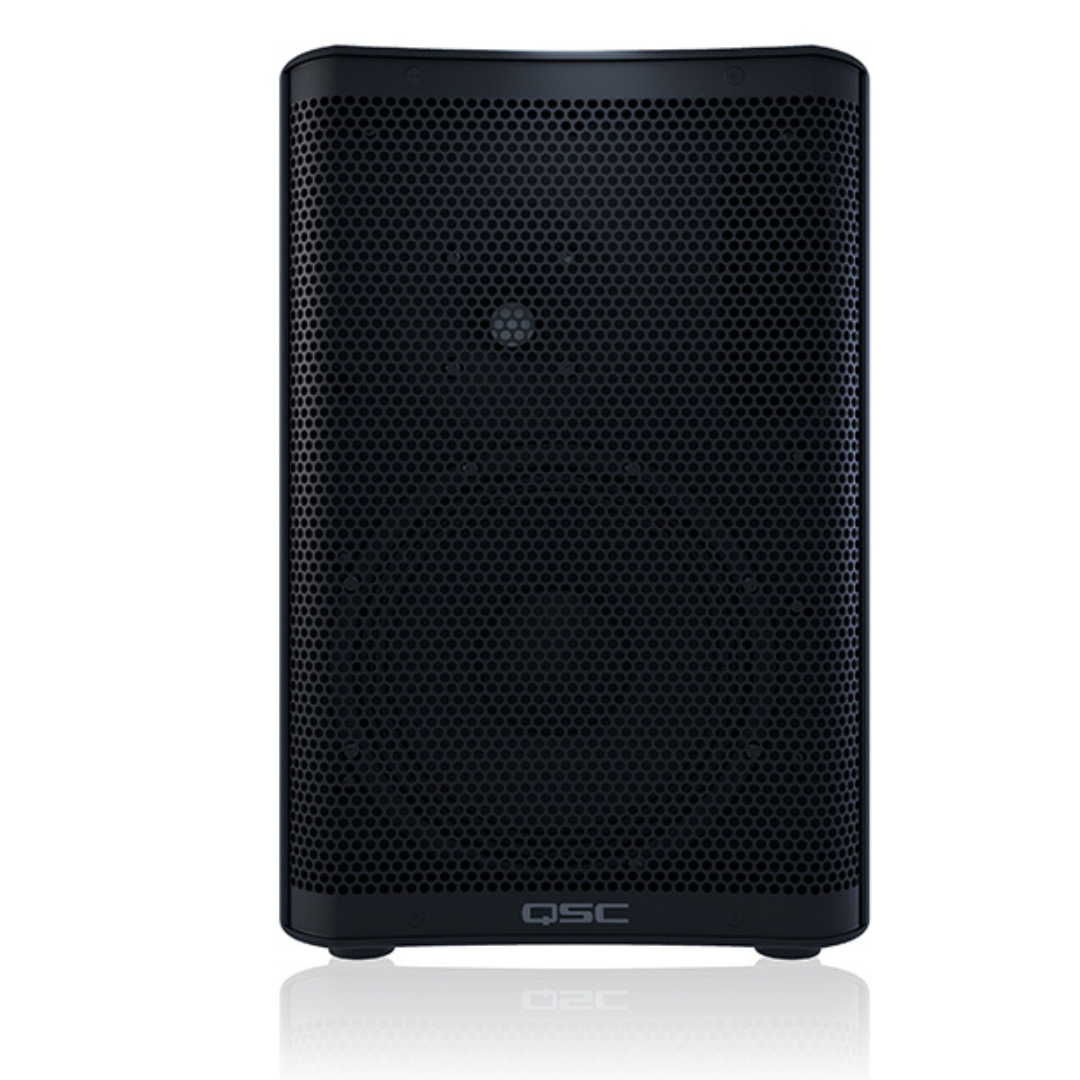

• QSC CP8 Two-Way 8" 1000W Compact Powered Loudspeaker
• Power Cord
• Limited 6-Year Manufacturer Warranty
