Overview

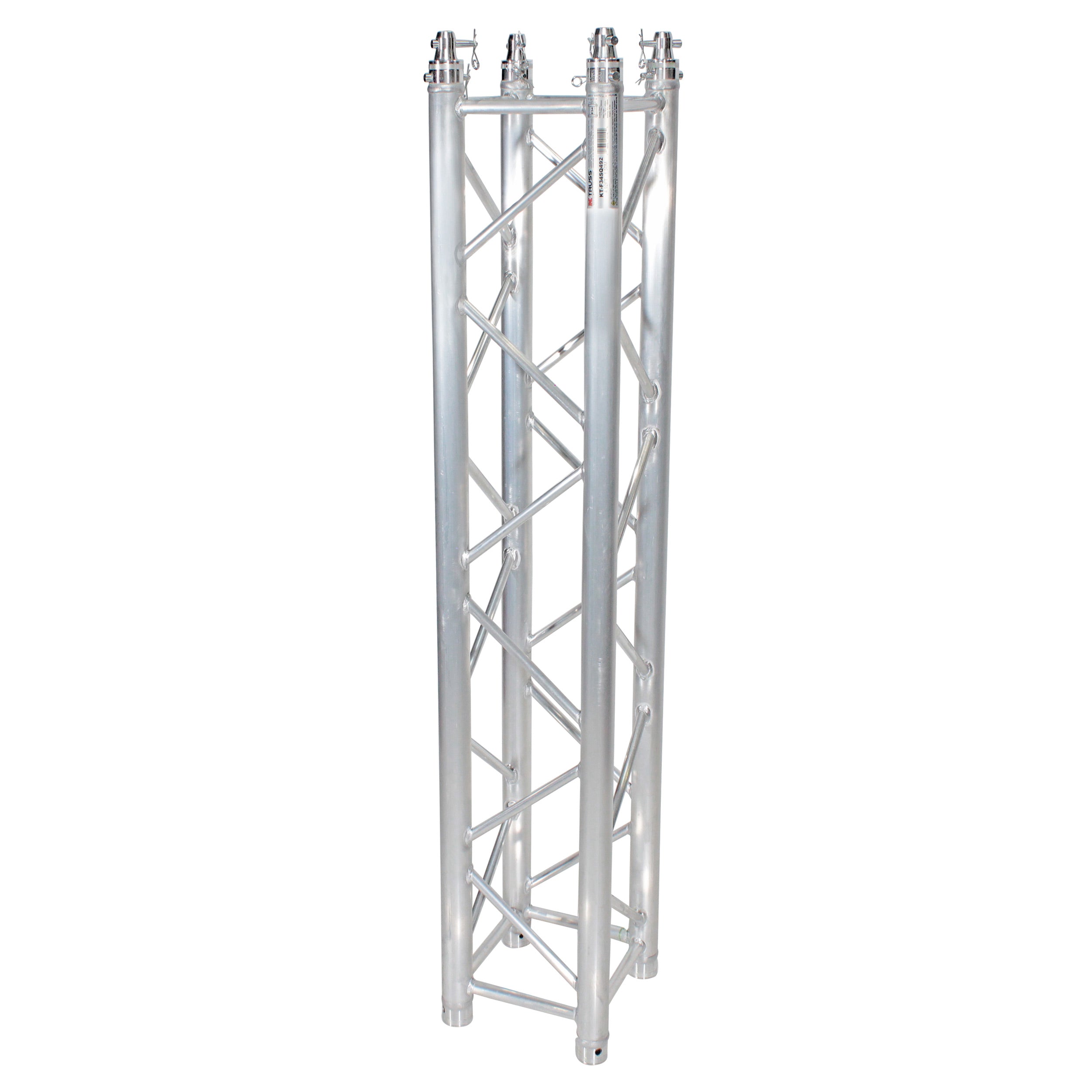

The ProX KT-F34SP492 KT Series F34 Aluminum Truss | 1.5mm Wall is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution and is an Economy Light-Structural trussing system for light-duty use for trade show booths, DJ booths, DJ Totems, architectural non-loadbearing designs, and much more. The ProX KT-F34SP492 is particularly well suited for trade shows and light-duty construction of display systems, as well as event technology and as a support system for lighter lighting fixtures. Due to its design appearance combined with a lower cost, it provides the ability for reduced load capacity designed with a standard truss appearance. This system is ideally suited for a simple exhibition display up to a complex trade show booth.

At the heart of the system is a square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors, and accessories that add stability while expanding on limitless configurations.

Features

• Compatible in SIZE ONLY w/ most major brands F34 Box Square Truss
• Not intended for replacement or substitute for any standard or heavy-duty load-bearing truss-segments!
• Tolerance Free Standard Conical connector

• Material: EN-AW T6-6061 Aluminum Display Grade Quality

• Constructed to the highest quality by certified welders
• K Series Trussing is an Economy Light-Structural Product primarily designed for display structures.
• The K-Truss load capacity is 75% of the 2mm SQ series
• Engineering Drawings and Design Copyright 2019 by ProX Live Performance Gear

Specifications

• Width: 11.42 in / 290 mm
• Height: 11.42 in / 290 mm
• Main Tube: 2 in / 50 mm
• Wall Thickness: 0.06 in / 1.5 mm

• Braces: 0.63 in / 16 mm

What's in the Box?

• ProX KT-F34SQ492 Aluminum Truss
