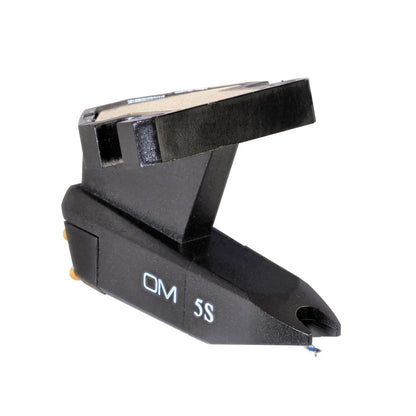

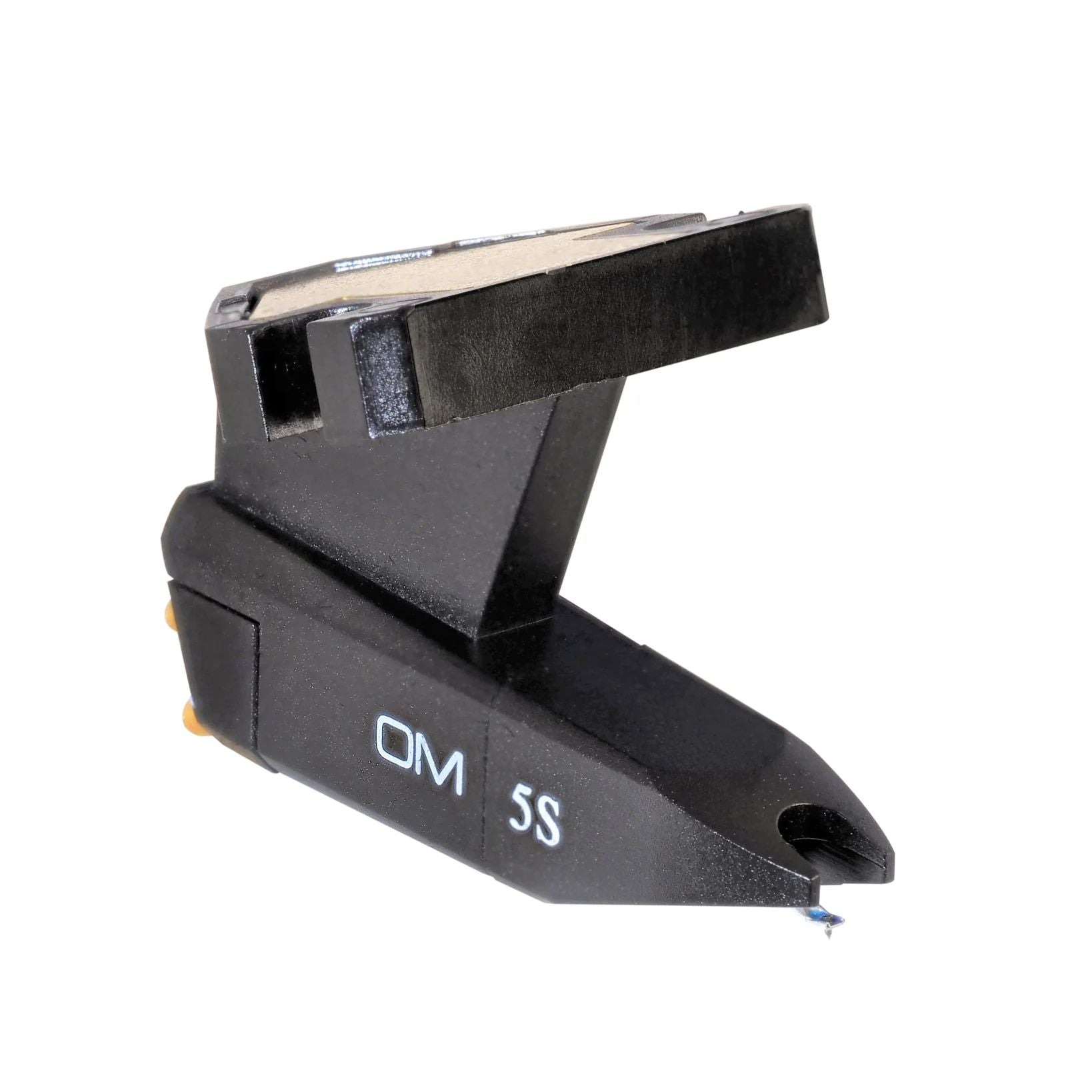

The OM 5S is a moving magnet cartridge for general purpose application

The OM 5S features Spherical stylus, robust and economic solution for play back of vinyl records.

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at any one of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.



Specifications

  • Channel balance at 1 kHz
    2 dB
  • Output voltage at 1 kHz, 5cm/sec
    4.5 mV
  • Channel separation at 1 kHz
    20 dB
  • Frequency response 20 Hz - 20 kHz
    20-20.000 Hz
  • Tracking ability at 315 Hz
    60 µm
  • Compliance, dynamic, lateral
    20 µm/mN
  • Stylus type
    Spherical
  • Stylus tip radius
    R 18 µm
  • Tracking force, recommended
    1.8 g
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    750 Ohm
  • Cartridge colour
    Black/Black
  • Cartridge weight
    incl. extra weight 5 g, excl. extra weight 2.5 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    450 mH
  • Recommended load capacitance
    200-500 pF
  • Replacement stylus
