Mackie HM-800 8-Channel Rack Mountable 7 Segment LED Display Headphone Amplifier

Overview

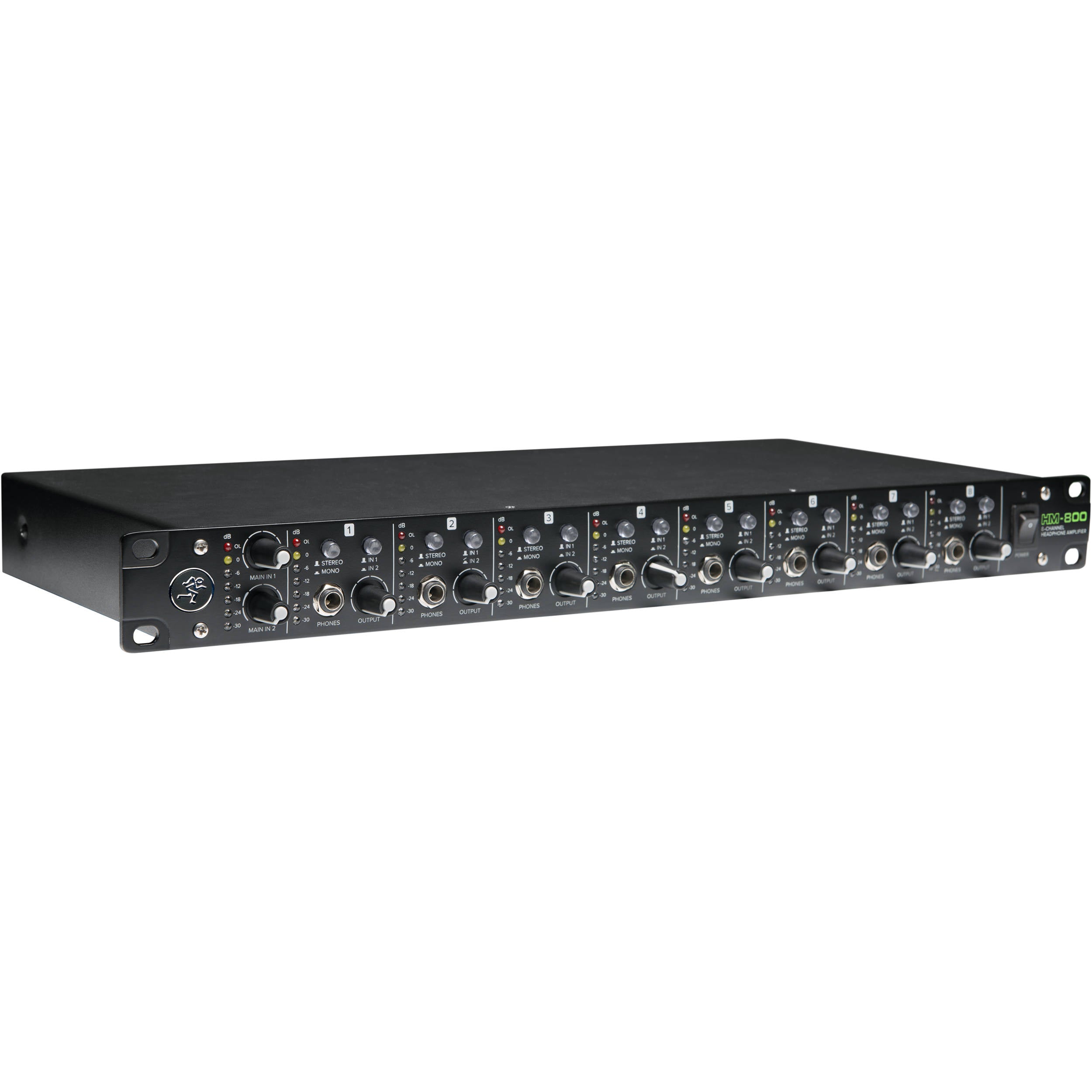

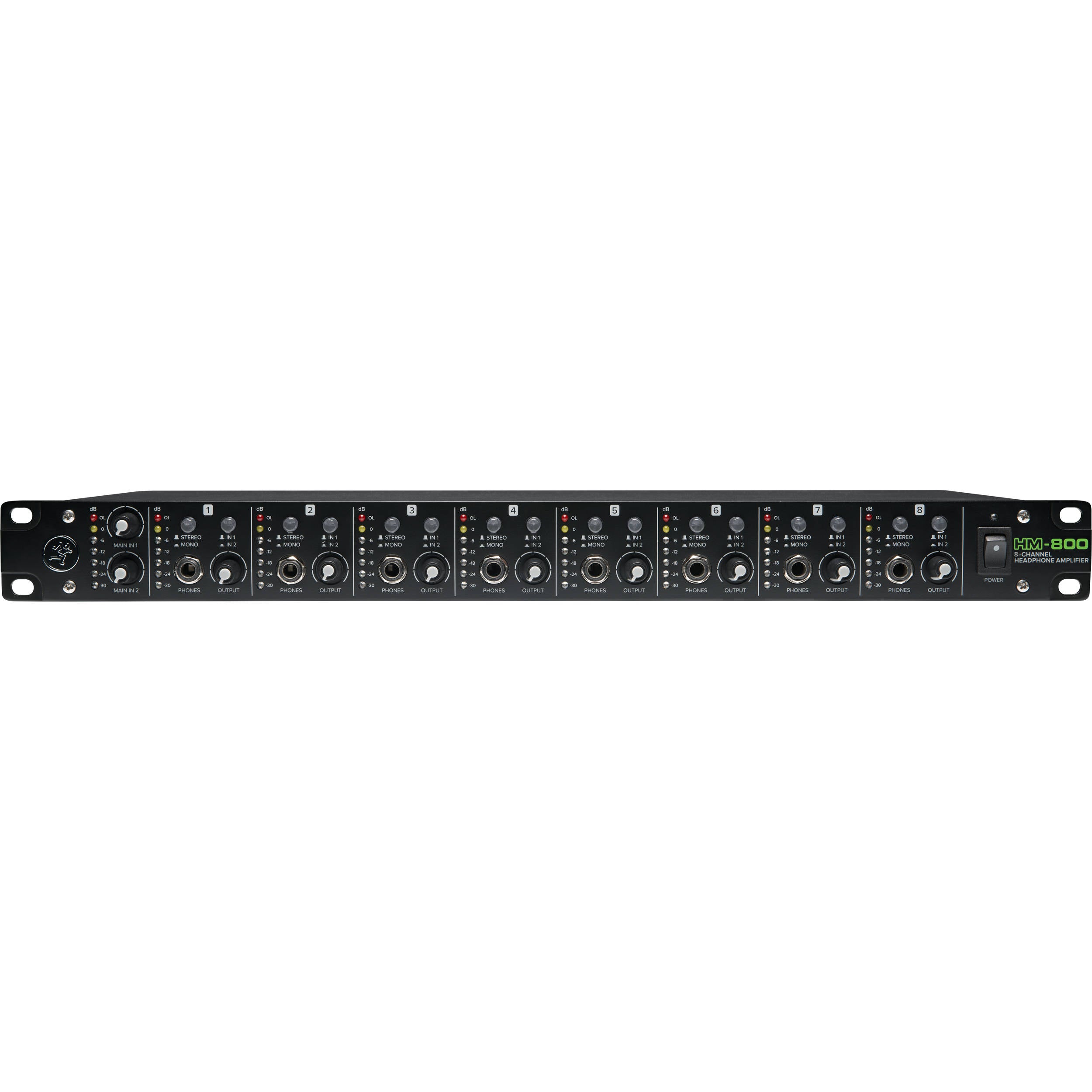

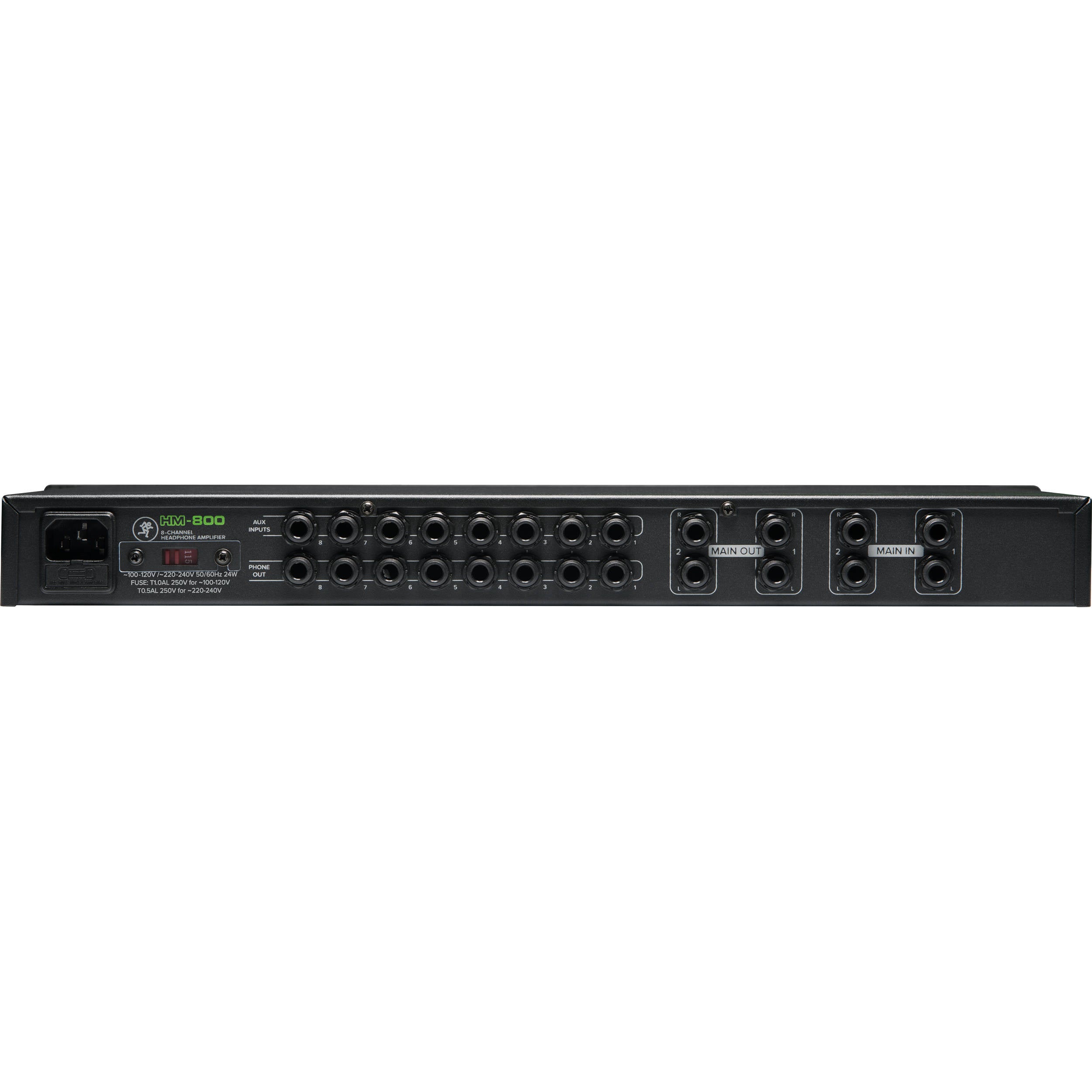

The Mackie HM-800 is a rack-mountable, 8-channel headphone amplifier designed to provide versatile headphone amplification for artists, musicians, and engineers monitoring through headphones in live stage applications and home, project, commercial, and mobile-recording studios. It features two stereo main outputs via four 1/4" jacks and sixteen 1/4" TRS stereo headphone outputs—two per channel—fed by a customizable blend of inputs.

Two stereo main inputs via four 1/4" jacks can be combined with a per-channel 1/4" stereo aux input. Each channel offers stereo/mono mode switching, input selection, and output level adjustments. 7-segment LED meters display main input and per-channel output levels.

The HM-800 ships with an IEC power cable and occupies 1 RU in a standard 19" rack.

Features

• Distribute Signal to 16 Headphones
• Two Stereo Main Inputs via 1/4" Jacks
• Two Stereo Main Outputs via 1/4" Jacks
• Two 1/4" Headphone Outputs per Channel
• Per-Channel 1/4" Stereo Aux Input
• Input Selectors and Stereo/Mono Switches
• Output Controls
• 7-Segment LED Metering
• Includes Power Cable

What's In The Box?

• Mackie HM-800 Rack-Mountable, 8-Channel Headphone Amplifier
• Power Cable
• Limited 1-Year Warranty
