Overview

Description

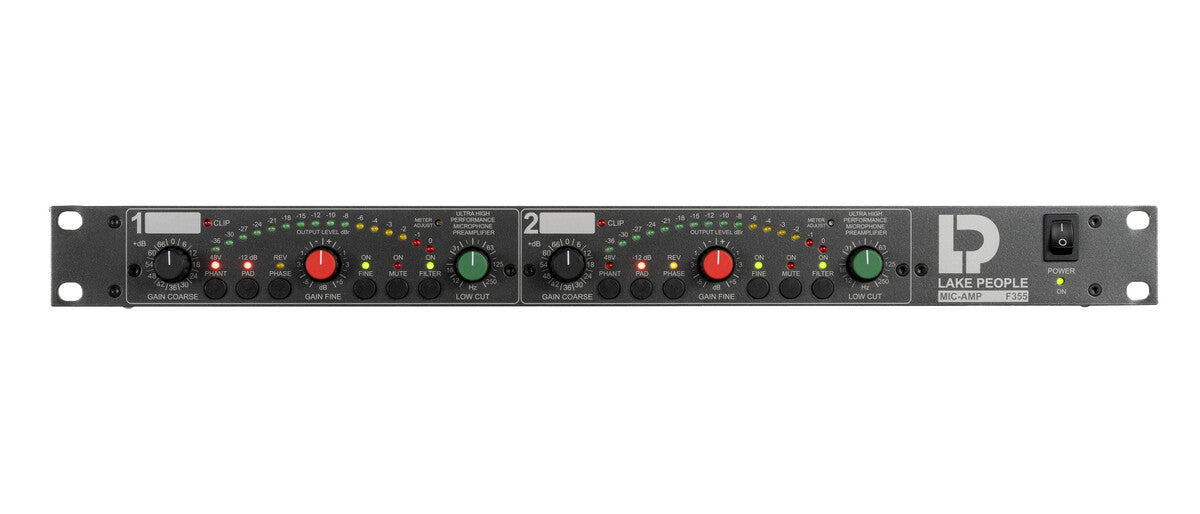

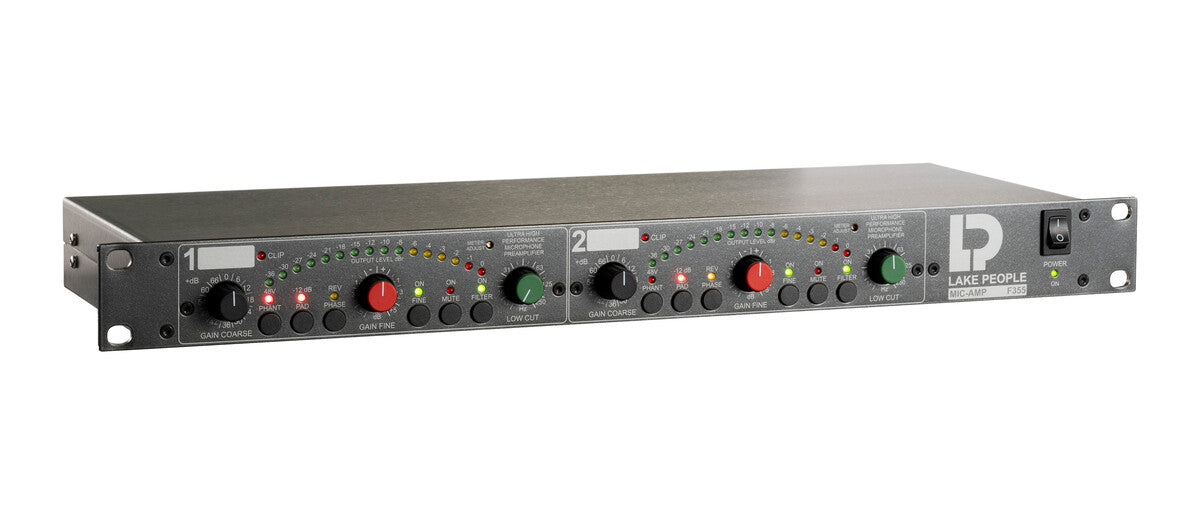

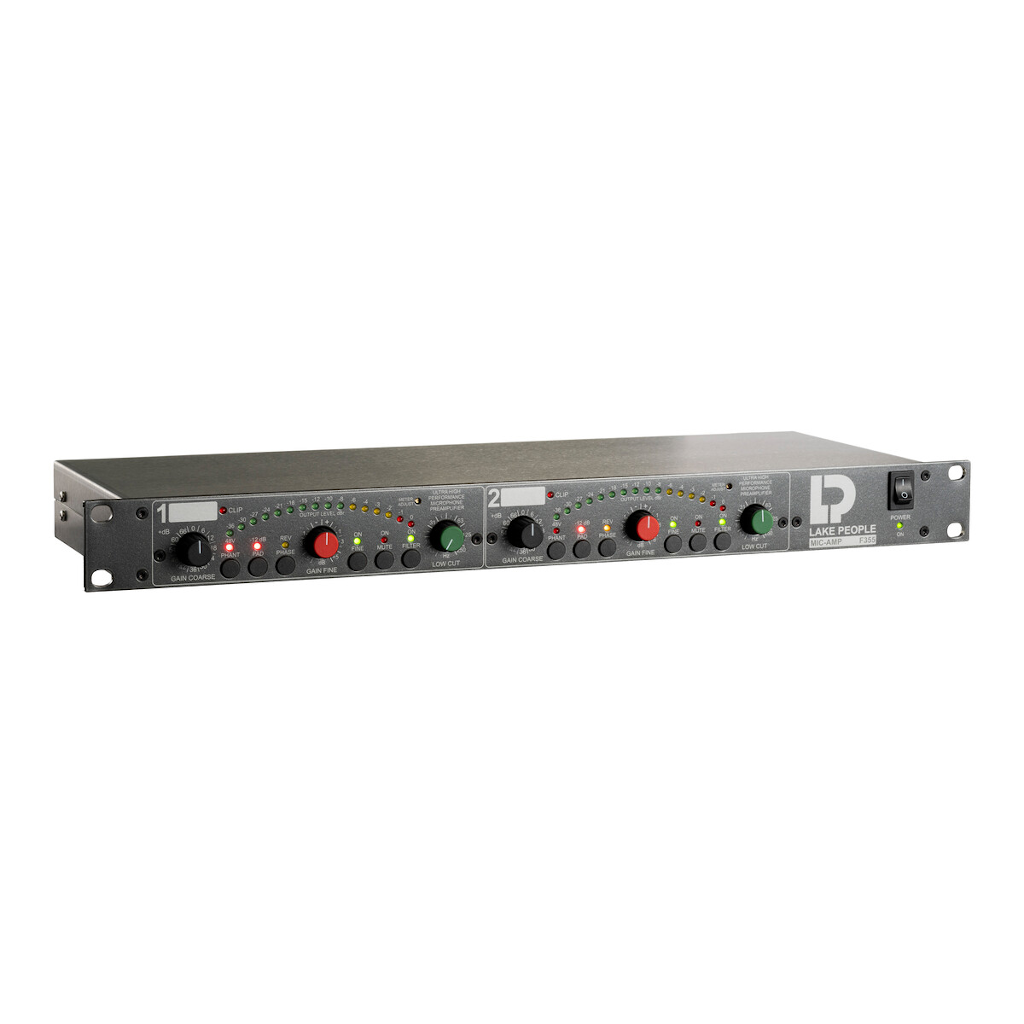

Two-channel ultra-low noise microphone preamplifier with excellent audio performance and more than common luxury features. Ideal for bypassing insufficient mixing console preamps or for " direct-to-tape" sessions.

Channel features:

-Electronically balanced input via XLR

-Gain 0...+66 dB switchable in 12 steps of 6 dB

-Fine-adjustment by center detent pot +/- 5 db may be deactivated

-Lo-cut, 12 dB/oct., variable freq. range 12...250 Hz may be deactivated

-Noise -129 dB at 60 dB gain

-Pad-switch for -12 dB level reduction
-Programmable intelligent muting system

-Switchable 48 V phantom powering

-Switchable phase reverse

-16-step ultra fast level meter, 0 … -36 dBr may be calibrated individually on the front panel

-Additional separate Clip Led

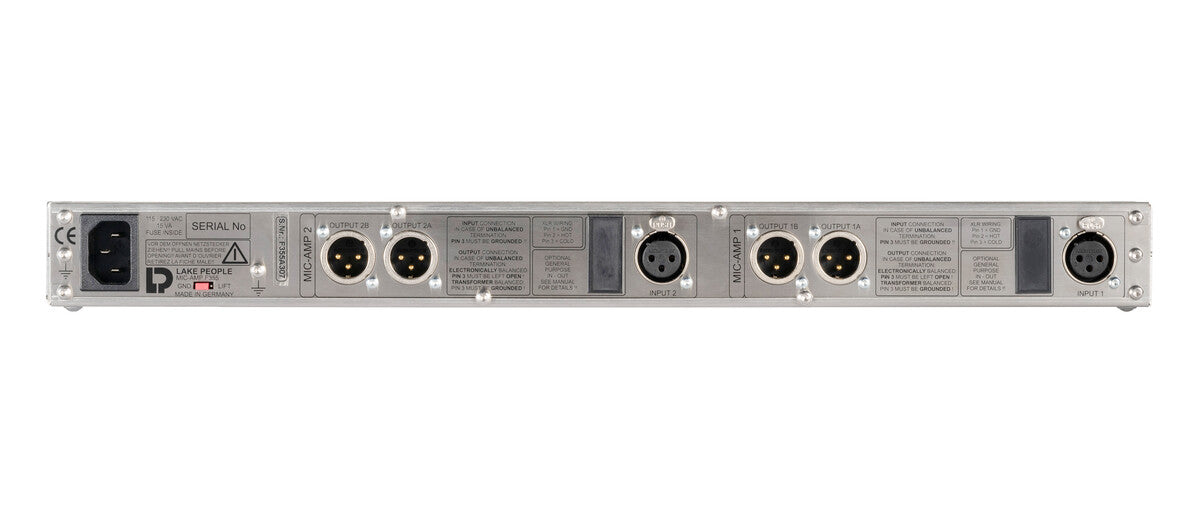

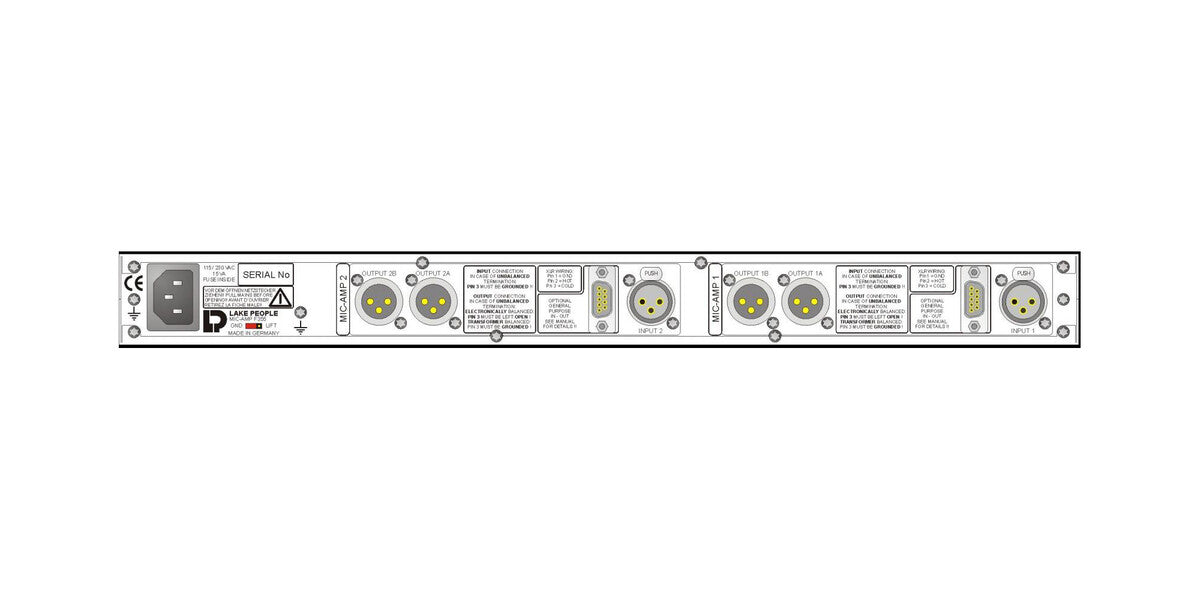

- 2 x electronically balanced outputs via XLR
