Electro-Voice EVOLVE50M Loudspeaker System in White

Overview

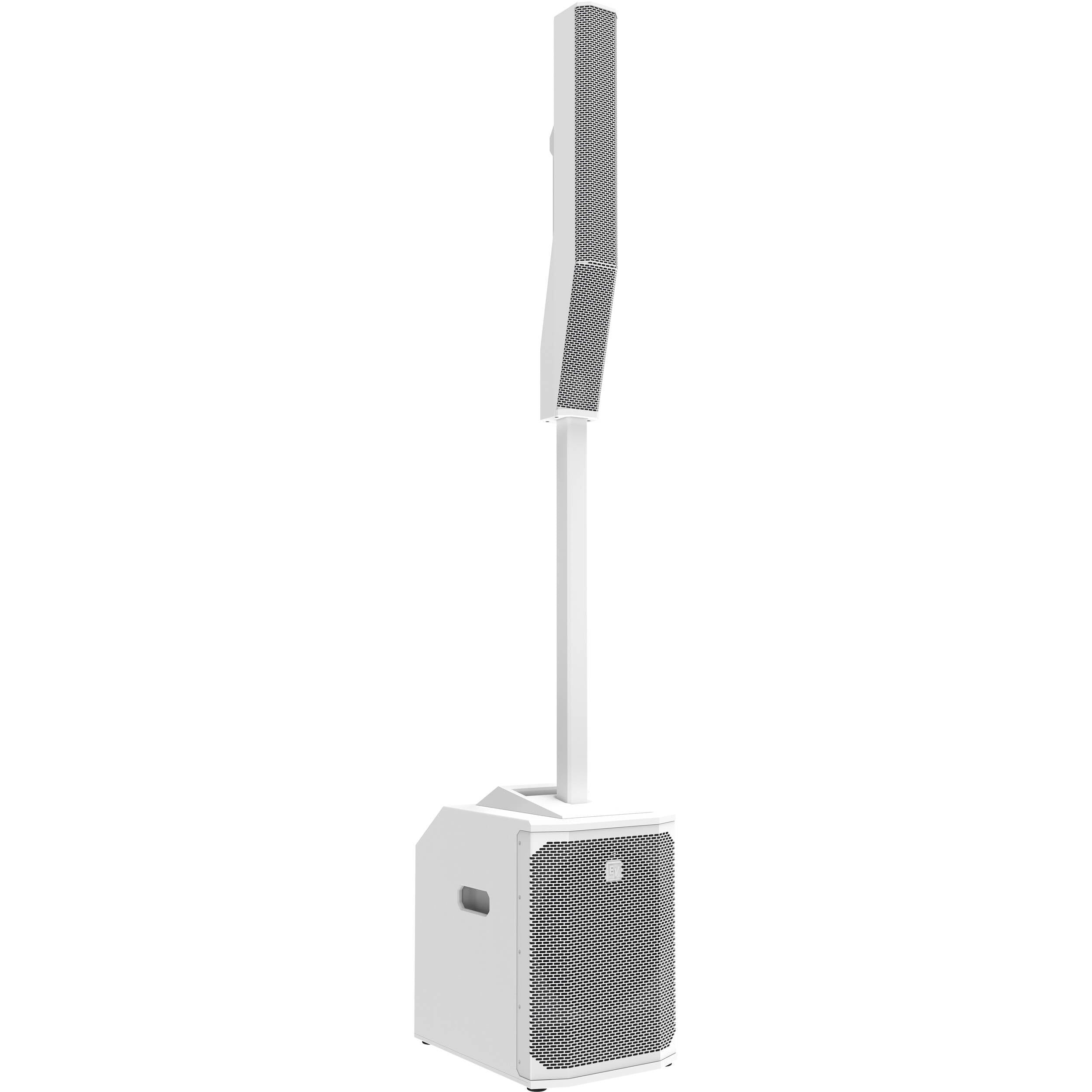

The white Electro-Voice EVOLVE 50 Portable PA Column Array is part of the EVOLVE 50 portable PA system, which consists of a powered subwoofer, magnetic speaker pole, and the column array. The column array utilizes eight 3.5" neodymium drivers with a custom-designed waveguide, which provides consistent (120°) horizontal coverage. The column speaker array is powered by the subwoofer's integrated 1000W amplifier, which delivers 500W to the column array.

System setup is simple and fast. Slide the magnetically locking mounting pole into the appropriate hole on top of the subwoofer, then place the column speaker array on the pole. You don't have to run cables between the sub and speaker array; audio connectivity between them is made via internal cabling in the mounting pole. The column array ships with the sub pole and a carrying case.

The white Electro-Voice EVOLVE 50M Portable 1000W Bluetooth-Enabled Subwoofer is part of the EVOLVE 50M portable PA system, which consists of a powered subwoofer, magnetic speaker pole, and a column array full-range speaker. The powered subwoofer utilizes a 12" driver and is powered by the integrated 1000W (500W to subwoofer) amplifier, which combines with the column array to provide a frequency response of 43 Hz to 20 kHz with a maximum SPL output of 127 dB.

System setup is simple and fast. Slide the magnetically locking mounting pole into the appropriate port on top of the subwoofer, then place the column speaker array on the pole. You don't have to run cables between the sub and speaker array; audio connectivity between them is made via internal cabling in the mounting pole. The EVOLVE 50M subwoofer features an advanced 8-channel mixer with professional grade mic preamps and mix functions. High-resolution, low-latency Bluetooth audio streaming ensures professional-quality results for music playback or accompaniment.

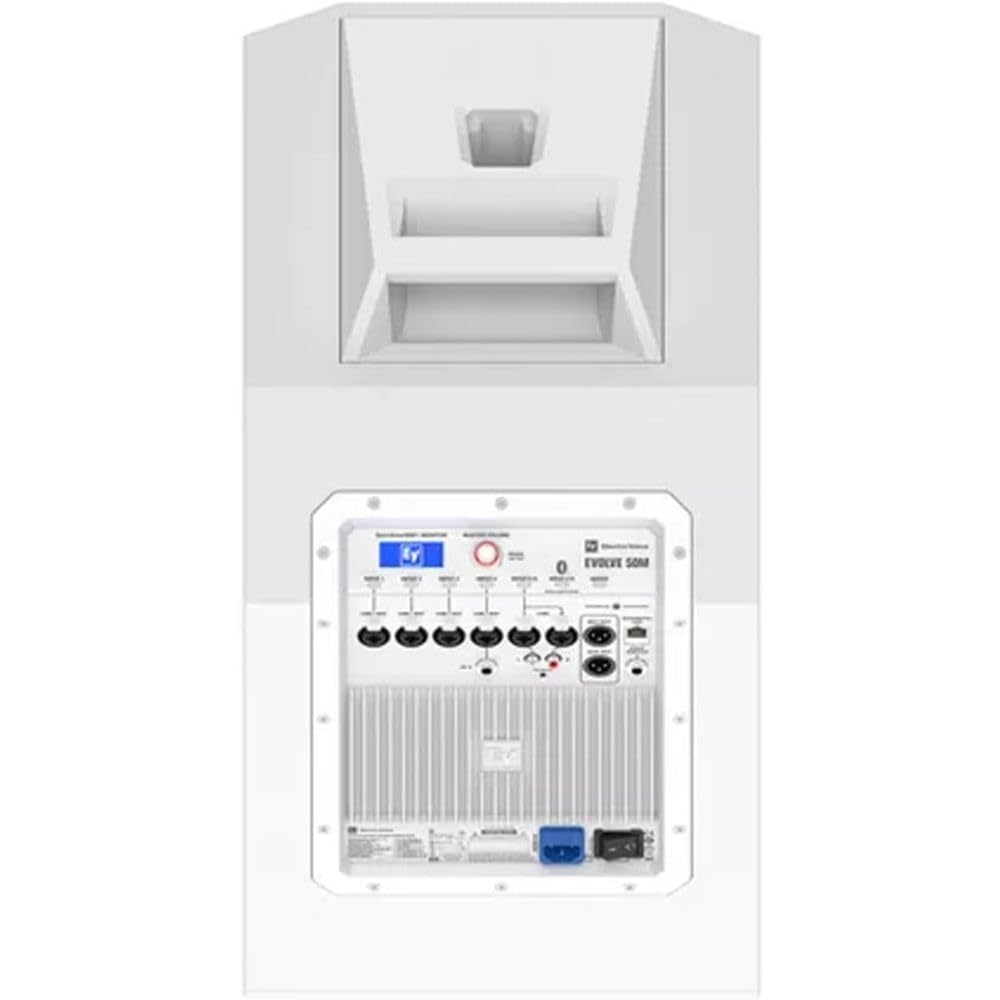

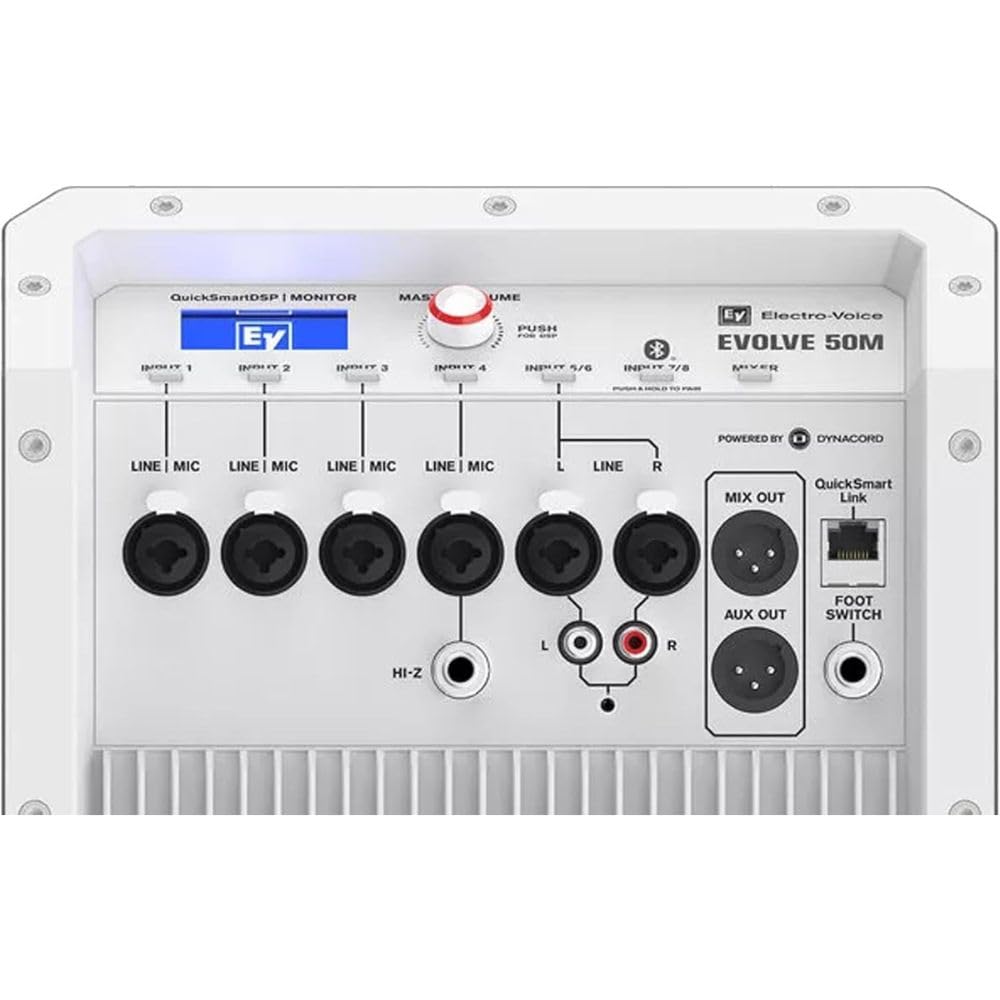

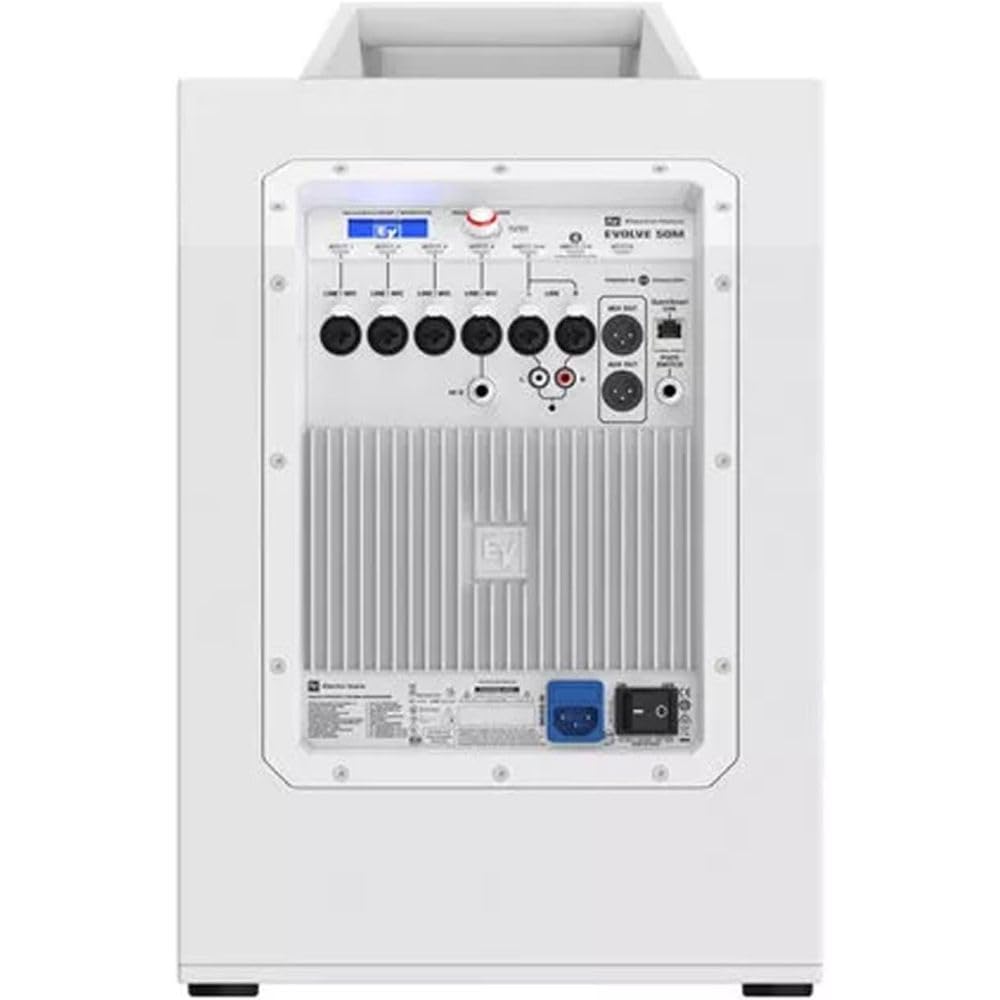

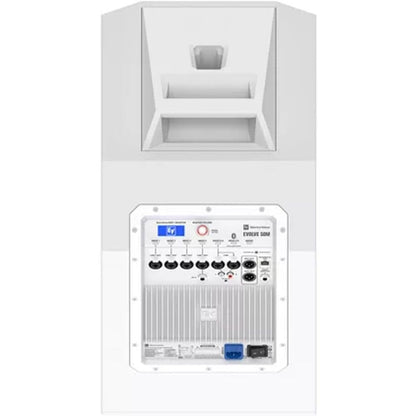

There are mic, line, and Hi-Z inputs via XLR-1/4" combo jacks, stereo RCA, and 3.5mm aux input jacks as well as XLR aux and mix outputs. The onboard DSP functions include four presets (Music, Live, Speech, Club), three-band system EQ (low, mid, high), seven-band graphic EQ (in Mixer mode), five user-programmable presets (Store and Recall settings), phantom power, visual monitoring of limiter status, input level control and meters, and a master volume control to optimize gain structure. The Electro-Voice EVOLVE 50M subwoofer ships with a power cord.

Features

• EVOLVE 50M Active Subwoofer
• EVOLVE 50 Column Speaker Array
• Magnetically Locking Mounting Pole
• 12" Subwoofer, Eight 3.5" Drivers
• 1000W of Class-D Amplification
• Custom Waveguides for Wide Coverage
• Advanced 8-Channel Mixer
• Onboard DSP with Presets, EQ, and FX
• Supports Bluetooth Audio and Control
• Connect Two EVOLVE 50Ms via RJ45 Cable

What's In The Box?

• Electro-Voice EVOLVE 50 Portable PA Column Array (White)

  • Speaker Pole
  • Carry Bag
  • Limited 3-Year Warranty
• Electro-Voice EVOLVE 50M Portable 1000W Bluetooth-Enabled Subwoofer (White)

  • Power Cord
  • Limited 3-Year Warranty
