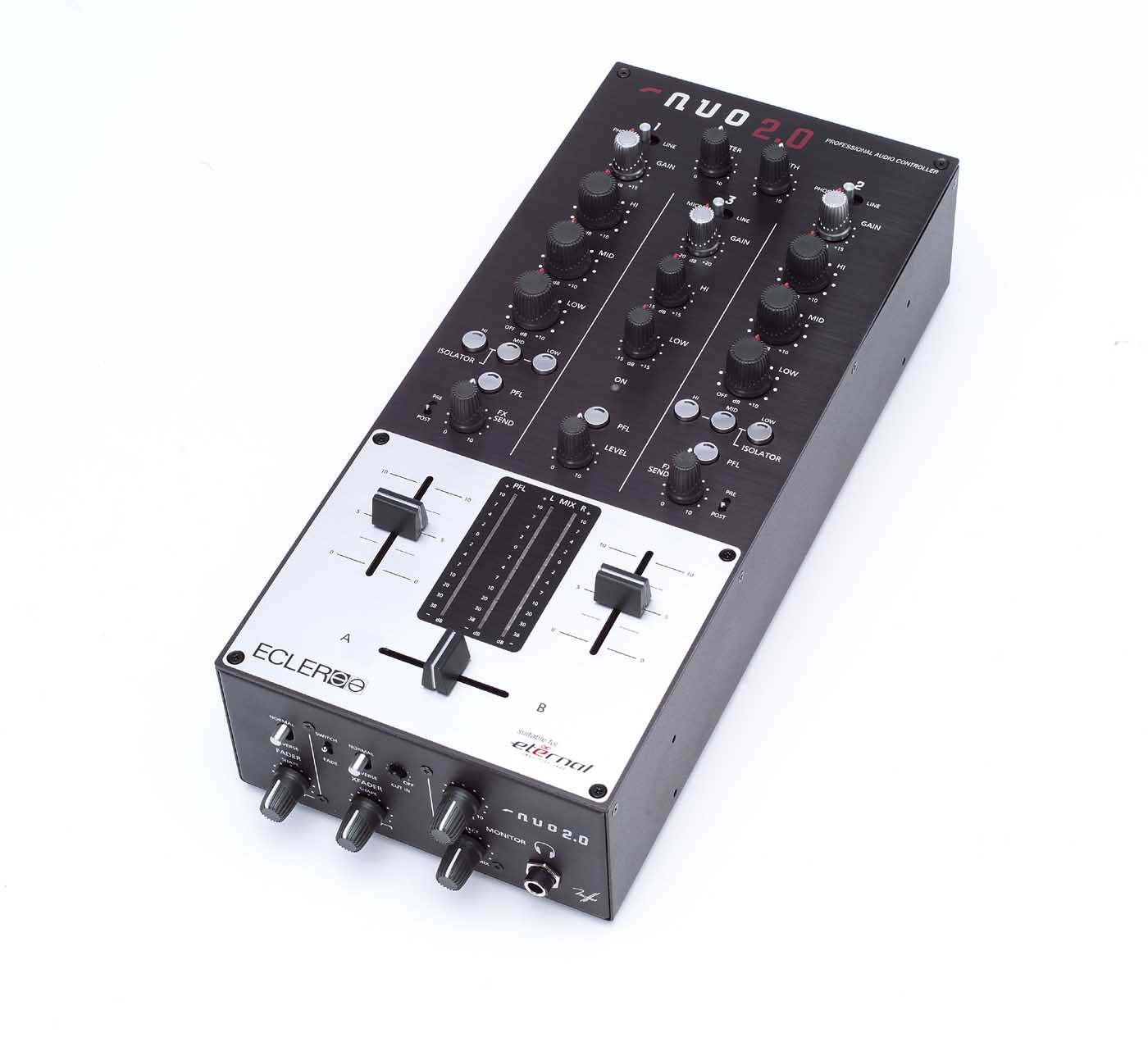

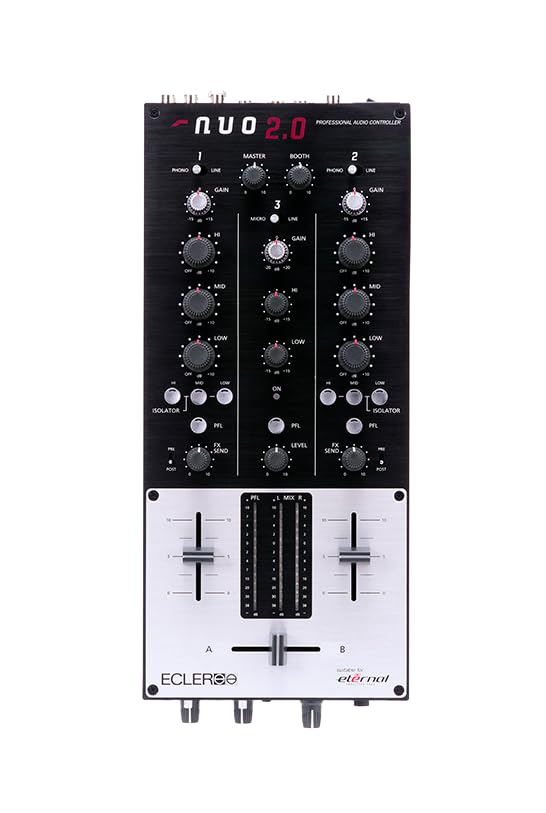

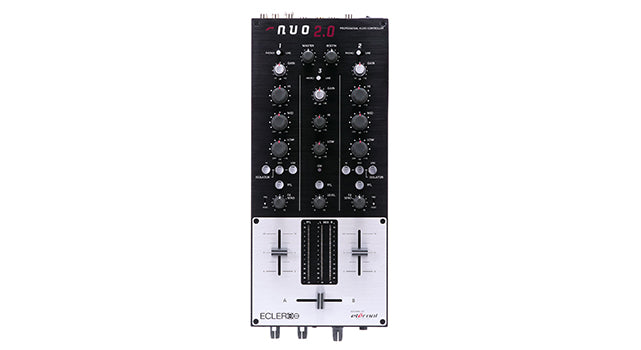

Ecler DJ AMS-NUO-2.0 Analogue Mixer Unit

Overview

The NUO 2.0 is a 2 channel analogue mixer addressed to the professional DJ of any kind, in despite of the mixed music style.

 Features

• 2+1 Mixing channels
• 1 MICRO input
• 2 PHONO inputs
• 3 LINE inputs

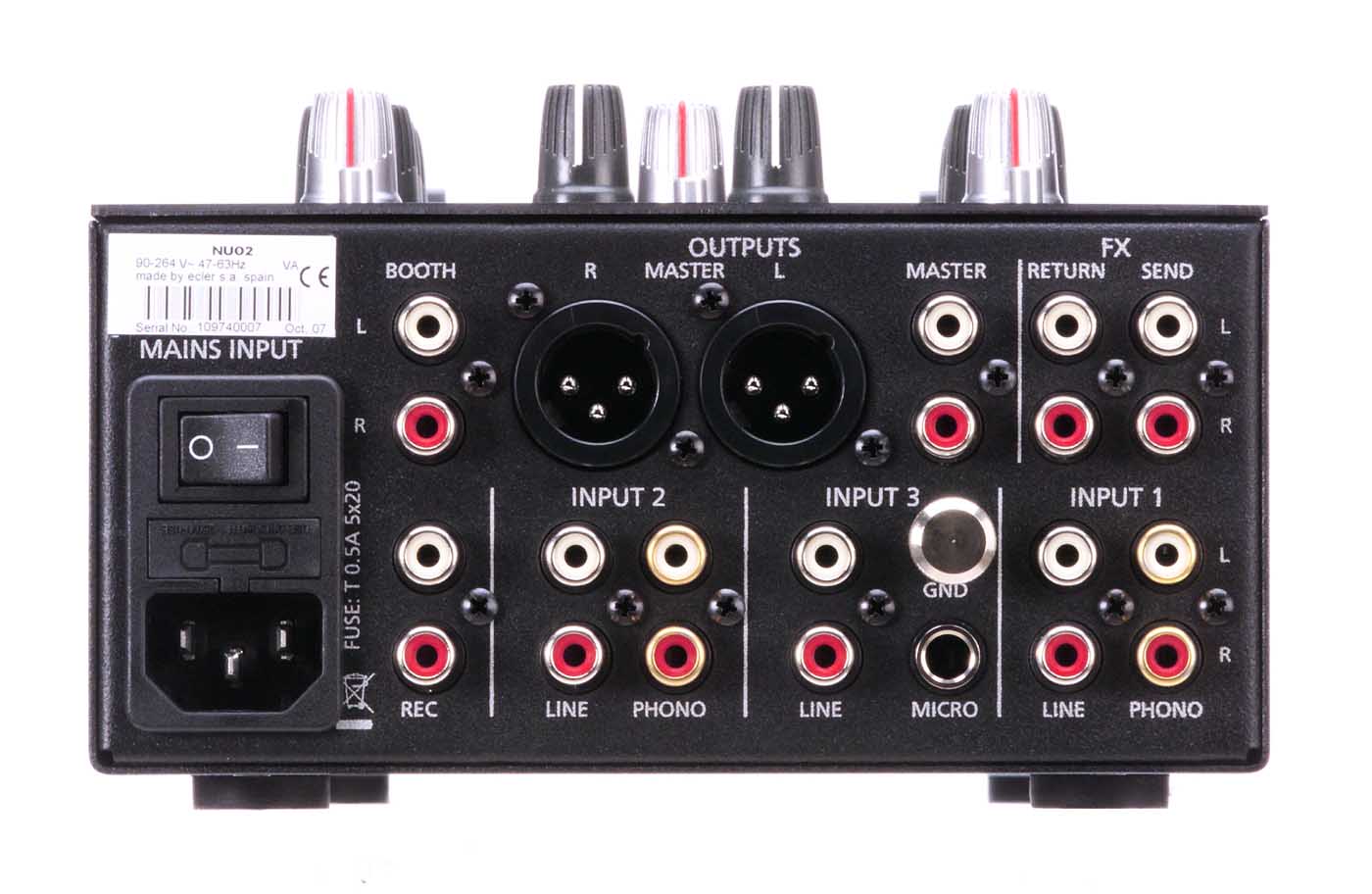

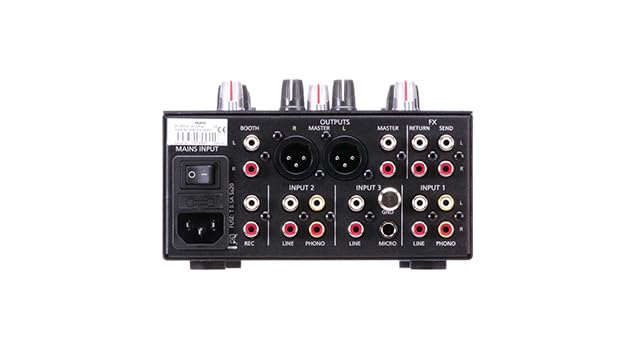

• Master Output (HOUSE) on XLR and RCA connectors
• Booth Output on RCA connectors

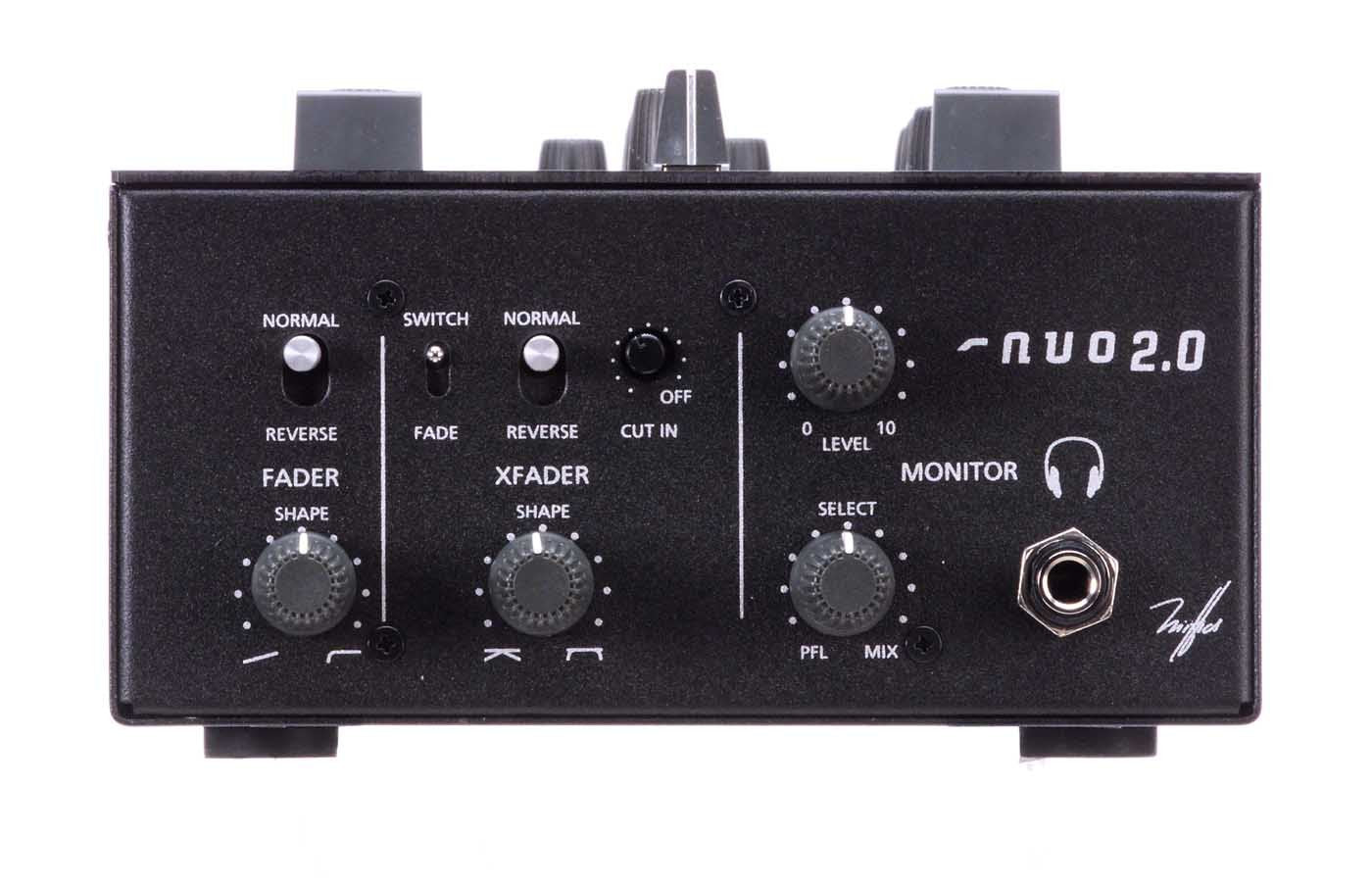

• 6.3mm J ack and 3.5mm mini-jack Headphone Monitor Outputs
• 3 band full cut EQ for main channels and 2 band full cut EQ for MICRO/LINE channel
• 3 bands isolator (300Hz and 4KHz, -∞ /+12dB, 4th order 24dB/oct )
• Maximum Output without distortion: 21dBV (23dBu)
• Mechanized from a solid block of aluminum knob, without visible screw. Ecler Unique design
• Alps Blue Velvet Potentiometers
• FX Send control and Pre/Post fader selector
• Screen-printed faceplate by selective anodizing
• Wooden side panels included

What's In The Box?

• Ecler DJ AMS-WARM-2 Analogue Rotary Mixer Unit
• IEC Main Connector
• 4x RCA Protection Caps
• First Steps Guide
• Warranty card
