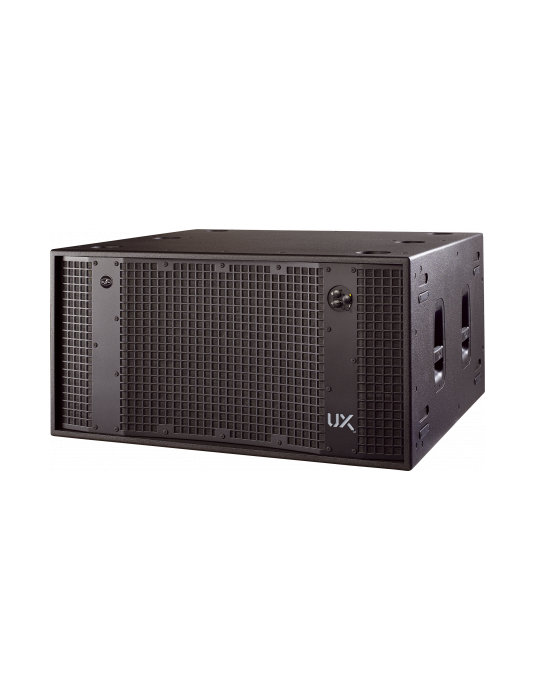

DAS UX-221A Active Subwoofer

Overview

The UX-221A make use of two 21″ loudspeakers with impressive specifications. The 21UXN loudspeakers are equipped with 6″ voice coils, a remarkable 60 mm peak-to-peak excursion, and powerful neodymium magnet assemblies. Efficient ventilation of the voice coil gap provides for a high thermal rating, and reduced power compression.

The UX-221A amplifier offers 2 x 3400 W and incorporates the latest in Class D power amplification. A high efficiency, low consumption universal power supply with Power Factor Correction (PFC) allows for fail-safe use worldwide. State-of-the-art electronic design such as the fixed frequency switch mode output stage provides for the highest grade of audio accuracy. A comprehensive set of “smart” protections include thermal, over current, short circuit and overload on the output, clip limiter and high frequency protection keeping the amp and acoustic components safe.

The enclosure is constructed using 21 mm Birch plywood and makes use of extensive bracing to eliminate resonances. The woodwork is finished with the robust D.A.S. ISO-flex protective coating for durability. A dolly platform with locking casters denominated the PL-221S is offered to stack and move the systems. Protection during transport is provided by the optional covers available from D.A.S.

Features

• Powered ultra low frequency subwoofer system.
• 2 x 3400 W Class D amplifier.
• DASnet remote monitoring and control capable.
• Twin 21″ Neodymium loudspeakers with 6″ voice coils.
• Solid 21 mm Birch plywood construction.
• Impressive 60 mm peak-to-peak excursion.

What's In The Box?

• DAS UX-221A Dual 21" Powered Ultra Low Frequency Subwoofer System
