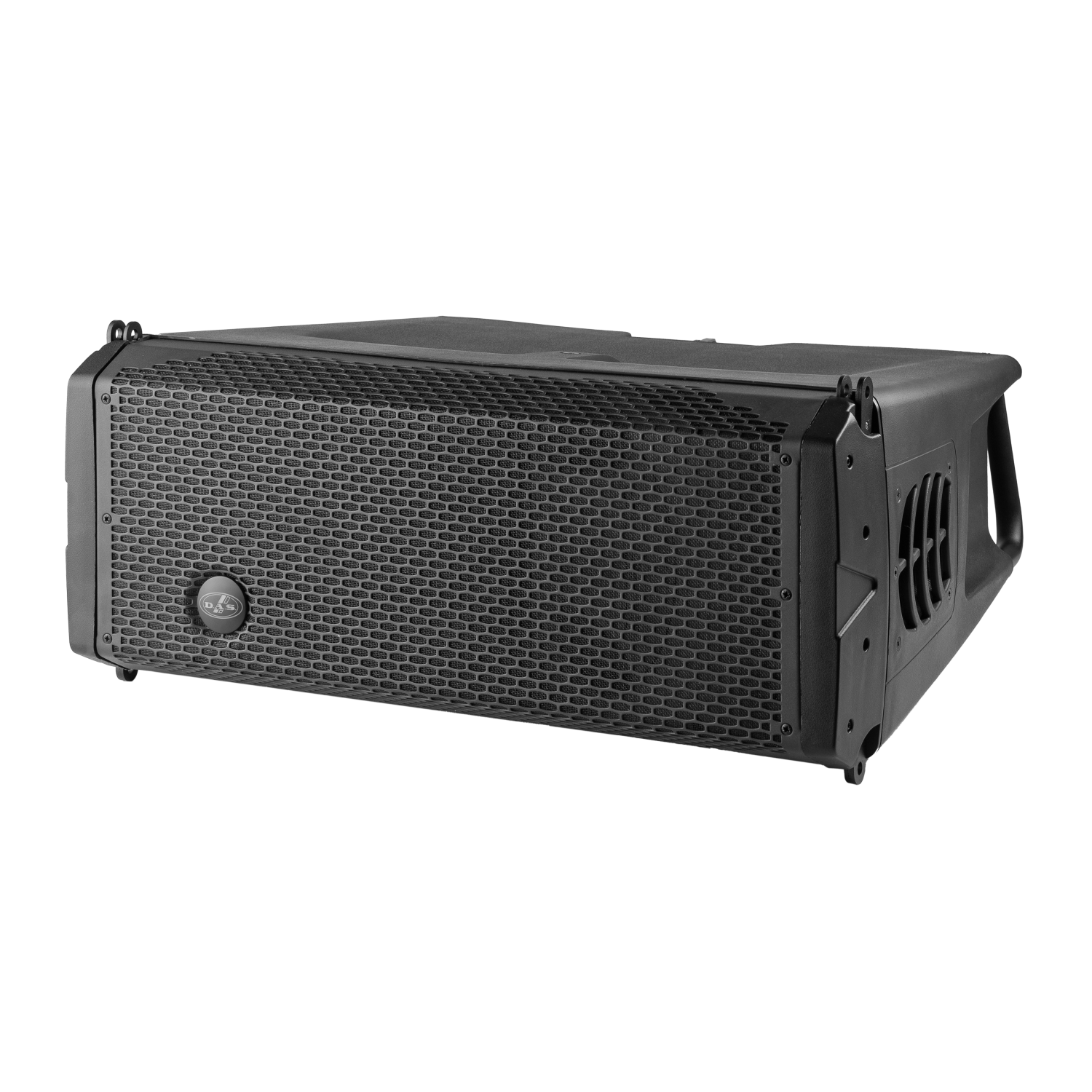

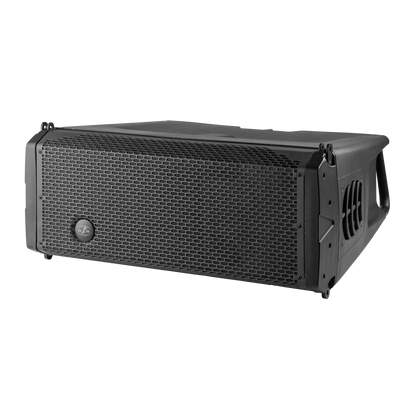

DAS EVENT-28A Powered 1300W 2-Way Compact Line Array Module (Single)

Overview

The EVENT-28A is an advanced symmetrical, compact, two-way powered line array system. Designed to provide outstanding performance and ease of use, this system features a stylish and portable polypropylene cabinet design that is both road-worthy and highly durable. With a comprehensive range of accessories, the EVENT-28A is perfect for small to mid-size rental and installation applications seeking superior sound quality.

This system integrates two 8″ neodymium transducers and a single M-60 compression driver into a robust yet lightweight polymer cabinet. The 8″ transducers, enhanced with neodymium magnets for reduced weight, ensure efficient sound projection and superior low-frequency response. The symmetric “V” shaped configuration of the cone transducers delivers consistent 100º horizontal coverage down to 200 Hz. The M-60 compression driver remains coupled to an advanced waveguide design, which controls the vertical dispersion and ensures precise coupling between units in vertical arrays.

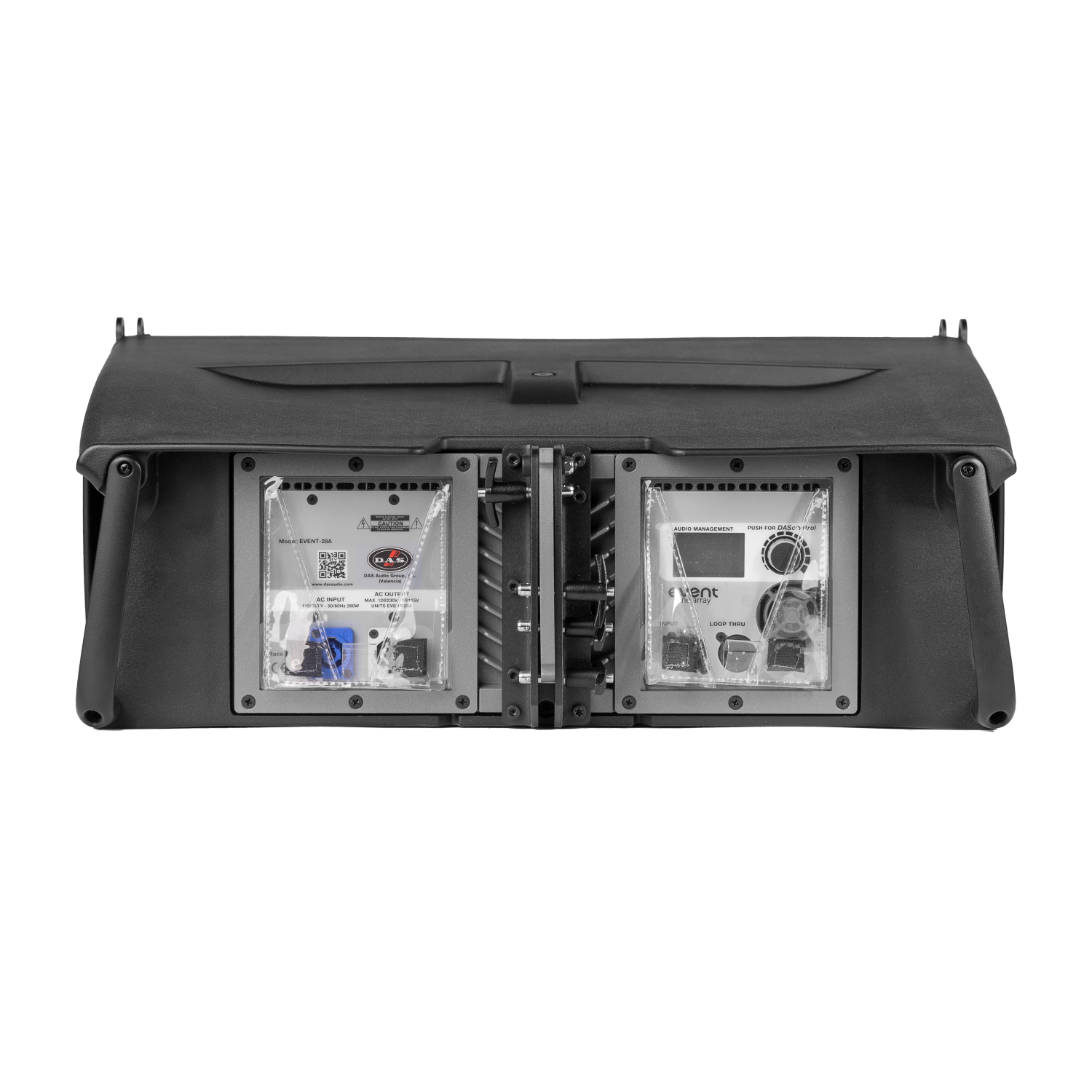

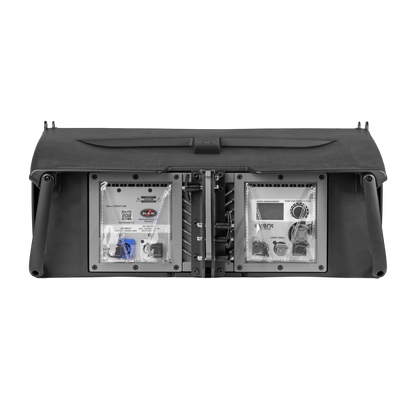

Powered by a two-channel Class D amplifier, the EVENT-28A boasts 1300 Wpeak power. The amplifier’s rear panel is equipped with high-quality Neutrik® XLR and powerCON connectors. Using the DAScontrol™ interface, users can quickly select presets based on the number of units in the array. The onboard DSP utilizes a 24-bit high-end processor to manage crossover, EQ, delay, and limiter functions. Incorporating FIR filtering technology, the EVENT-28A maintains constant phase response, leading to transparent sound and exceptional clarity that enhances the overall listening experience.

Installation and deployment of EVENT-28A arrays are streamlined with the innovative Fast Set Splay (FSS™) rigging system, which allows for quick angle selection while stacked on dollies. The stainless-steel rigging hardware supports flown arrays of up to 16 units, adjustable in 1º increments from 0º to 10º.

The EVENT-28A pairs seamlessly with the flyable companion subwoofer, the EVENT-118A, ensuring robust low-frequency reinforcement. Weighing 20 kg, the EVENT-28A strikes an excellent balance between size, performance, and portability, making it an ideal solution for a wide array of sound reinforcement applications.

 Features

• For Small- to Mid-Sized Venues
• 2 x 8" Woofers + Compression Driver
• 70 Hz to 20 kHz Frequency Response
• 1300W Peak Class-D Amplifiers
• 136 dB Peak SPL
• 100° Horizontal Coverage
• Polypropylene Enclosure
• XLR Input and Output
• Two Bar Handles and Steel Grille
• Integrated Rigging System
