Overview

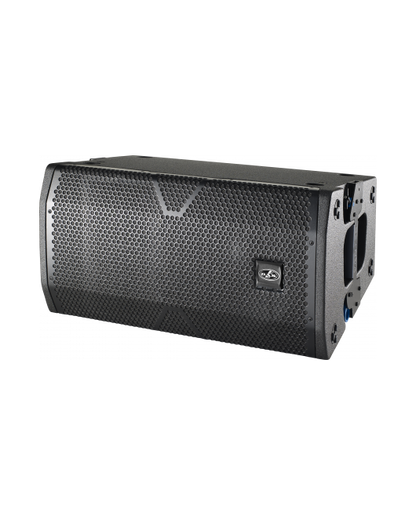

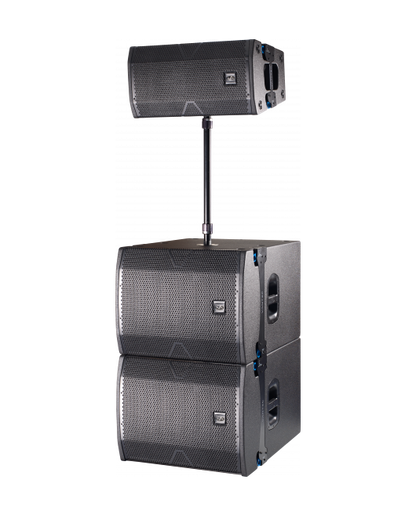

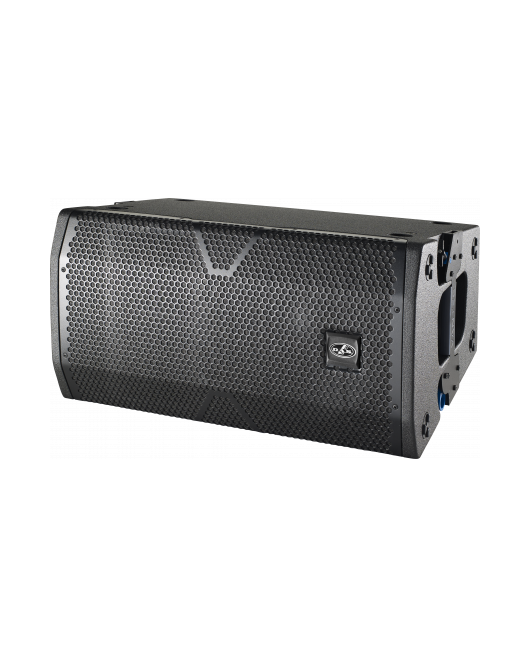

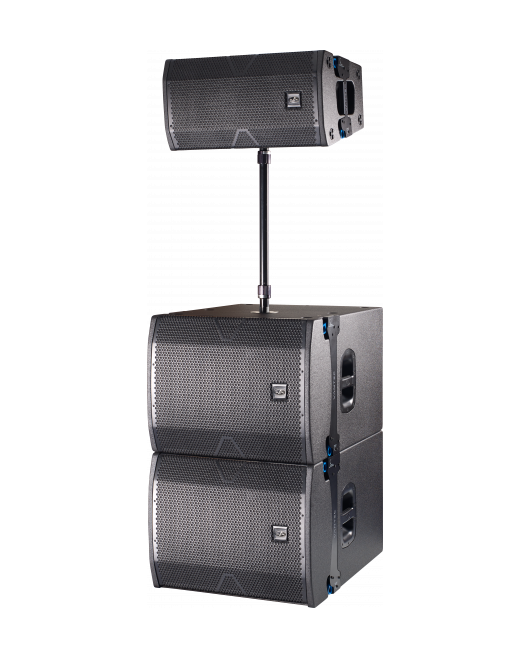

The 12", 2-way D.A.S. Audio Vantec-20A is a compact 1500W powered, curved source, line array speaker module that's scalable for a wide variety of live sound and performance applications. The Vantec-20A is designed for use with the Vantec-118A active front-loaded subwoofer, which provides ample low-frequency extension. Up to 5 modules per hang can provide sound to mid- to large-scale applications. The onboard DSP processing and LCD interface with easy-to-use presets help sound providers achieve clarity, definition, and an overall natural sound.

The speaker provides 90 x 15° (HxV) coverage and 135 dB of peak SPL—plenty of volume for a broad range of applications including houses of worship, theaters, auditoriums, performing arts centers, live music clubs, corporate AV, and live sound touring/rental service providers. The highly efficient 1500W Class-D bi-amplifier powers the 12" woofer and the two high-frequency drivers, providing crisp, detailed sound with a wide frequency range from 20 kHz down to 63 Hz.

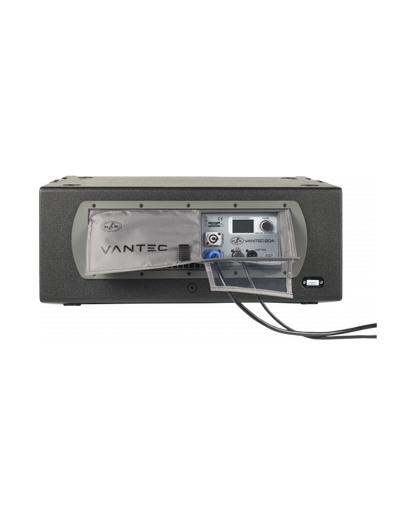

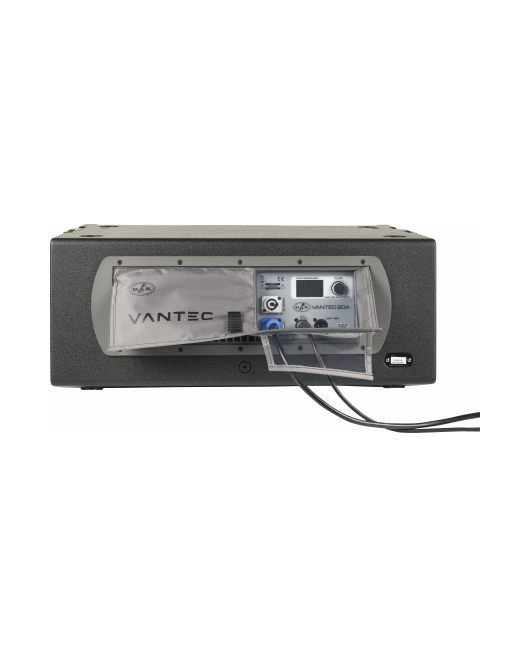

The rear panel features a balanced XLR input and thru-out as well as powerCON input and output, making power and audio daisy-chaining an easy affair. The DAScontrol audio management DSP is accessible via the built-in LCD / encoder and features Finite Impulse Response (FIR) filters, which provide a linear phase response and a precise impulse response. The DAScontrol interface offers quick and hassle-free setup of systems in arrays and easy alignment with Vantec-118A subwoofer system and requires no additional processing. Presets for the number of units of the array, high-frequency compensation for throw distances, and correction for the splay angle of the array can be selected by way of the DAScontrol and LCD screen. Additionally, the Vantec-20A is compatible with the DASLink control app, which affords Bluetooth streaming and remotely controlled system functions.

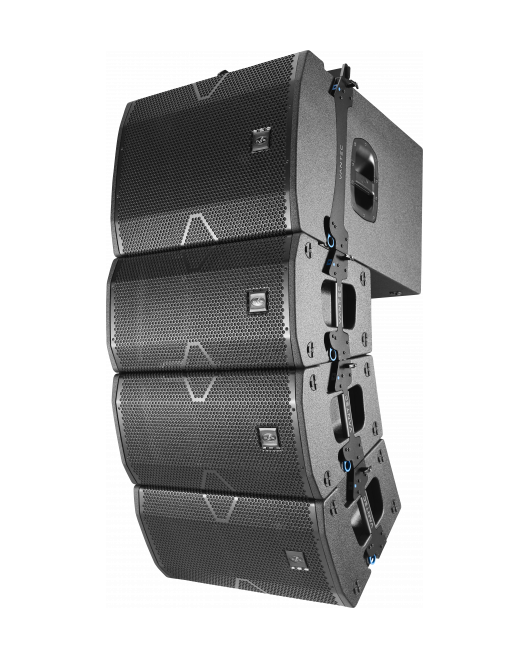

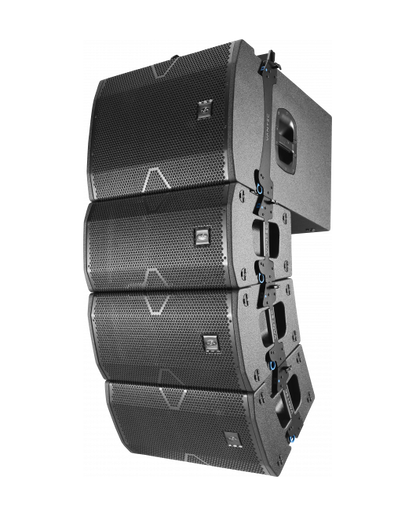

The trapezoidal enclosure is constructed from birch plywood and features a black ISO-flex finish. The robust captive rigging system is simple to setup, making for fast and easy deployment of a line array with multiple configuration options including ground stacking. The dual M-60 compression drivers and purpose-designed, high-frequency waveguide provides remarkable performance, sensitivity, and coverage in the formats offered. The Vantec-20A includes a powerCON power cord.

Features

• For Live, Corporate, Touring, Rental
• Scalable Sound System up to 5 Modules
• DAScontrol with Presets & Configuration
• DASLink Audio Streaming & Control
• 90 x 15° Coverage, 63 Hz to 20 kHz
• XLR Input & Thru + Power Input & Thru
• Captive Rigging System
• Purpose-Designed Aluminum Waveguide
• FIR Filter for Linear Phase Response
• Natural Sound with Clarity & Definition


Specifications

Performance

• Frequency Range (-10dB): 63 Hz - 20 kHz
• Horizontal Coverage (-6 dB): 90 degrees
• Vertical Coverage 15 degrees
• Maximum Peak SPL at 1 m: 135 dB

Electronics and Connectors

• Nominal Amplifier Power (continuous): 750 W
• Nominal Amplifier Power (peak): 1500 W
• Input Impedance: 20 kohms
• Input Sensitivity: Line: 3 V (+12 dBu)
• Audio Signal Input Connector: 2 x Female XLR
• Audio Signal Loop Thru Connector: 1 x Male XLR
• Control: DASlink, DAScontrol
• AC Output Connector: powerCON NAC3FCB
• Current Draw 230 V / 115 V: 1.5A/3.0A

Enclosure

• Enclosure Construction: Birch Plywood
• Enclosure Geometry: Trapezoidal
• Rigging: Captive Rigging System
• Finish: ISO-flex paint
• Color: Black
• Dimensions (H x W x D): 13,2 x 24,6 x 17,3 in
• Net Weight: 28,5 kg (62,8 lb)

Components

• LF Driver: 12F4C
• HF Driver: M-60
• Horn/Waveguide: BC-915

What's In The Box?

• D.A.S Audio Vantec-20A 2-Way 12" 1500W Powered Curved Source Line Array Speaker Module with DSP and Bluetooth
• Power Cord
• Limited 2-Year Warranty
