Overview

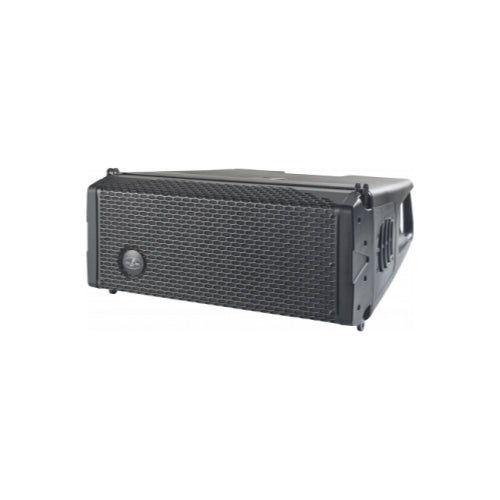

The EVENT-26A is a symmetrical, ultra-compact, two-way powered line array system. Designed by DAS engineers to deliver stunning performance and exceptional ease-of-use, the stylish polypropylene cabinet design offers a highly portable and road-worthy system. A comprehensive range of accessories makes the EVENT-26A ideal for small to mid-size rental and installation applications.

The EVENT-26A combines two 6.5″ transducers and a single M-60 compression driver in a rugged yet lightweight polymer cabinet. The symmetric «V» shaped configuration of the cone transducers provides consistent 100º of horizontal coverage down to 200 Hz. The M-60 compression driver is coupled to an advanced waveguide design that provides control of the vertical dispersion as well as precise coupling between units when used in vertical arrays.

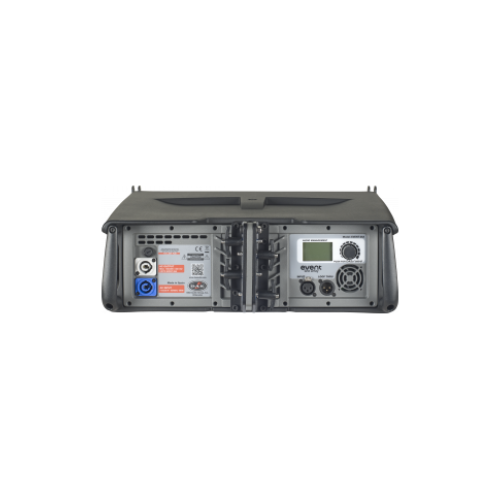

Powered by a two-channel Class D amplifier providing 800 Wpeak power, the amp´s rear panel includes quality Neutrik® XLR and powerCON connectors. The DAScontrolTM interface makes the preset selection for the number of units in the array both fast and simple. An onboard DSP featuring a 24-bit high-end processor handles X-over, EQ, delay, and limiter functions. The powerful FIR filtering technology incorporated in the EVENT-26A offers constant phase response which translates to transparent sound and exceptional clarity, improving the listening experience.

Streamlined deployment of EVENT-26A arrays is possible thanks to the innovative FSSTM (Fast Set Splay) rigging system developed to permit angle selection while stacked on dollies. The stainless-steel rigging hardware allows flown arrays of up to 16 units in 1º steps from 0º to 10º.

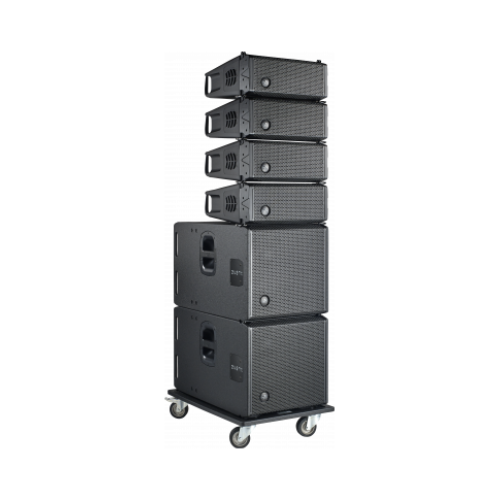

Low-frequency reinforcement for the EVENT-26A is provided by its flyable companion subwoofer the EVENT-115A.

Features

• Ultra-compact, lightweight powered line array
• High-efficiency Class D amplifier with SMPS
• Dual voltage mains for use anywhere in the world
• Easy system configuration thanks to DAScontrol
• High-end 24-bit DSP with LCD screen
• FIR processing for constant phase response
• FSS Fast Set Splay rigging for quick development

Specifications

Performance

• Frequency Range (-10 dB): 76 Hz - 19 kHz
• Horizontal Coverage (-6 dB): 100 degrees
• Vertical Coverage: Splay Dependent
• Maximum Peak SPL at 1 m: 131 dB

Electronics and Connectors

• Nominal Amplifier Power (continuous): 400 W

• Nominal Amplifier Power (peak): 800 W
• Input Type: Balanced
• Input Impedance: 20 kohms
• Input Sensitivity: 6.2 V (+18 dBu)
• Audio Signal Input Connector: 1 x Female XLR
• Audio Signal Loop Thru Connector: 1 x Male XLR
• AC Output Connector: powerCON NAC3MPB
• Current Draw 230 V / 115 V: 0.8 A/1.6 A

Enclosure

• Enclosure Construction: Polypropylene
• Enclosure Geometry: Trapezoidal
• Rigging: Captive Rigging System
• Color: Black
• Dimensions (H x W x D): 8.9 X 18.9 x 19.1 in
• Net Weight: 36.4 lb (16.5 kg)

Components

• LF Driver: 6Ml
• HF Driver: M-60

What's In The Box?

• DAS Audio Event-26A Powered 2-way Line Array Module
• Power Cord
• Limited 2-Year Warranty
