DAS Audio EVENT 208A 4x Powered Line Array Speakers 2x 218A Dual 18 Subs

Package

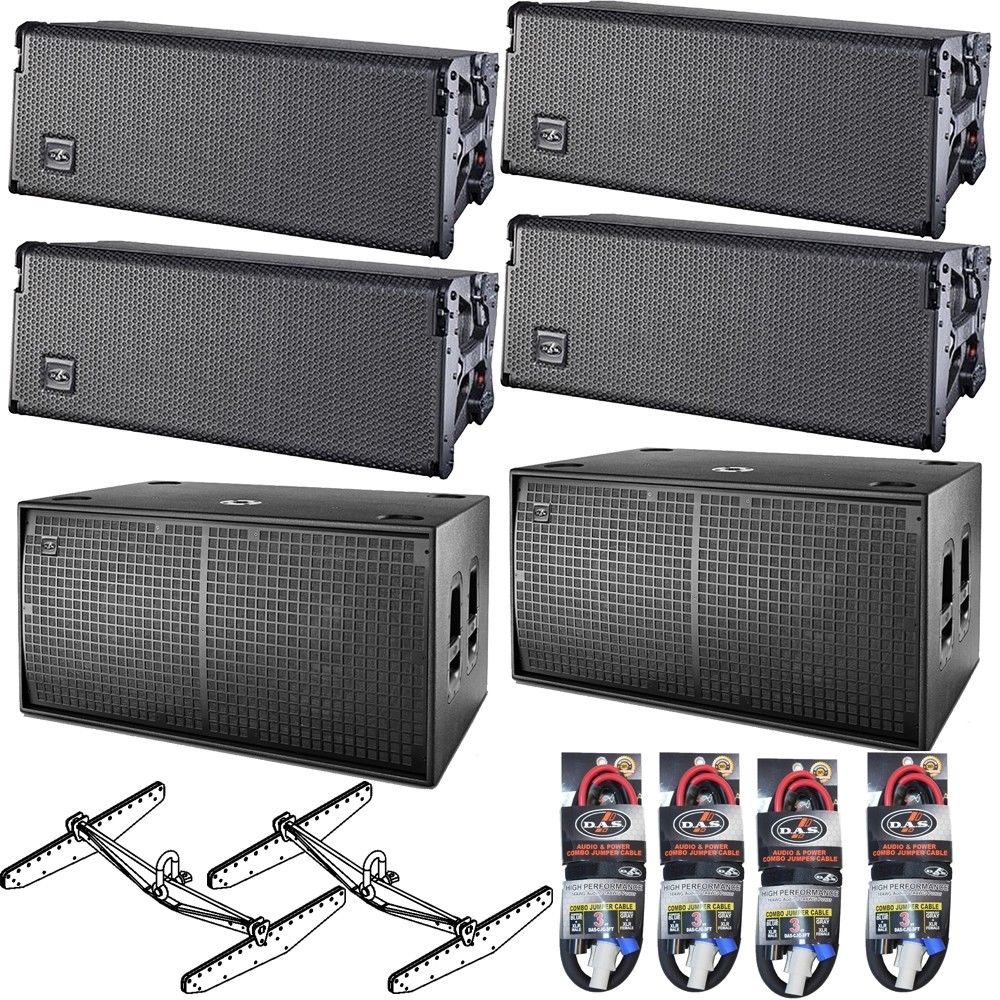

Package Includes, 4 x  D.A.S. Audio EVENT 208A 8" Powered Line Array Speakers, 2 x Event 218A Dual 18" Powered Subwoofer Bundle

Overview​

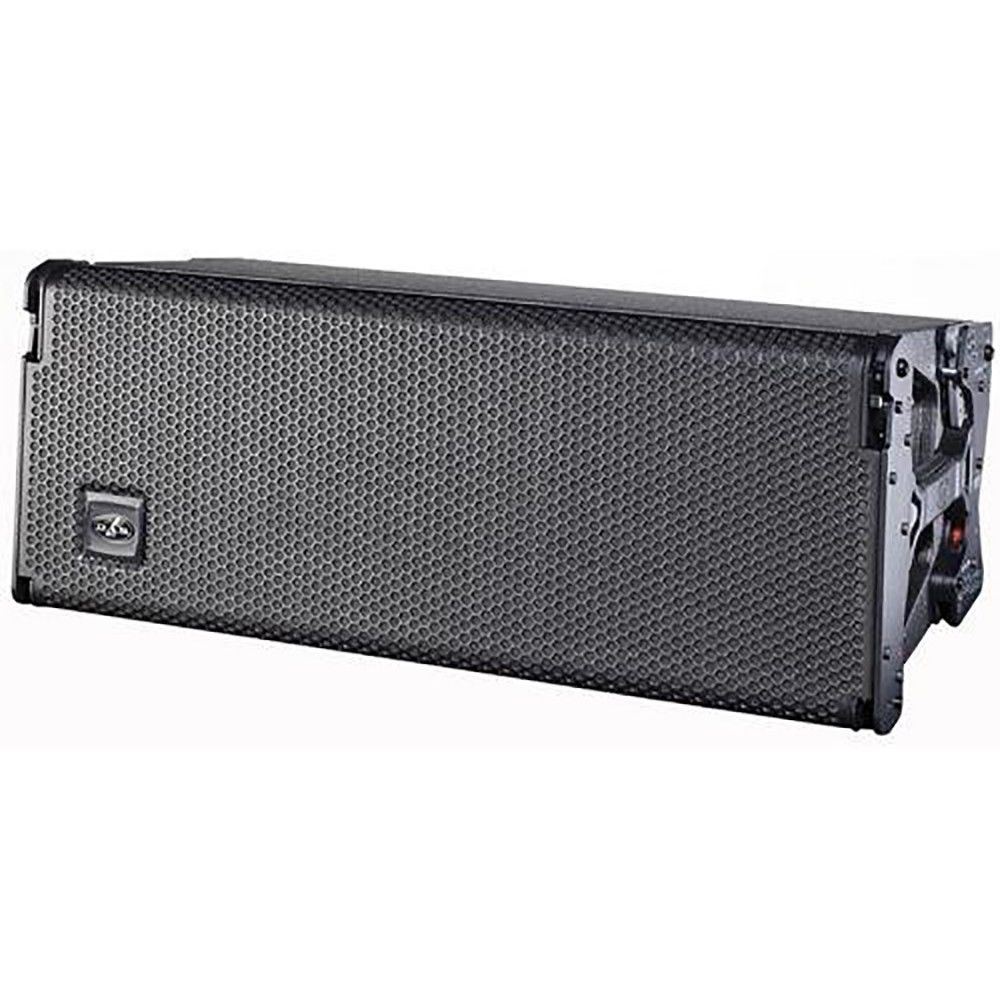

DAS Event 208A Line Array Speakers

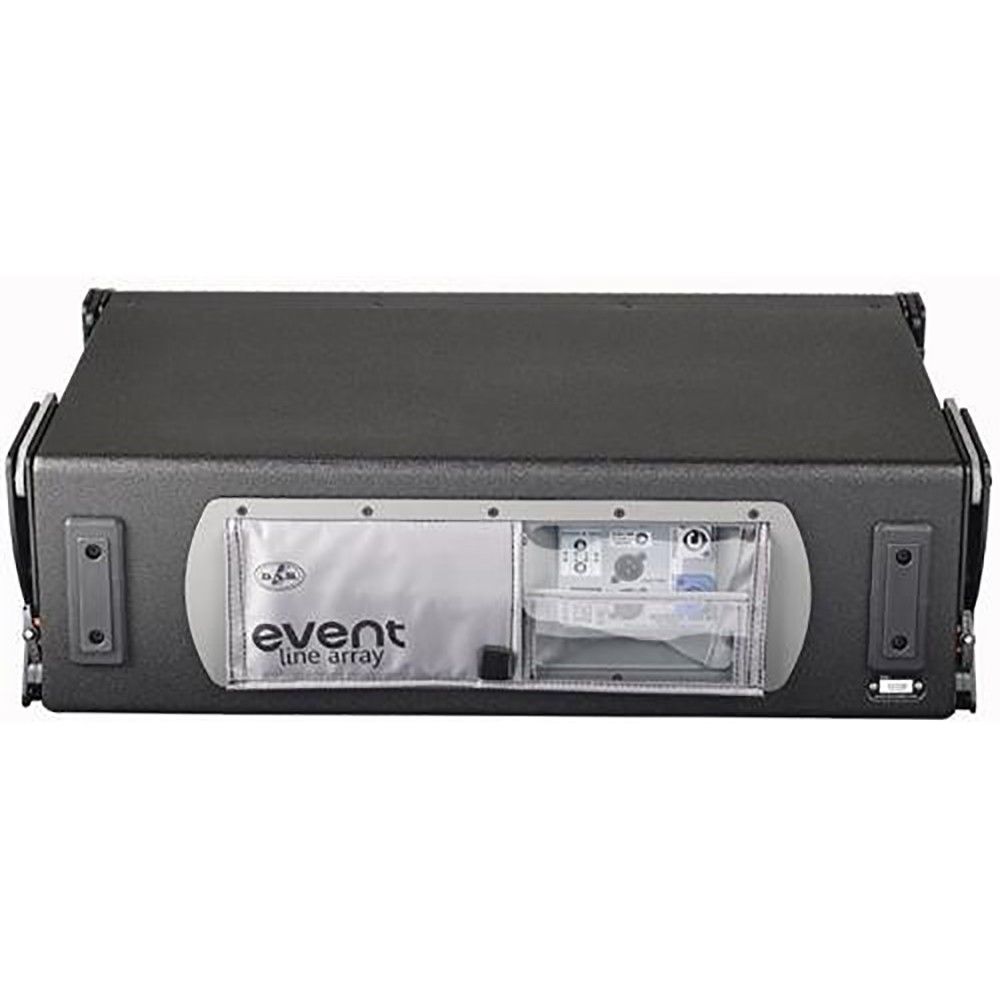

The Event 208A Line is a three-way powered line array in a double 8” configuration. The D.A.S. loudspeaker units have been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event 208A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and D.A.S.’s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth

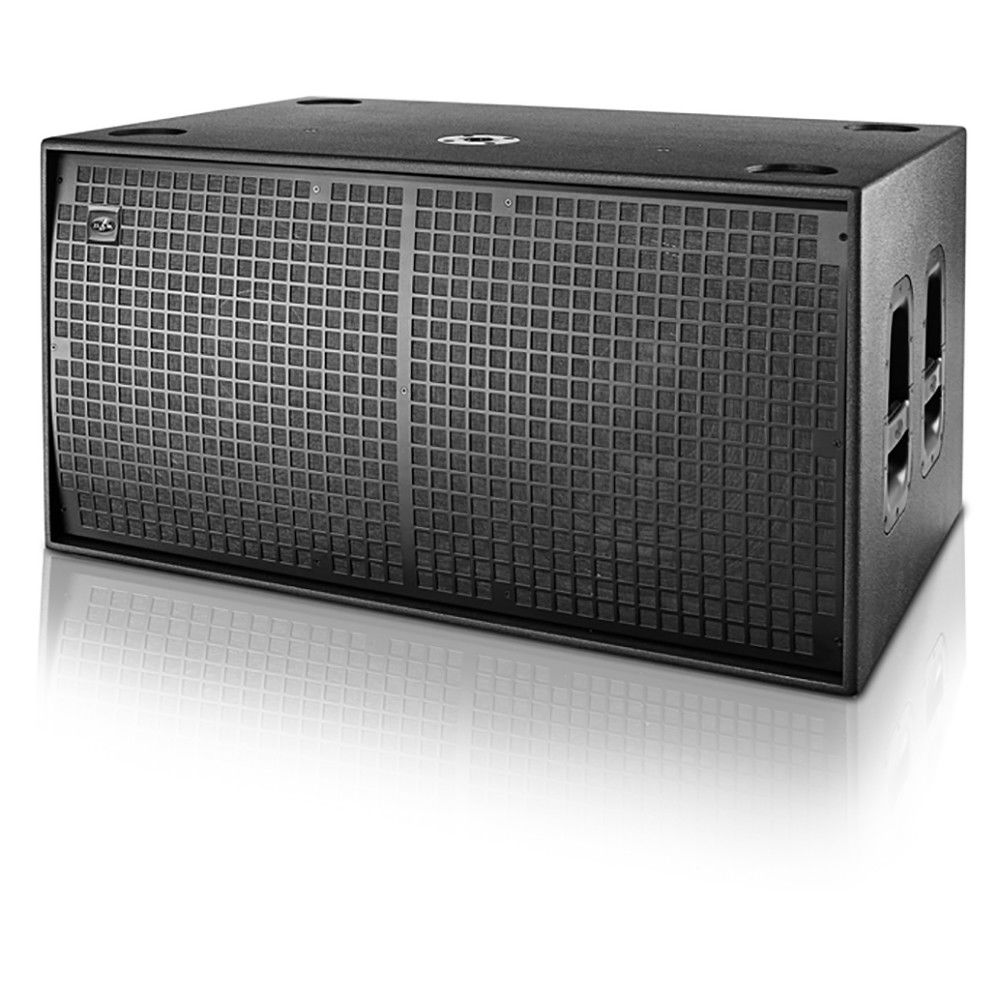

D.A.S. Audio EVENT 218A Dual 18" Powered Subwoofer

The Event 218A dual 18” powered subwoofer makes use of one of D.A.S.´s most acclaimed loudspeakers, the LX series long excursion transducers which were introduced in the high-level LX-218. The enclosure is designed for horizontal use, built using quality Birch plywood, finished with the ISO-flex coating and has a pole mount socket on the upper panel.

The power amplifier provides 3600 Wpeak power and offers features found on the more expensive LX subwoofers such as the Cardioid Preset mode switch which offers specific signal treatment for easy set-up of pairs of systems in cardioid subwoofer applications. The system includes two balanced inputs (A-B) with stereo HPF (100 Hz) filtered output connections for satellite systems. Defeating the HPF filter offers stereo “loop thru” connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control and polarity reverse feature increase user control over the system

Features

• Powered high performance subwoofer system
• 3600 Wpeak Class “D” amplifier
• Two 18LX loudspeakers with 4″ voice coils
• Front loaded bass-reflex configuration

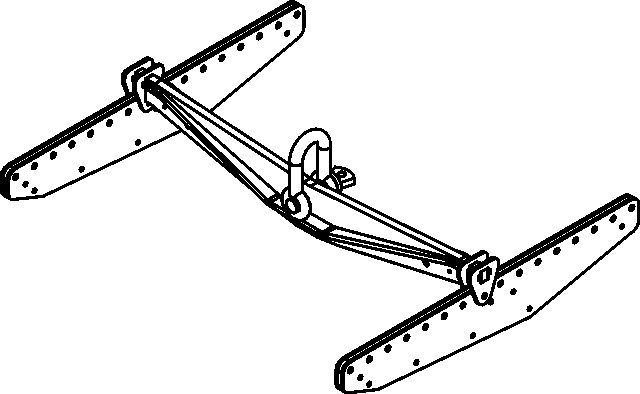

DAS AX-Event 208 Rigging Systems

Features

Rigging system for Event 208A. Includes pick-up bar (1), attachment parts (2) and safety pins

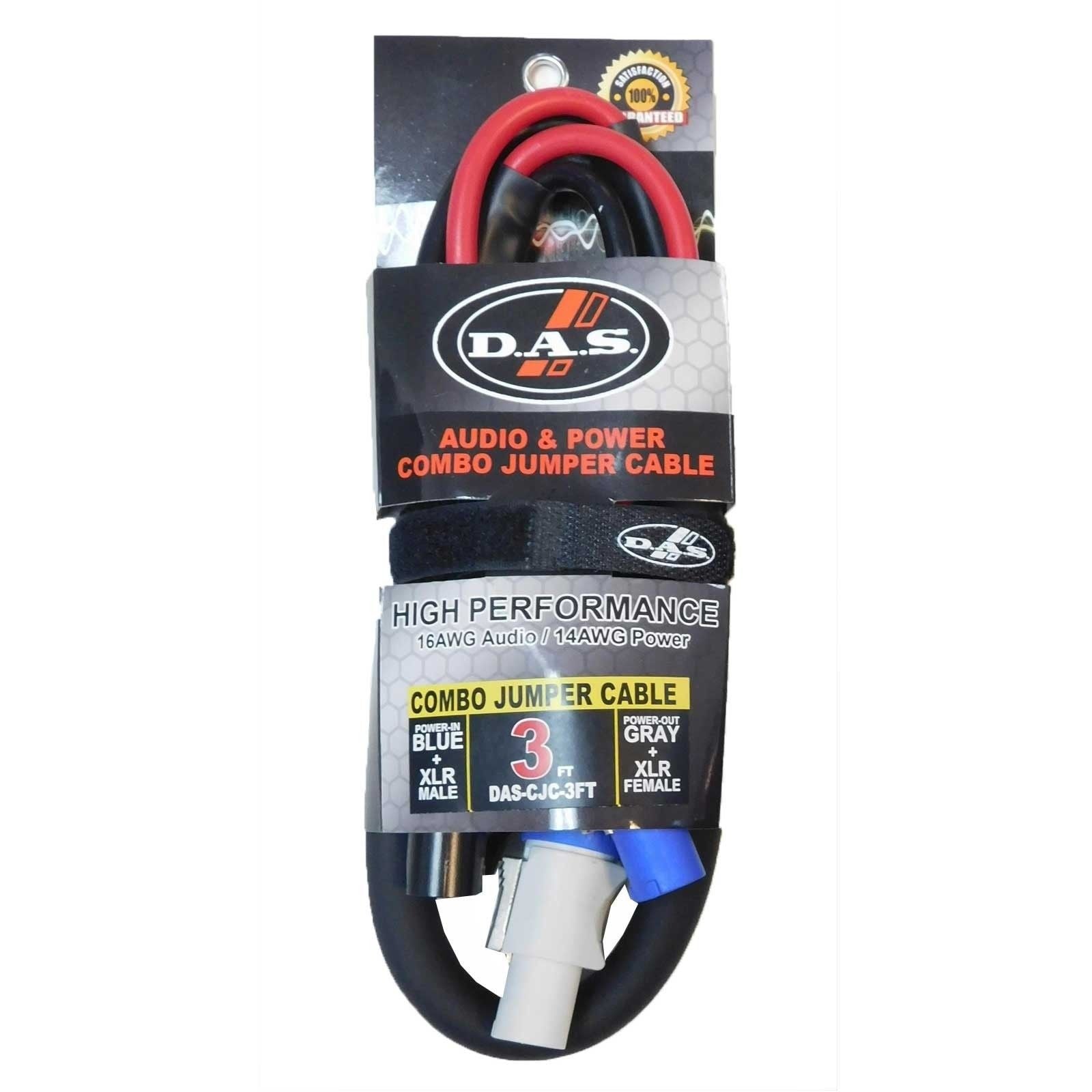

DAS 3FT PowerCON & XLR Combo Jumper Cable

3 ft. Combo Jumper Cable : 14 AWG Power, 16 AWG Audio. Power-in (blue) w/ XLR Male on one side and Power-out (gray) w/ XLR Female on the other side

Specifications

DAS Event 208A Line Array Speakers

•  Nominal HF Amplifier Power: 360 Wpeak
•  Nominal MF Amplifier Power: 360 Wpeak
•  Nominal LF Amplifier Power: 360 Wpeak
•  Frequency Range (-10 dB): 75 Hz -20 kHz
•  Rated Peak SPL at 1 m: 132 dB
•  Horizontal Coverage (-6 dB): 90º Nominal
•  Vertical Coverage: Splay Dependent
•  Enclosure Material: Birch Plywood
•  Color/Finish: Black ISO-flex Paint
•  Connectors: INPUT: Female XLR
•  LOOP THRU: Male XLR
•  AC INPUT: powerCON
•  AC OUTPUT: powerCON
•  AC Requirements: 115 V, 2.4A, 50 Hz/60 Hz, 230 V, 1.2A, 50 Hz/60 Hz
•  Dimensions (H x W x D): 27 x 67 x 36.6 cm, 10.6 x 26.4 x 14.4 in
•  Weight: 30 kg (66 lb)

D.A.S. Audio EVENT 218A Dual 18" Powered Subwoofer

• Nominal LF Amplifier Power: 3600 Wpeak
• Frequency Range (-10 dB): 32 Hz - 125 Hz
• Rated Peak SPL at 1 m: 140 dB
• Internal Crossover: 100 Hz
• Connectors
• Input: Female XLR
• Loop Thru: Male XLR
• AC Input: powerCON
• AC Output: powerCON
• AC Requirements: 6.0 A, 115 V, 50 Hz/60 Hz, 3.0 A, 230 V, 50 Hz/60 Hz
• Enclosure Material: Birch Plywood
• Color/Finish: Black ISO-flex Paint
• Dimensions (H x W x D): 54 x 106 x 67 cm, 21.3 x 41.7 x 26.4 in
• Weight: 70 kg (154 lb)
