Overview

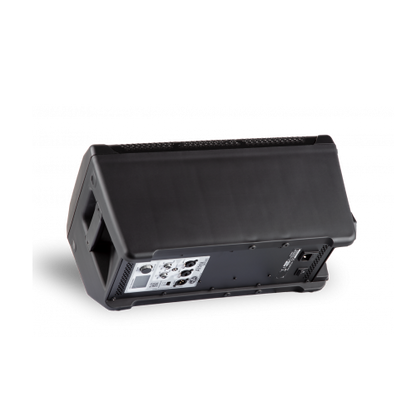

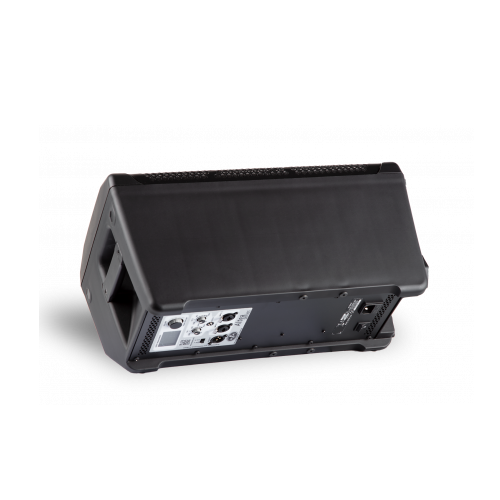

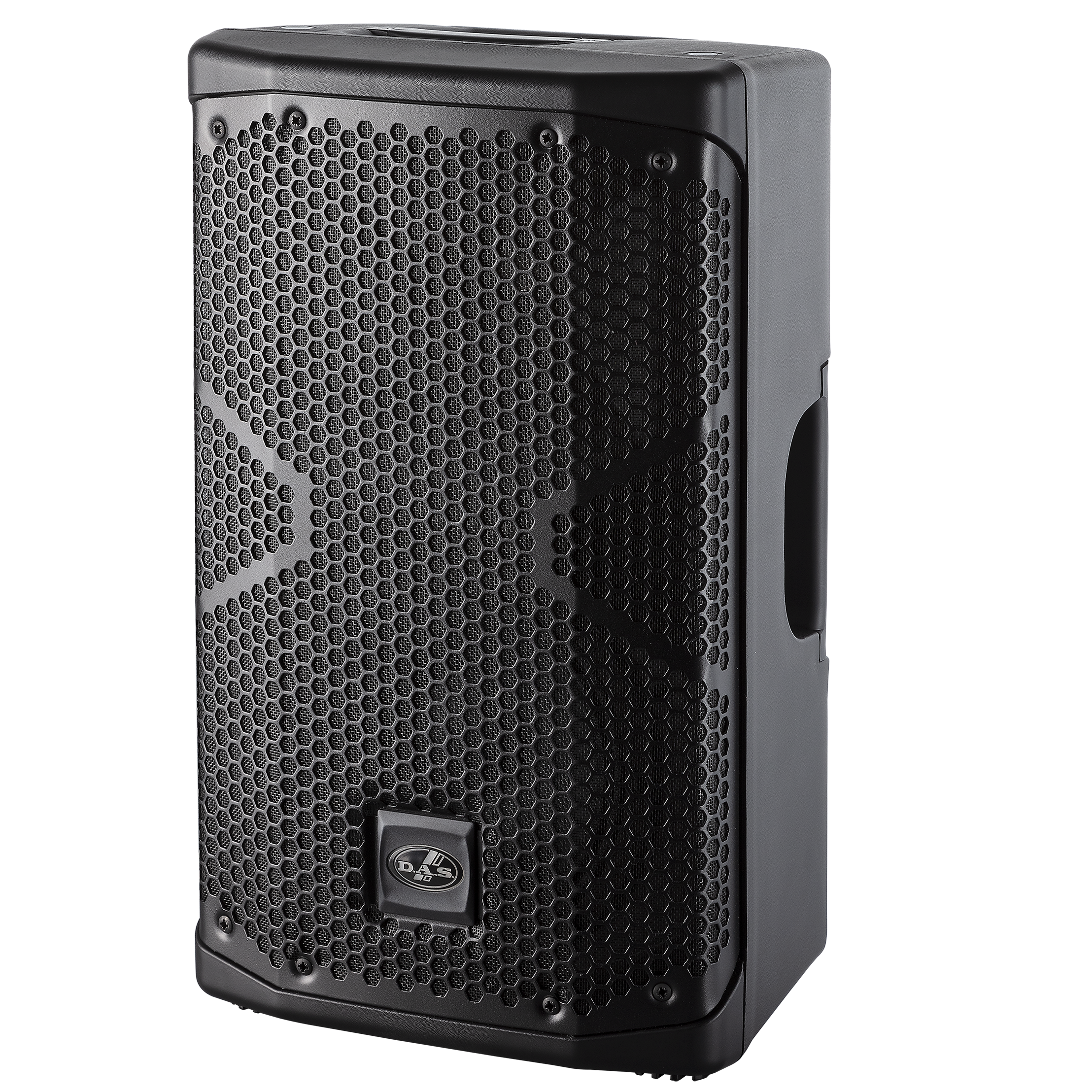

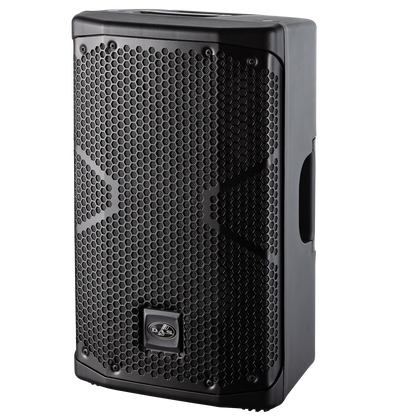

The ALTEA-408A is a powered portable P.A. system with a multi-angle polypropylene enclosure that allows for use as a stage monitor.

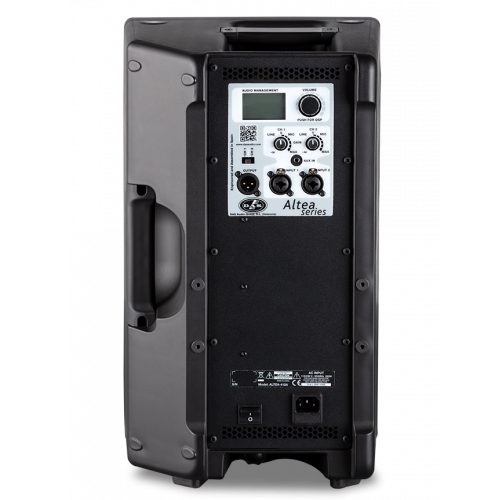

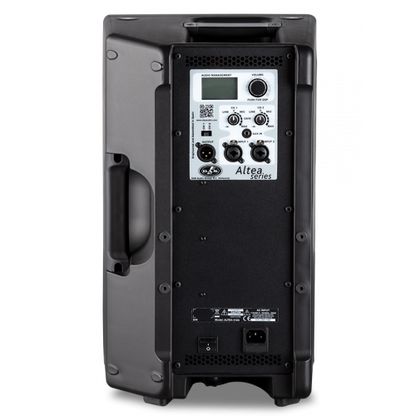

On board is Class D two channel amplifier of exceptional quality providing a total of 800 Wpeak power which provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.

The 8GV loudspeaker provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1″ exit offering excellent performance.

Features

• Lightweight multi-purpose system with monitor position
• Ultra lightweight Class D amplifier with SMPS
• User definable 24-bit DSP with LCD screen
• Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
• Stackable 3-band EQ
• Standby Mode
• Rigging Points

Specifications

Performance

• Frequency Range (-10 dB): 70 Hz - 20 kHz
• Horizontal Coverage (-6 dB): 90-degrees
• Vertical Coverage: 90-degrees
• Maximum Peak SPL at 1 m: 123 dB

Electronics and Connectors

• Nominal Amplifier Power (continuous): 400 W
• Nominal Amplifier Power (peak): 800 W
• Input Type: Balanced
• Input Impeadance: 20 kohms
• Input Sensitivity: 1.95 V (+8 dBu)
• Audio Signal Input Connector: 2 x Female XLR
• AUX Input: 1 x 3.5 mm Mini Jack
• Audio Signal Loop Thru Connector: 1 x Male XLR
• Control: DAScontrol
• Current Draw 230 V / 115 V: 0.8 A/1.6A

Enclosure

• Enclosure Construction: Polypropylene
• Enclosure Geometry: Trapezoidal
• Rigging: M8 Rigging Points
• Finish: Textured
• Color: Black
• Dimensions: (H x W x D): 18.9 x 11.0 x 10.2 in (480 x 280 x 260 mm)
• Net Weight: 20.9 lb (9.5 kg)

Components

• LF Driver: 8GV
• HF Driver: M-32
