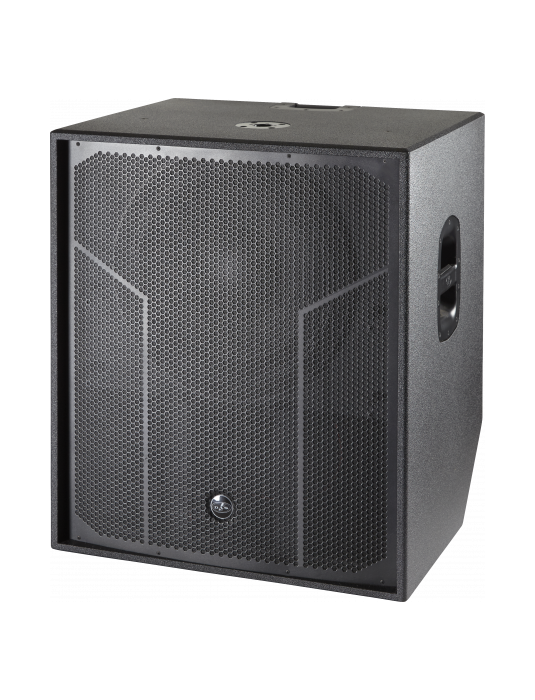

DAS Audio ACTION-S118AS Powered Subwoofer

Overview

The 18" D.A.S. Audio ACTION-S118A is a 3200W powered horn-loaded subwoofer that’s portable, versatile, and simple to use. It is designed to supplement a main PA speaker, offering a louder and deeper bass extension to the ACTION-508A, -512A, -515A, or any full-range PA speaker, and it's is suitable for audiences up to 300. The onboard DSP processing, 2-input channels, and a dedicated crossover knob help working presenters, musicians, instructors, performers, and A/V providers get powerful, clean, and clear sound quickly. The specialty 18LX driver is equipped with a 4" voice coil, offering remarkable power handling capacity, reduced distortion, and power compression.

The subwoofer provides 137 dB of peak SPL—plenty of volume for mid-sized venues including houses of worship, conference centers, performance spaces, and meeting rooms. The highly efficient 3200W Class-D amplifier powers the 18” woofer, providing a deep, clean, and detailed bass response with a frequency range of from 125 down to 35 Hz.

The rear panel offers two line-level inputs with combo XLR-1/4" connectors. Two XLR Thru-Output are available for daisy-chaining to additional subwoofers / speakers. An integrated 100 Hz high-pass filter is available for the stereo loop-thru XLR outputs, which can be switched on or off. Additionally, the rear panel includes a variable low-pass filter (63 to 100 Hz), gain control, and polarity reverse. All inputs are mixed to a mono signal internally. For a true stereo L/R operation, two S118As are needed with each to receive independent the left and right signals respectively. The S118A features a powerCON input and thru-put for daisy-chaining power for up to four subwoofers. The ACTION-S118A ships with a standard powerCON power cord.

Features

• For Mid-Sized Spaces / Up to 300+ People
• Clean, Clear, Loud & Portable
• Dual Input for Stereo Signals
• Frequency Range: 35 Hz - 125 Hz
• Dual Combo XLR-1/4" Inputs
• Dual XLR Outputs
• HP Filter On/Off for Thru-Outputs
• 2-Side Handles, Top Handle, Rear Casters
• Class-D Amplification
• Includes Pole Cup and PowerCON Cord

What's In The Box?

• D.A.S Audio ACTION-S118A 18" 3200W Powered Horn-Loaded Subwoofer System with DSP
• Locking AC Power Cord
• Limited 2-Year Warranty on Enclosure and Electronics
• Limited 5-Year Warranty on Speaker Components
