D.A.S Audio EVENT 208A 3-Way Double 8 Powered Line Array 4 Speaker Bundle
Pairs well with
Package

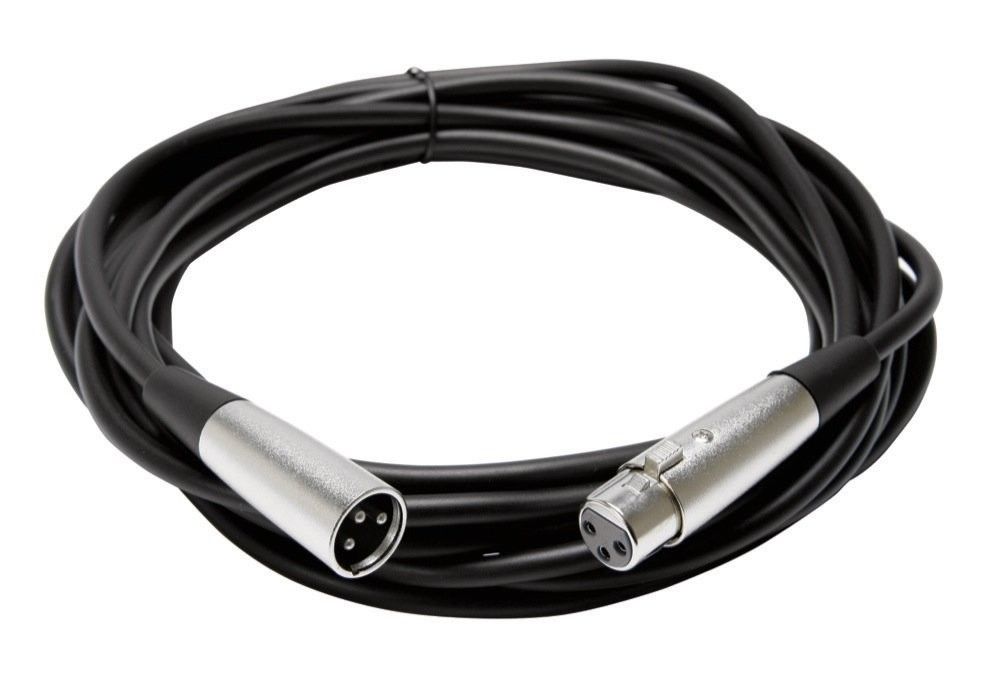

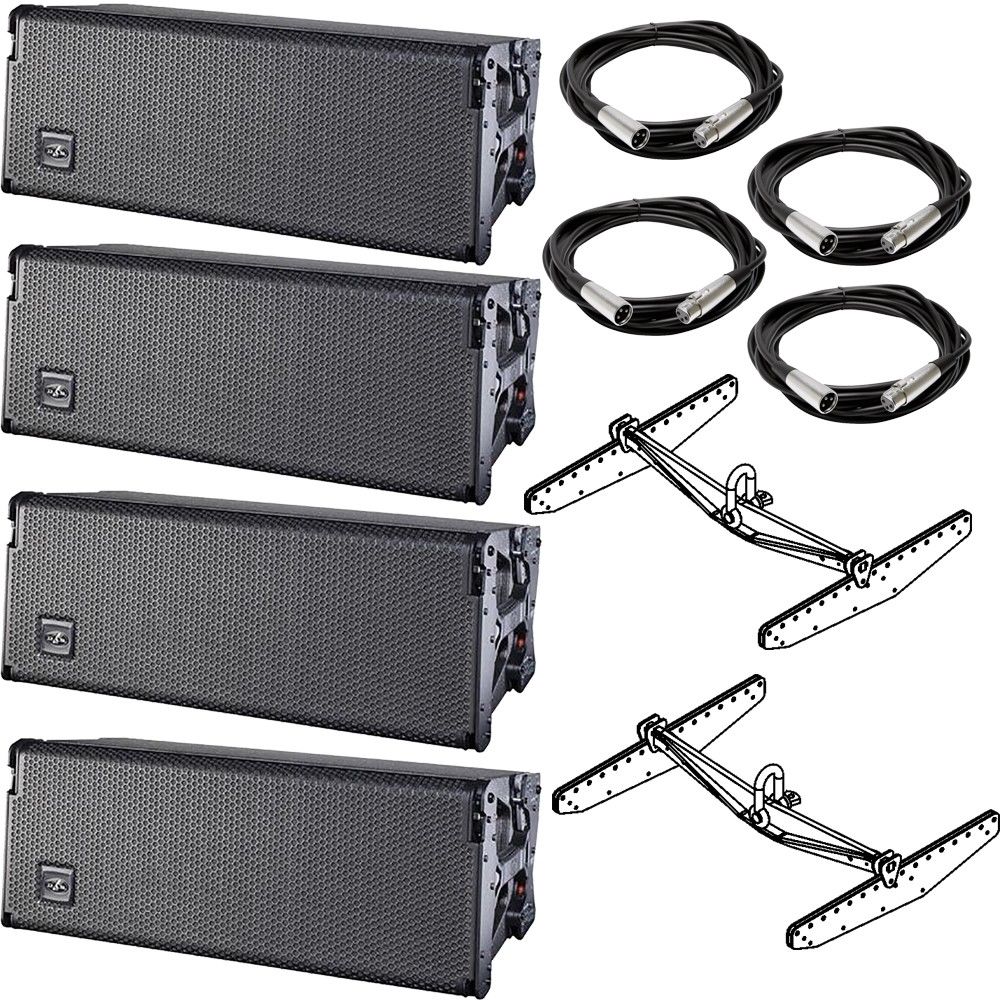

Package includes: DAS Event 208 A Line Array Speakers, DAS AX-Event 208 Rigging System
Overview

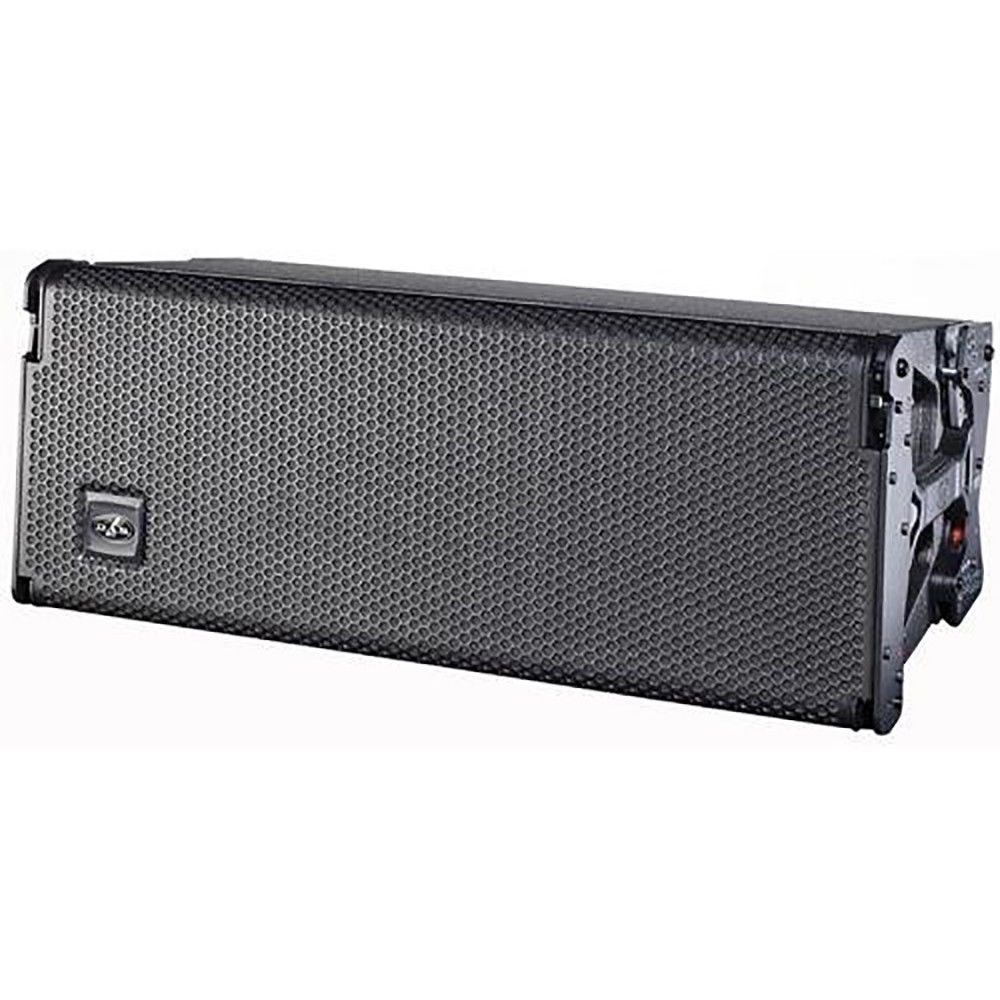

DAS Event 208A Line Array Speakers

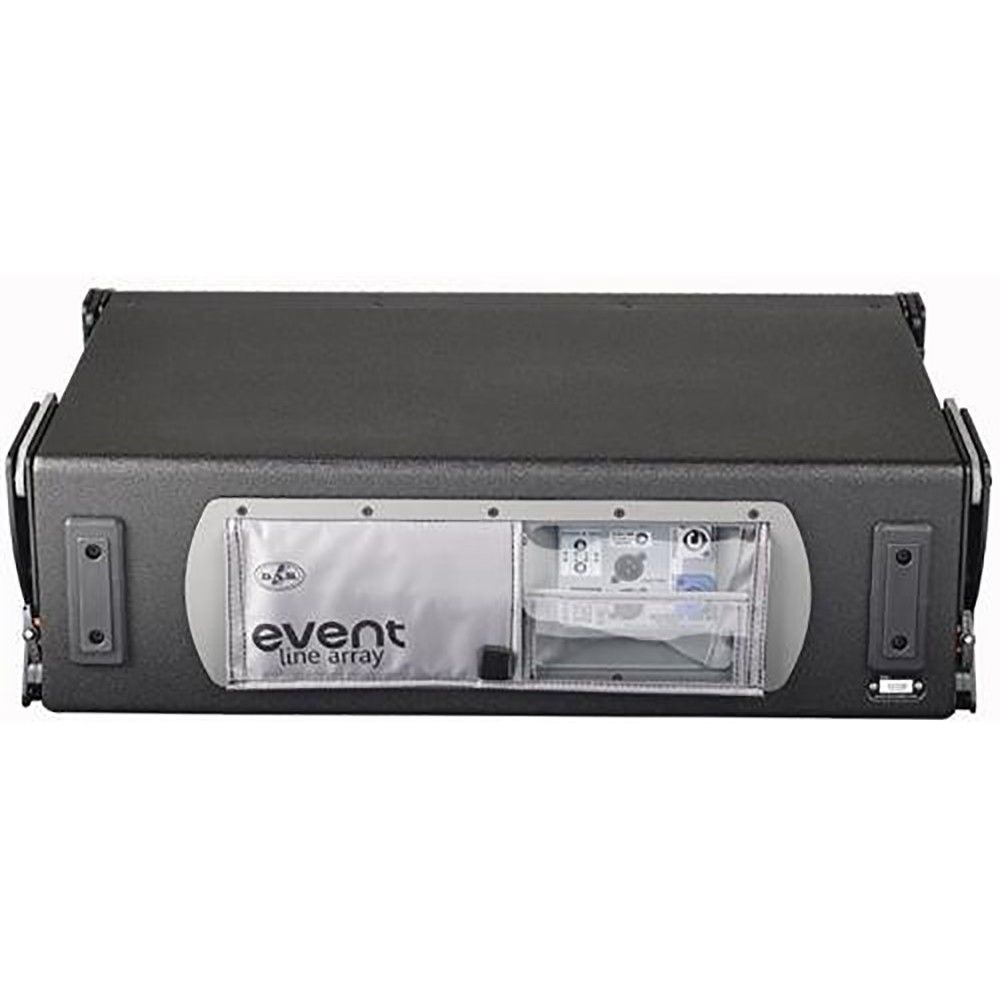

The Event 208A Line is a three-way powered line array in a double 8” configuration. The D.A.S. loudspeaker units have been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event 208A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and D.A.S.’s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth

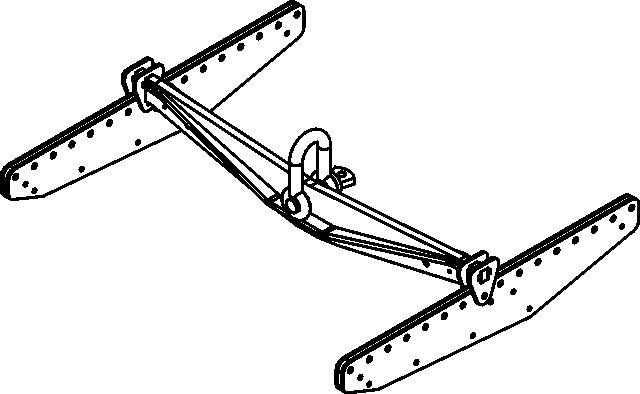

DAS AX-Event 208 Rigging Systems
Features
Rigging system for Event 208A. Includes pick-up bar (1), attachment parts (2) and safety pins
Specifications-DAS Event 208A Line Array Speakers
- Nominal HF Amplifier Power: 360 Wpeak
- Nominal MF Amplifier Power: 360 Wpeak
- Nominal LF Amplifier Power: 360 Wpeak
- Frequency Range (-10 dB): 75 Hz -20 kHz
- Rated Peak SPL at 1 m: 132 dB
- Horizontal Coverage (-6 dB): 90º Nominal
- Vertical Coverage: Splay Dependent
- Enclosure Material: Birch Plywood
- Color/Finish: Black ISO-flex Paint
- Connectors: INPUT: Female XLR
- LOOP THRU: Male XLR
- AC INPUT: powerCON
- AC OUTPUT: powerCON
- AC Requirements: 115 V, 2.4A, 50 Hz/60 Hz, 230 V, 1.2A, 50 Hz/60 Hz
- Dimensions (H x W x D): 27 x 67 x 36.6 cm, 10.6 x 26.4 x 14.4 in
- Weight: 30 kg (66 lb)
