Overview

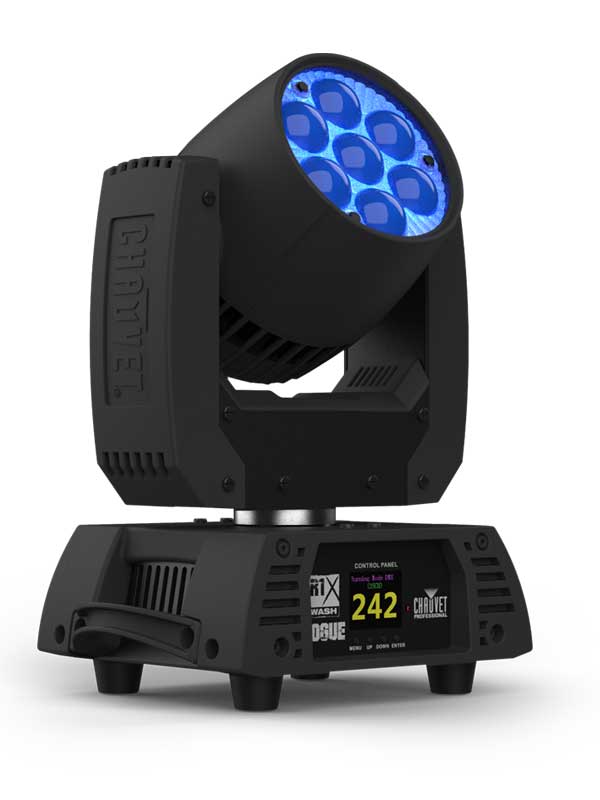

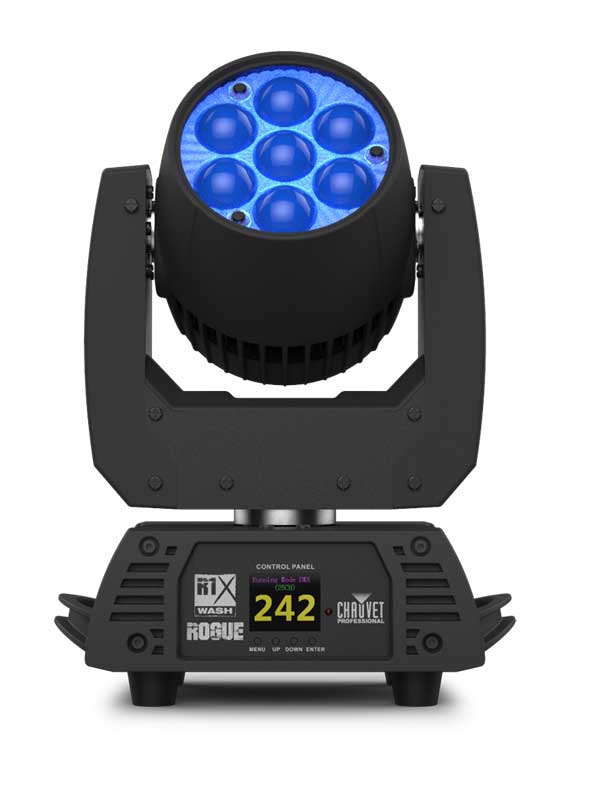

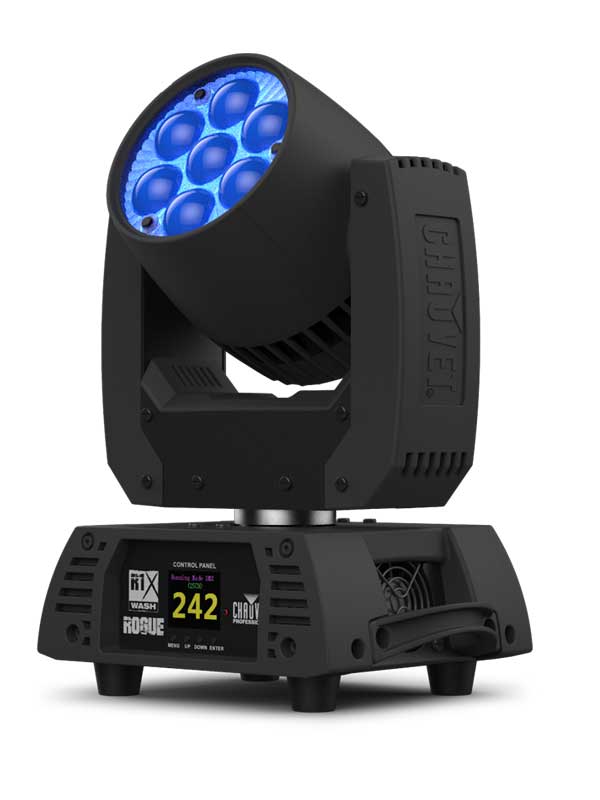

Rogue R1X Wash distinguishes itself by offering a combination of performance features unique to its price class. Powered by seven RGBW 25 W quad-LEDs, this bright and versatile moving wash zoom fixture features a unique “bubble” lens design for excellent color rendering and stunning visual effects. Other standout features include an incredible 7.9° to 62.7° zoom range, incredibly fast and smooth pan and tilt movements, simple and complex DMX channel profiles, plus 3-pin and 5-pin DMX connectors. Versatility, value and performance make this fixture a welcome addition to any touring rig or permanent installation.

Features

• Fully featured RGBW LED yoke wash fixture with zoom
• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
• 7 RGBW LEDs, 25 W each
• 3- and 5-pin DMX input/output connections
• Unique lens design for excellent color blending
• Fast, smooth pan and tilt movement
• RDM enabled for remote addressing and trouble shooting
• Selectable LED maximum output to match legacy Rogue R1 Washes
• Selectable PWM settings for camera operation
• 6 distinct dimming modes for advanced control
• User-selected calibrated white for 7500 K at full output
• Omega mounting bracket, fits all Rogue and Maverick fixtures
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility

Specifications

Optical

• Light Source: 7 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K Beam Angle: 8-degrees to 30-degrees
• Beam Angle: 7.9° to 35.5°
• Field Angle: 11.5° to 50.8°
• Cutoff Angle: 19.3° to 62.7°
• Zoom Range:  7.9° to 62.7°

• Lumens - Source: 4,000
• Lumens - Output: 2,455
• Illuminance (11°): 2,872 lux @ 5 m
• Illuminance (50.8°): 279 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt: 540°/230°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

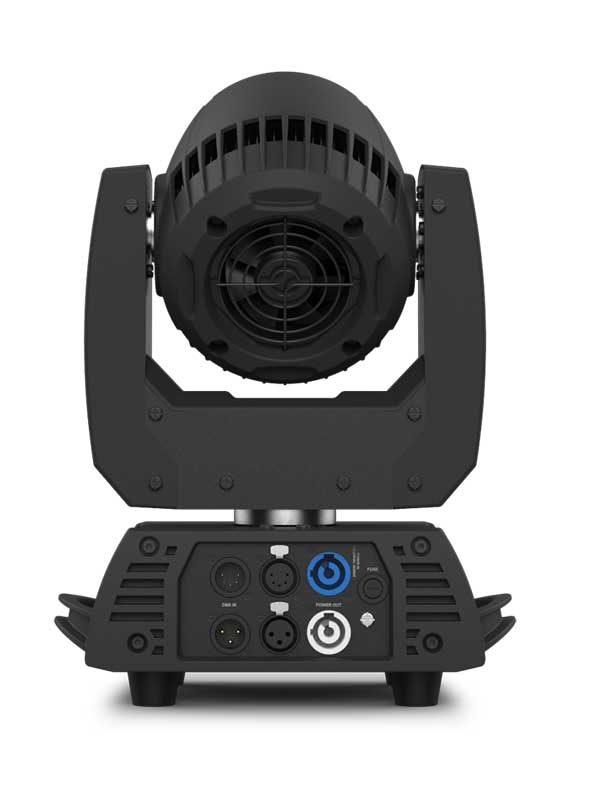

Connections

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCOn
• Power Output: Neutrik pworCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 14, 15, 19 or 21
• Modes/Personalities: 4 personalities (14, 15, 19, 21)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 5 units @ 120V; 8 units @ 208 V; 10 units @ 230 V
• Power and Current: 303 W, 2.34 A @ 120 V, 60 Hz
• Power and Current: 297 W, 1.35 A @ 208 V, 60 Hz
• Power and Current: 299 W, 1.20 A @ 230 V, 50 Hz

What's in the Box?

• (1) Chauvet Professional Rogue R1X Wash
• (1) Neutrik powerCOn power cord
• (1) Omega Bracket with mounting hardware
