Overview

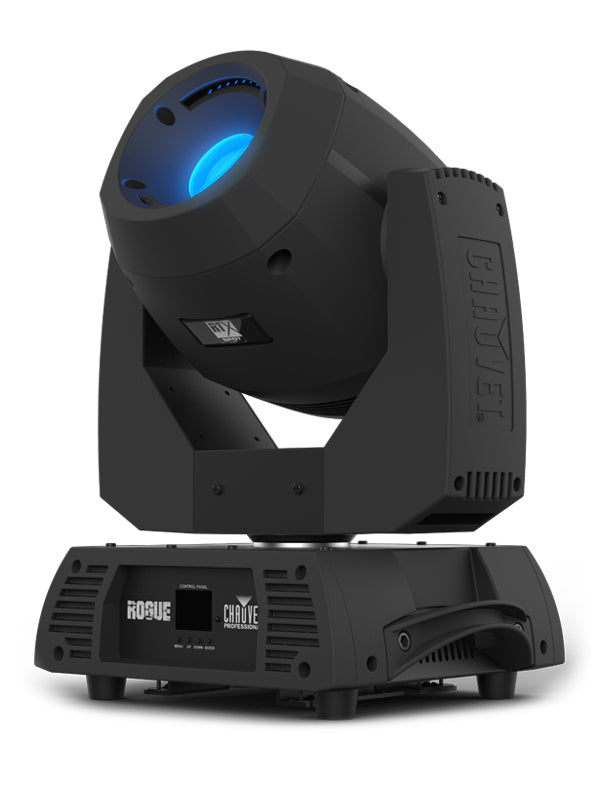

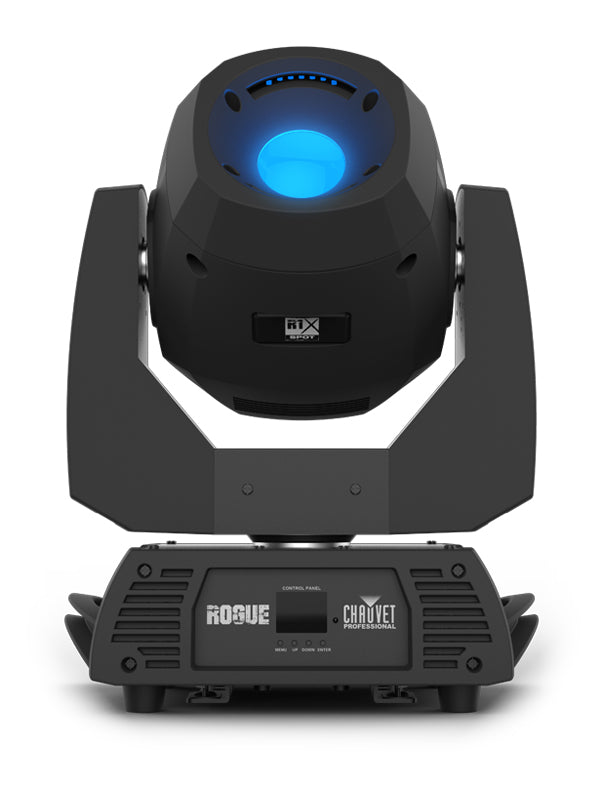

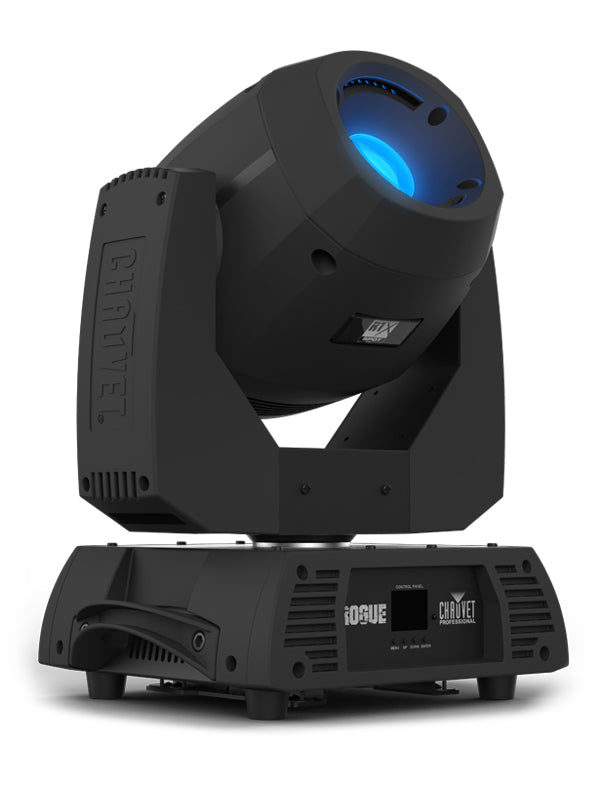

Rogue R1X Spot brings innovation and creativity with a rotating 3-facet prism for stunning aerial effects, a motorized iris and focus for beam shaping, as well as two gobo wheels, one of which rotates and has 7 interchangeable gobos for custom looks. Rogue R1X Spot shines brightly with a 170 W LED light source in a 14° beam angle for crisp gobo projections in a range of eight beautiful colors.

Features

• Bold, bright 170W LED light engine for punchy, solid beams
• Color wheel with 8 colors, split color ability, and continuous variable-speed scrolling
• Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris and 3-facet prism for stunning visual effects
• Neutrik powerCON power input/output connections for power linking
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting
• Selectable LED maximum output to match legacy Rogue R1 Spots
• Selectable PWM settings to maintain flicker free operation on camera

Specifications

Optical

• Light Source: 1 LEDs (CW) 170W, (7.4 A), 8847 K, 50,000 hours life expectancy
• Color Temperature (at full): 8847 K
• Front lens diameter: 65 mm
• CRI: 75.2
• Beam Angle: 14-degrees
• Field Angle: 15.6-degrees
• Cutoff Angle: 15.9-degrees
• Lumens - Source: 12,000
• Lumens - Output: 5,479
• Illuminance (total): 4,388 lux @ 5 m
• Selectable LED Power Output: 50-100
• Selectable PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt: 540-degrees/250-degrees
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 250° tilt
• Colors: 8+ white, split colors, continuous scroll at variable speeds
• Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 26.9 mm (outside), 22,5 mm (image), 0.5mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Motorized
• Iris: Motorized
• Prism: 3 Facets, motorized, rotating
• Strobe Rate: 0 to 22 Hz
• Move in Black: Yes

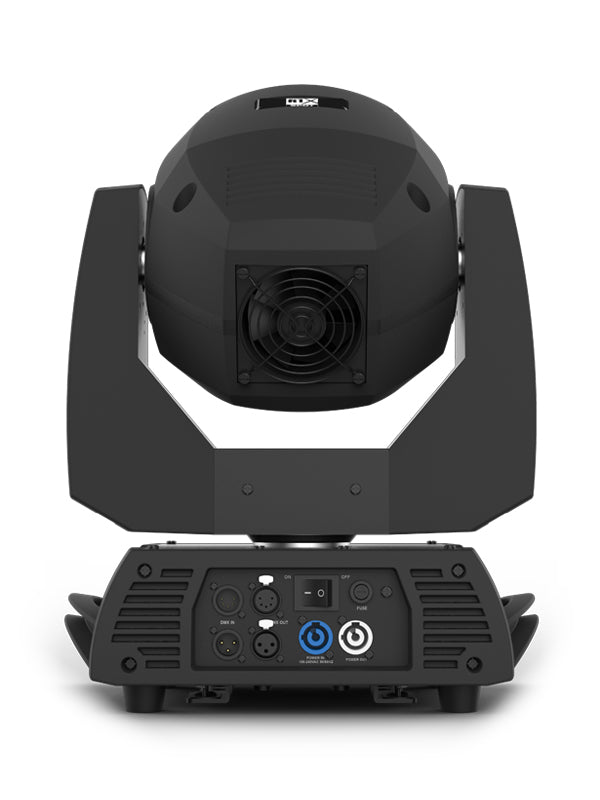

Connections

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 16 or 19
• Modes/Personalities: 2 personalities (16, 19)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 5 units @ 120 V; 8 units @ 208 V; 10 units @ 230 V
• Power and Current: 303 W, 2.34 A @ 120 V, 60 Hz
• Power and Current: 297 W, 1.35 A @ 208V, 60 Hz
• Power and Current: 299 W, 1.20 A @ 230 V, 50 Hz

What's included?

• (1) Chauvet DJ Rogue R1X Spot
• (1) Neutrik powerCON power cord
• 2 Omega brackets with mounting hardware
