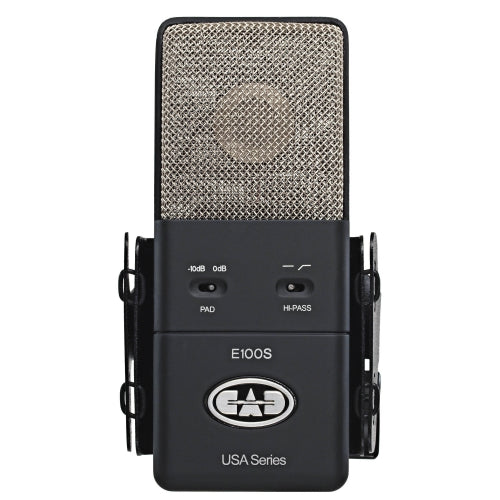

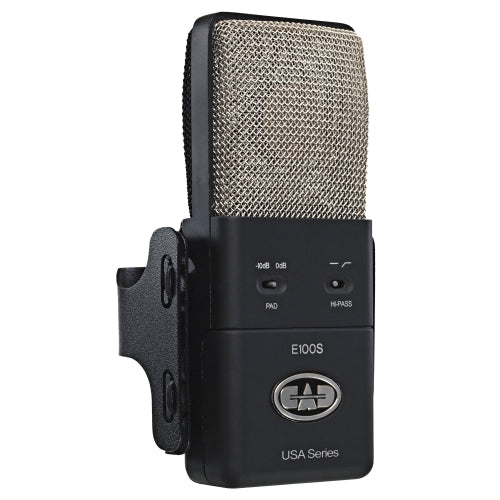

CAD Equitek E100S Nickel Plated Supercardioid Condenser Microphone Open Box

Overview

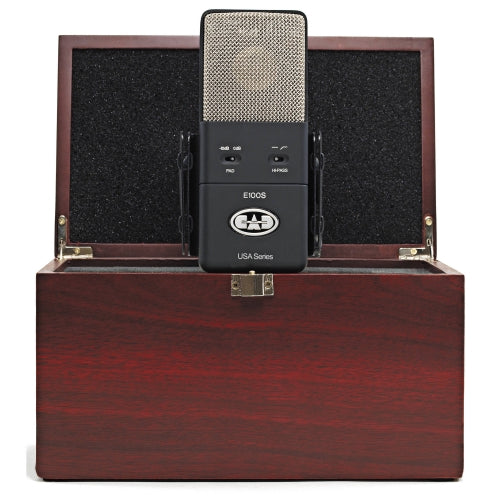

The Equitek E100S Supercardioid Condenser Microphone from CAD features a large diaphragm, providing a low noise floor of 3.7 dB and a smooth, vintage tone with a robust low end. The bootstrapped, full differential Quadra-FET front end delivers high sensitivity and low distortion. The nickel plated 1.0" capsule offers accurate phasing on instruments and a full rich vocal tone accentuated by the extended low frequency response. There is an 80 Hz hi-pass filter and a 10 dB pad. The package includes a vintage woodgrain cherry case and a stealth shock mount. The microphone requires 48V of phantom power for operation.

Specifications

Operating Principle….......................................Condenser
Polar Pattern….............................................Supercardioid
Frequency Response…..............................<40Hz - 18KHz
Sensitivity…....................................-30dBV (28mV) @ 1Pa
Impedance…......................................................150 ohms
Max SPL….......................................150dB (Pad engaged)
Self Noise…....................................3.7dBA (best in class)
Hi-Pass…...................................................................80Hz
Attenuator…..............................................................10dB
Power Requirements…...............................................P48
Net Weight…...................................................22oz (610g)
