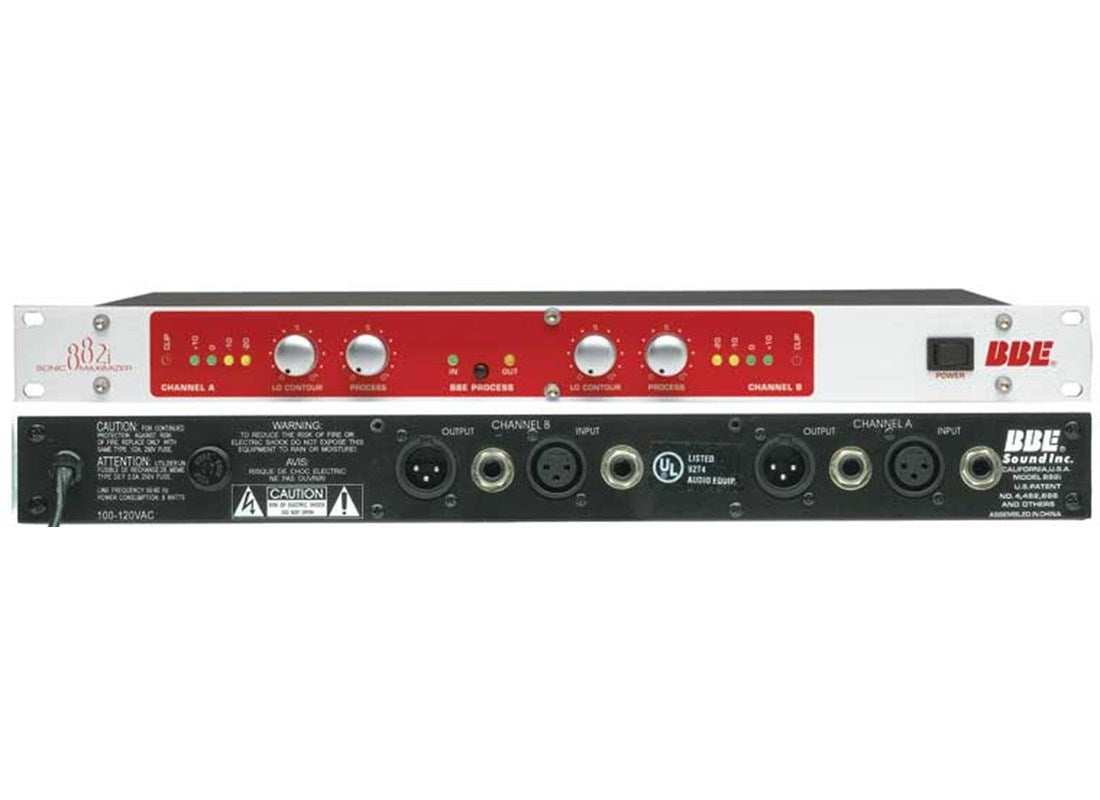

BBE 882i Sonic Maximizer Signal Processor XLR & 1/4 Balanced Inputs/Outputs - OPEN BOX

Overview

The BBE 882i Sonic Maximizer is perfect for pro studios, sound reinforcement, clubs, and other venues requiring balanced outputs. Designed for uses requiring low noise, high headroom, and +4dBu input levels. It provides either stereo processing or processing for two separate mono channels, brightening, clarifying, and adding fullness to the sound. Features 5-segment LED output meters, +23dBu headroom, XLR and 1/4" stereo inputs and outputs, hardwired bypass, and a bypass switch for comparison of processed to unprocessed signals. Single rackspace. The BBE Process--"What it Is" Loudspeakers have difficulty working with the electronic signals supplied by an amplifier. These difficulties cause such major phase and amplitude distortion that the sound reproduced by the speaker differs significantly from the sound produced by the original source. In the past, these problems proved unsolvable and were thus relegated to a position of secondary importance in audio system design. However, phase and amplitude integrity is essential to accurate sound reproduction. Research shows that the information which the listener translates into the recognizable characteristics of a live performance are intimately tied into complex time and amplitude relationships between the fundamental and harmonic components of a given musical note or sound. These relationships define a sound's "sound". When these complex relationships pass through a speaker, the proper order is lost. The higher frequencies are delayed. A lower frequency may reach the listener's ear first or perhaps simultaneously with that of a higher frequency. In some cases, the fundamental components may be so time-shifted that they reach the listener's ear ahead of some or all of the harmonic components. This change in the phase and amplitude relationship on the harmonic and fundamental frequencies is technically called "envelope distortion." The listener perceives this loss of sound integrity in the reproduced sound as "muddy" and "smeared." In the extreme, it can become difficult to tell the difference between musical instruments, for example, an oboe and a clarinet. BBE Sound, Inc. conducted extensive studies of numerous speaker systems over a ten year period. With this knowledge, it became possible to identify the characteristics of an ideal speaker and to distill the corrections necessary to return the fundamental and harmonic frequency structures to their correct order. While there are differences among various speaker designs in the magnitude of their correction, the overall pattern of correction needed is remarkably consistent. The BBE Process is so unique that 42 patents have been awarded by the U.S. Patent Office.

Features

• +4dBu balanced line (1/4" tip-ring-sleeve and XLR inputs and outputs)
• +23dBu headroom
• Active balanced outputs
• Hardwire bypass
• Bypass switch for comparison of processed to unprocessed signal

Specifications

• Frequency Response,
• Process Mode: Program controlled
• Bypass Mode: 10Hz to 50kHz, +/- 0.5dBu, 0dBu input
• Signal to Noise Ratio: 115dB Process IN
• THD, Process mode: less than 0.025% 20-20kHz
• Bypass mode: less than 0.002% 20-20kHz
• Maximum Output: +23dBu (may vary due to control settings)
• Input Impedance: 14.7K Ohms, balanced 1/4" stereo phone jack or XLR jack. Pin #2 is the hot or "+" signal.
• Output Impedance: 600 Ohms, balanced 1/4" stereo phone jack or XLR jack. Pin #2 is the hot or "+" signal.
• Sensitivity: -45dBu for maximum process
• Maximum Process: +12dBu boost at 5kHz, 0dBu input
• Lo Contour: +12dBu adjustment at 50Hz, 0dBu input

What's in the box?

• BBE 882i Sonic Maximizer Signal Processor
