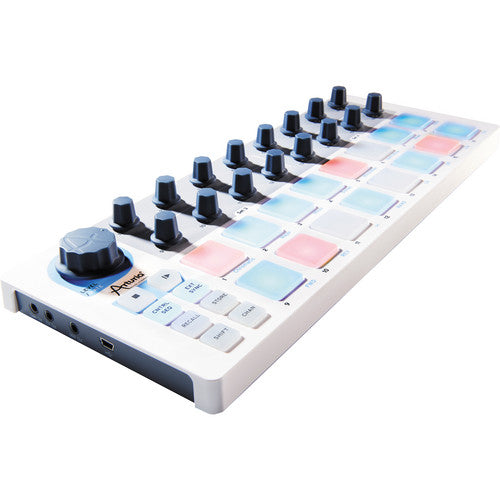

Arturia Beatstep Controller and Sequencer

Overview

The Arturia Beatstep USB, MIDI, and CV Controller and Sequencer is a USB class-compliant driverless controller that enables control over DAWs, loop-triggering software, drum software, VST instruments, VST effects, DJ applications, MIDI instruments, and analog equipment that has control voltage (CV) connections. The unit features sixteen pressure and velocity sensitive pads, sixteen rotary encoders, transport and preset controls with sixteen presets, and a jogwheel for transpose, rate, and level.

When placed in controller mode, the pads illuminate red via backlit LEDs. In this mode, a performer can use the pads and rotary encoder knobs to control drum software on an iPad (with camera connector kit) or a computer such as BFD, Kontakt, Ableton Live's Drum Rack, EZ Drummer, Addictive Drums, Reason Kong, or Geist. The controller can also be used to trigger clips or tracks in production and DJ software such as Ableton Live, Traktor, and Serato. The rotary encoders can be MIDI mapped to control filters, EQs, delays, and other effects. The included MIDI Control Center software provides a user interface for MIDI mapping the functions of the controller with the option of archiving favorite presets. The pads can be set for note generation, MIDI CC buttons, and sending program change messages for a wide range of applications.

When placed in sequencer mode, the pads illuminate red via backlit LEDs. In this mode, the unit can be connected to MIDI modules, synthesizers that have CV connections, and software instrument plug-ins within a computer via USB. The pads and encoders enable programming steps in the sequence and changing the pitch of each step. The unit includes scale modes to quantize the pitch of the encoders to specific pitches within a given scale. Up to sixteen sequences can be stored in internal memory. The unit can be rapidly switched between controller and sequencer mode for flexible workflows using both hardware and software instruments.

For I/O, the unit includes: a class-compliant USB input for connection to a computer or iPad, a MIDI breakout cable for connection to traditional MIDI modules, a 1 volt-per-octave CV output, and a CV gate output for connection to hardware synthesizers and other equipment. The unit is powered by USB connection to a computer or USB power adapter.

Features

• 16 Velocity and Pressure Sensitive Pads
• 16 Rotary Encoders
• 16 MIDI Controller Presets
• 16 Sequence Presets
• MIDI Controller Mode with Red LEDs
• Step Sequencer Mode with Blue LEDs
• Internal and External Clocking
• iPad Compatibility with Camera Kit
• MIDI and CV Outputs
• USB I/O

What's In The Box?

• Arturia Beatstep USB, MIDI, and CV Controller and Sequencer
• Mini USB to USB Cable
• 3.5mm MIDI Output Cable
• Limited 1-Year Warranty
