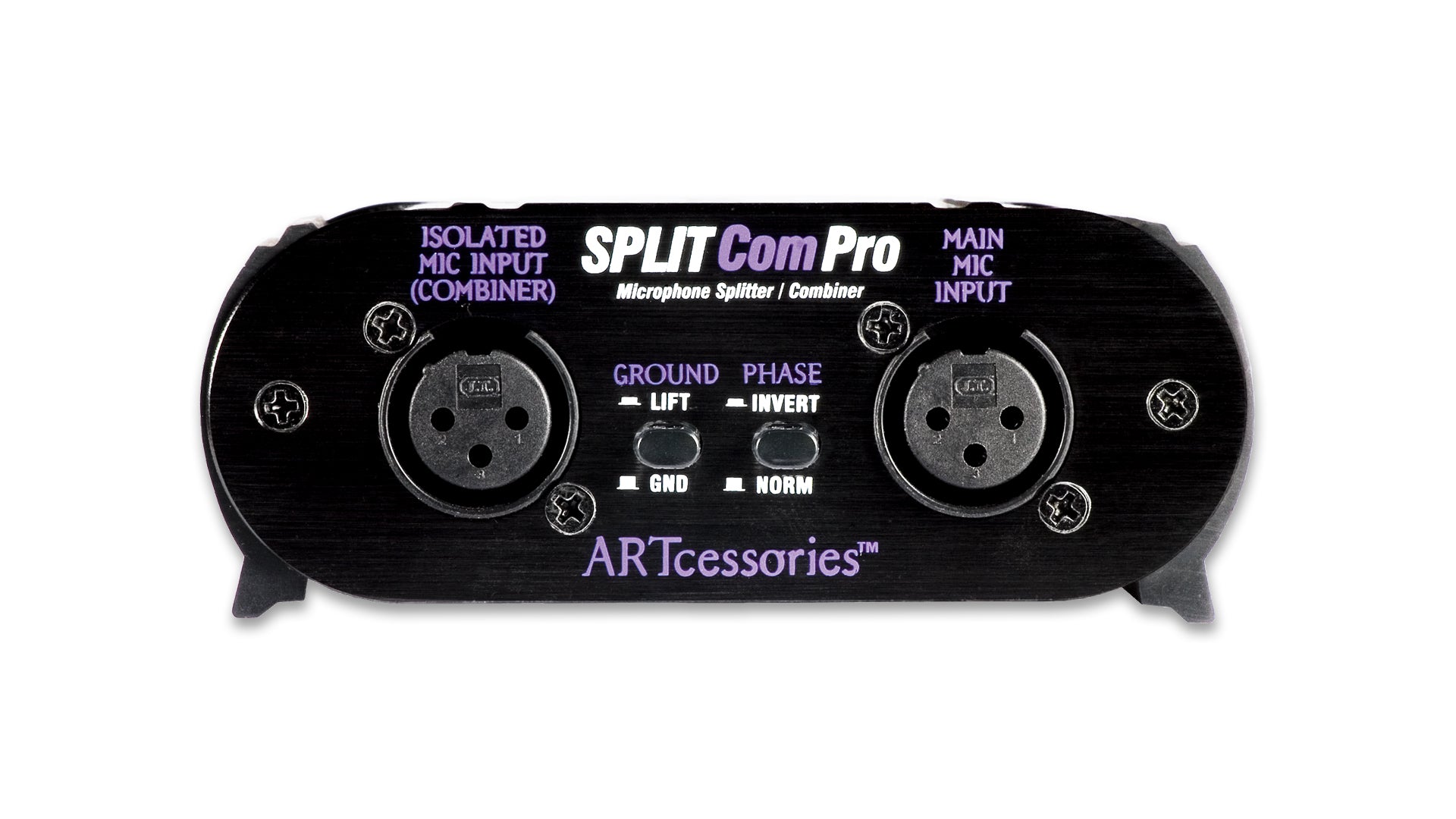

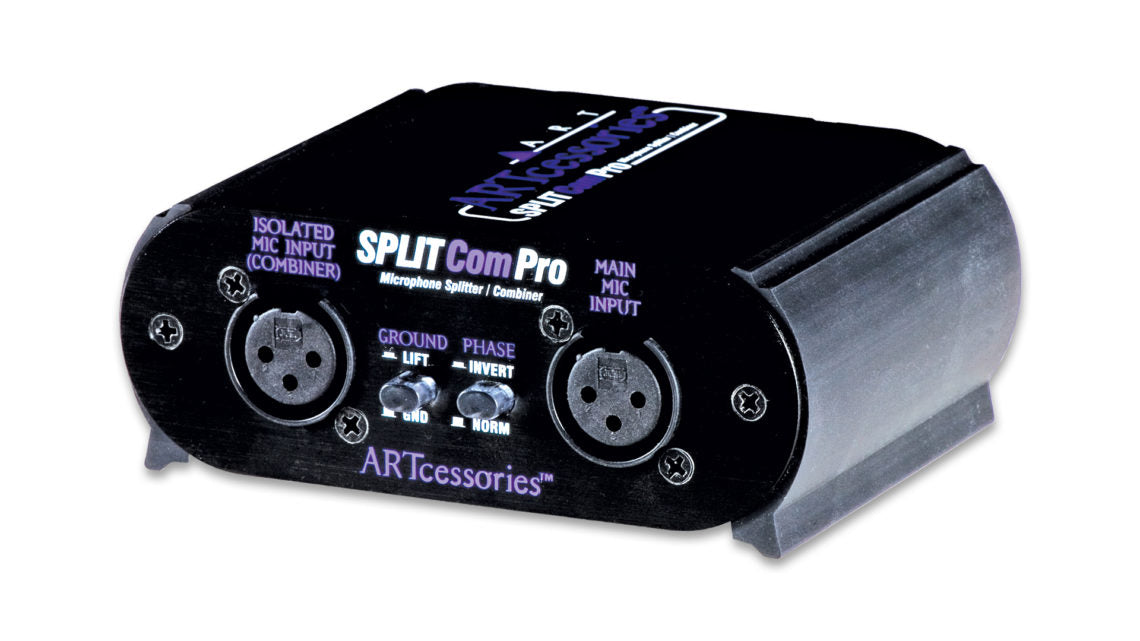

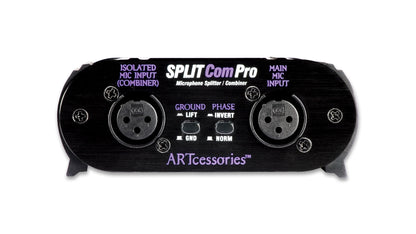

ART SPLITCOMPRO Microphone Splitter/Combiner

Overview

The SPLITCom Pro from ART is a compact and rugged unit that can be used to split or combine low-impedance microphone signals. Part of the "ARTcessories" line, the SPLITCom Pro is ideal for use on stage, in a studio, or in your home.

AS A SPLITTER: The SPLITCom Pro provides one direct-coupled output and one isolated output from a single microphone. Applications include sending the direct output to the main or FOH mixer, and the second isolated output to a monitor or recording mixer. The MAIN MIC OUTPUT passes phantom power from the main mixer to the MAIN MIC INPUT for use with condenser microphones. Phantom power is blocked from passing to the ISOLATED MIC OUTPUT.

AS A COMBINER: The SPLITCom Pro provides one output from two microphone inputs. The PHASE switch can be used to invert the relative phase of the ISOLATED MIC INPUT. Applications include dual micing of percussion instruments, choirs, and instrument amplifiers. Phantom power passes through each output to their respective input, (MAIN to MAIN, ISOLATED to ISOLATED), however phantom power is blocked from passing between the MAIN and ISOLATED signal paths. Only the audio passes between the MAIN and ISOLATED signal paths (it is present on all inputs and outputs).

 Features

• Low Distortion with Wide Frequency Response
• Phase Invert Switch For Subtractive Combining
• Two Functions In One Box – Combines and/or Splits
• Galvanic Isolation To Block Phantom Power Between Channels
• Ground Lift Switch To Reduce Noise Due To Ground Loops

What's In The Box?

• ART SPLITCom Pro Microphone Splitter/Combiner
• Limited 1-Year Manufacturer Warranty
