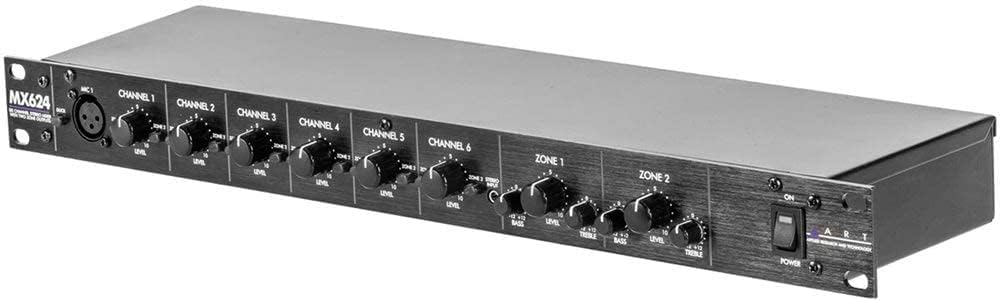

ART MX624 - 6-Channel Stereo Mixer with Two Zone Outputs

Overview

The MX624 Mixer from ART is a 6-channel mixer with two zone outputs, well suited for a wide range of applications including stage, studio, and permanent installs such as for conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more.

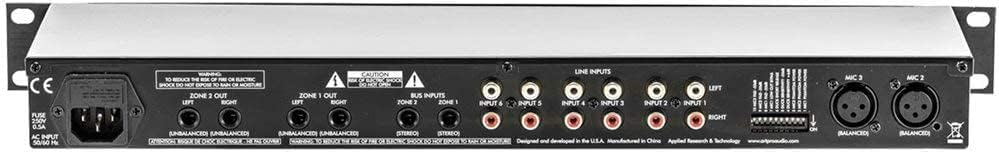

The mixer features 6 stereo RCA inputs with 3 XLR microphone inputs on channels 1-3. Each mic input includes individual +48V phantom power and pad selections, while mic input 1 features a ducking option that attenuates the other channels when engaged. Other inputs include a 1/8" TRS jack for portable music players, as well as a two stereo bus inputs for daisy chaining other mixers.

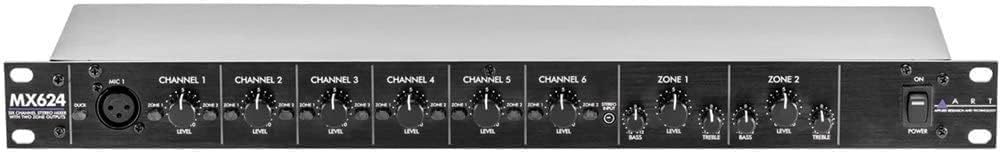

Each channel offers Zone 1 and Zone 2 selections buttons, which route the signal to their respective stereo outputs, while the front panel offers a level control as well as bass and treble tone controls for each output. The MX624 is housed in a 1RU steel chassis with internal power supply and ships with a power cord.

 Features

• Six Stereo Input Channels
• Balanced Microphone Inputs: Channels 1-3
• Optional +48V Phantom on Each Mic Input
• Selectable Pad for Each Mic Input
• Ducking for Mic Input 1
• Portable Music Player Input: 1/8" TRS
• Two Pairs of Unbalanced Zone Outputs
• Daisy Chain Multiple Units w/ Bus Input
• 1RU Rack-Mount Steel Chassis with PSU
• For Stage, Studio, and Installations

What's In The Box?

• ART MX624 - 6-Channel Stereo Mixer with Two Zone Outputs
• Power Cord
• Limited 3-Year Manufacturer Warranty
