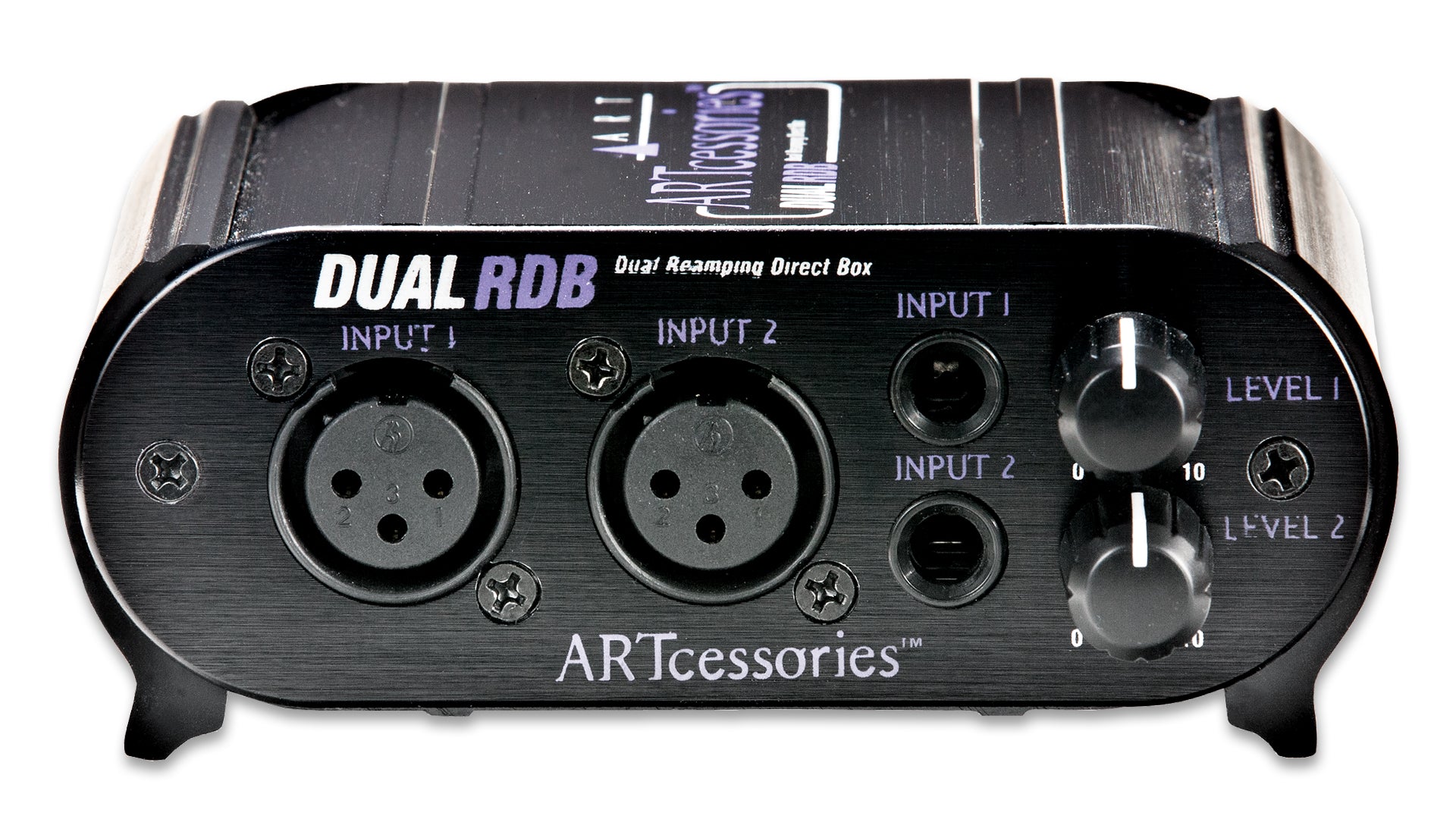

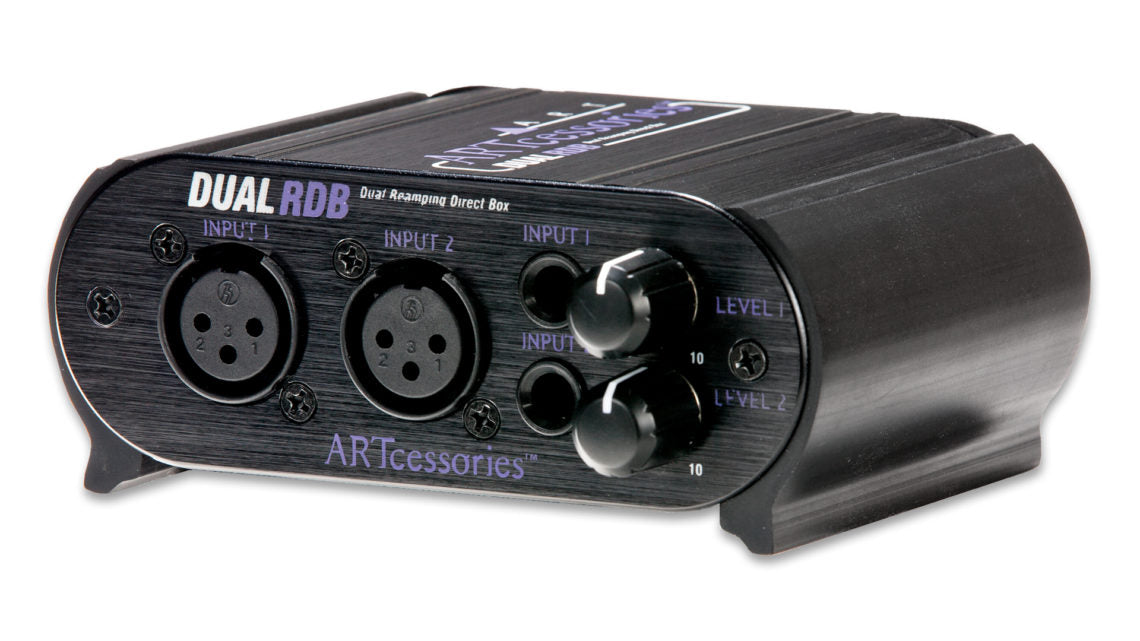

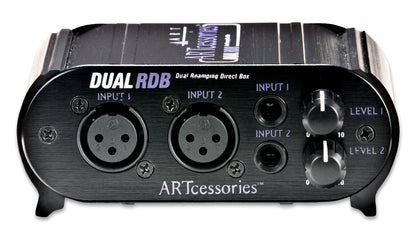

ART Dual RDB - Dual Re-Amping Direct Box

Overview

The Dual RDB is the ideal interface solution for any application where stereo or dual line level signals from recording interfaces, computers, mixers, iPods, consumer audio or video machines need to be connected to XLR microphone or ¼-inch instrument level inputs.

The unit has two high quality isolation transformers that prevent ground loops when connecting various systems together. The Dual RDB accepts 1/4″ TRS and XLR line level inputs and outputs mic or instrument levels. The Dual RDB’s variable level controls allow volume control to be set at the source rather than in the studio, AV room, audio closet or installation rack. A 20Hz to 20kHz frequency response ensures the Dual RDB will function transparently with any high quality audio source

 Features

• Re-amping interface for multiple amps
• Variable Input pad for mic or instrument inputs
• Dual 1/4-inch TRS and XLR balanced line level inputs
• Transformer isolated 1/4-inch TRS balanced instrument level outputs
• Variable Level Controls with Mute
• Channel Two output phase switch
• Stereo/Dual direct box
• Stereo Audio/Video interface to low level inputs
• Transformer isolated XLR balanced microphone level outputs
• 20Hz to 20kHz Frequency Response
• Channel Two source selectable between Channel One or Channel Two Input

What's In The Box?

• ART Dual RDB - Dual Re-Amping Direct Box
• Limited 3-Year Manufacturer Warranty
