Overview

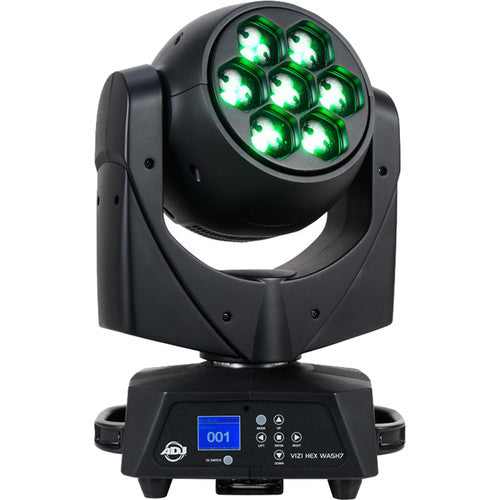

The Vizi Hex Wash 7 Pro Moving Head from American DJ is a 105W professional moving head wash fixture with variable zoom (5 to 55°) and seven 15W HEX (RGBWA+UV) LEDs. Its fixture offers a 5 to 55° motorized beam angle. The moving head features 64 built-in color macros, fast pan/tilt movement, electronic dimming with five dimming curves, and a pan/tilt inversion mode. It also offers contrasting movement when fixtures are linked together.The Vizi Hex Wash7 has 3 DMX channel modes, 3-pin or 5-pin DMX connections, and powerCON In/Out power linking. This fixture is suitable for stages, theaters, churches, nightclubs, concert venues, and event productions.

Features

• High-output LED moving head wash with motorized zoom
• 4-Button DMX LCD menu with 180° Inverse View mode
• Built-in 64 color macros
• Fast pan/tilt movements
• Five dimmer curves
• 16-bit pan/tilt control
• Pan/tilt Inverse Mode for contrasting movement when fixtures are linked together
• Electronic Strobe/Pulse effect
• Random strobe slow to fast
• Fan-cooled
• Includes Omega bracket for truss mounting

Specifications

• Pan and Tilt Range: 630-degree (540 Optional)/Tilt 270-degree
• Colors: 64 built-in color macros
• Dimming: Electronic
• Zoom: Motorized 5 degrees to 55 degrees
• Strobe: Electronic
• Dimmer Curves: 5 dimmer curve
• Operational Modes: 2 modes Program/DMX
• Flicker Free
• Wifly EXR DMX Range: 2,500 feet (line of site)
• Wifly On/Off
• Dimensions (LxWxH): 11.75" x 8 x 15.75" / 300 x 200 x 400 mm
• Weight: 19 lbs./8.5kgs

Optical

• Light Source: 7 (15) Watt HEX RGBWA+UV LED
  Life Expectancy: 50,000 hrs.
• Beam Angle: 5-55 degrees
• Refresh Rate: 1.2kHz

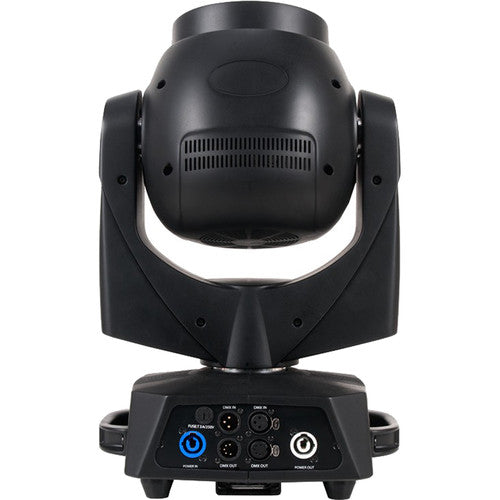

Connections

• Power input: Locking power IN connection
• Power pass through: Locking power OUT connection
• Data: 3 & 5-pin In/Out DMX
• With Wired Digital Communication Network

Control

• DMX Modes: 2, RDM (Remote Device Management)
• On Board: LCD menu 180 degree inverse
• 16 Selectable WiFLY Address Channels

Electrical

• Input Voltage: 100-230 V, 50 Hz/60Hz
• Power draw @ 120V: 137W
• Power draw @ 220V

What's In The Box?

• American DJ Vizi Hex Wash7 Pro Moving Head
• Omega Bracket
• Limited 2-Year Warranty
