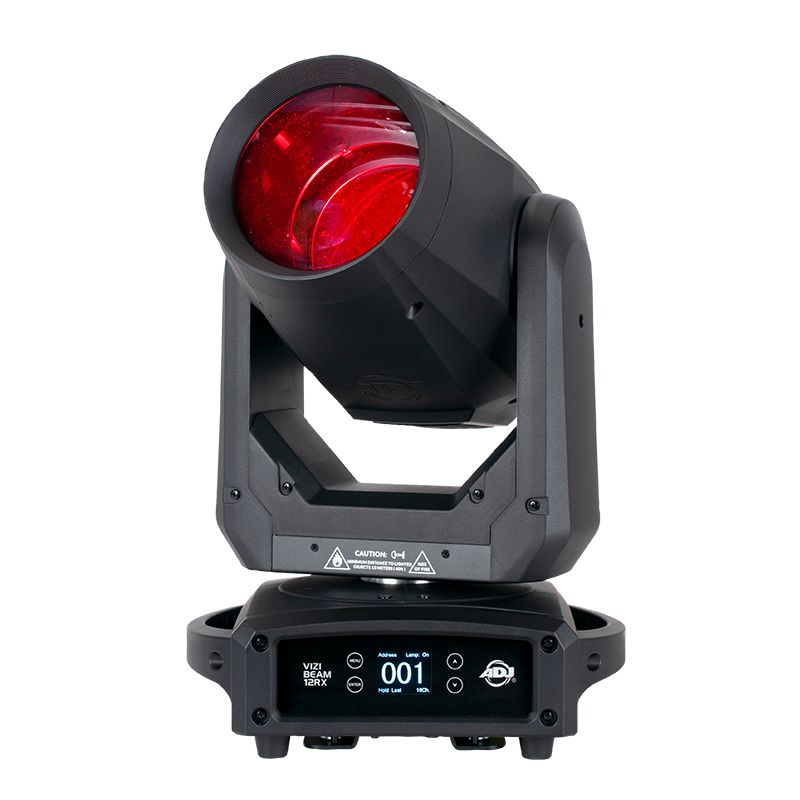

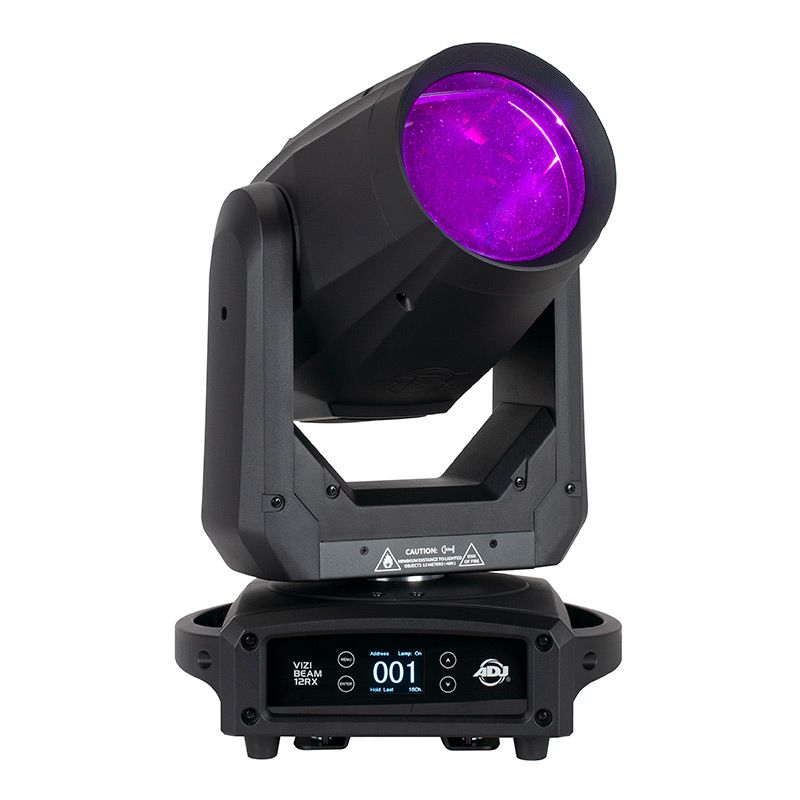

Authorized DealerAmerican DJ VIZI Beam 12RX High-Powered Moving Head Beam
The American DJ Vizi Beam 12RX is an intelligent, high-powered moving head beam fixture that offers a wide selection of dynamic colors and effects to energize your dance floor or live stage productions. The unit utilizes a 260W Philips Platinum 12R LL MSD discharge lamp and produces a razor-sharp 2° beam of light, making it well suited for a concert tour, a theater production, festival stage applications, or large church installations.

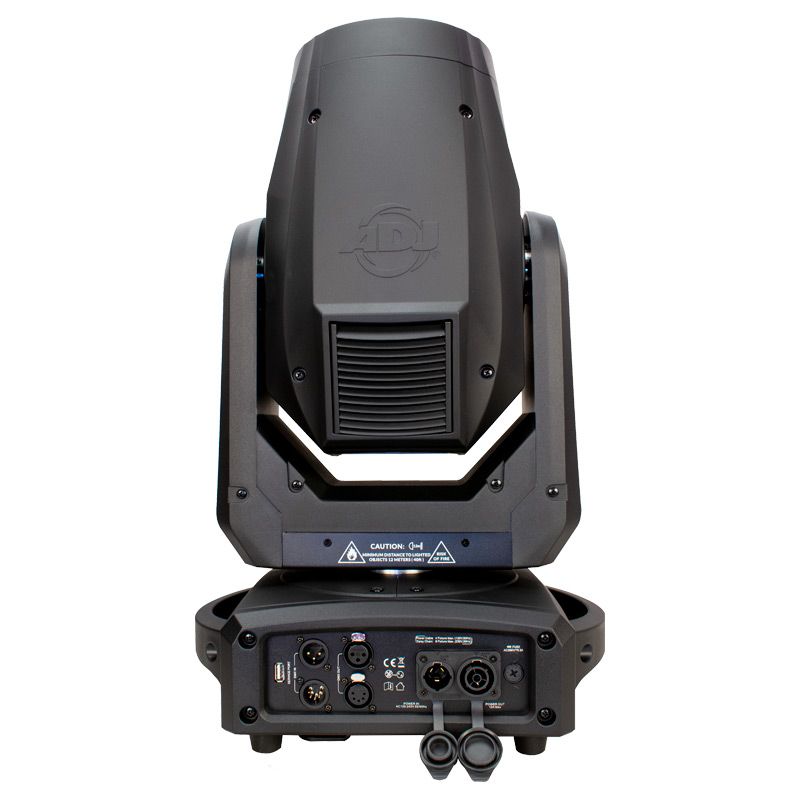

The Vizi Beam 12RX features a color wheel with 14 dichroic colors plus white and includes CTO, CTB, and UV filters for broad selection of colors and tones. Other notable features include 16 gobos + open (with gobo indexing), two rotating prisms (6-facet linear & 24-facet circular), and a frost filter for wash effects. The 12RX offers 2 DMX modes (14 or 16 channels) and RDM control options. It has 3-pin and 5-pin DMX in/out and PowerLock in/out connections to daisy-chain data and power from one fixture to the next. The onboard color display utilizes a 4-button internal menu system. The Vizi Beam 12RX includes an Omega bracket and locking power cord.
- Light Source: 260W Philips Platinum 12R LL MSD
- Color Temperature: 7800K
- Colors: 14 dichroic + white (with CTO, CTB, and UV)
- Beam Angle: 2°
- Gobo Wheel: 16 static gobos + open (4 beam reducer gobos)
- Electronic dimming from 0 to 100%
- Motorized focus (16-bit fine focus)
- Frost filter + wash effect
- Rotating, 6-facet linear and 24-facet circular
- Various strobe speeds
- Pan: 540° (plus 16-bit fine pan)
- Tilt: 270° (plus 16-bit fine tilt)
- Control Modes: DMX512, RDM, or internal programs
- DMX Channel Modes: 14 / 16 channels
- 4-button LCD DMX display
- 3- and 5-pin DMX
- Universal Power: 120/240 VAC
- Includes Omega brackets and locking power cord
