Overview

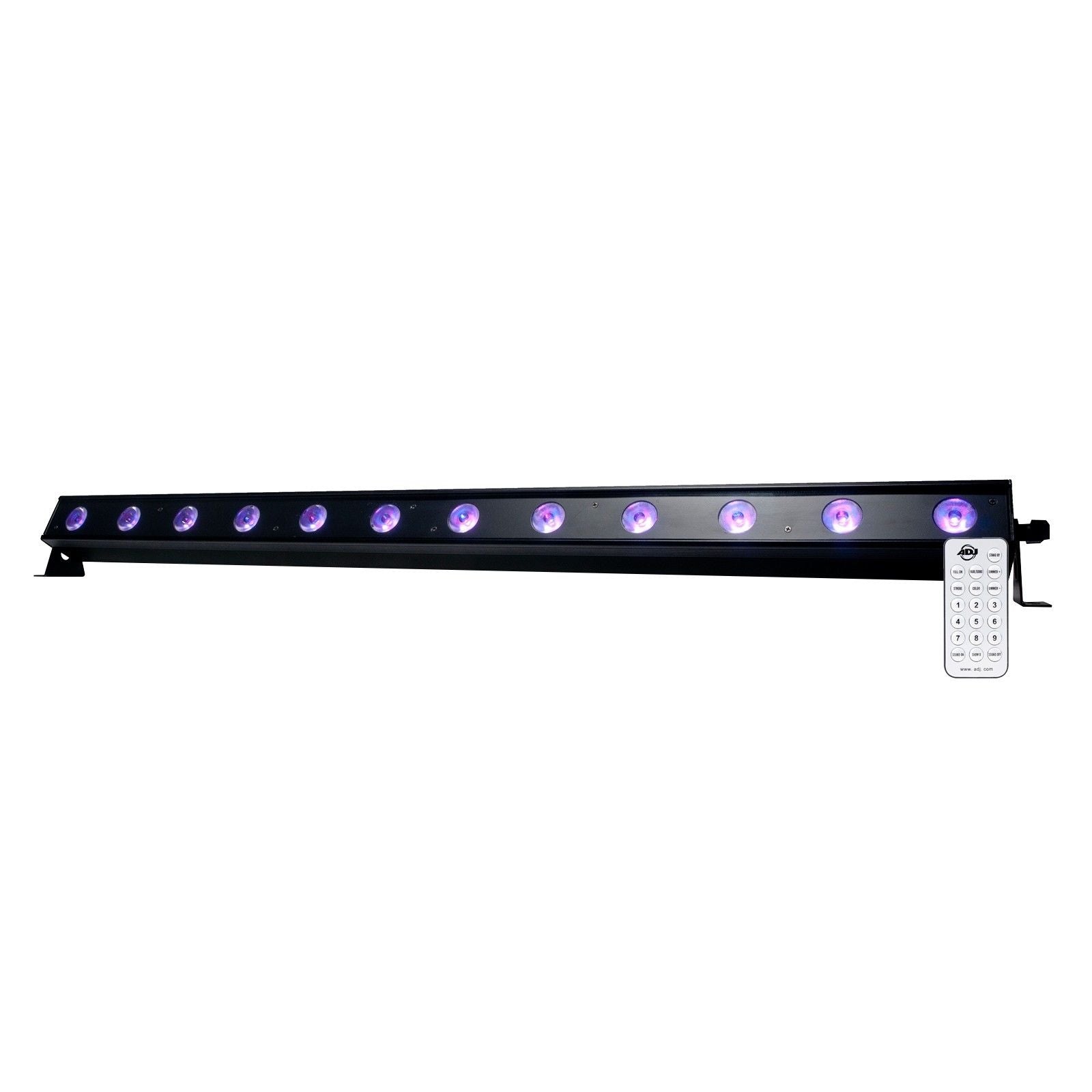

The ADJ UB 12H is a 41.75-inch (1-meter) professional grade indoor linear fixture powered by twelve 6-Watt HEX (6-IN-1) LEDs. Its bright chromatic 40-degree beam angle provides vibrant TRI color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.

UB 12H features built-in Color Macros (built-in colors), 0-100% dimming and variable speed strobe. Plus, it offers flexible programming from its on-board 4-Button LED DMX-512 menu, or from the ADJ UC IR wireless remote included inside the box.

Features

• 41.75-inch (1 meter) indoor Linear Bar with 12x 6W LEDs (RGBAW+UV)

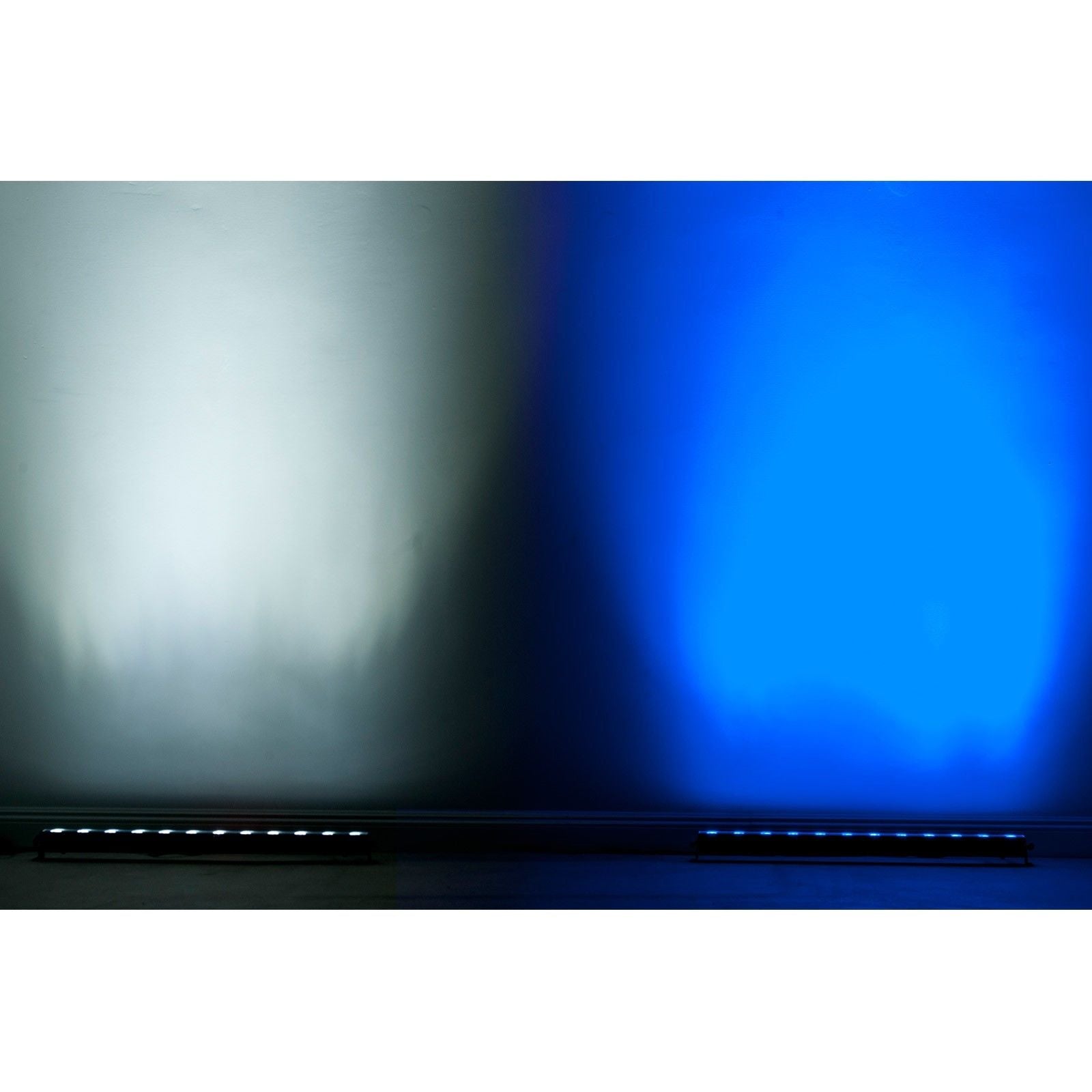

• Great for Stage or Wall Washing!
• 6 DMX Channel modes: Auto (Program Run), Sound Active, RGBAW+UV Dimmer, Static Color, and DMX-512 Mode
• 3 or 6-Section Pixel control

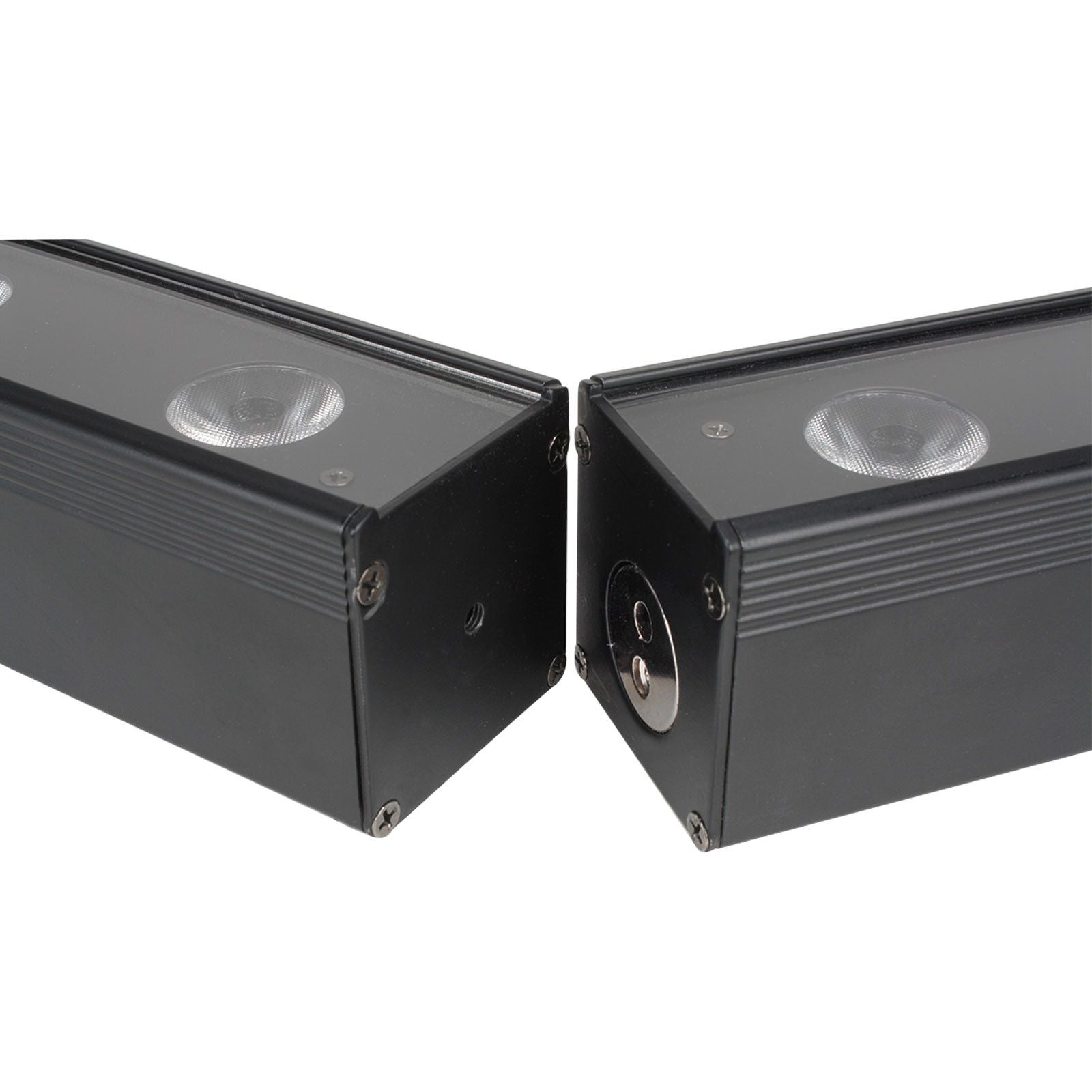

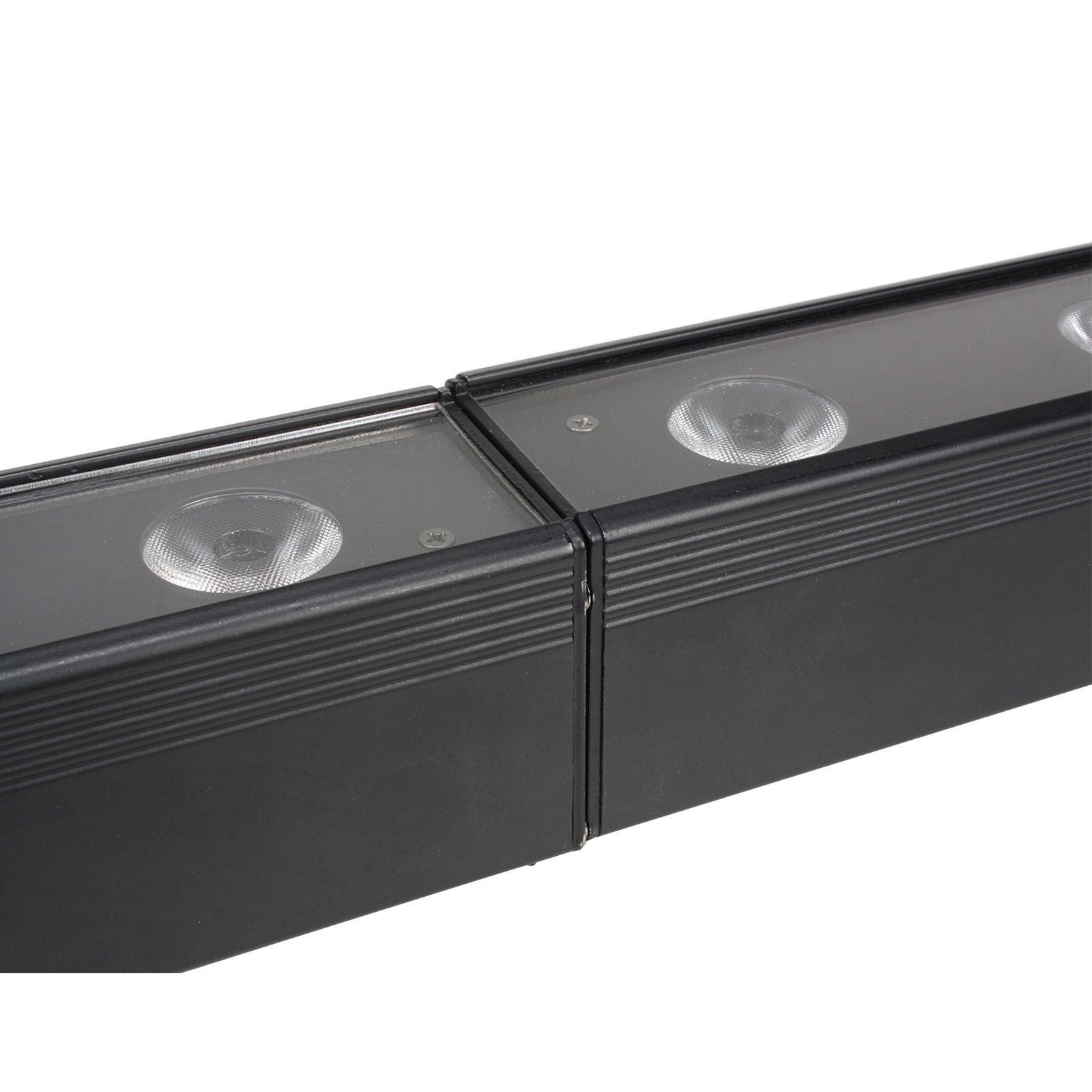

• Patent Pending Quick Align (Magnetic)
• Beam Angle: 40 degrees
• Flicker Free

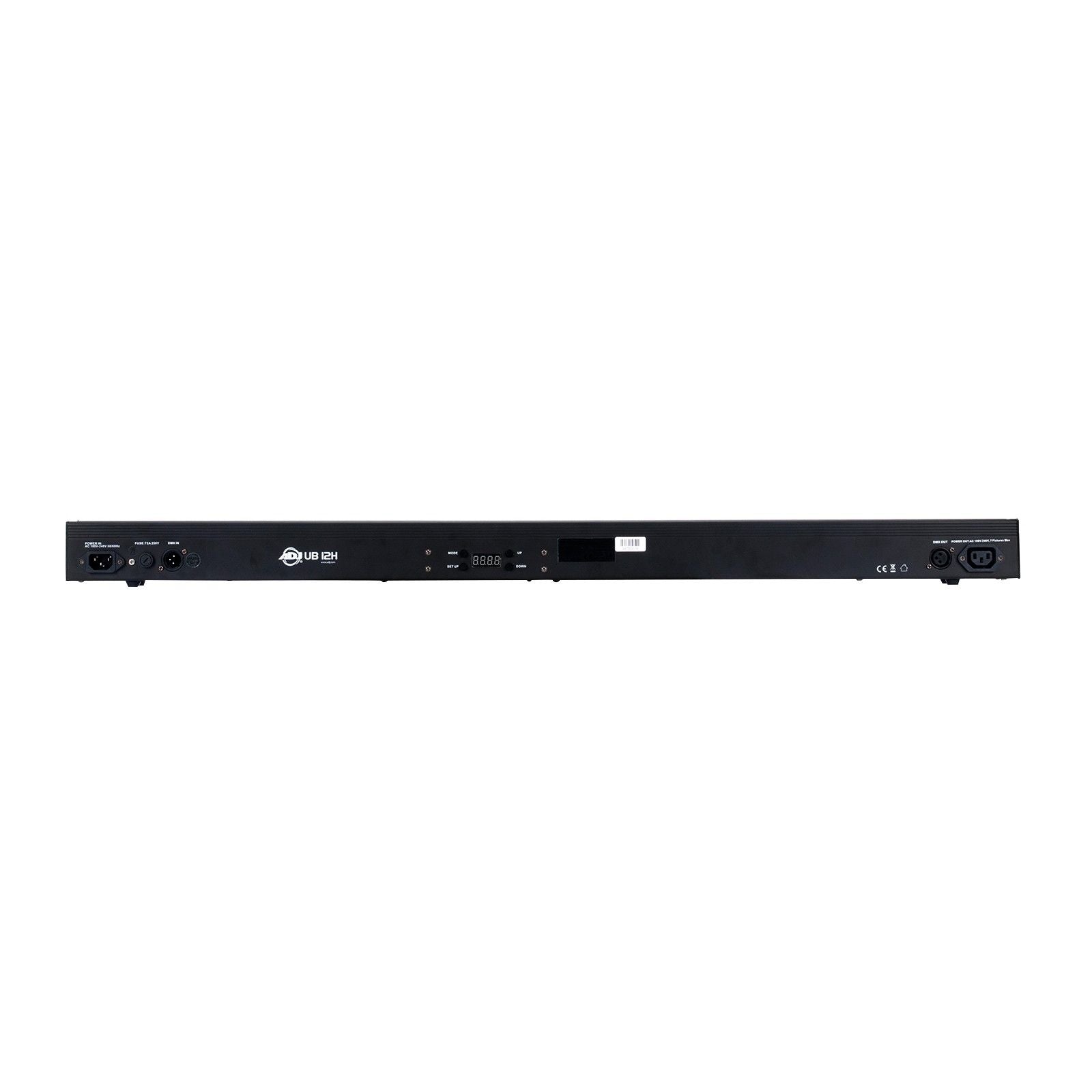

• 4-Button DMX LED Display
• 35 built-in Color Macros
• LED pulse & strobe effect
• Includes mounting brackets to mount on a wall or set on the ground
• Compatible with the ADJ UC IR wireless remote (included) and the Airstream IR APP
• Long Life LEDs (Rated at approximately 50,000 hrs.)

Specifications

• Power Draw: 88W @ 120V
• Linkable: DIMX via 3-pin XLR cable; Power via IEC
• Daisy Chain Power: Up to 7 UB 12H fixtures max @ 120V can be power linked
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Dimensions (LxWxH): 41.75" x 2.5" x 3.75"/1060 x 63 x 90mm
• Weight: 6 lbs/2.7 kg
• cETLus Approved (Control #4002034)

What's in the Box?

• UB 12H Linear Wash Light

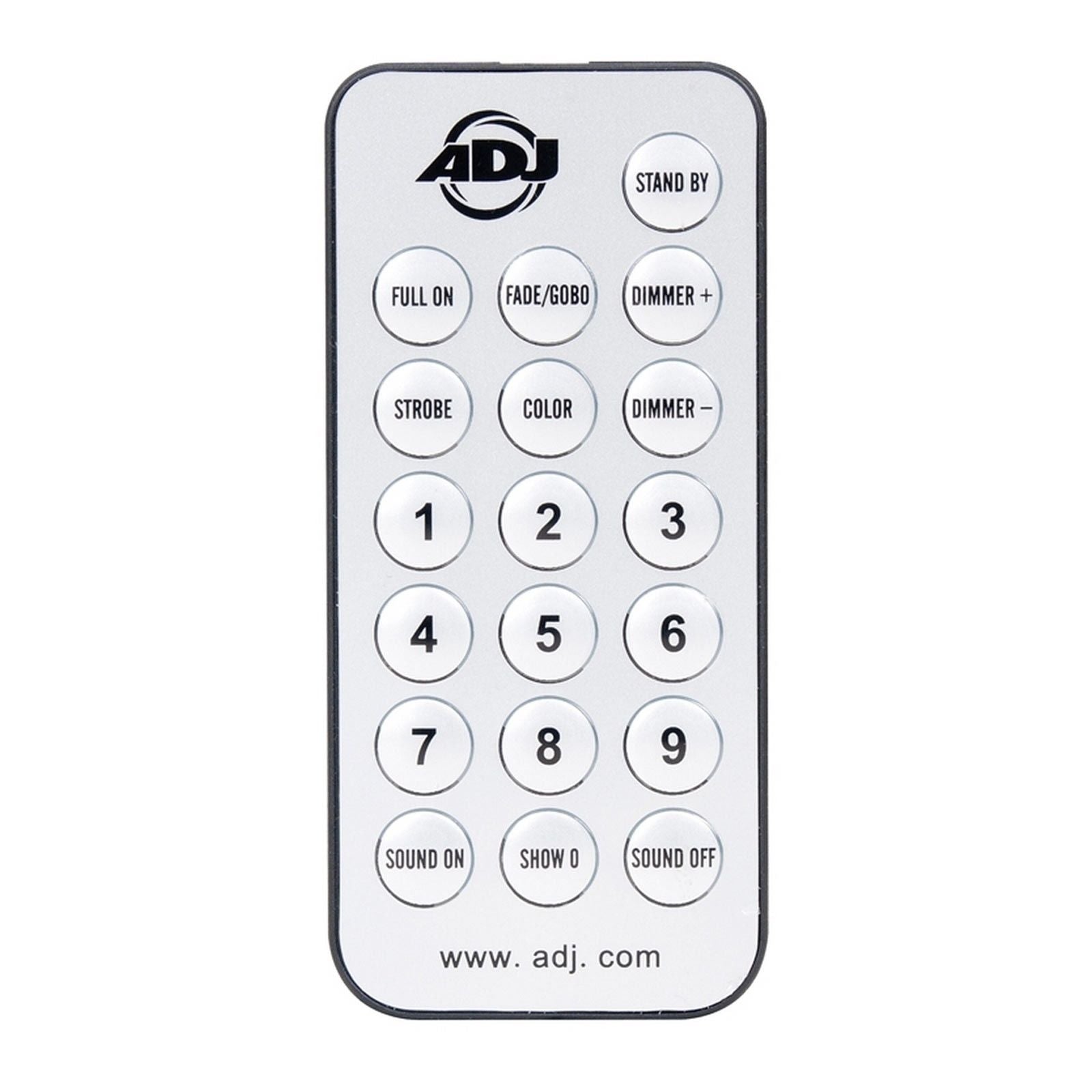

• UC-IR Remote Control
• Mounting Brackets
• IEC Power Cord
